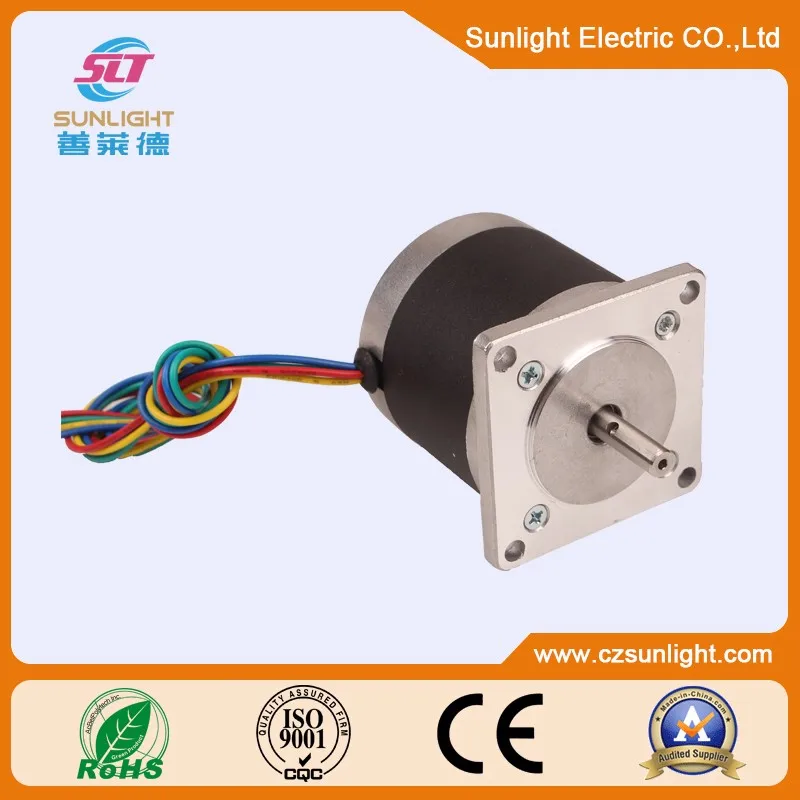

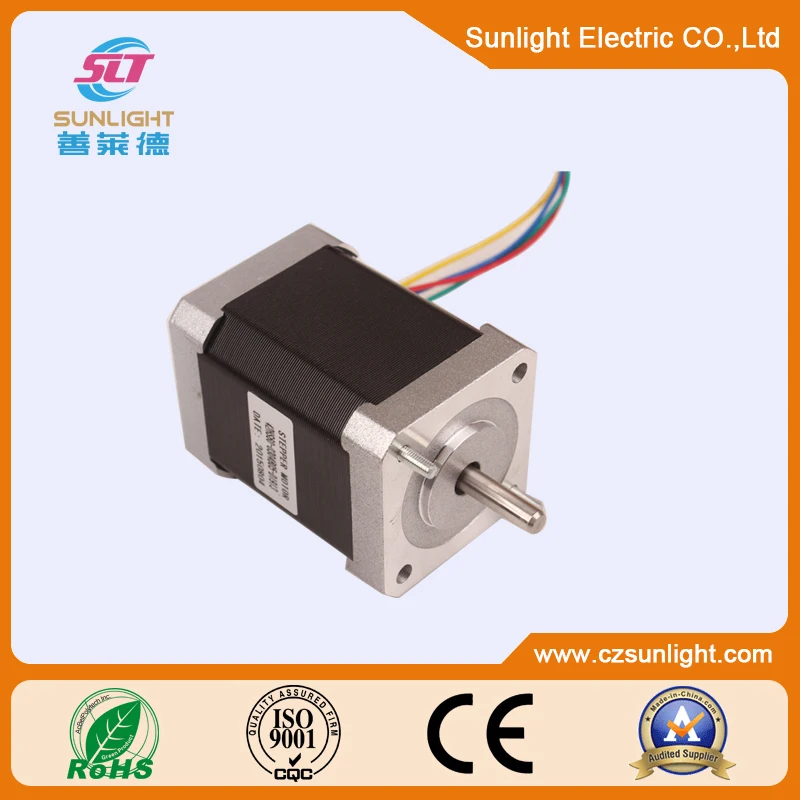

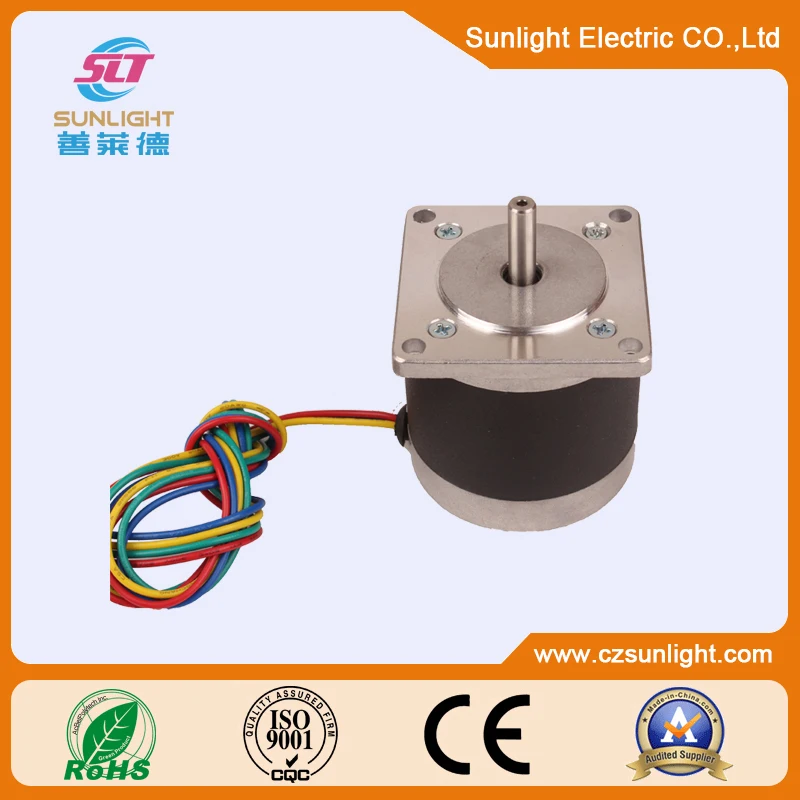

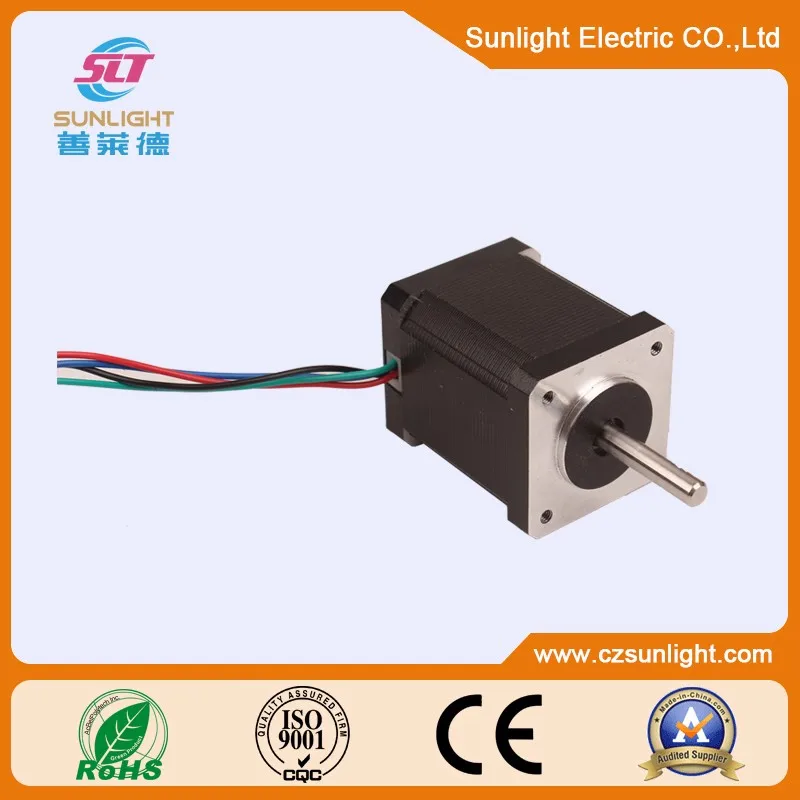

2 Phase Hybrid Stepper motor NEMA23 12V 24V
- Category: >>>
- Supplier: Changzhou Sunlight Electrical Appliance Co. Ltd.
Share on (60487144146):
Product Overview
Description
Product Description
| SLT57HY STEPPER MOTOR | |||||||||||

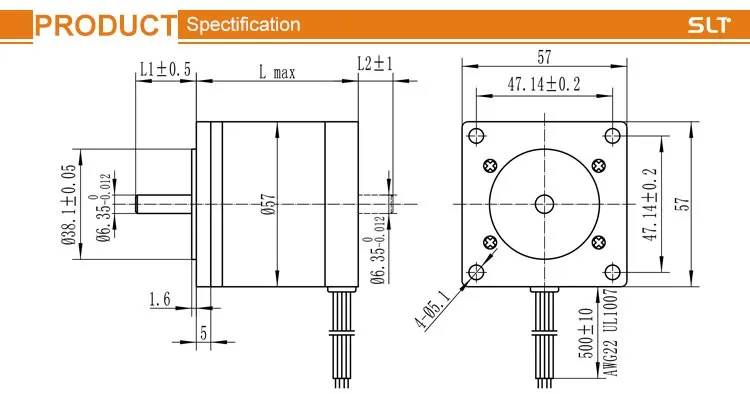

| Specification | |||||||||||
| Model | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight (g) |
| 57HY41-0406 | 1.8 | 12 | 0.4 | 30 | 30 | 2.8 | 180 | 57 | 41 | 6 | 0.54 |
| 57HY41-1504 | 1.8 | 2.85 | 1.5 | 1.9 | 4 | 3 | 180 | 57 | 41 | 4 | 0.54 |
| 57HY41-2104 | 1.8 | 1.68 | 2.1 | 0.8 | 1.4 | 3.2 | 180 | 57 | 41 | 4 | 0.54 |
| 57HY51-0426 | 1.8 | 12 | 0.42 | 29 | 36 | 5 | 350 | 110 | 51 | 6 | 0.6 |
| 57HY51-1504 | 1.8 | 3.75 | 1.5 | 2.5 | 6 | 6 | 350 | 110 | 51 | 4 | 0.6 |
| 57HY51-2004 | 1.8 | 2.6 | 2 | 1.3 | 3.2 | 6 | 350 | 110 | 51 | 4 | 0.6 |
Company Information
Our factory Rongda was founded in 1990, sunlight built the international sales team from 2015,it belongs to Rongda Group which was built in 1990.
Sunlight is specialized in providing DC Motor, Brushless Motor, Stepper Motor, Radiator Fan, Condenser Fan and other Parts. We also provide professional solutions for customers. The products are widely used in Home appliance, Office equipment, Transportation, Medical products ,Garden tools and so on. Our customers come from European, America, Asia, Africa,Middle East and other countries.
We always try our best to promote the development of motor industry and provide best service to our customers.
Help our customer to find the valuable products, Lead our factory to the world and build their brands.
FAQ
Q1: Can I have a sample for testing?
A1: Of course, we can provide some samples for you to test before you place an order.
Q2: Can you provide detailed technical data and drawing?
A2: Yes, we can. Please tell us which product you need, so that we can send the detailed technical data and drawing to you for checking.
Q3: Can I visit your factory before we place an order?
A3: welcome to visit our factory, we are very pleased if we have the chance to know each other more.
Q4: What kind of certificates can you provide?
A4: Our factory have TS16949 and ISO9001, at the same time We can provide the 3C, ROHS, CE certificates based on customers’ requests.
Q5: Can you provide OEM or ODM service?
A5: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Q6: How to control the products’ quality in your company?
A6: We have many advanced testing machines and strict testing procedures. All the products have passed 100% qualified testing before the products leave our factory.
