electric actuator for recliner lift chairs
- Category: >>>
- Supplier: Derock Linear Actuator Technology Co. Ltd.
Share on (60487181896):
Product Overview
Description
Product Description
Drawing for Linear Actuator YLSZ12

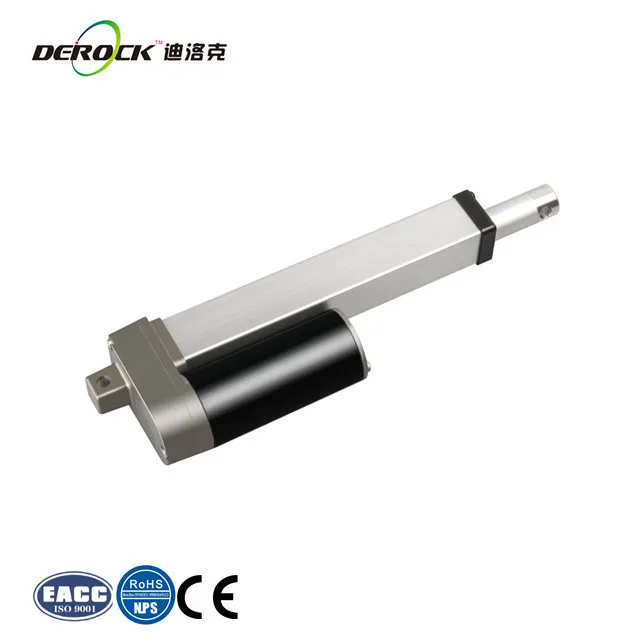

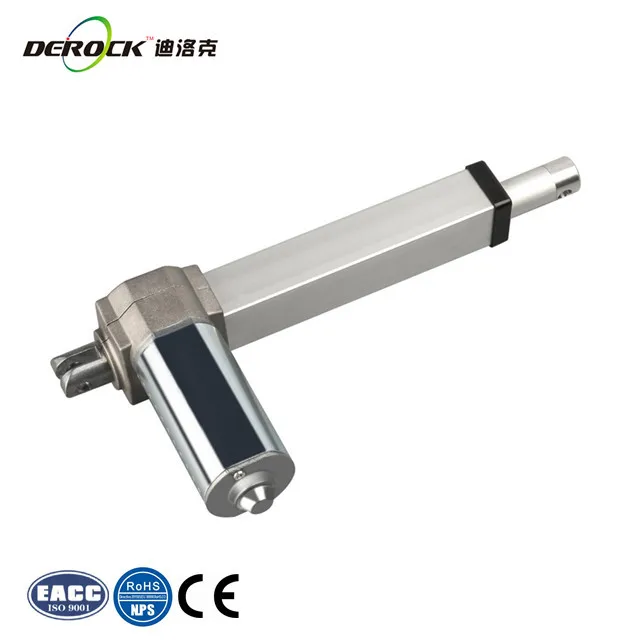

electric actuator for recliner lift chairs
| Product Name | YLSZ12 | ||
| Drive Type | Single motor drive | ||
| Type of Load | Push/pull | ||
| Protection Category | IP44 | ||
| Limit Switch | Built-in | ||
| Voltage | 12V/24VDC | ||
| Mounting Dimension | Min: 130mm+stroke; Max: 130mm+stroke+stroke (see below drawing) | ||
| Stroke | Customized (better to be under 1000mm) | ||
| Speed | 4-48mm/s | ||
| Load Capacity | 6000N max. | ||
| Mounting hole | φ10 (mm) | ||
| Certificate | CE, UL, RoHS | ||
| Duty Cycle | Max. 10% or 2 minutes in use followed by 18 min. rest | ||
| Application | Massage chair, functional bed, recliner lift chair | ||

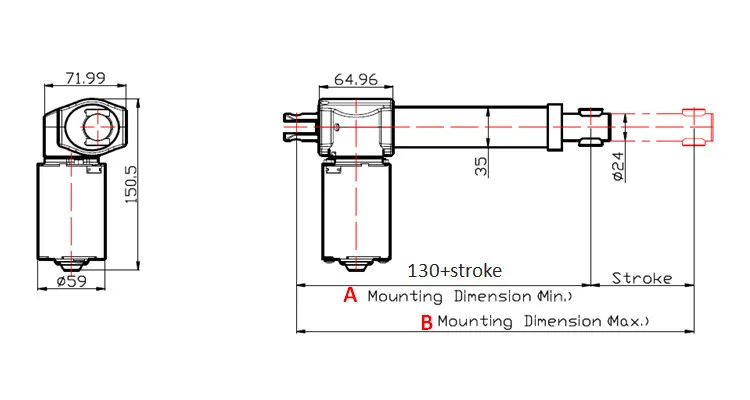

Drawing for Linear Actuator YLSZ12
A=min.mounting dimension=130mm+stroke (130mm can be longer)
B=max.mounting dimension=130mm+stroke+stroke
Main Features
1) Limit switch built-in.
2) Hall sensors for precision control and positioning (optional)
3) Low noise≤50dB
4) Flexible mounting hole, which can rotate 90° vertically.
2) Hall sensors for precision control and positioning (optional)
3) Low noise≤50dB
4) Flexible mounting hole, which can rotate 90° vertically.
Product Application

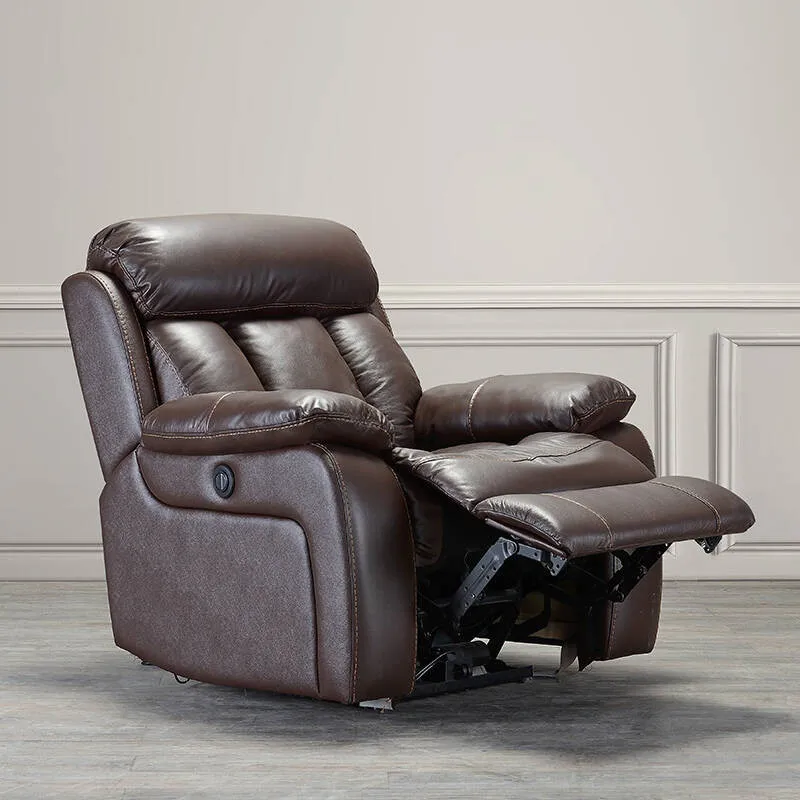

linear actuator for recliner lift chair

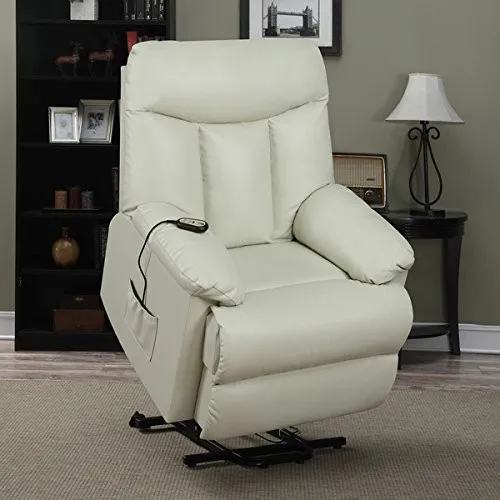

linear actuator for recliner lift chair

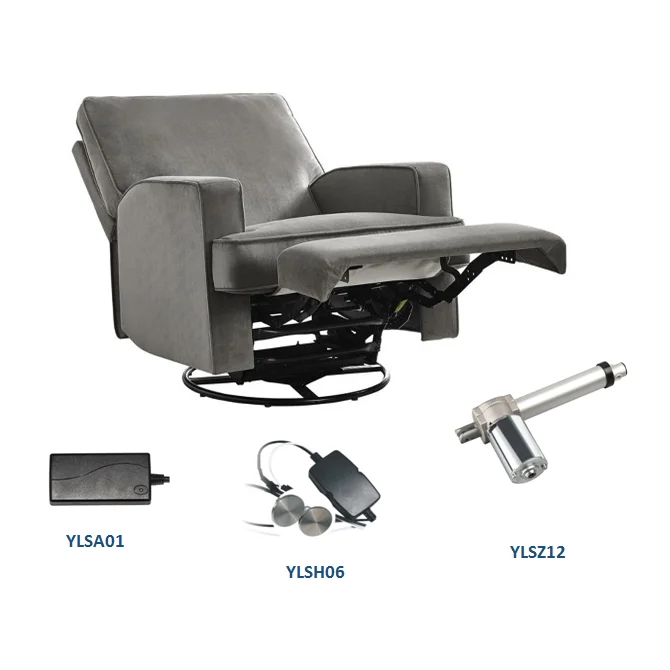

electric actuator for reclining sofa
Our products can be used in intelligent furniture like: massage chair, electric sofa and bed, TV lift, window
opener, coffee machine, dust bin opener, cabinet, wardrobe;
In medical care like hospital bed, dental chair, hoist equipment.
In office like height adjustable table, projector;
In auto industry like car seat;
Waiting for you to tell us more application......

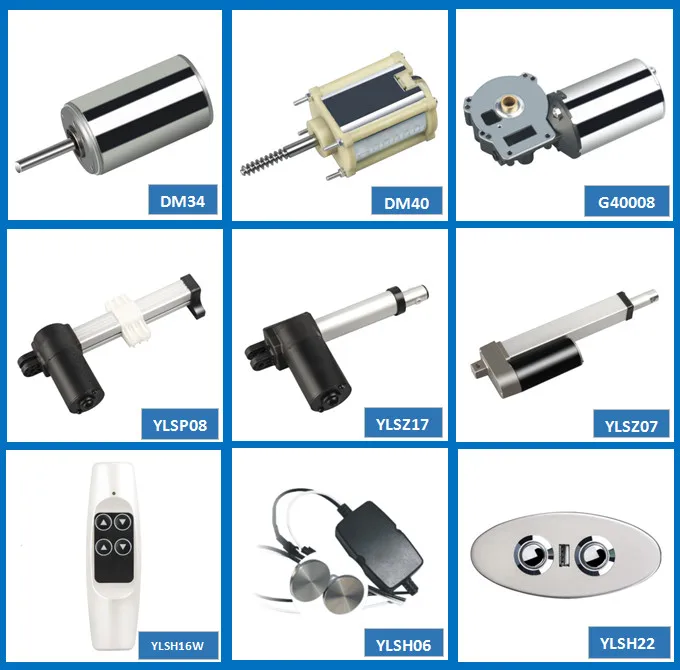

Related Products
We provide a wide range of products.
Linear actuator, DC motor, controller...
and we provide comprehensive control system for different application.

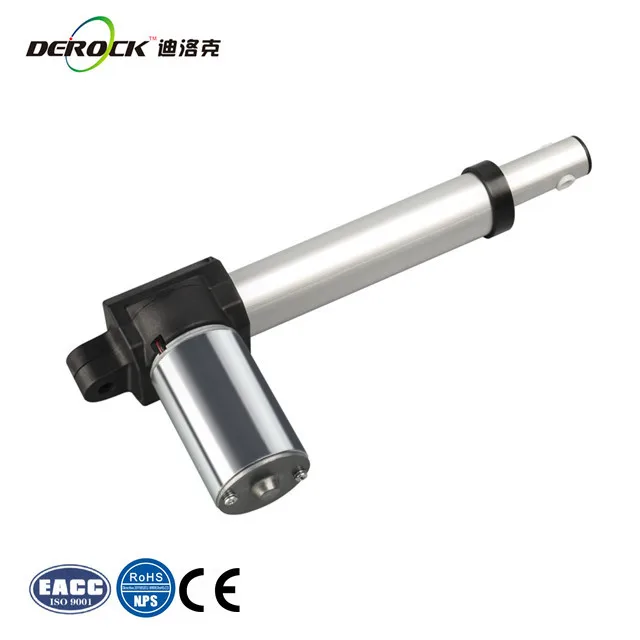

small linear actuator for Recliner Lift Chairs
mini linear actuator for recliner chair parts
12v electric actuator mini linear actuator
compact design and low price
Certification

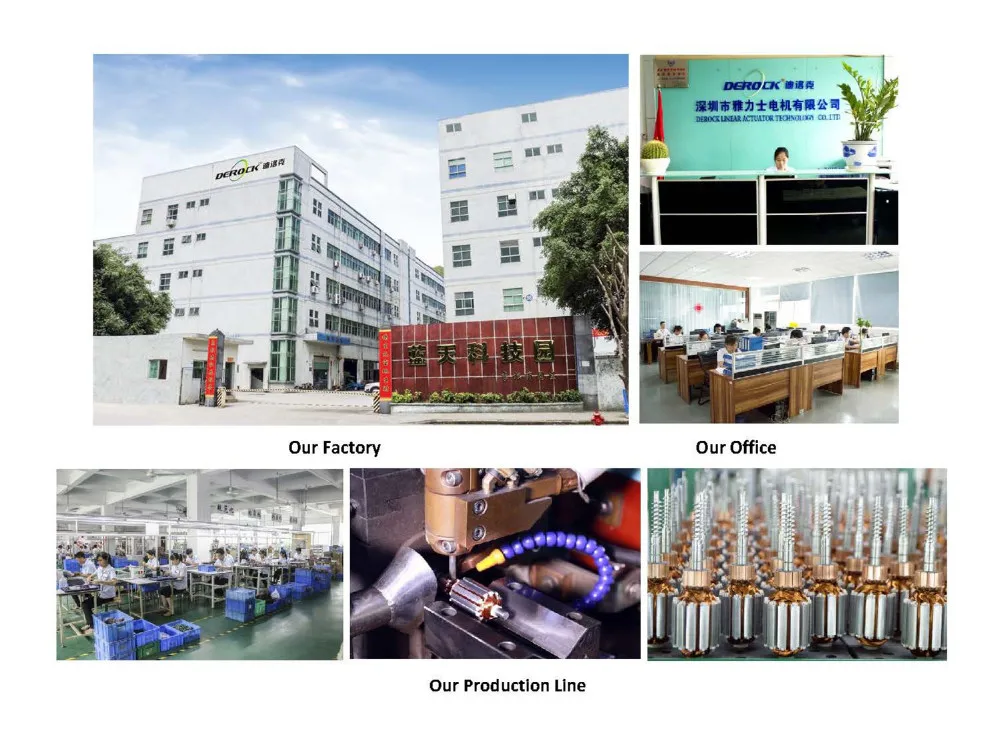

About Us
Derock was founded in 2009, located in front line of China's Reform--Shenzhen Special Economic Zone.
We specialize in research and development, production and sales of dc motor, linear actuator and control
system.
We have several subsidiaries, except linear actuator factory, we have an injecction mold factory, and a
carbon brush (for motor) factory. All the plastic parts are produced by ourselves.
Exhibition
The next fair →
We have many domestic furniture fairs every year, like Guangzhou Interzum, China Sports Show, Shanghai
FMC.
And we have more and more international furniture fairs now, like Index Mumbai, IMM Cologne, Cologne
Interzum, High Point Furniture fair...
We are exploring more areas and markets, hope to see you in the fair !
The next fair →
Derock Booth Number: D-041B
Packing & Delivery
Contact Us
Packing
Poly bag for every actuator → Cardboard between every layer → Cartons packed into pallets
Delivery
All available shipping ways could be applied, by courier, air or sea.
Accept appointed shipping company.
Full-way tracking the cargos for you before the goods arrive.
