Product Overview

Description

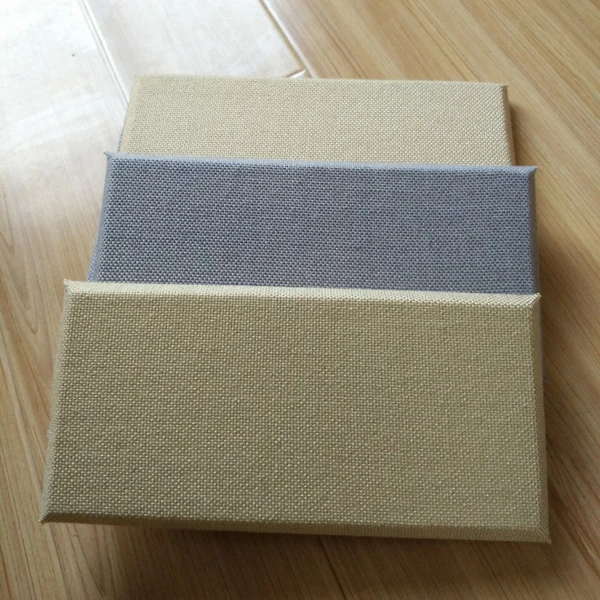

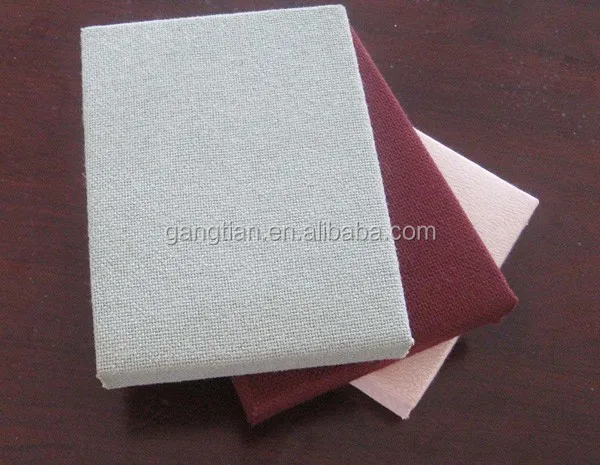

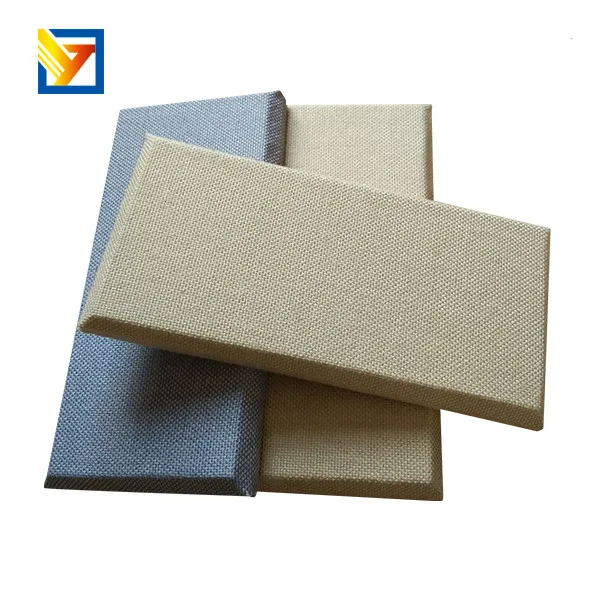

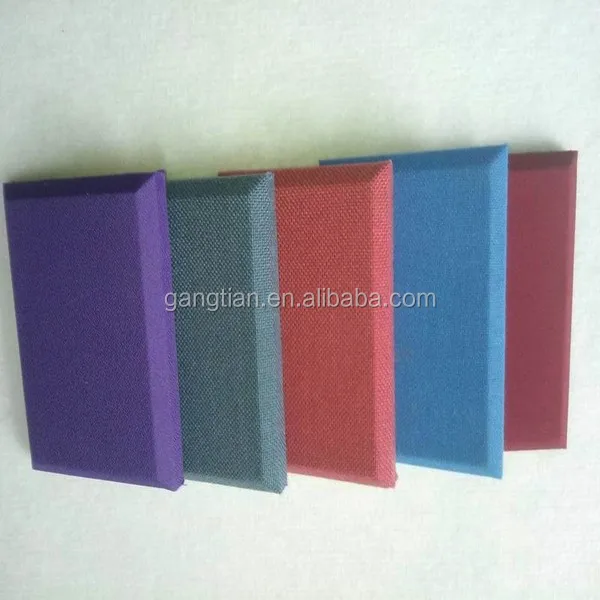

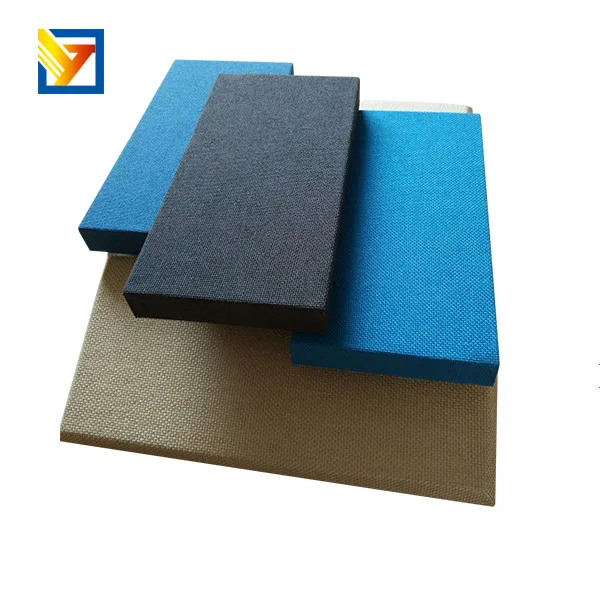

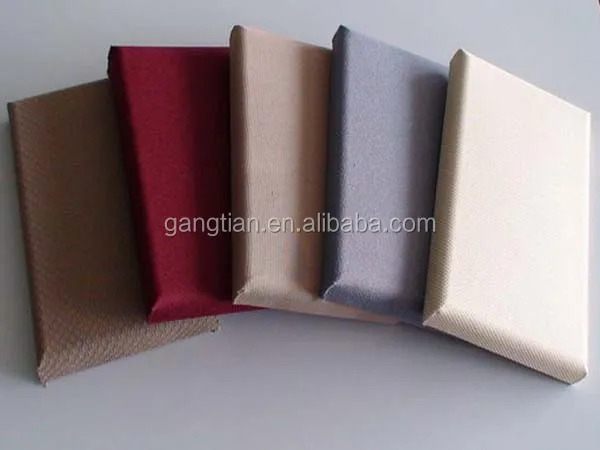

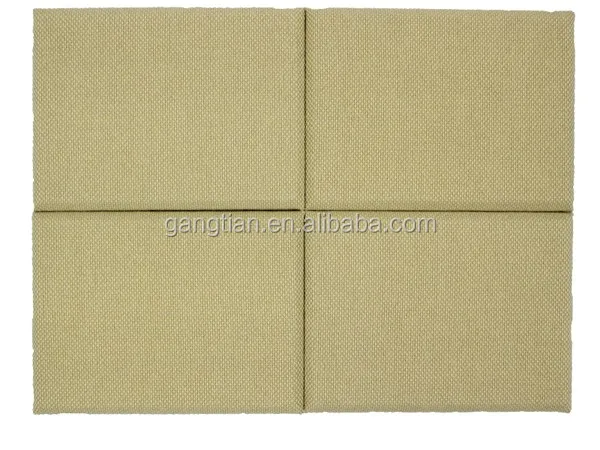

Sound proof insulation cloth fabric interior wall decorative panel

Sound proof insulation cloth fabric interior wall decorative panel is a decoration material, using flame retardant resin border placed fireproof Class A specially designed non-combustible sound-absorbing cotton, made of outsourcing fireproof treatment flame-retardant B1 level acoustic fabric or leather, which is characterized by available for a variety of colors and patterns to choose from, the finishes cloth material can be adjusted according to the requirements of the acoustic renovation or investors; fabric acoustic panels sound absorption spectrum is high, which have fairly good results for low, medium and high frequency noises, and good fire-proof, no dust pollution, strong decorative and simple to use.



Structure

resin frame, plastic frame, wood-made frame, or Al-alloyed frame inside which is inflammable sound absorption cotton board, outside which is fireproofing sound absorption cloth.



Type

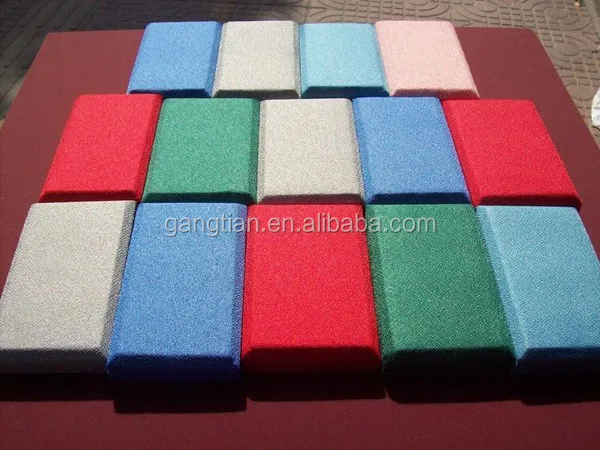

square corner, round corner, oblique angle, big oblique angle



Specification

Standard sizes are 1200mm x 600mm and 600mm x 600mm. And the size can be customized.

The standard thickness is 25mm. Can be made to be 15mm/50mm thickness.



L1200mm×W600mm×H25mm



L1200mm×W600mm×H50mm



L600mm×W600mm×H25mm



L600mm×W600mm×H50mm (or customized)



Character

1. Sound absorption property: NRC 0.8~1.0



The inside glass fiber is a porous material. Like other porous material, the FABRIC ACOUSTIC PANELsound absorption coefficient increases with the sound frequency. sound absorption coeffecient can reach 0.8~1.1. FABRIC ACOUSTIC PANEL



2. Decorative property

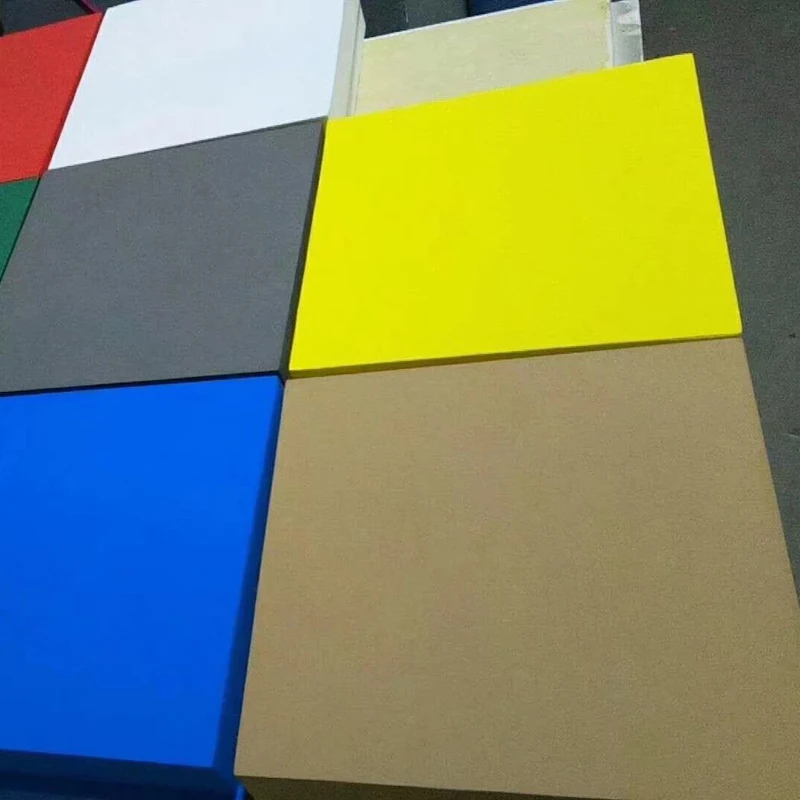

Ithas excellent decorative effect. We offer you a wide range of colors in woven fabric for choice.



3. Fireproof property: GB8624-1997 Class B1



Public places like theaters, dance halls, Auditorium, multi-purpose hall, gymnasium etc. have high requirements on fireproof protection. Tested by National Fire Decetion Testing Center, FABRIC ACOUSTIC PANEL complies with the Class B1 requirements of GB8624-1997 standard.



4. Security property: low formaldehyde emmission GB18580-2001 E1



Thanks to its excellent physical property, FABRIC ACOUSTIC PANEL has no risk of falling and hurting people. Tested by National Research Center of Testing Techniques for Building Materials, the FABRIC ACOUSTIC PANEL formaldehyde release quantity is 0.1 and complies with the E1 grade requirements of GB18580-2001 standard.



Installation

Glue onto the wall directly.

Keel installation: glue sound-absorbing soft pack with the wall, the dragon skeleton and other soft pack need to install sound-absorbing objects bonded together, hit the side of the soft pack around the upper body nailing.



Application

Public places or private life space: theaters, recording studio, television station, music hall, auditorium, stadium, large entertainment city, hotel, KTV, museum, library, banks, courts, multi-function hall, meeting rooms, business office, or advanced villa etc.
