1000L Stainless Steel GMP Standard Agitator Dish Washing Liquid Mixer Homogenzing Mixing Tank For Hand Wash Products
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (60487213676):
Product Overview
Description
Product Description
The mixing tank integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions, is suitable for the production of various kinds of liquid washing, liquid detergent, shampoo, liquid soap, perfume, paste, cream, lotion, ointment, hair color cream, pomade etc products in cosmetic factory,chemical factory and pharmaceutical factory.
Features
1. The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products
of different processes according to customer requirements.
2. The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials. during the liquid detergent production process so as to save energy consumption and shorten production period.
3. The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
4. According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
of different processes according to customer requirements.
2. The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials. during the liquid detergent production process so as to save energy consumption and shorten production period.
3. The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
4. According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
Technical Parameters
Volume (L) | Stirring Power (kw) | Stirring Speed (r/min) | Homogenizing Power(kw) | Homogenizing Speed(r/min) | Heating Method |
50 | 0.75 | 0-80 | 1.1 | 0-3000 | Electric or Steam Heating |
100 | 1.1 | 0-80 | 1.5 | 0-3000 | |
200 | 1.5 | 0-80 | 2.2 | 0-3000 | |
300 | 2.2 | 0-80 | 3.0 | 0-3000 | |
500 | 3.0 | 0-80 | 4.0 | 0-3000 | |
1000 | 4.0 | 0-80 | 5.5 | 0-3000 | |
2000 | 5.5 | 0-65 | 7.5 | 0-1500 | |
3000 | 7.5 | 0-65 | 11 | 0-1500 | |
5000 | 11 | 0-65 | 15 | 0-1500 |
Detailed Images
Agitator
1. Structure: Anchor type mixer with PTFE scraper.
2. Material: SUS316L.
3. Stirring Method: One-way stirring.
4. Motor Brand: Siemens or as required.
5. Running Speed: 0-65rpm, Frequency control.
2. Material: SUS316L.
3. Stirring Method: One-way stirring.
4. Motor Brand: Siemens or as required.
5. Running Speed: 0-65rpm, Frequency control.
6. Siemens motor with reducer provide strong and stable power for mixer, Panasonic brand frequency inverter, PTFE material scrape blade, Flange shaft coupling.
Homogenizer
1. Structure: Bottom Homogenizer.
2. Material: SUS316L
3. Motor Brand: Siemens or as required.
4. Running Speed: 0-3000RPM, Frequency control.
2. Material: SUS316L
3. Motor Brand: Siemens or as required.
4. Running Speed: 0-3000RPM, Frequency control.
5. Rotor and stator high shearing homogenizer..

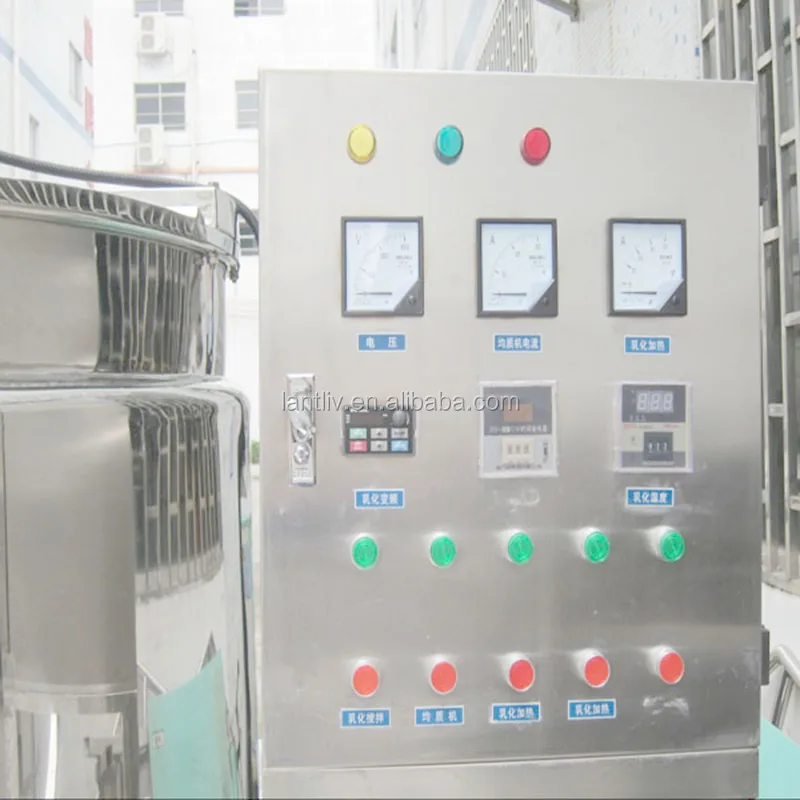

Operating control box
1. Material: SUS304
2. Structure: Button or PLC touch screen.
3. Famous domestic electrical components or as required.
2. Structure: Button or PLC touch screen.
3. Famous domestic electrical components or as required.
Discharge port
1. Discharge Pump: Rotor pump or diaphragm pump.
2. Material: SUS316L.
3. New designed cam rotor pump for bottom discharge. Non residual, Angle of outlet suitable for products discharge easily. fast
connection with pipes and pumps.
2. Material: SUS316L.
3. New designed cam rotor pump for bottom discharge. Non residual, Angle of outlet suitable for products discharge easily. fast
connection with pipes and pumps.
Packing & Delivery

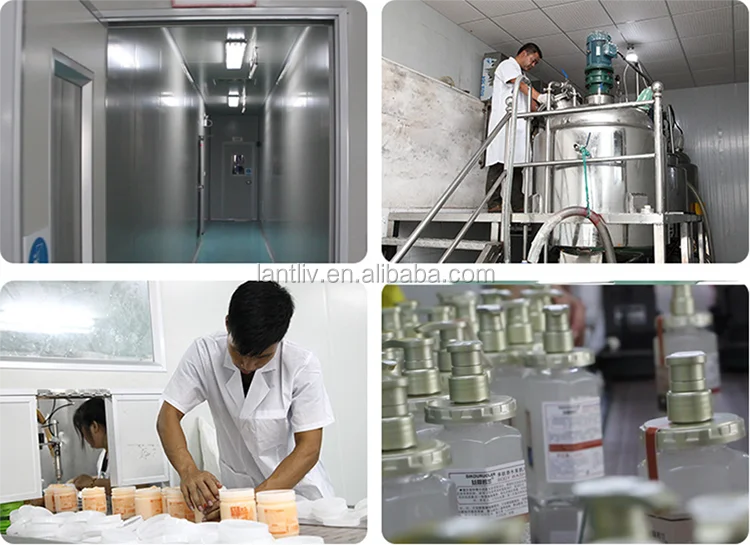

Workshop production
Our Service
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
After-Sales Service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
Maintenance Guidence
1. Keep the equipment looks clean, no watermarks, smooth
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible
3. Check on the homogeneous blade usually, Are there loose screws
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound
6. We can supply the whole production line

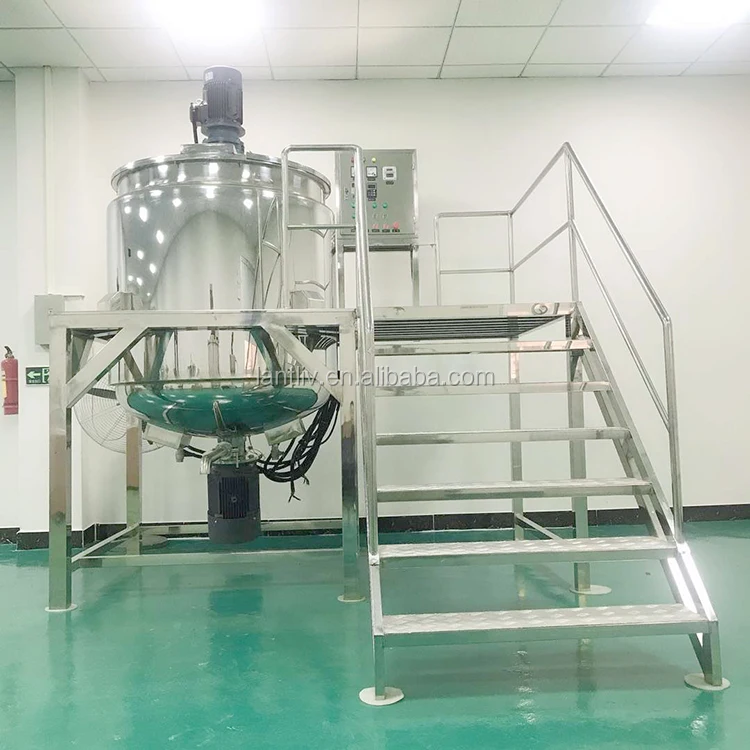

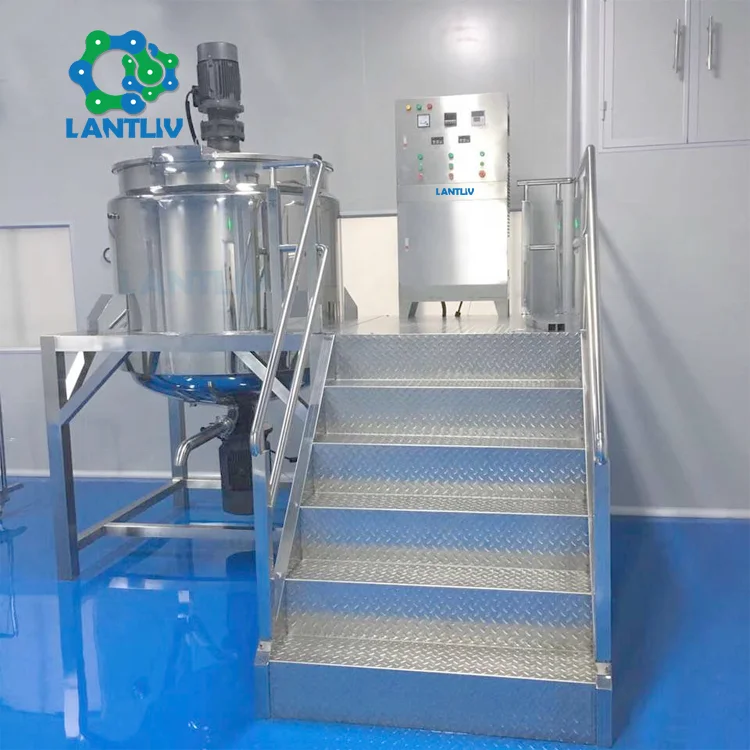

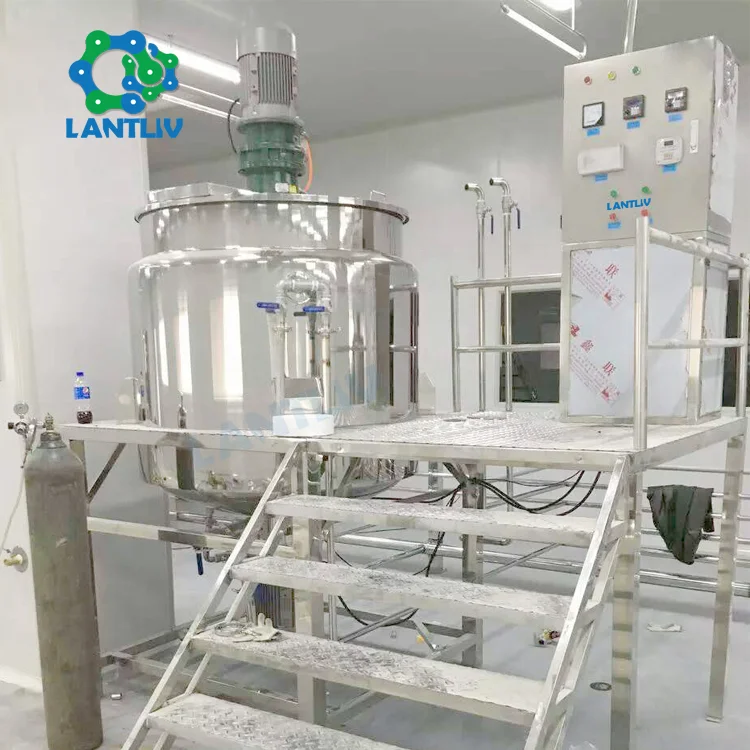

Plant Installation
