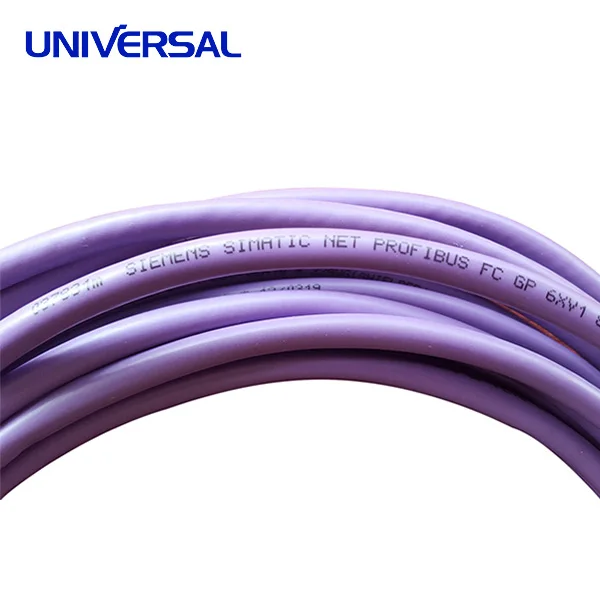

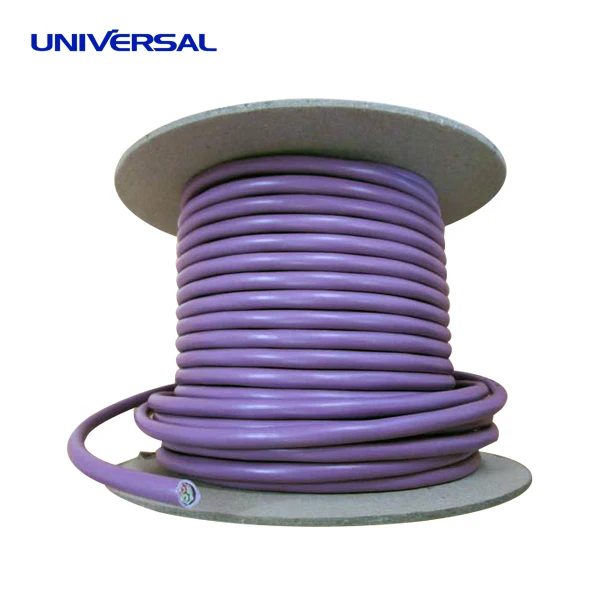

4 x 2 x 18 AWG F / FTP 100 OHM FR PVC Cable RS485 Cable

                                                                              More details, please contact us!

 4x2x18 AWG F/FTP 100 Ω FR-PVC Cable  FieldBus Type A RS485 Cable

 Application:

RS-422, Fixed or portable installations, RS-485, ISA/SP-50 Fieldbus* Type A, Industrial communication, Field bus on the process level

 Construction:

Conductor Material: Annealed Bare Copper
Conductor Size: 18 AWG
Conductor Construction: 7x0.40 mm
Insulation Material: PO
Insulation O.D.: 3.17 mm nom.
Conductor Color Code: Black (numbered) x Red
Ind. Shield Material: Aluminum/Polyester Foil
Ind. Shield Design: Aluminum face outwards
Drain-wire 1 Material: Annealed Tinned Copper
Drain-wire 1 Construction: Stranded
Drain-wire 1 size: 20 AWG
Overall Shield Design: 100% Coverage
Overall Shield Material: Aluminum/Polyester Foil
Overall Foil Shield: Yes
Overall Drain-wire Material: Annealed Tinned Copper
Overall Drain-wire Construction: Stranded
Armoring: Aluminum Foil

 Standards :

Applicable Standards

 Electrical Properties:

Impedance: 100 Ω
Max. DC Resistance : 22.0 Ω/km@20°C
Attenuation: 5.0 dB/Km max. @ 39.0 KHz
Capacitance: 52.0 pF/m
Capacitance Unbalance: 2.0 pF/m max.
Dielectric Strength: 2000 V/minute
Voltage Rating: 600 V
Min. Bend Radius: 285 mm
Max. Operating Temperature: +70 °C
Min. Operating Temperature: -30 °C
UV resistance: Yes

Established in 1993 in China, Universe Cables Ltd is the flagship company of Universal Group. With a turnover exceeding US $30 million, it is one of China's largest manufacturers of automotive wires, electrical cables, as well as other types of cables.

The company has two manufacturing facilities in Shandong and Jiangsu provinces. Over the years, it has built a strong reputation by continuously upgrading its technological capabilities, promoting innovation, modernizing its manufacturing facilities, offering excellent services and maintaining remarkably high quality standards.

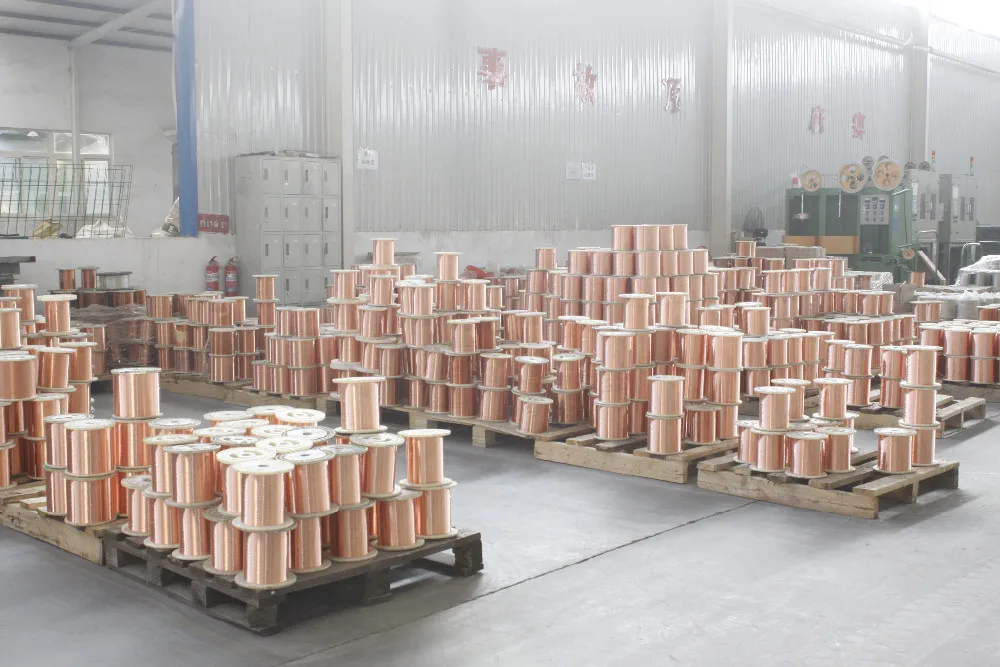

Universe Cables own fourteen cable production lines along with its sophisticated equipment and strict quality control system which produce over two million meters of automotive wire every day. In 2012, it invested US $16 million in advanced wire drawing equipment, thus becoming China’s leading manufacturer and supplier of fine copper wire, with an annual processing capacity of over 15000 tons.
