Knife edge type belt conveyor

Product Overview

Description

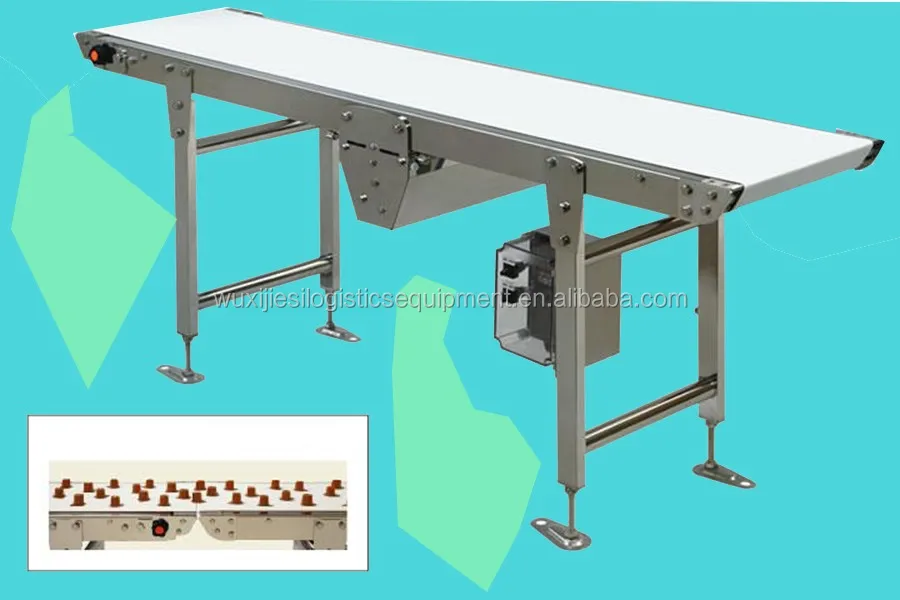

 Knife-edge type  belt conveyor

Model:SM80-SIF

 Using 80mm  stainless steel  frame, belt transmission,drive.

suitable for weight items of carrying Items larger than 10MM size.



>> belt conveyor description:



Applicable to the high temperature, high resistance to chemical corrosion requirements of the occasions of light weight goods transport



Frame  material: aluminum, stainless steel etc.



>> belt conveyor definition:

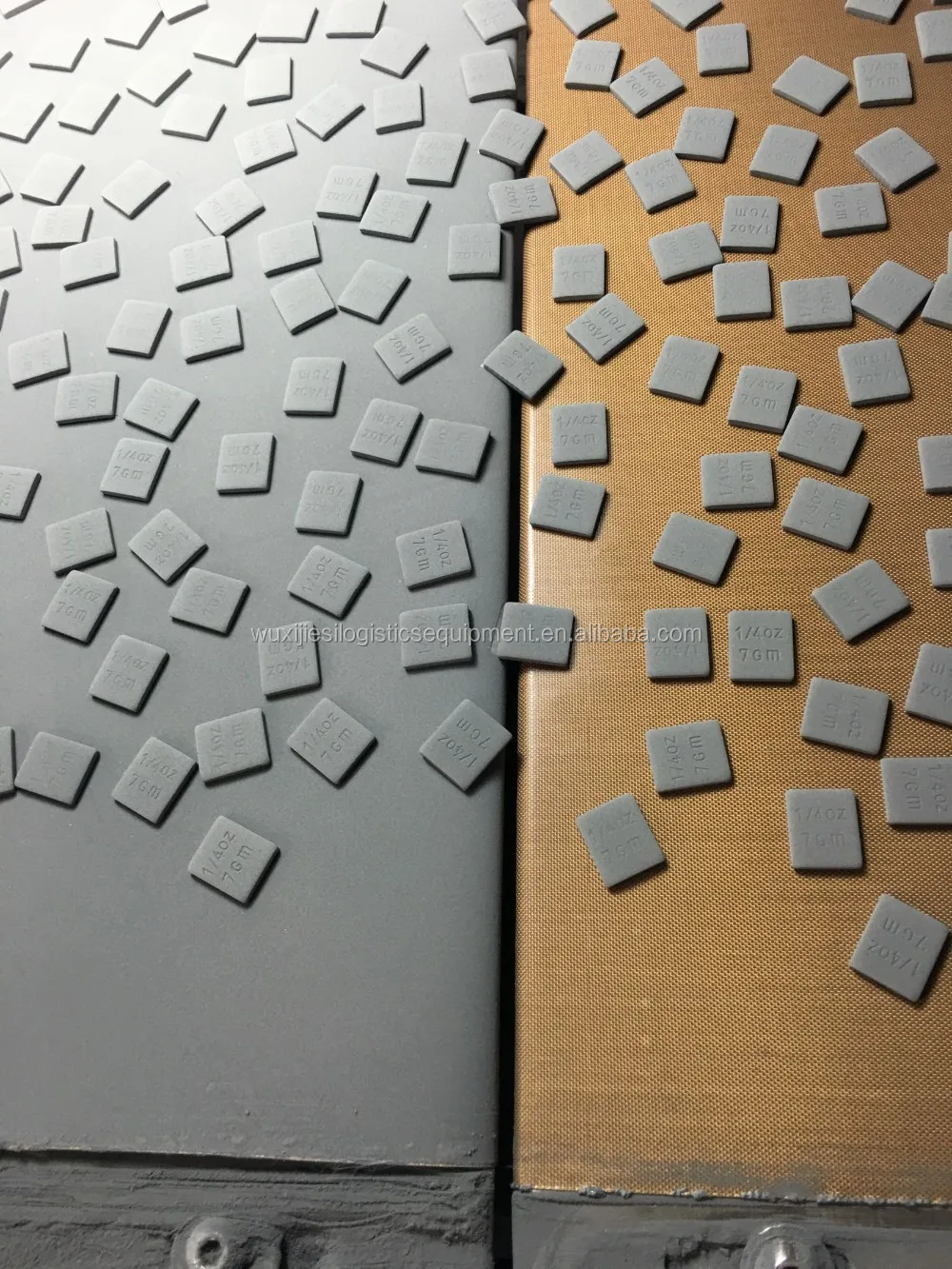

Mesh conveyor belt,  grid cloth, uses the high quality highly imported glass fiber and Kevlar (aramid) for the textile substrate into a high strength of mesh fabric, then coated with excellent high quality of  resin, made of  (PTFE) mesh conveyor belt fabric.



>> belt conveyor Main features:



Temperature resistance from low temperature to high temperature range of -70 to 260



The permeability of the conveyor belt, reduce the heat source consumption and improve the drying rate.



Drug resistance - most of the chemicals and solvents are not affected



Anti adhesive - to the resin, paint, chemicals, etc. almost all of the adhesive can be easily removed



Flexural fatigue resistance - high tensile strength and bending fatigue resistance performance, can be used in smaller diameter wheel

>> belt conveyor Parameters

Belt width:300~1000MM

Conveyor Length:1000~9000MM

Conveyor Height:MIN500MM

Frame material:Aluminum Alloy

Capability:50KG/M

Motor power:200W

Voltage:1PH100V,1PH200V,3PH200V

Belt Speed:Max41.2M/MIN



>>  belt conveyor Belt speed

Fixed Speed		Variable speed
NO.	50/60Hz	NO.	20~60Hz
T1	2.9/3.4	H1	1.1~3.4
T2	3.4/4.1	H2	1.4~4.1
T3	4.3/5.1	H3	1.7~5.1
T4	5.7/6.9	H4	2.3~6.9
T5	6.9/8.2	H5	2.7~8.2
T6	8.6/10.3	H6	3.4~10.3
T7	10.3/12.4	H7	4.1~12.4
T8	14.3/17.2	H8	5.7~17.2
T9	17.2/20.6	H9	6.9~20.6
T10	20.6/24.7	H10	8.2~24.7
T11	28.6/34.3	H11	11.4~34.3
T12	34.3/41.2	H12	13.7~41.2





>>  belt conveyor Drawing:

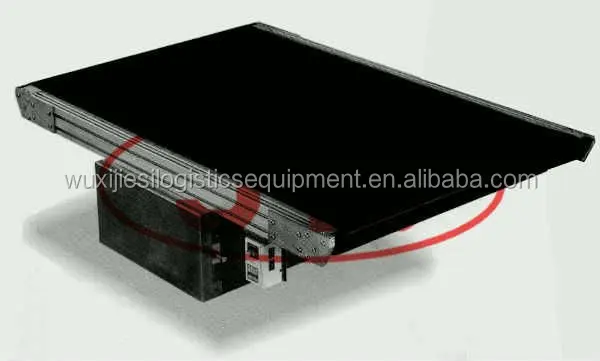

>>  PICTURE:

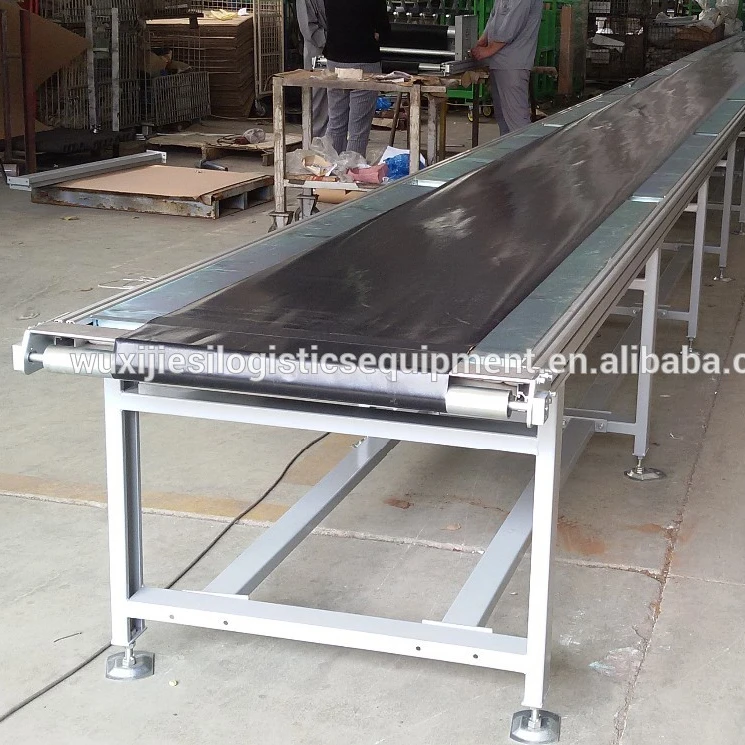

>>WORKSHOP:

If you need any information, please feel free to contact me promptly.
