strut channel manufacturer

Product Overview

Description

Strut

Strut Brief Description:

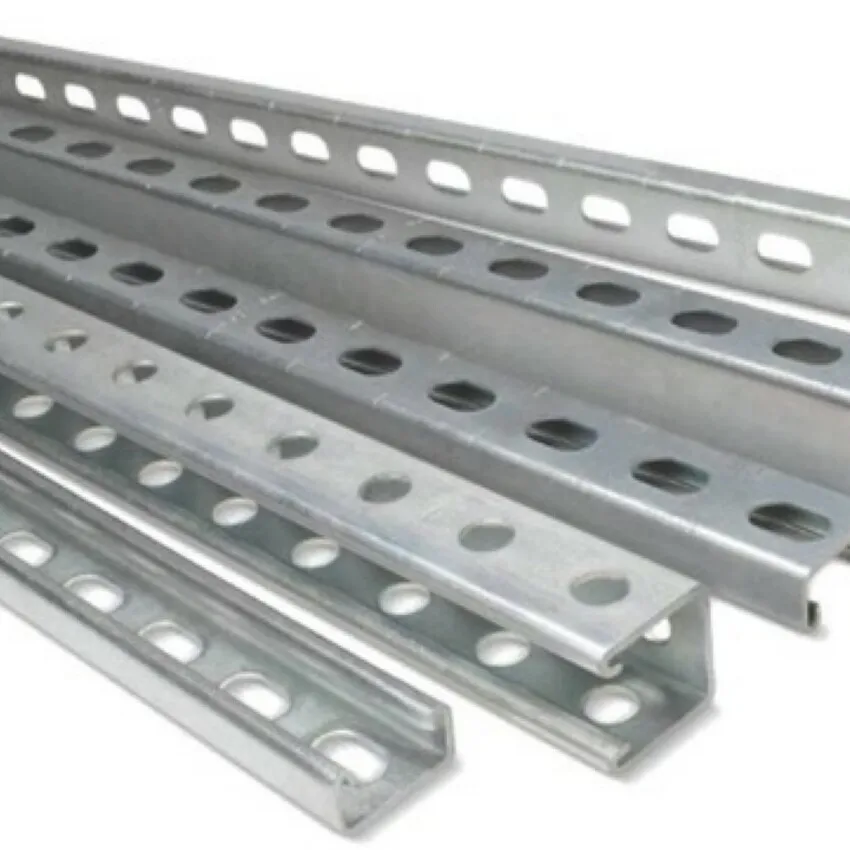

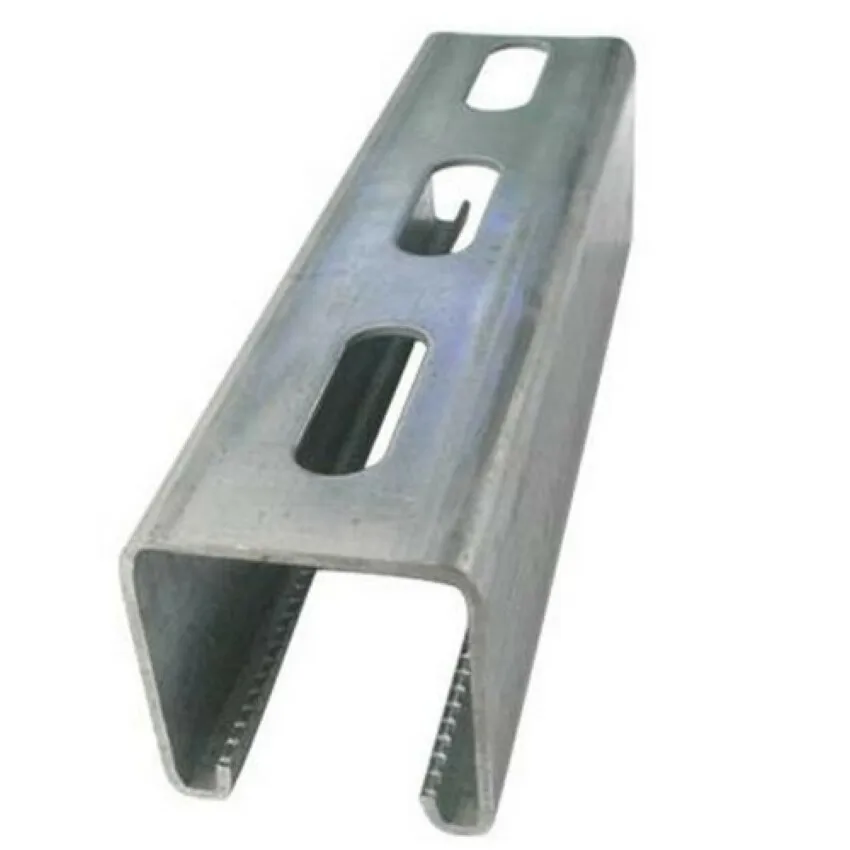

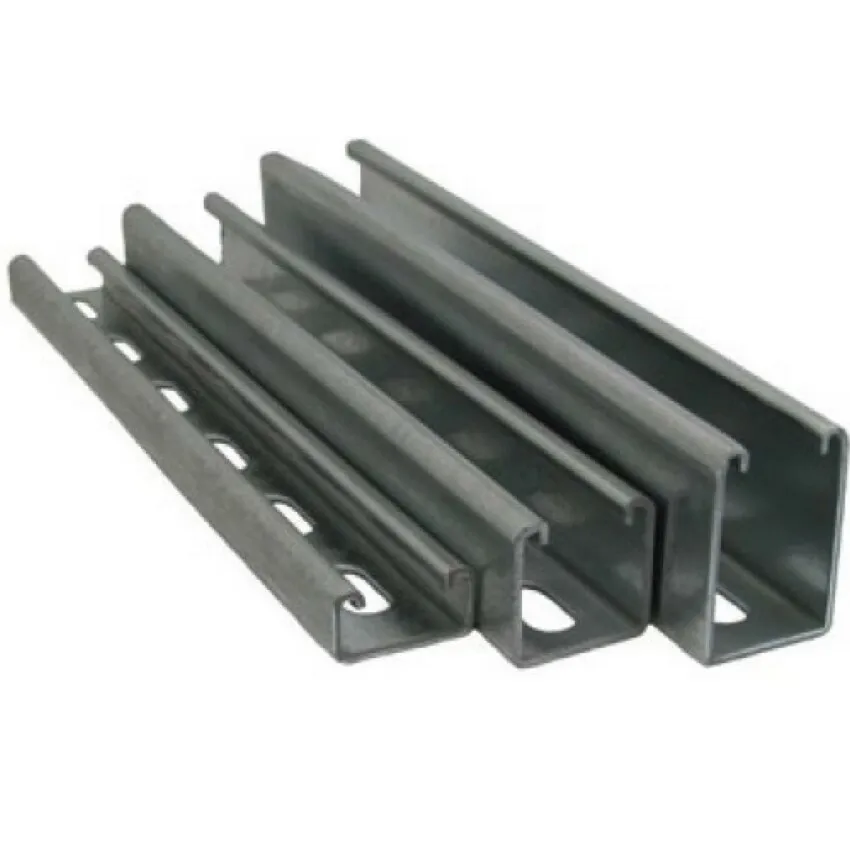

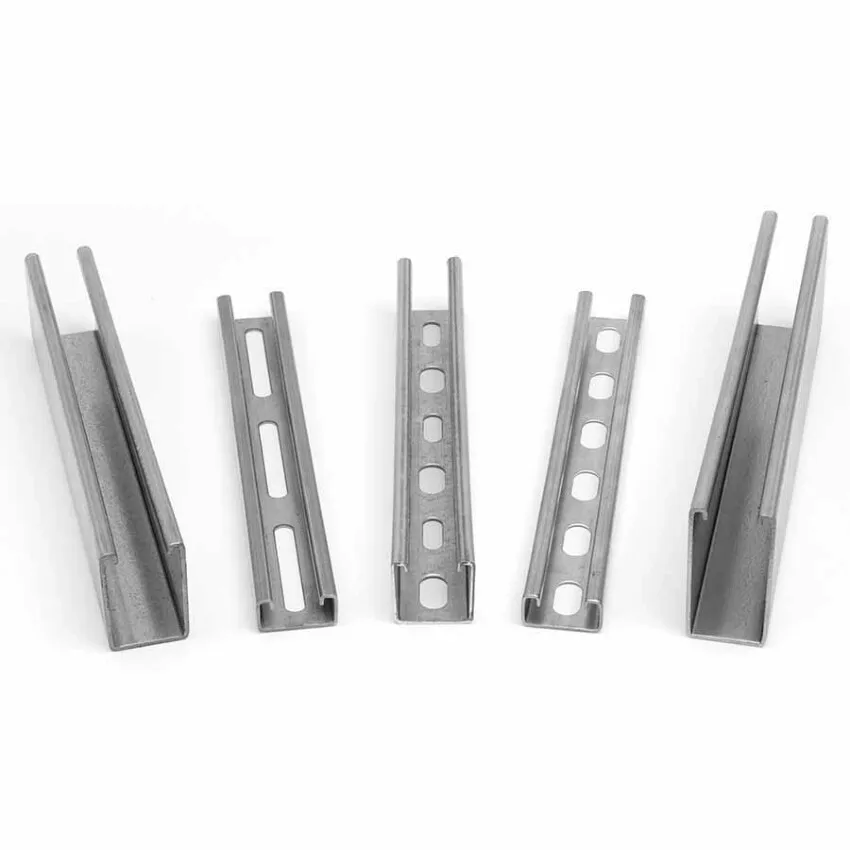

Product name: perforated strut channel

Sizes: 41*21mm, 41*25mm, 41*35mm, 41*41mm, 41*62mm, 41*82mm,  back to back 41*21mm, 41*25mm, 41*35mm, 41*41mm, 41*62mm, 41*82mm.

Length: Standard length is 3m or 6m, other lengths are acceptable.

Thickness: 1.5mm, 2.0mm, 2.5mm, or others according to your requirements.

Style: Plain or Slotted.

Slots: 76*10.5mm with 100mm on center, 28*14 with 50 on center, 18*9 or 30*13 with 50 on center, 62.5*13.5 with 100 on center, 30*11 with 50 on center

Material: Carbon steel Q235 OR Stainless Steel SS304 or SS316

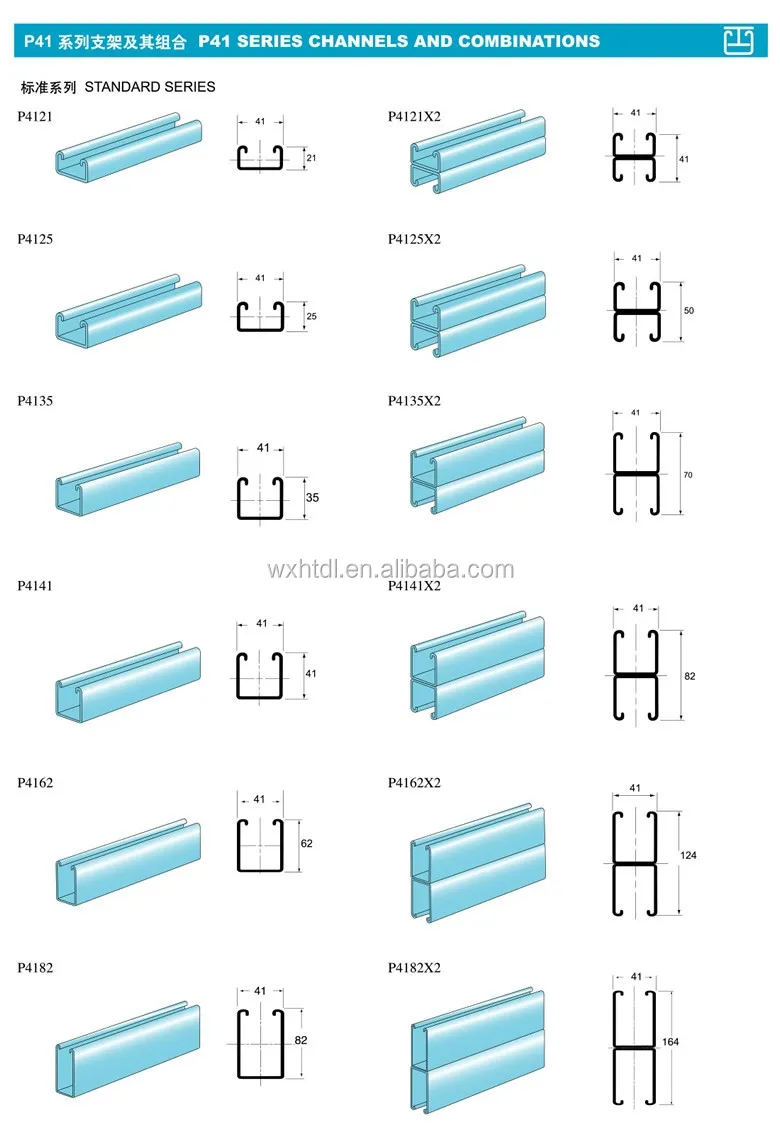

Strut Dimension as follows:

Slotted Series and Light Channel Series for strut:

perforated strut  Combinations:

perforated strut Application:

perforated strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc.Specially made sockets are available to tighten nuts,bolts etc. inside the channel,normal sockets are unable to fit through the opening.

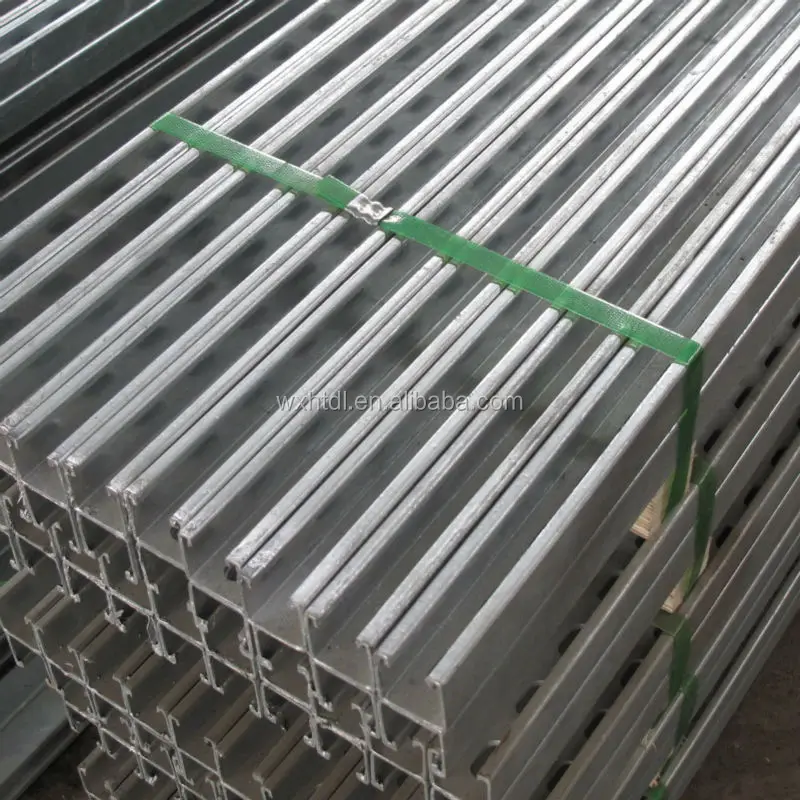

Strut Details:

Strut Engineering Projects:

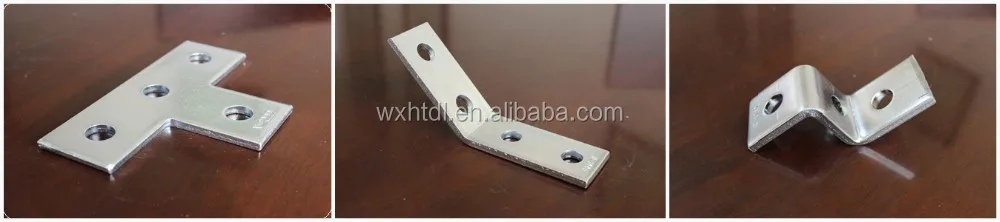

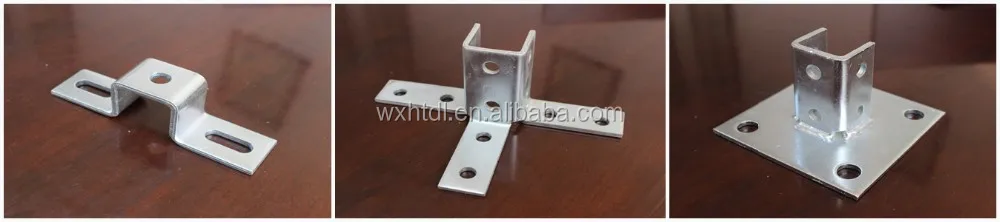

 Other Related strut Fittings

For more perforated strut channel information, please feel free to contact me as follows:
