Any customized dimension & color would be welcome!
Application

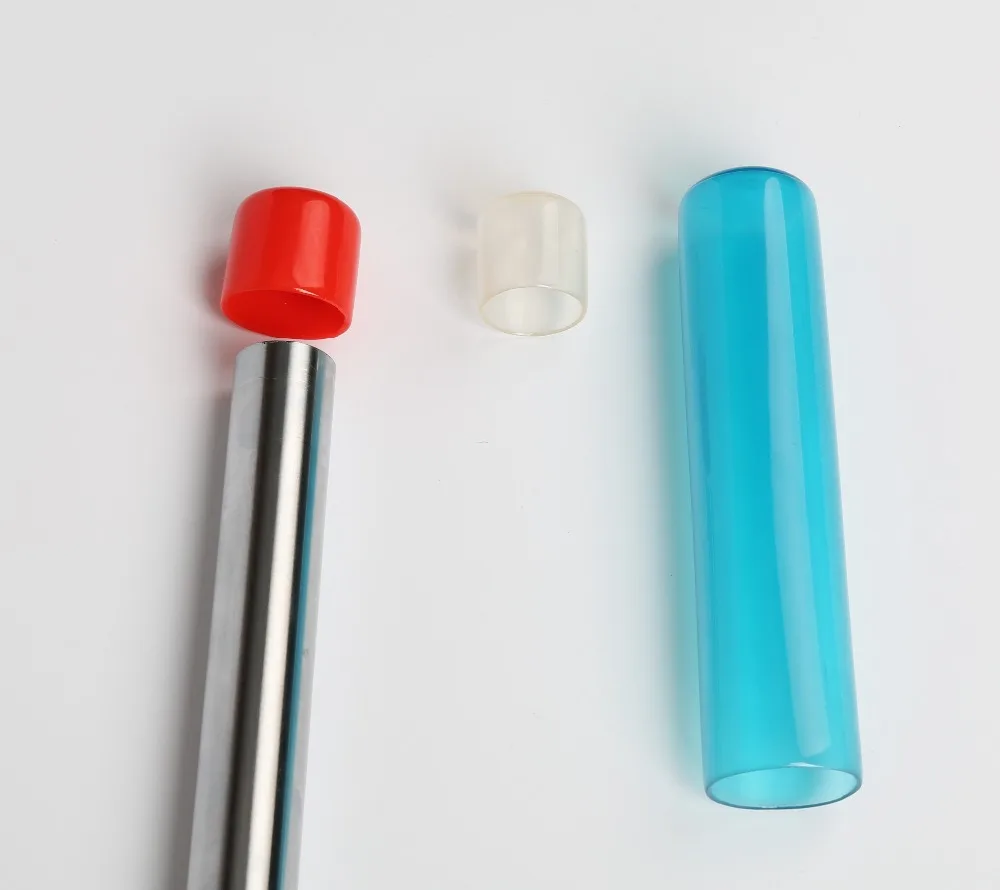

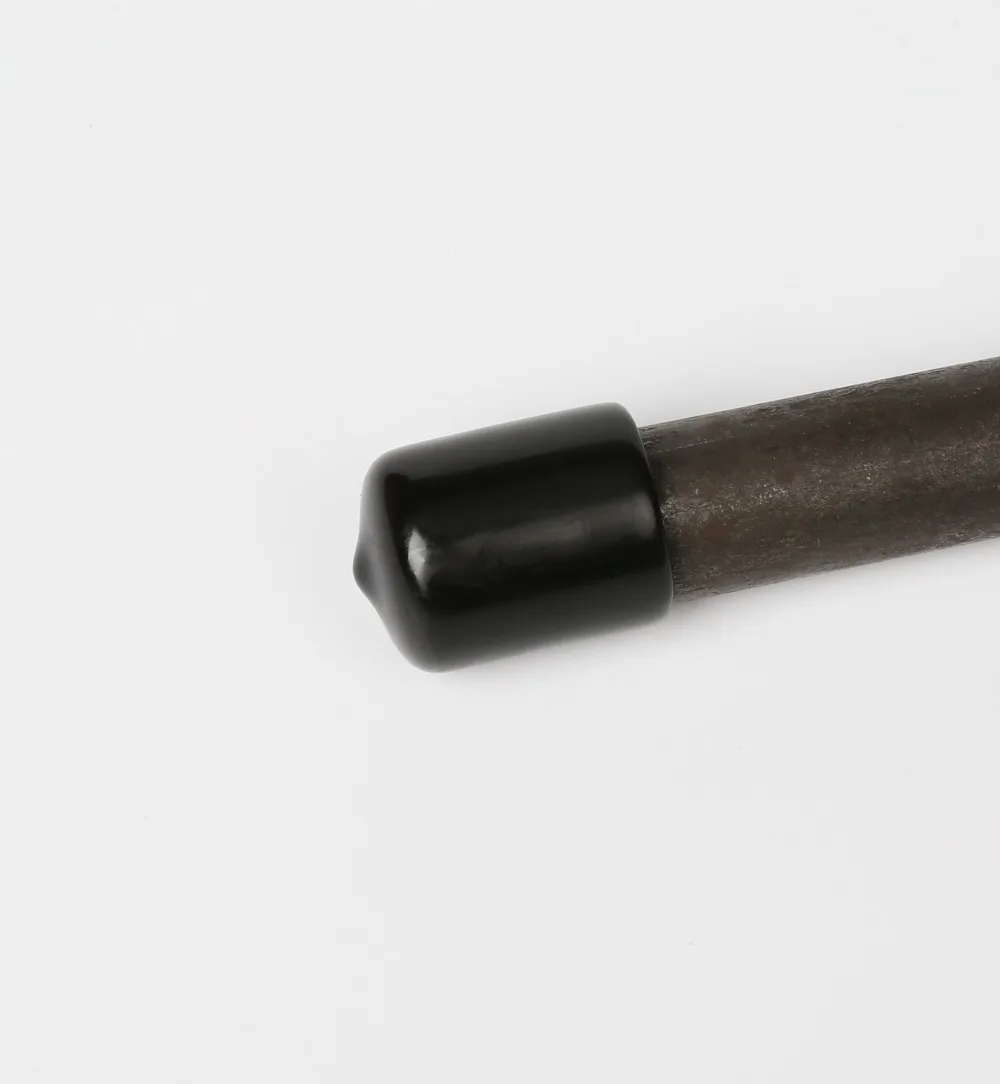

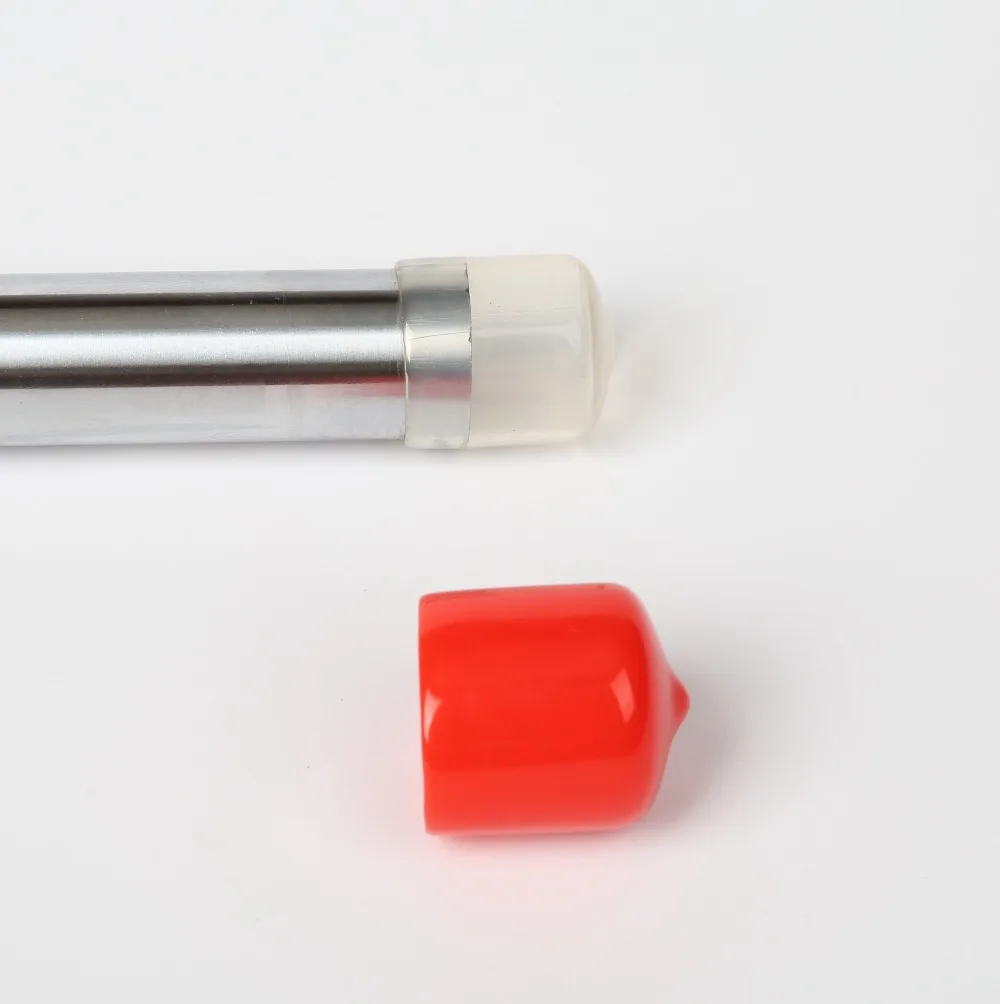

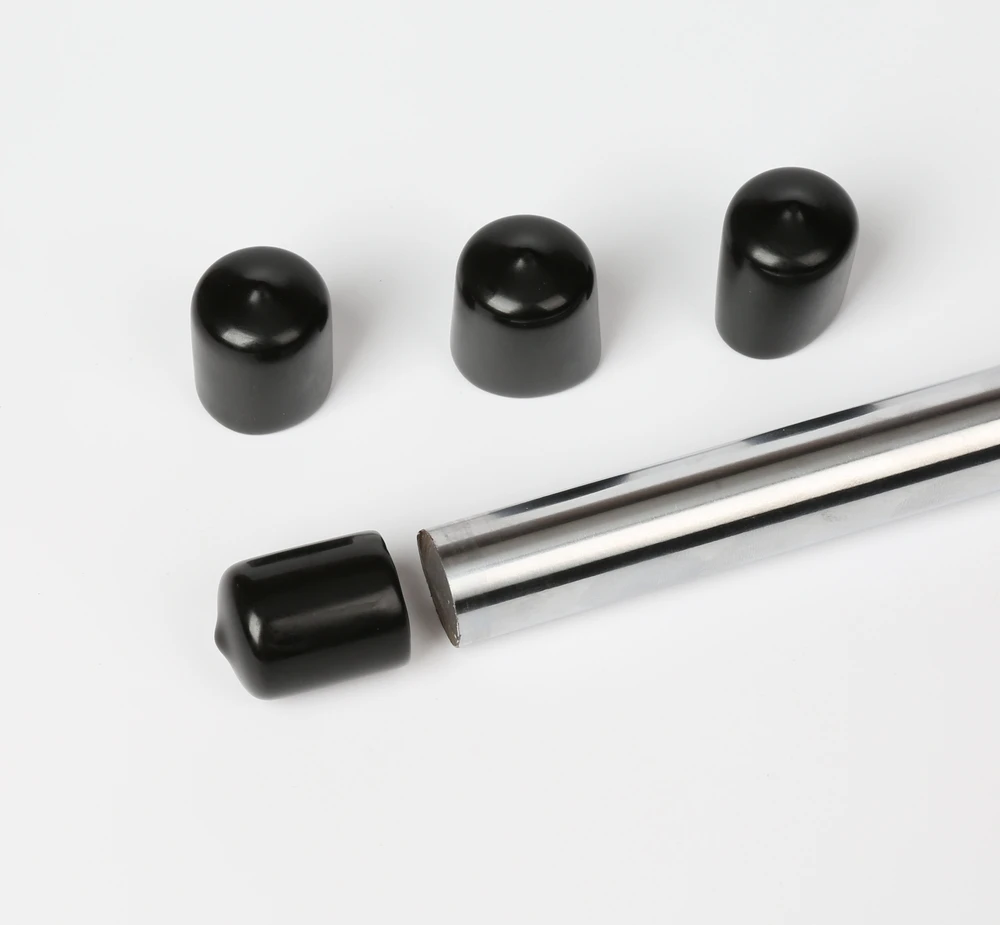

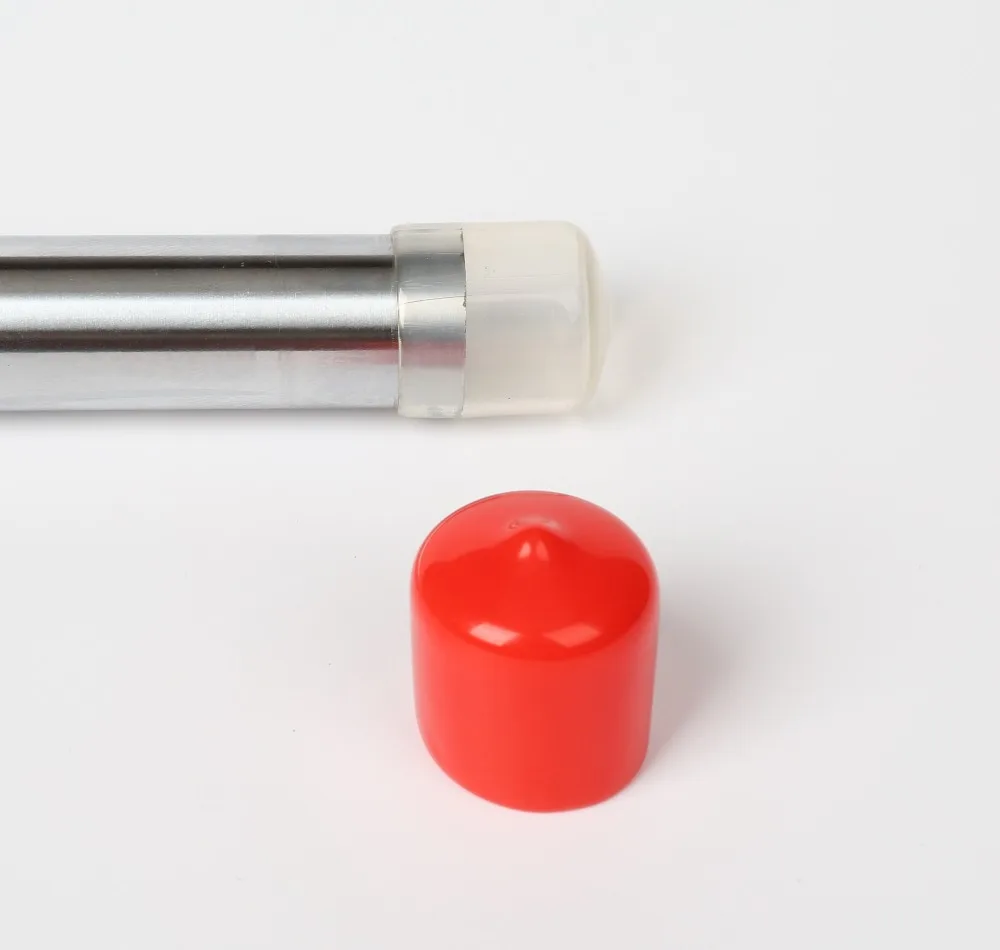

Vinyl End Cap is manufactured by the workmanship of Dip Molding to protect the end of cable, metal tube, rod, nut, and dustproof as well.
Features
Certificate: REACH, RoHS, UL
Property
| Item | Test Standard | Test Method | Result | |
1 | Appearance | Clean, Smooth, Transparent, No Bubble | Visual Inspection | PASS |
| 2 | Aging Test | 168Hrs@136℃ without aging | Aging Box | PASS |
| 3 | Insulation Resistance | DC 500V, Insulation Resistance R≥200MΩ | Insulation Tesistance Tester | PASS |
| 4 | Dielectric Withstand Voltage Test | AC 2500V/Min (5mA) No Breakdown | Dielectric Withstand Voltage Tester | PASS |
| 5 | Corrosion Resistance | Company standard: Q/HT-2004 | Corrosion Device | PASS |
| 6 | Flammability Standard | UL 94 V-0 | Flame Burning | PASS |
Packing
Internal poly bag and external carton. Special packaging could be customized.

Shipping
Any shipping method is available including courier & forwarder.
