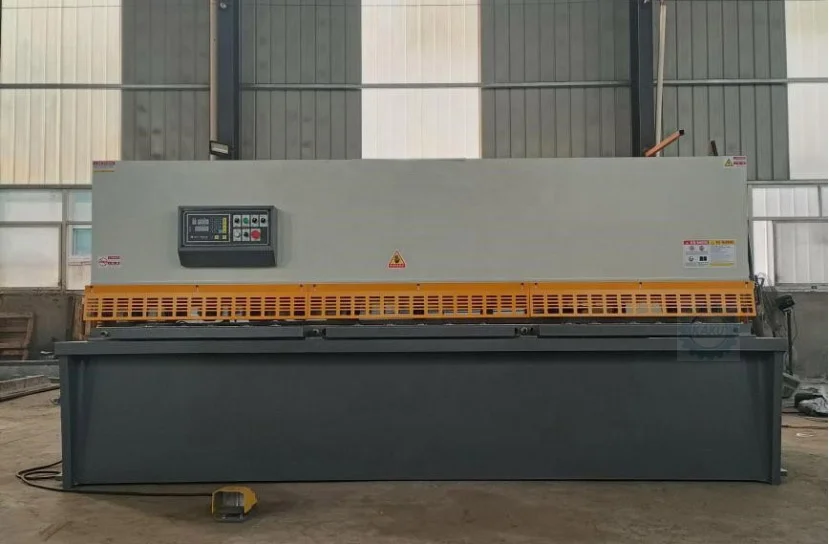

QC12Y 16X3200 Hydraulic Pendulum shearing machine Scissors with E21 system

Machine features

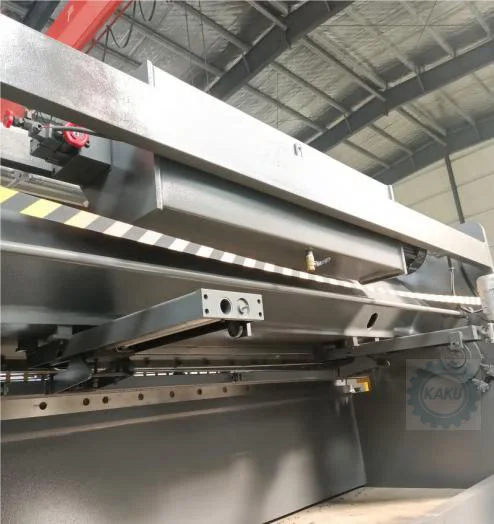

1. Rack performance
The new rigid design and finite element optimization analysis minimize the influence of shear plate deformation on the quality of the workpiece.
The frame adopts a steel plate integral welded structure, which has good rigidity, high strength and good anti-distortion and deformation ability. The internal stress is eliminated through the overall tempering of the body/surface shot peening, which ensures the lasting stability of the overall accuracy of the machine tool.
The machining of the frame is completed at one time by the Spanish pentahedron machining center to ensure the levelness and verticality of each installation surface. In this way, the workpiece has excellent straightness and angular consistency.
There is a "C"-shaped plate mechanism at the throat of the frame, which directly detects the distance between the upper and lower molds to ensure the accuracy of the parts.

2. Pressing cylinder
Made of forged materials, the cylinder block is made of high-strength springs for automobiles, which are durable

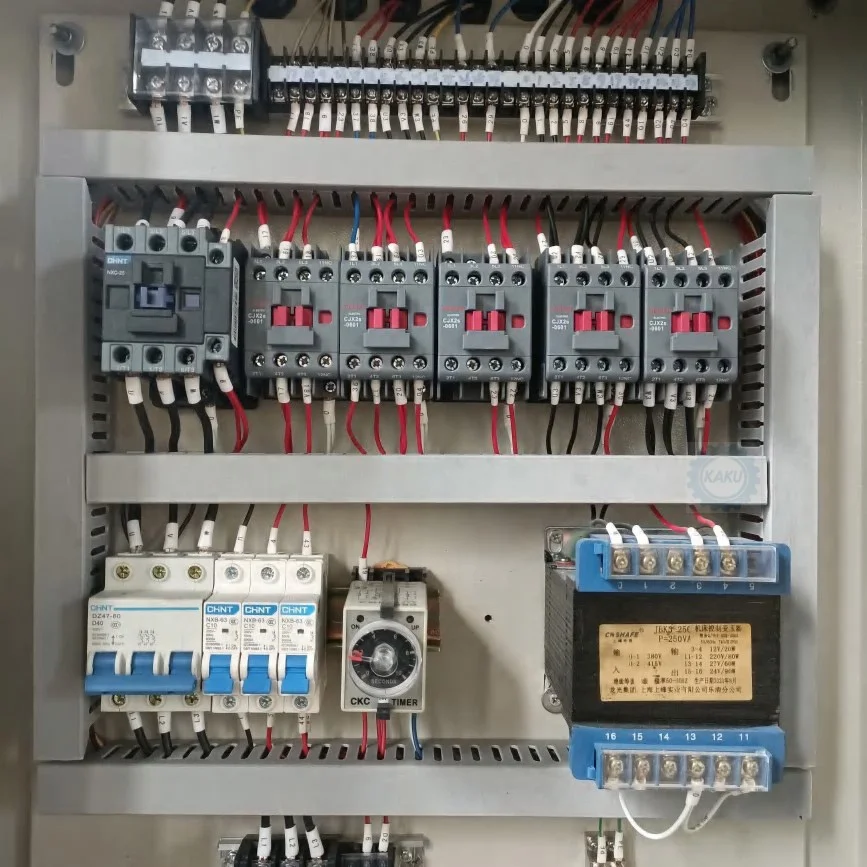

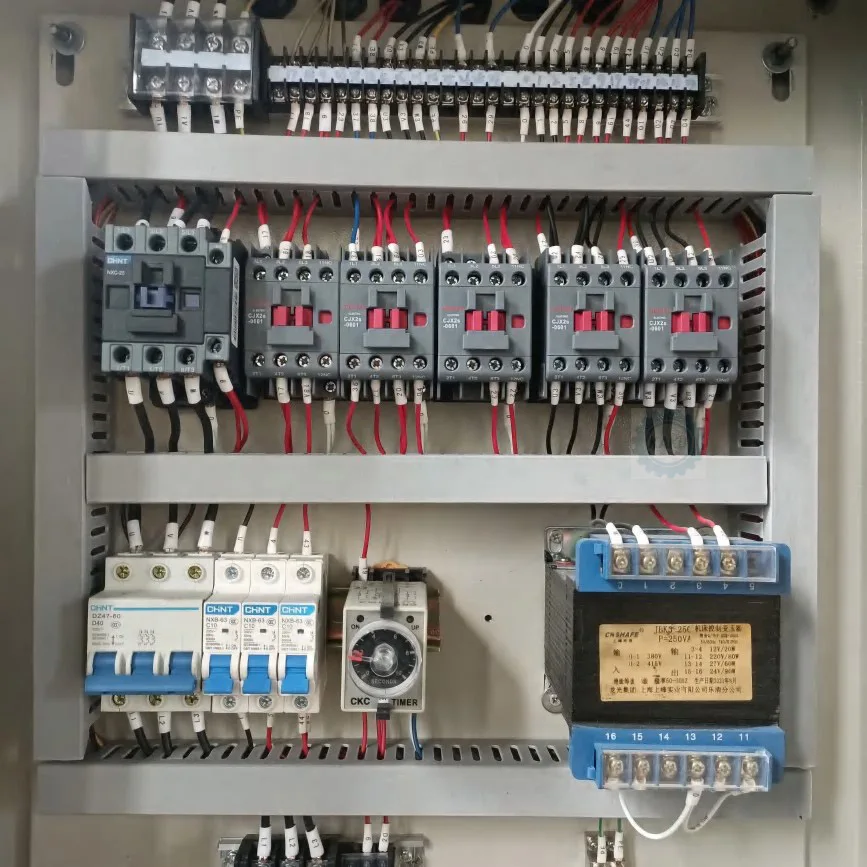

3. Electrical components
The main components of the electrical control system of the machine are made of Chint products, and the main seals of the hydraulic system are made of European imported brand.

1. Technical support online service provided.

2. Technical files service provided.

3. Machine operation video provided.

4. On-site training service provided.

5.Spare parts replacement and repair service provided.

6. All of the questions will be replied within 8 hours.

7. If you need to develop products with your own specification, we can help you to work it out.

8. Always be honest, never lie to customer, and never declare anything we don't have.
