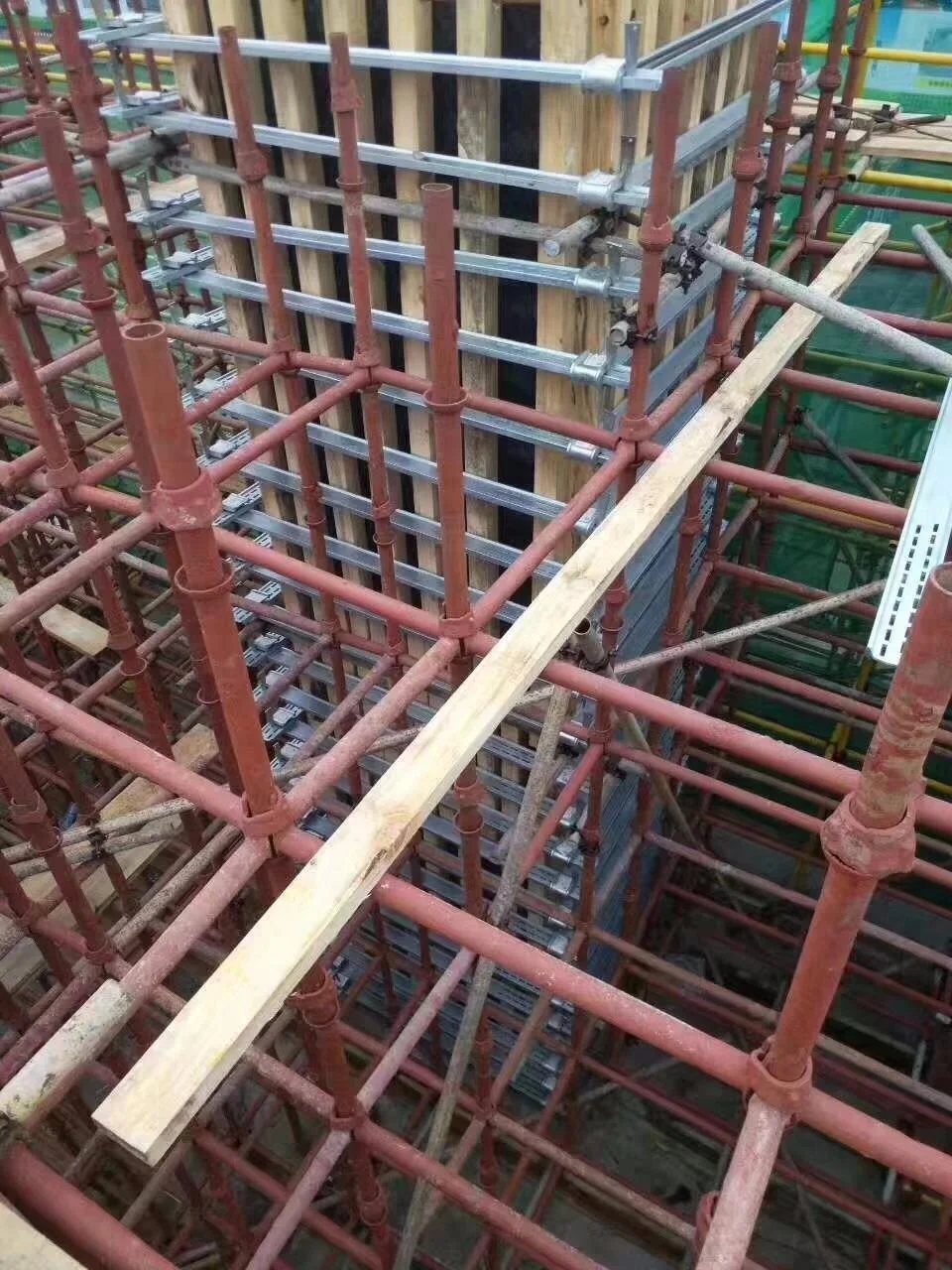

It's used in fixing column formwork in construction site.
It's an innovative steel formwork clamp, which is used in fixing column formwork. To improve the strength and durability, we use Q345B galvanized steel. From feedback on site, it's adjustable, easy handling, and reused for over 10 years.
※ No need tie rod ※ Adjustable by slots ※ fast installation, two workers install a 4m column within 12 minutes ※ quick dismantling ※ reused many times, 10 years service life ※ easy maintenance without rust
SPECIFICATIONS

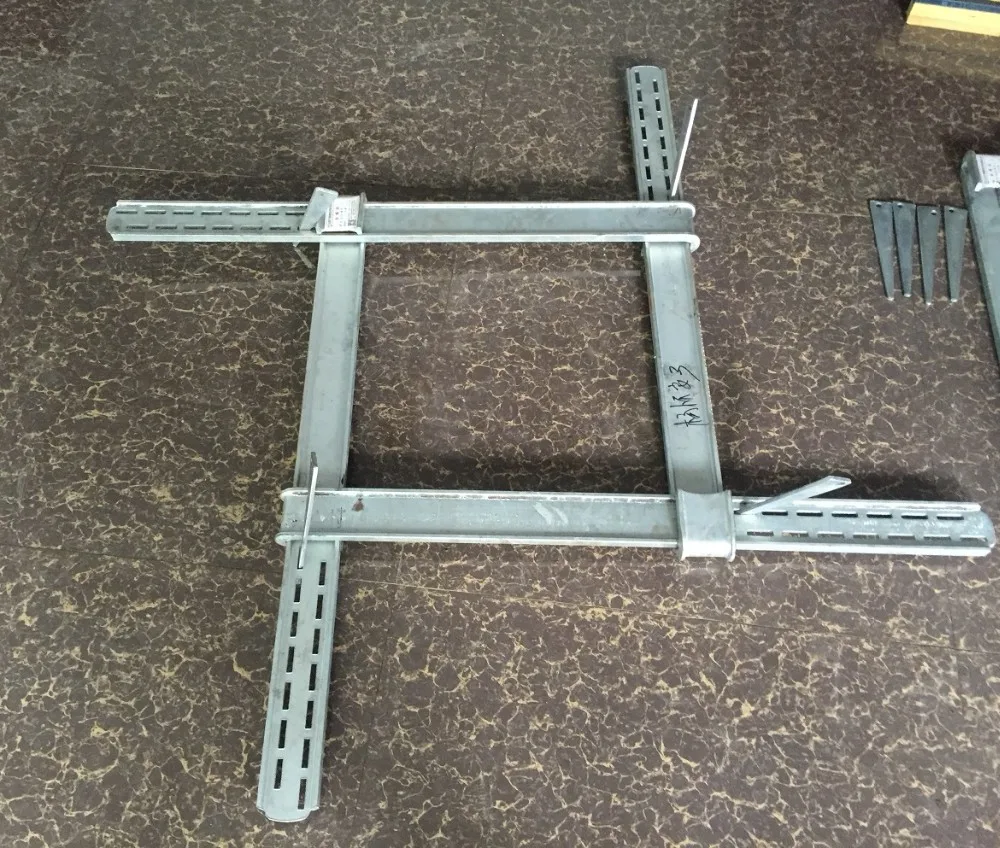

Column Clamp
Customized sizes are available
Size
Width
Weight per set

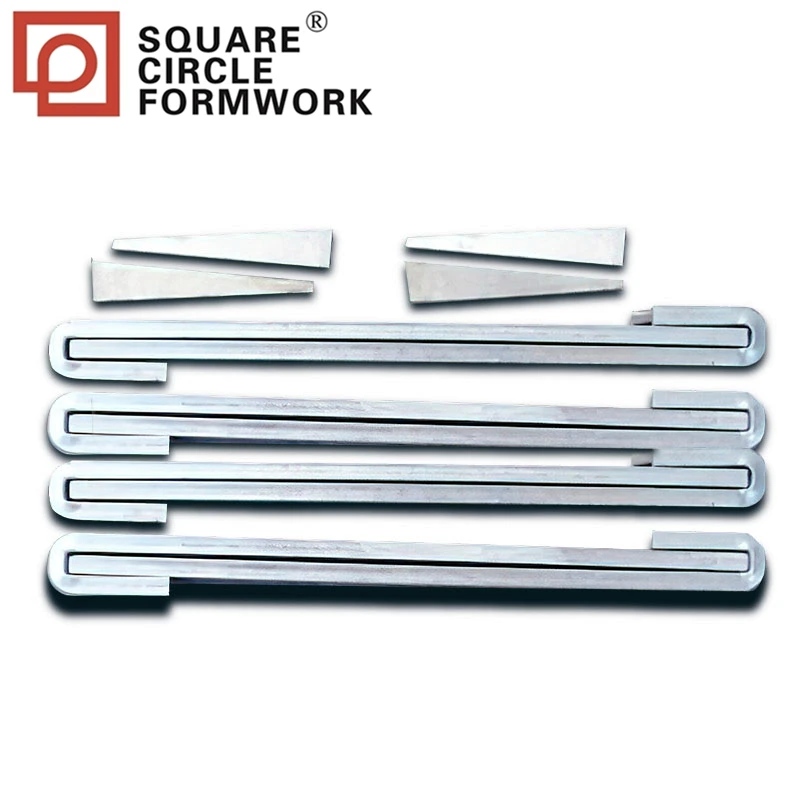

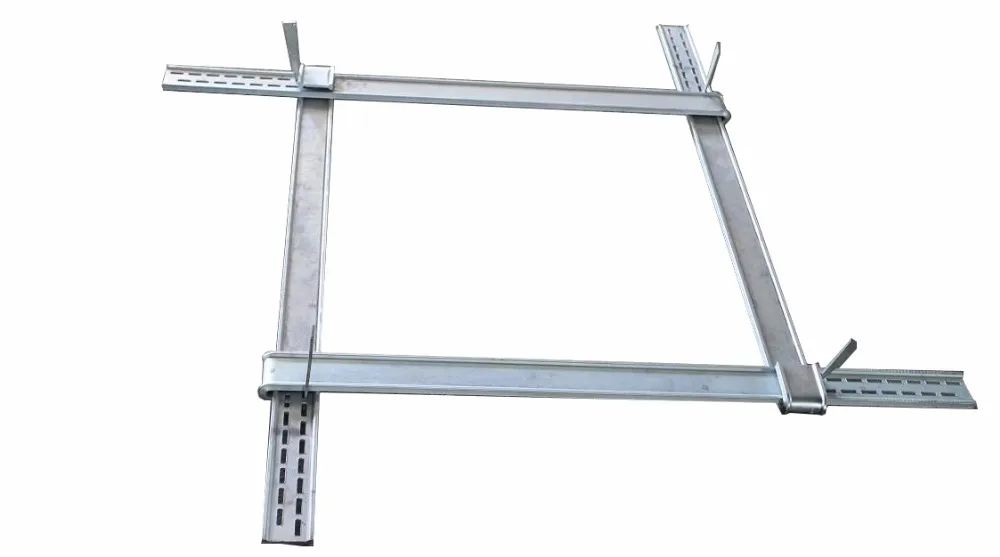

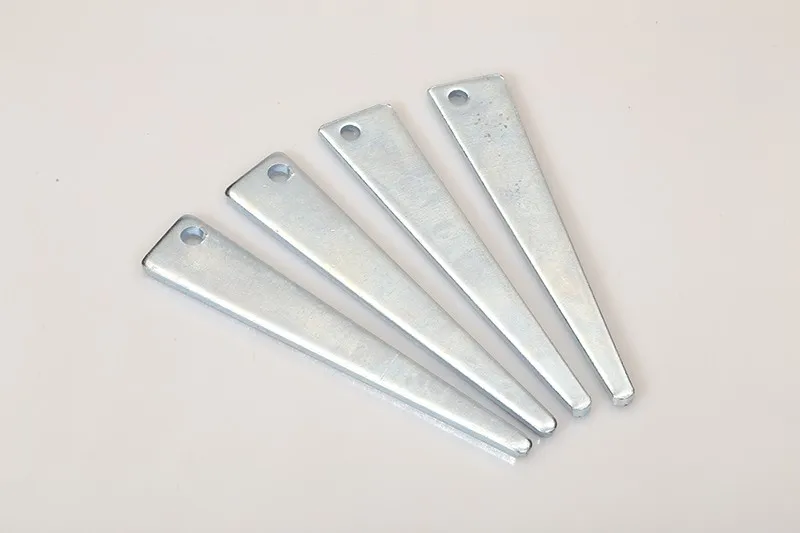

(Four bars and four wedge pins)
200-400mm
8mm
20.4kgs
400*600mm
8mm
23kgs
500*800mm
10mm
27.6kgs
700*100mm
10mm
57kgs
900*1200mm
10mm
65.2kgs
1100*1400mm
10mm
71.2kgs
1300*1600mm
10mm
79kgs
1500*1800mm
10mm
117kgs

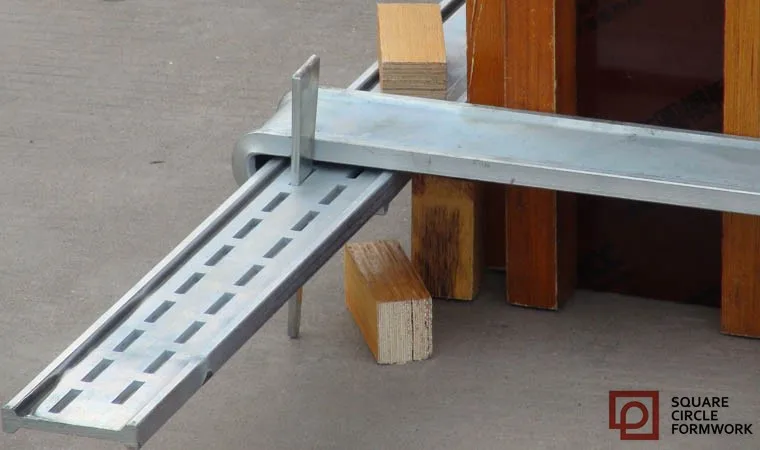

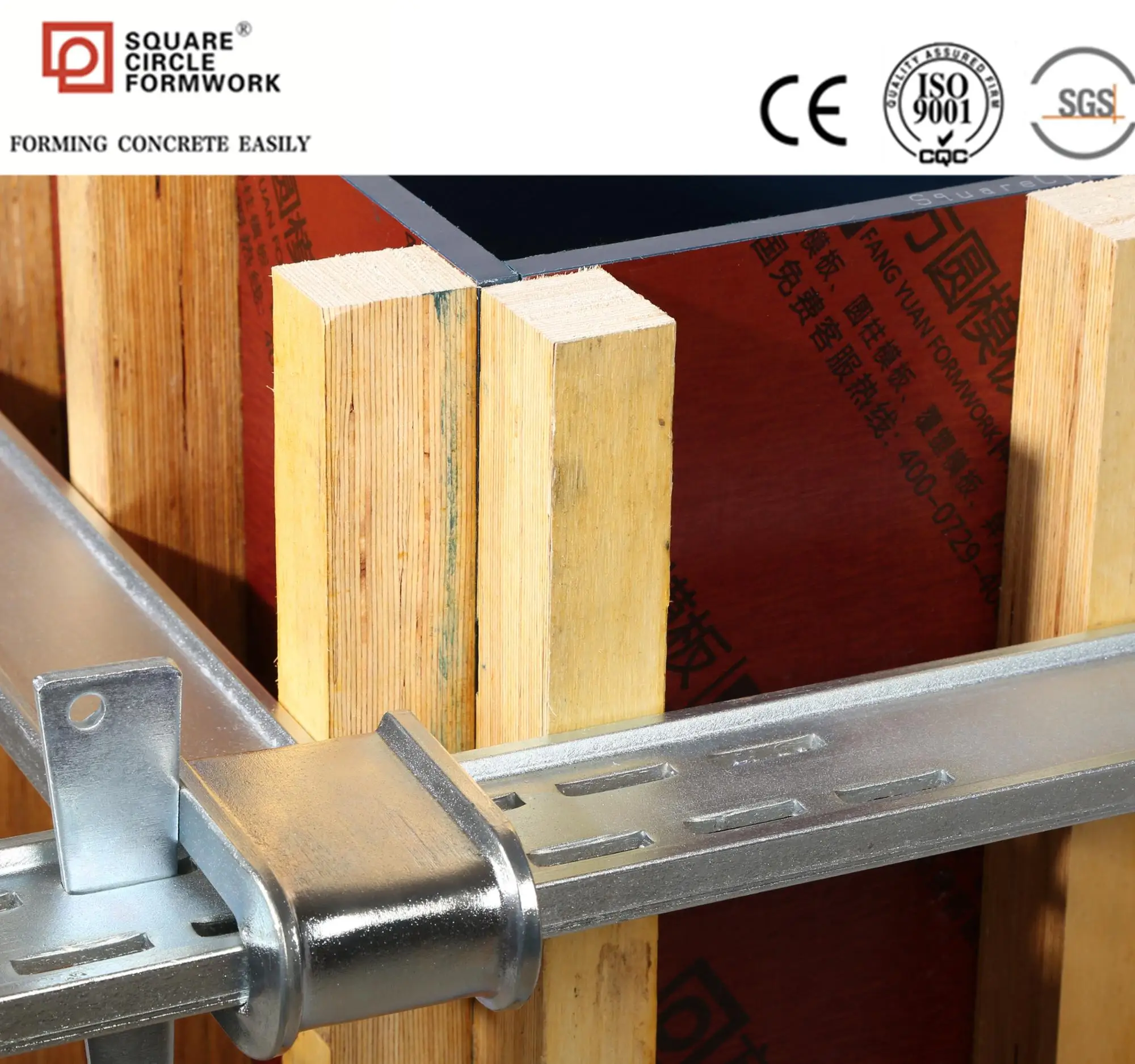

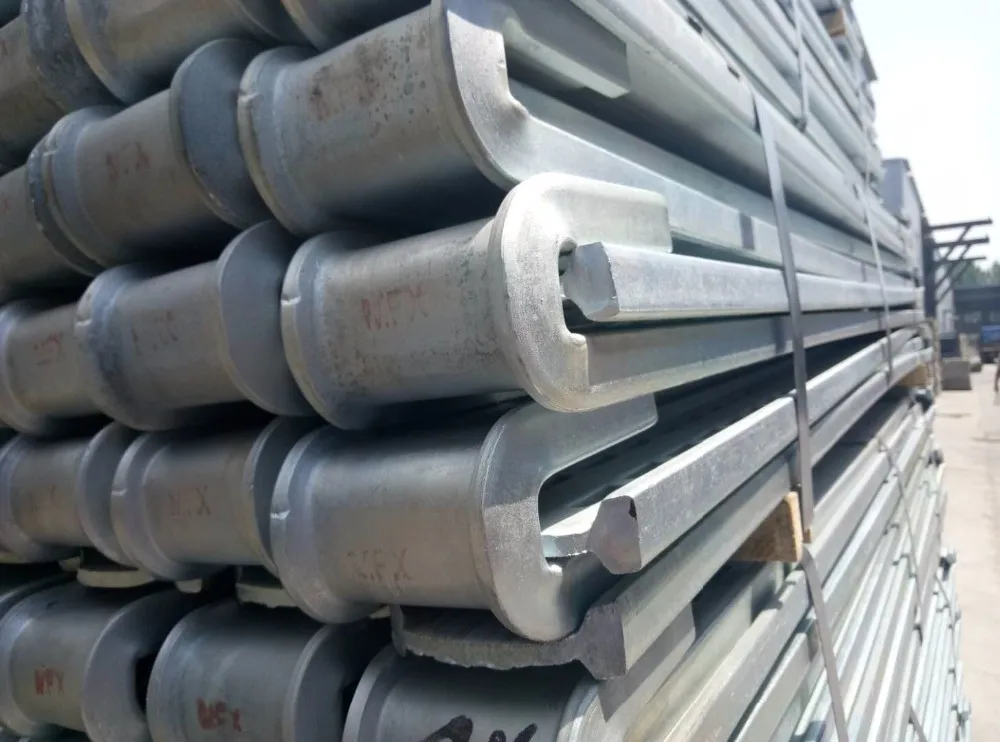

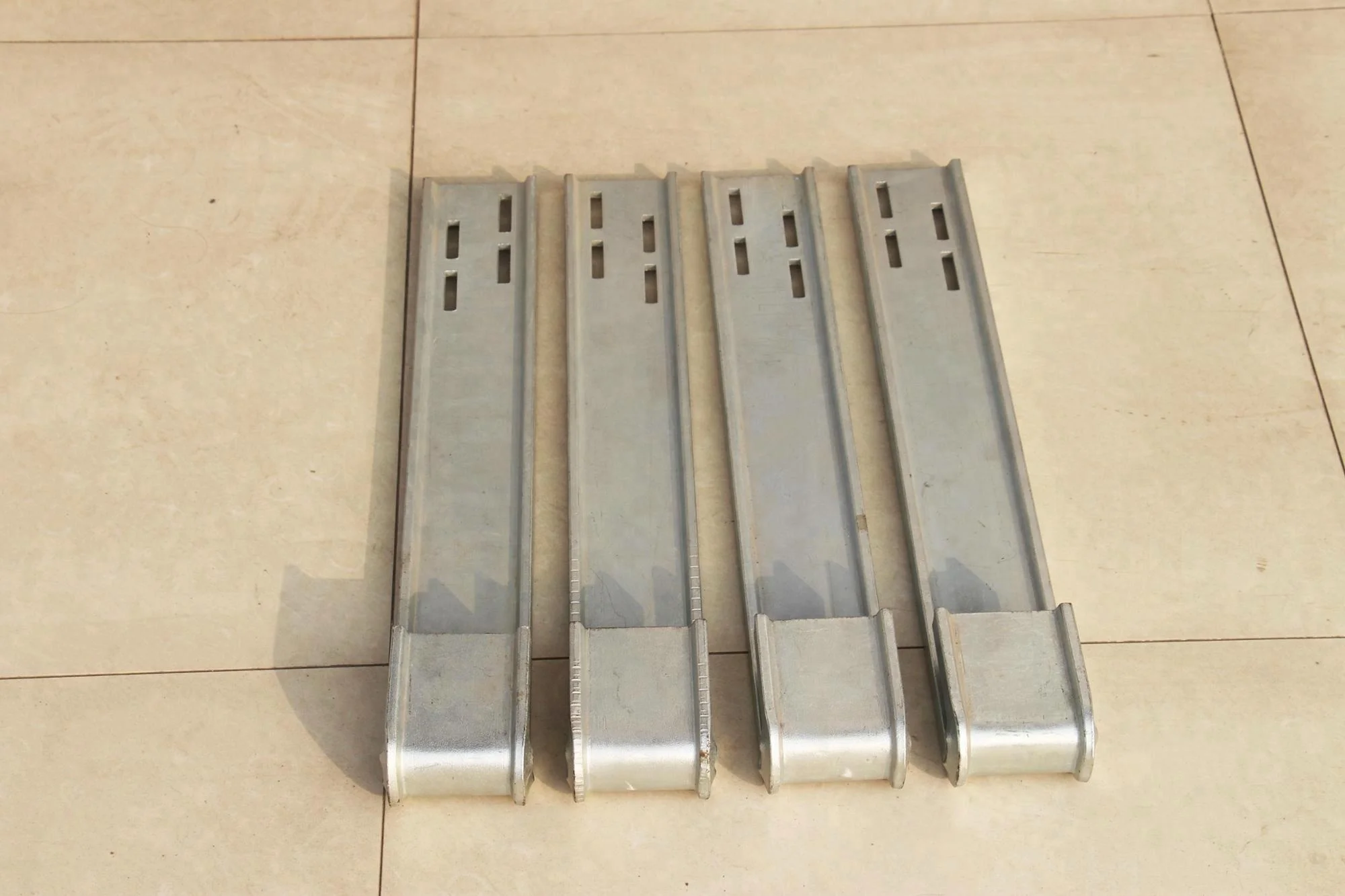

Detailed Images

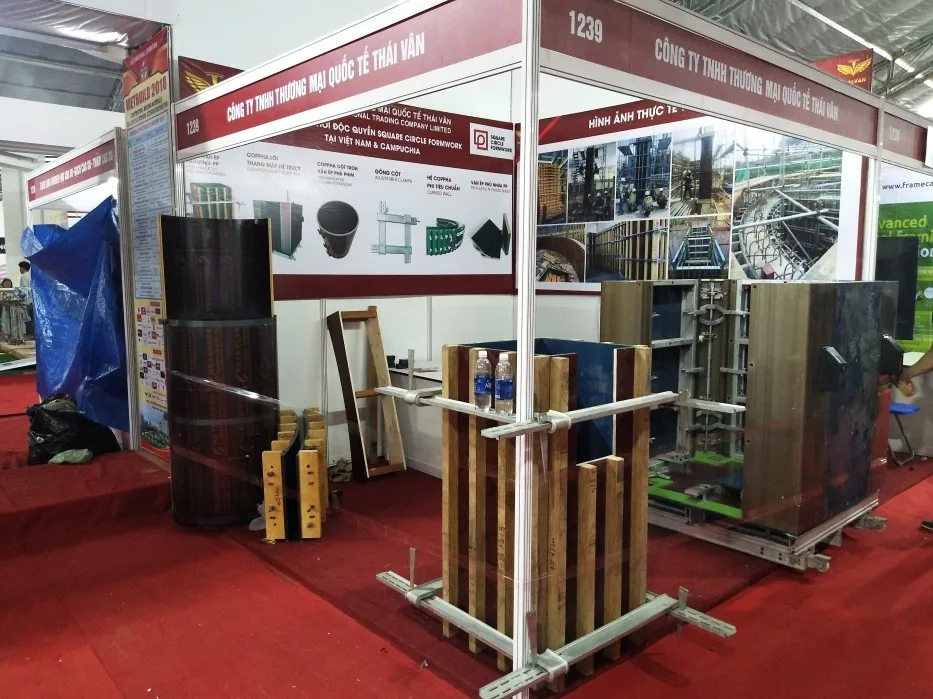

Application

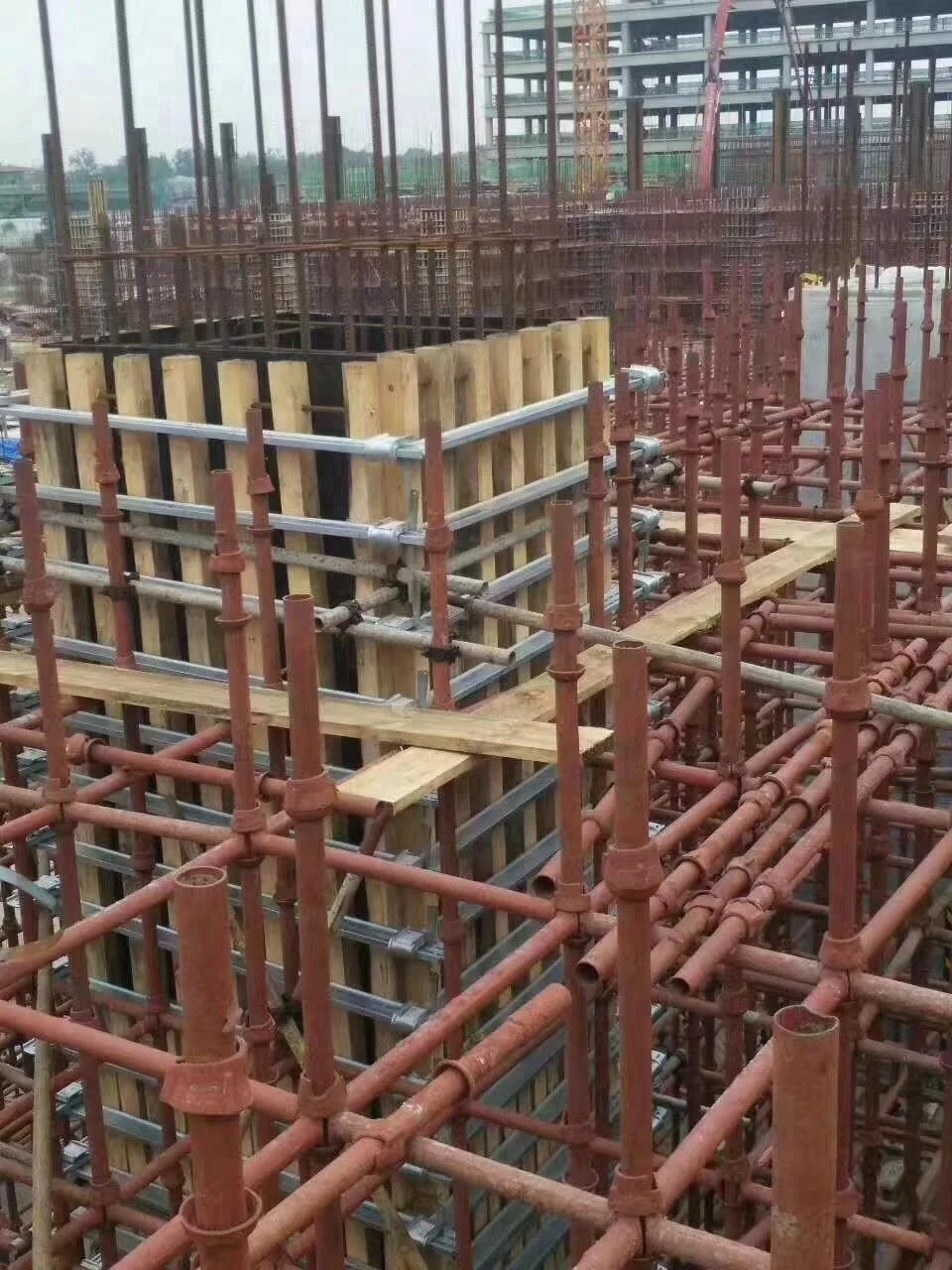

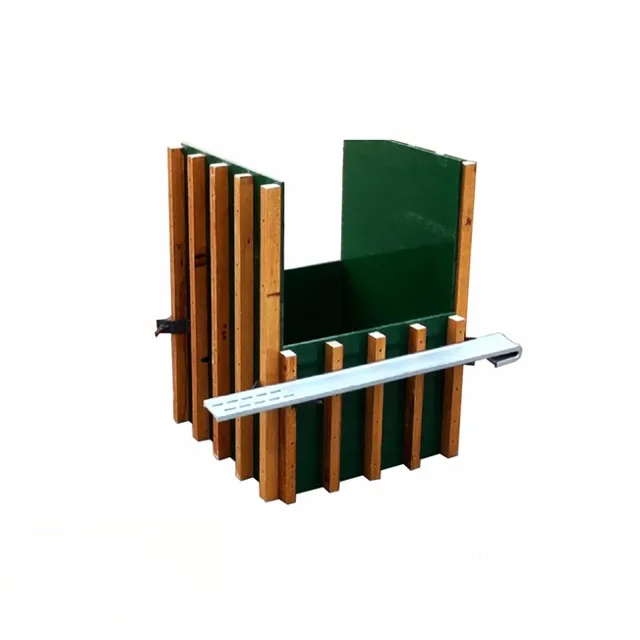

It's used in fixing column formwork in construction site.
Installation
First step

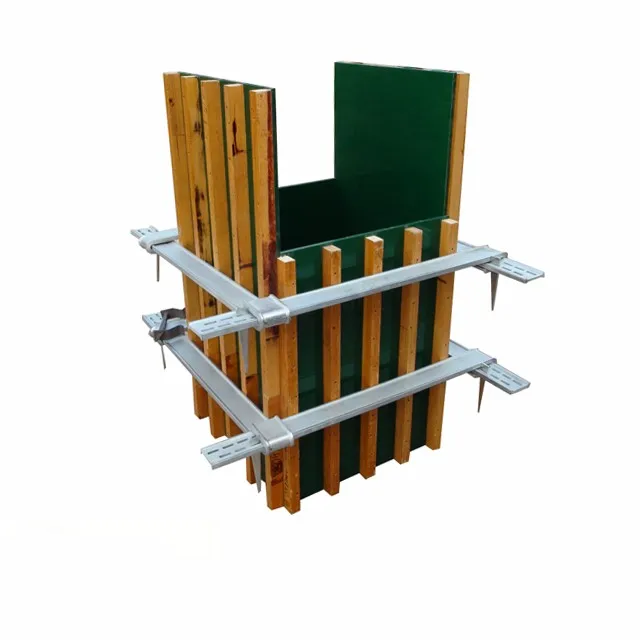

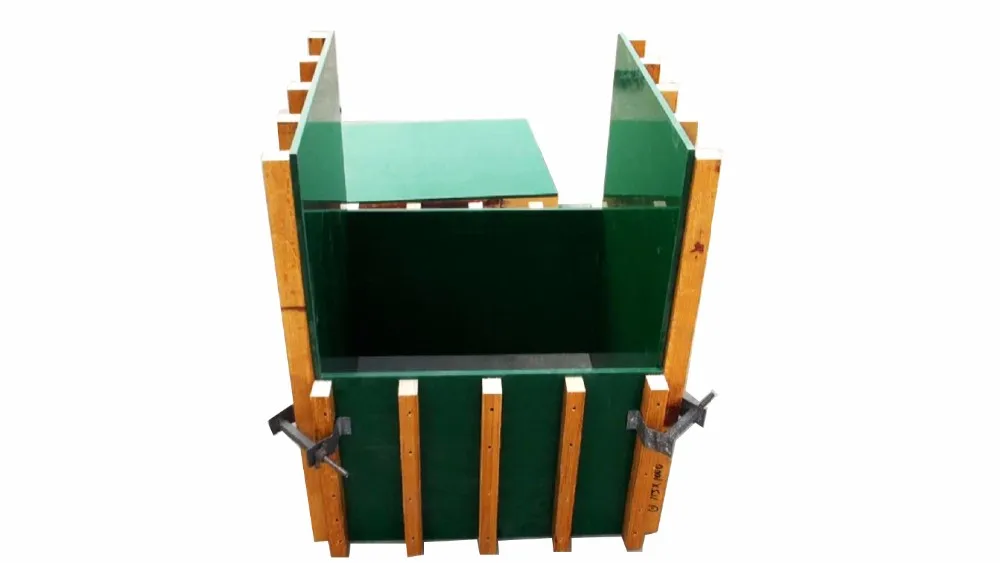

Join the 4 piece of panel by slots at edge of panel, fix the corner of column formwork by adjustable corner clamp and keep the clamp the same height.
Second step.
put the column clamp on the corner clamp, the head of column clamp is fixed into the bent end of column clamp, make sure the column clamp is faced with beam tightly.
Finally
put the wedge pin into column clamp, fix it by hammer, measure the distance between column clamp and keep the clamp the same height, install the resting panel and column clamp by the installation steps.
Dismantling
Hit the end of wedge pin by hammer, remove the steel plate by hands.
Storage
away from direct sunlight and water.
Certifications
Our company has achieved ISO9001:2008 certification, CE certification. We strive to provide effective products to our clients and focus on keeping our products quality at the highest level, test reports by National research center testing techniques for building materials, SGS and in-house QC department are available.
