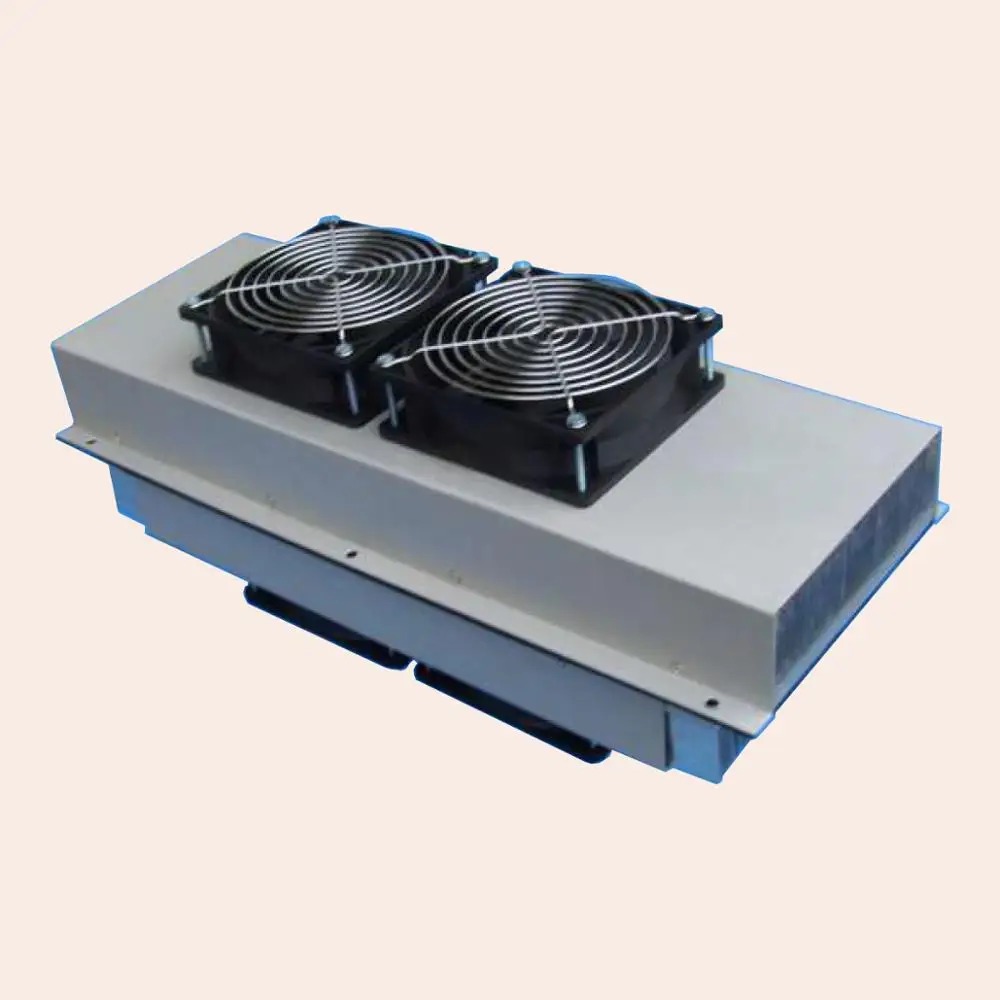

300W peltier thermoelectric cooler industrial air conditioner for outdoor cabinet AC TEC FF300
- Category: >>>
- Supplier: Tianjin Yanxiang Electronic Science And Technology Co. Ltd.
Share on (60487717743):
Product Overview
Description
300W peltier thermoelectric cooler industrial air conditioner for outdoor cabinet AC-TEC-FF300
Aplication
Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet,battery cabinet,industry control cabinet,precision instrument,telecommunication parts,medicine equipment,military equipment,etc.
Working principle
Thermoelectric cooler is cooling equipment consists of semi-conductor.The inner sealed circuit is composed of the two different metal traverses X and Y.
After it is powered,heat on cool end is transferred to hot end,which leads to the temperature drop of cool end and temperature rise of hot end.And switch between hot end and cool end can be completed by changing electrode.
Product Feature
1. Using semiconductor electronic cooling, small volume, light weight.
2. No compressor, no Freon, no pollution, no vibration, no leak.
3. Using no pollution material ,compliance RoHS.
4. Free mounting,applicable to a variety of places.
5. Working ambient temperature: -10℃~+70℃
6. Welded fin-heat sink,high efficiency heat.
7. High-dense foam insulation between heat sink and cold heat sink.
8. Hot-side heat sink overheat protection temperature setting +75℃±5℃
Technical data
| Model | Demenstion (mm) | Notes | Cooling Power (W) | Direct Voltage (V) | Current (A) | Operating Temperature (℃) | Weight (Kg) |
| FF-300W-24C | 450*180*212.8 | Cool Only | 285 | 24 | 18 | -10~+70 | 11.1 |
| FF-300W-24HC | 450*180*212.8 | Heat/Cool | 285 | 24 | 18 | -10~+70 | 11.1 |
| FF-300W-48C | 450*180*212.8 | Cool Only | 290 | 48 | 9.2 | -10~+70 | 11.1 |
| FF-300W-48HC | 450*180*212.8 | Heat/Cool | 290 | 48 | 9.2 | -10~+70 | 11.1 |
Product pictures
Packaging & Shipping
|
Certification
Our Services
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Company Information
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai
Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and
industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin
Science and Technology Support Plan Project.
We own 20 national patents,including 5 inventions patent , other 5 techniques obtained Tianjin
Science and technology achievement.
Our company is granted as Tianjin Outstanding Privately Owned Enterprise.
Besides, we got Chinese Privately Owned Science and Technology Enterprise Technology
Innovation Award.
Customer Visit
FAQ
1.Are you a manufacturer?
Yes.We have more than 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
