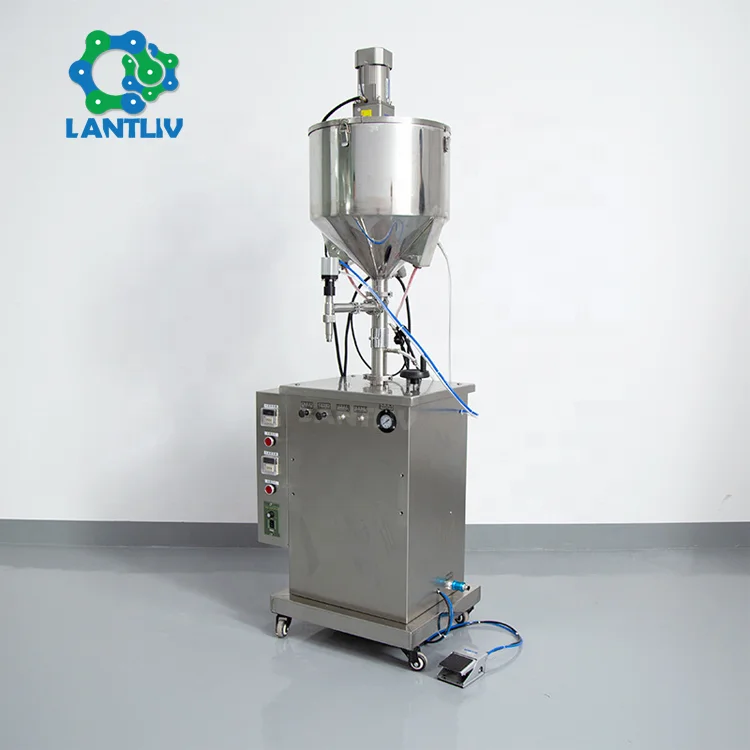

Double Heads Semi automatic Cosmetic Constant Temperature Hair Clay Filler Control Plucking Wax Heated Filling Machine Price
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (60487737234):
Product Overview
Description
Product Overview
Constant temperature filling machine has heating and temperature control devices, and is equipped with an anchor mixer mixture. It adopts a double layer structure design. The interlayer is heated and thermostatically controlled by hot water circulation. Fully pneumatic quantitative filling, piston metering, targeted The metering and filling of the paste material with large viscosity, easy to solidify, and poor fluidity, accurate measurement, cleaning, easy operation. It is widely used for filling ointment, wax products, lipstick, vaseline, jam and other materials that need to be heated and melted. The filling volume, filling speed, heating temperature and stirring speed are all adjustable.
Product Advantages
1. The two-layer design of the hopper and the discharge tube of the cylinder is electrically heated with water heating to keep the temperature, and the temperature can be set according to the needs.
2. The hopper is equipped with paddle mixing system, the speed of which can be adjusted.
3. Pneumatic filling is controlled by compressed air control, so it is especially suitable for use in environments with explosion-proof requirements and humidity, with high safety.
4. The up and down movement of the cylinder drives the piston in the material cylinder to reciprocate, so that the front cavity of the material cylinder generates negative pressure. When the cylinder moves downward, the piston is pulled downward, and the front cavity of the material cylinder generates negative pressure. The material inside is sucked into the cylinder by the atmosphere, and enters the cylinder through the check valve. When the cylinder moves upward, the piston is pushed forward to squeeze the material, and the material enters the empty bottle to be filled through the one-way valve in the discharge connector to complete the filling.
5. High filling accuracy, measurement accuracy ±0.5%, no dripping phenomenon.
6. The screw adjustment is adopted to make the filling volume adjusted accurately.
7. According to actual needs, it can switch freely between "manual" and "automatic" filling status.
8. Feeding method: ordinary gravity type.
9. Control mode: full pneumatic control.
10. The use of high-quality stainless steel materials, internal and external mirror polishing, in line with GMP standards.
2. The hopper is equipped with paddle mixing system, the speed of which can be adjusted.
3. Pneumatic filling is controlled by compressed air control, so it is especially suitable for use in environments with explosion-proof requirements and humidity, with high safety.
4. The up and down movement of the cylinder drives the piston in the material cylinder to reciprocate, so that the front cavity of the material cylinder generates negative pressure. When the cylinder moves downward, the piston is pulled downward, and the front cavity of the material cylinder generates negative pressure. The material inside is sucked into the cylinder by the atmosphere, and enters the cylinder through the check valve. When the cylinder moves upward, the piston is pushed forward to squeeze the material, and the material enters the empty bottle to be filled through the one-way valve in the discharge connector to complete the filling.
5. High filling accuracy, measurement accuracy ±0.5%, no dripping phenomenon.
6. The screw adjustment is adopted to make the filling volume adjusted accurately.
7. According to actual needs, it can switch freely between "manual" and "automatic" filling status.
8. Feeding method: ordinary gravity type.
9. Control mode: full pneumatic control.
10. The use of high-quality stainless steel materials, internal and external mirror polishing, in line with GMP standards.
Technical Parameters
Filling Range | 100-1000ml (Customized) |
Filling Speed | 20-40 bottles/min |
Filling precision | ±0.5% |
Hopper Volume | 30L (Customized) |
Temperature | 0-100℃ |
Air Source | 0.4-0.6Mpa |
Mixing Speed | 0-45 r/min |
Voltage | 220V, 50HZ (customized) |
Mixing Power | 60W |
Machine Material | SUS304 |
Overall Size | 730*580*1710mm |
Gross Weight | 80kg |
Details Images
Product Details
Simple control panel
Water pump switch, heating switch, temperature control (LED display), mixing motor (scale display), manual / automatic mode switching.
Filling volume regulating device
Various range filling, can freely adjust the required filling volume, filling accuracy, manual handle design, with digital display reference value, convenient to record.
Three way rotary valve
304 or 316 stainless steel, quick fit clamp connection, easy to disassemble and clean.
Drip proof filling nozzle
Piston filling head, size and specification optional. Different size filling nozzle to match different bottle.
High quality motor
Motor keeps power output, high quality.
Pure pneumatic control
Air source switch, high quality oil-water separator, intelligent adjustment of suction and discharge speed, convenient and fast.
Certifications
Why Choose Us
FAQ
Q1: Are you trading company or manufacturer?
A: We are manufacturer, we have own production factory, also do oversea trading by ourselves.
Q2: First time cooperation, how can I trust you?
A: We are verified company by Alibaba, and welcome to visit our factory.
Q3: How long is your delivery time?
A: Generally it is 3-7 working days if the goods are in stock. or it is 10-15 working days if the goods are not in stock.
Q4: How to ensure that I got the machine undamaged?
A: Packed in standard wooden case with well supported materials wrapped.
Q5: What about your service or any question about products?
A: Test machine with your sample after finish machine. Training how to install and use the machine before shipping.
A: We are manufacturer, we have own production factory, also do oversea trading by ourselves.
Q2: First time cooperation, how can I trust you?
A: We are verified company by Alibaba, and welcome to visit our factory.
Q3: How long is your delivery time?
A: Generally it is 3-7 working days if the goods are in stock. or it is 10-15 working days if the goods are not in stock.
Q4: How to ensure that I got the machine undamaged?
A: Packed in standard wooden case with well supported materials wrapped.
Q5: What about your service or any question about products?
A: Test machine with your sample after finish machine. Training how to install and use the machine before shipping.
