BT XR02 15kW High Frequency X ray Radiograph System cr system
- Category: >>>
- Supplier: Zhangjiagang Bestran Technology Co. Ltd. [Jiangsu China]Zhangjiagang
Share on (60487758221):
Product Overview
Description

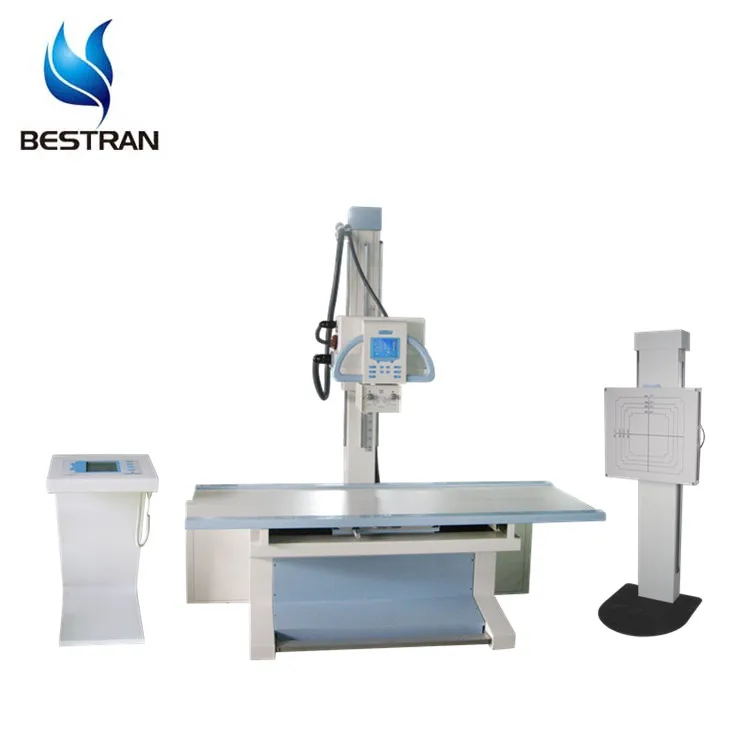

BT-XR02 15kW High Frequency X-ray Radiograph System cr system
Product Description
Specification:
Item | content |
Output power | 25kW |
Main inverter frequency | 40kHz |
X-ray tube | Rotary anode, dual-focus, large focus: 1.3mm, small focus: 0.6mm, Tube thermal capacity: 900kJ (1200kHu) |
Rotary anode speed | 2800rpm |
Tube current | 200mA |
Tube voltage | 40kV-125kV |
mAs | 0.4-360mAs |
Table radiography grids | Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:120cm;Stationary type:15"×18" |
Chest stand radiography grids | Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:150cm;Stationary type:18"×18" |
Power supply | 380V 50Hz, Capacity: ≥40kVA |
Operation method | close-table graphic program controlled LCD touchable screen operation; wireless remote control exposure |
Basic Configuration:
1, new integral radiography table (with pillar) one unit
2, combined high-frequency high-voltage X-ray generator one set
3, Colored LCD touch screen control box one unit
4, Control system (with software) one set
5, Chest stand (with imported filter grids) one unit
X-ray Related
Company Information

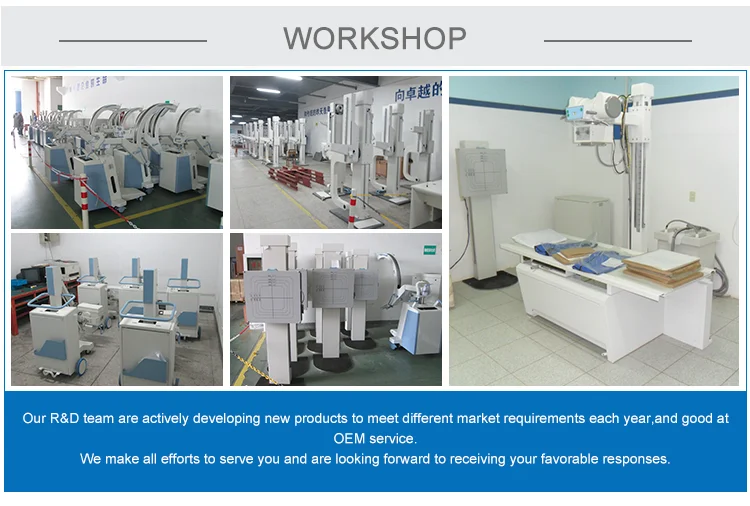

X-ray workshops
