High Quality Cathodic Protection Sacrificial Anode for Deep Well
- Category: >>>
- Supplier: Chongqing Hi-Sea Marine Equipment Import & Export Co. Ltd.
Share on (60487821800):
Product Overview
Description
Product Description
High Quality Cathodic Protection Sacrificial Anode for Deep Well
sacrificial anode/cathodic protection sacrificial anode/sacrificial anode for deep well
Deep well anode is a vertical anode with a depth of less than 15 meters, mainly used as cathodic protection system anode in the case of small surface space or high soil resistivity. One advantage of deep well anode is that the anode and protected structure has a certain distance, making the distribution of protection current is more uniform. In addition, the corrosion interference to other buried metal structures is small.
Imeplementing Standard
SY/T0096-2000
Main Performance
Long service life, convenient installation, small grounding resistance, large discharge capacity and so on.
Application
Used in deep well anode ground bed cathodic protection system
Product Features
1.Prepackaged deep well anode is developed and manufactured to meet the needs of cathodic protection technology.
2.Deep well anode refers to the top of anode ground bed where the anode top is more than 15m from the ground; it is relative to the shallow buried anode.
3.It is mainly applicable to the impressed current cathodic protection of oil water well casing, large factories and mines and urban dense pipe network.
4.Deep well anode has small influence on the non-protected underground steel structure, as well as small investment and non limitation of terrain.
5.Small grounding resistance, small interference, energy saving explosion, no excavation along the line.
6.Good protective effect, large output current, uniform current distribution, long protection distance and long service life.
Structure Characteristics
1.Deep well anode system is composed of deep well anode, internal guide device, filling material, cable, well protecting device and other structures.
2.According to the different requirements, deep well anode can be divided into mixed metal oxide anode and high quality and high silicon cast iron anode.
3.Mixed Metal Oxide Anode
4.Mixed metal oxide anode is a kind of new anode coated by titanium base plus iridium, iron and other metals.
5.Mixed metal oxide anode has light weight, good strength, high current efficiency and good electrical conductivity.
6.Strong oxidation resistance, corrosion resistance, especially anti-CI performance, long service life, energy saving.
Model Specification
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
Main Use: exchangeable style deep well anode is mainly applicable to the impressed current cathodic protection of oil well casing pipe, large factories and mines, urban dense network and so on.
Structure Feature: adopting high quality and high silicon cast iron anode as main anode, tubular insulated flanges with single pole connections or electric welding, filled with coke powder mixed with chemical absorbent and internal air guide device. Having the advantages of convenient connection, reasonable current distribution, small grounding resistance etc.; when anode is at fault in the well, it can be checked and replaced.
Model Specification
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
Reference Design
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
Detailed Images

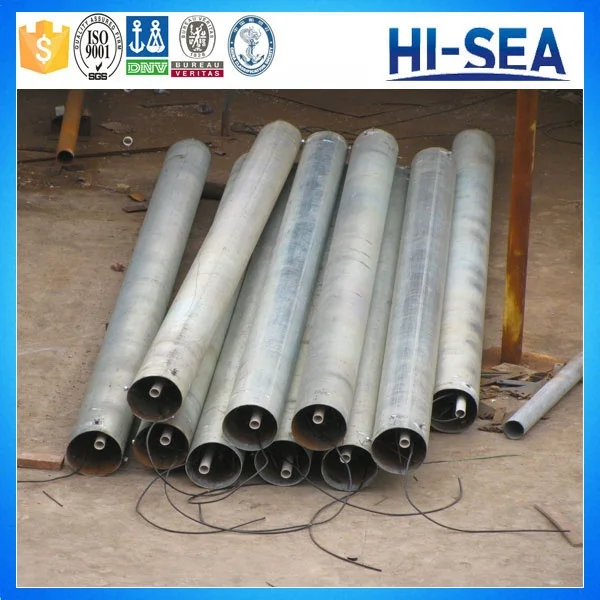

High Quality Cathodic Protection Sacrificial Anode for Deep Well

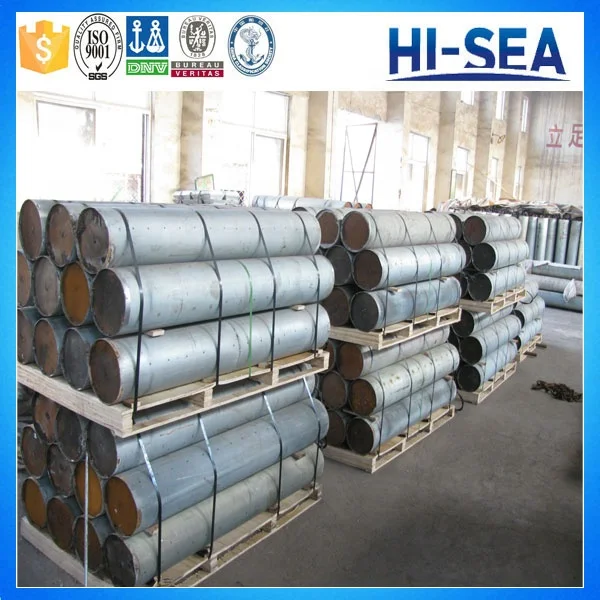

Cathodic Protection Sacrificial Anode for Deep Well
Sacrificial Anode for Deep Well
Construction Sites
Deep Well Anode Under Construction
Anode Installation for Oil Pipeline
Magnesium Anode Under Construction
Anode Construction Site
Thermite Welding
Stray Current Testing
Certifications
CCS
BV
DNV
Our Service
1.Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.
2.Product Customization Service
Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.
3.Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc..
4.Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
Company Information
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd. locates in Chongqing, one of the largest industrial cities in China. We have been engaged in the field of marine and offshore equipment since 1996.
Our main products are as follows: marine deck equipment, marine mooring equipment, marine cables and other electric equipment, marine light fittings, marine lifesaving and safety equipment, marine pipe system fittings (e.g. pumps, valves etc.).
We have two stock factories in Chongqing and more than 20 long-term cooperation factories throughout China.
Our aim is to provide the superior quality products, reasonable price and efficient and professional service. We can also provide ABS, LR, BV, GL, FNV, KR, NK, RINA,CCS certificate for our marine products.
“Integrity, Win-Win and Nonstop Improvement” is our enterprise spirit. We’re looking forward to your visit and negotiation. We believe that we’ll be your reliable partner in China.
