300W Electro Surgical Unit Bisturi Eletrico Maquina in good price
- Category: >>>
- Supplier: Beijing Dongfang Shenjian Medical Equipment Ltd.
Share on (60488187759):
Product Overview
Description

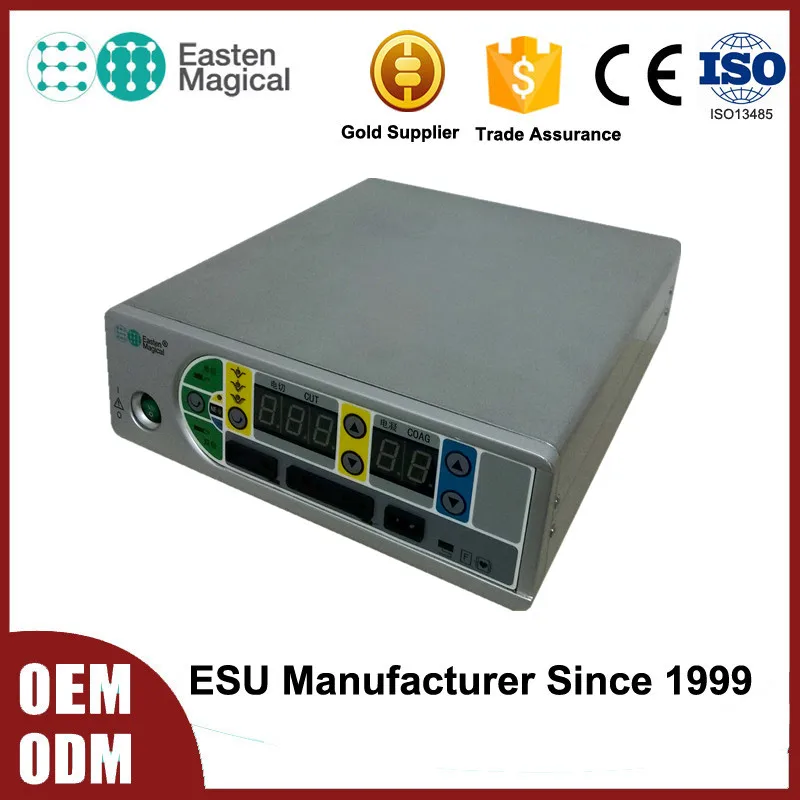

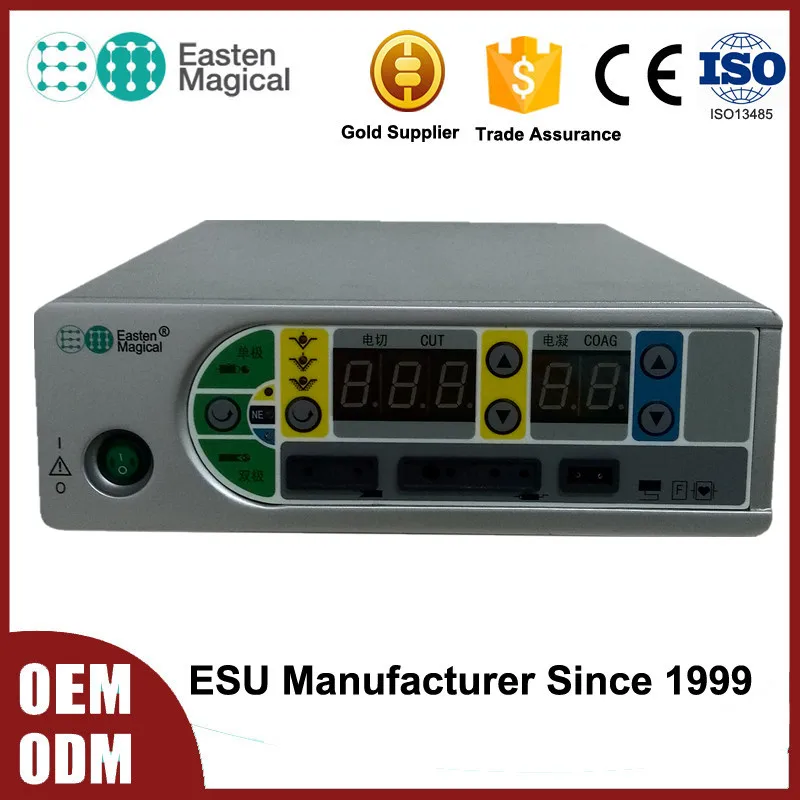

300W Electro Surgical Unit Bisturi
Eletrico Maquina in good price
Monopolar Cut ( Pure cut , Blend 1, Blend 2 )
Monopolar Coag ( Standard Coag)
Bipolar Cut
Bipolar Coag
Feature & Advantage
Various functions with Compact and light design
Tissue Monitoring Technology
This technology monitors the tissue density, especially for polypectomy & papillotomy,
cutting is smartly divided incut & pause, so that coagulation occurs in each pause.
The system is intelligent to change the pause interval as
tissue density changes, hence produces fine cutting with coagulation effect.
Patient Return Electrode Monitoring (PREM)
REM (Return Electrode Monitoring) function monitors the range of contact area
between a patient and the neutral plate. If the size is inappropriate, it automatically
stop the high-frequency current with audible alarm to minimize the danger of burning incidents.
Compatible with other surgical equipment
Endoscopy, TURP , HV Argon Plasma Coagulator, Optimum Smoke Evacuation System.
Waterproof Panel Operation
Microcomputer Auto Control, Three-zone (LED ) digital display.
Technology Data
Working Mode | Max Power | Peak Voltage | |||
Monopolar Cut | Pure cut | 300W | 2000V | ||
Blend 1 | 250W | 2800V | |||
Blend 2 | 200W | 3000V | |||
Monopolar Coag | Standard | 99W | 2000V | ||
Bipolar Cut | Bipolar Cut | 70W | 820 V | ||
Bipolar Coag | Bipolar Coag | 99W | 820V | ||
Electrical requirement | |||||
Operating Voltage | 220V±22V | Measuring Frequency | Monolpolar 475KHz±2% Bipolar 1M±2% | ||
Monopolar Rate Load | 500Ω | Bipolar Rate Load | 100Ω | ||
Max Input Power | 1400VA | ||||
Environmental Conditions for Use | |||||
Condition | Range | ||||
Temperature | 50°C to 40°C | ||||
Relative humidity | ≤ 95% non-condensing | ||||
Pressure | 700 hPa to 1060 hPa | ||||
Environmental Conditions for Transport and Storage | |||||
Condition | Range | ||||
Temperature | -40°C to 55°C | ||||
Relative humidity | ≤ 93% non-condensing | ||||
Pressure | 500 hPa to 1060 hPa | ||||
Dimension | 350mm×320 mm×100mm | ||||
Weight | 15kg | ||||

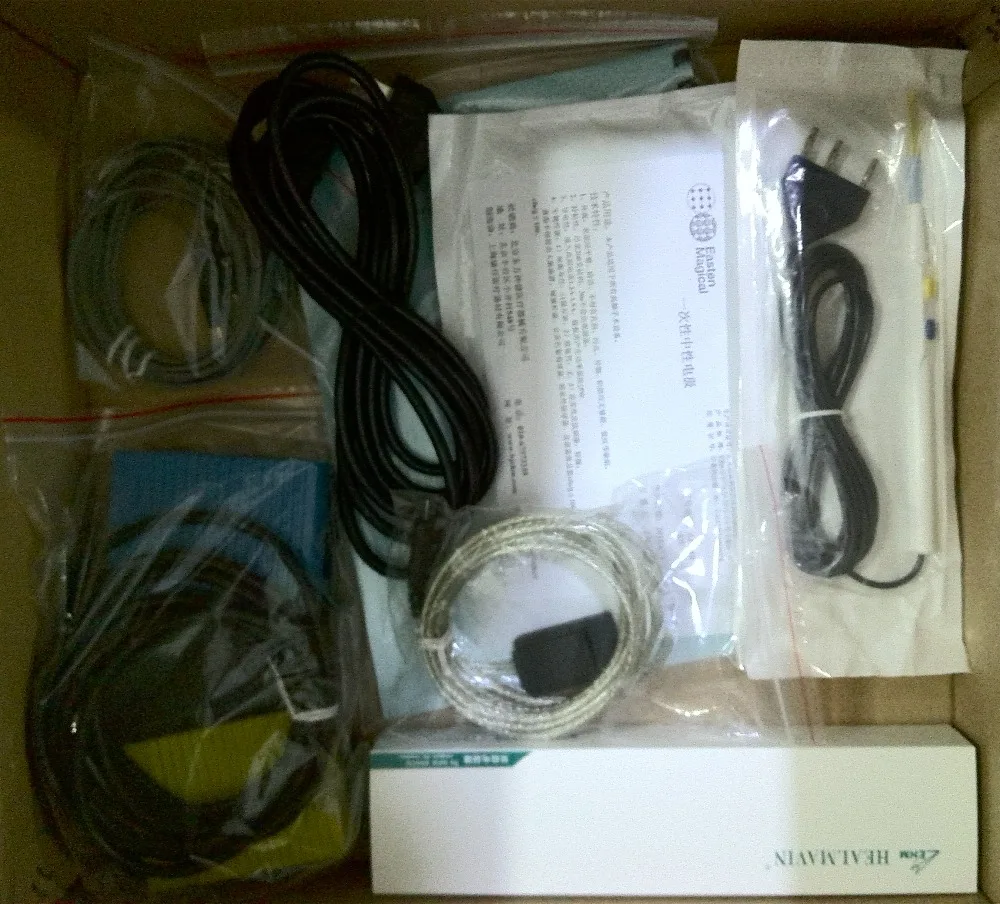

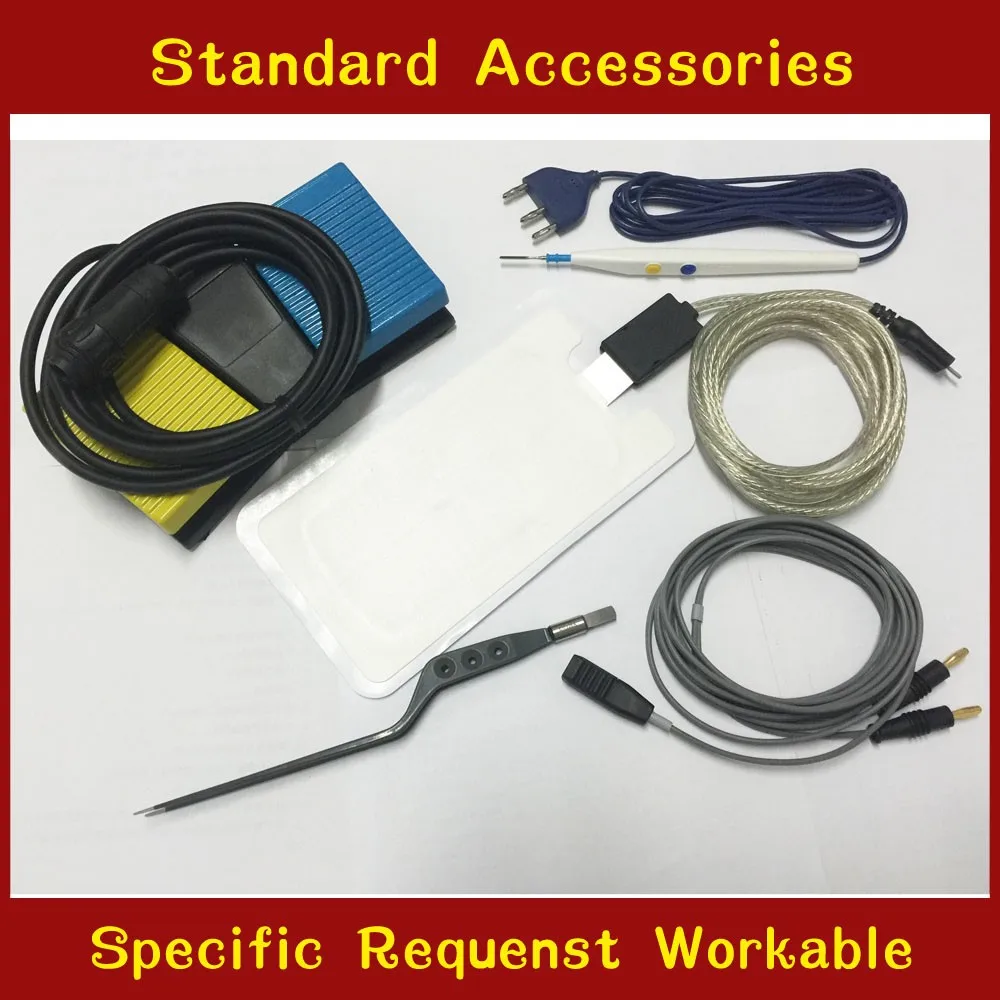

Standard Accessories
Code | Description | Quantity |
1 | Electrosurgical Unit | 1 |
2 | Single-use ESU Pencil with Cable | 2 |
3 | Single-use ESU Plate | 5 |
4 | Reusable ESU Plate Cable | 1 |
5 | Bipolar ESU Forceps | 1 |
6 | Reusable Bipolar cable | 1 |
7 | Double Foot Swith | 1 |
8 | Power Cable | 1 |
9 | Service Manual | 1 |
