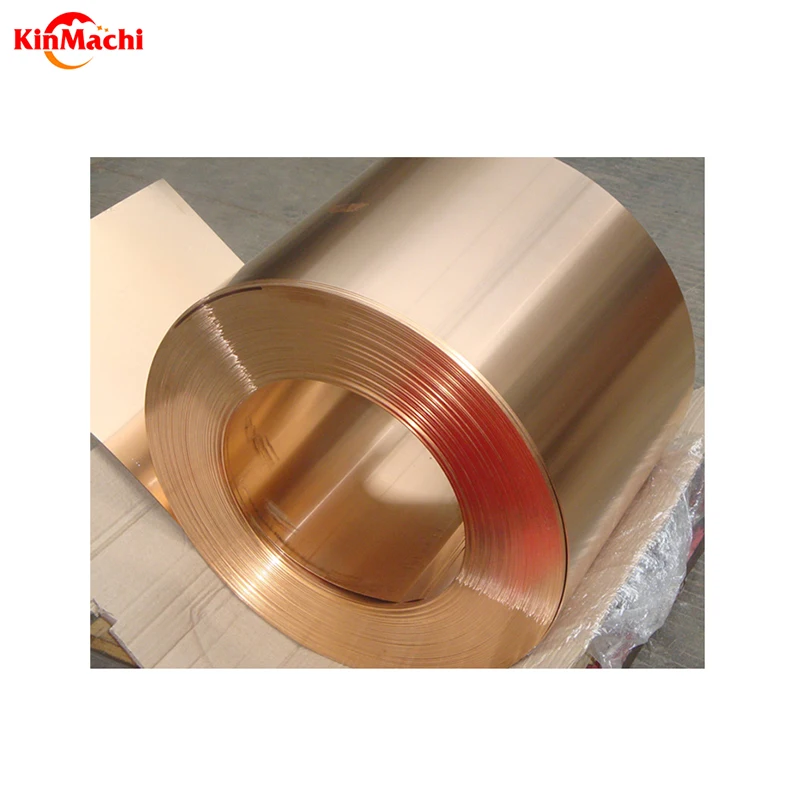

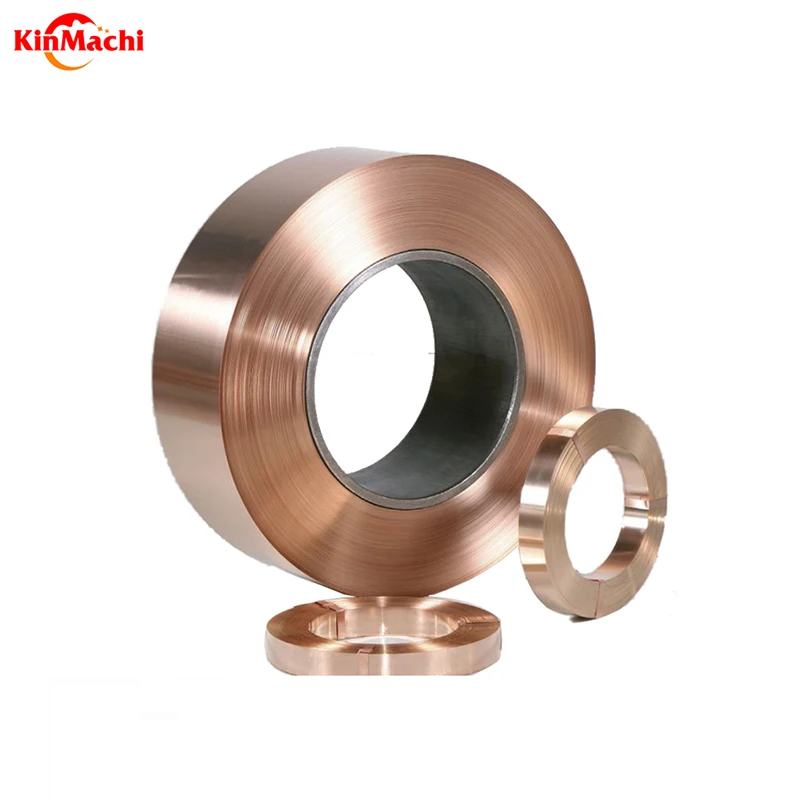

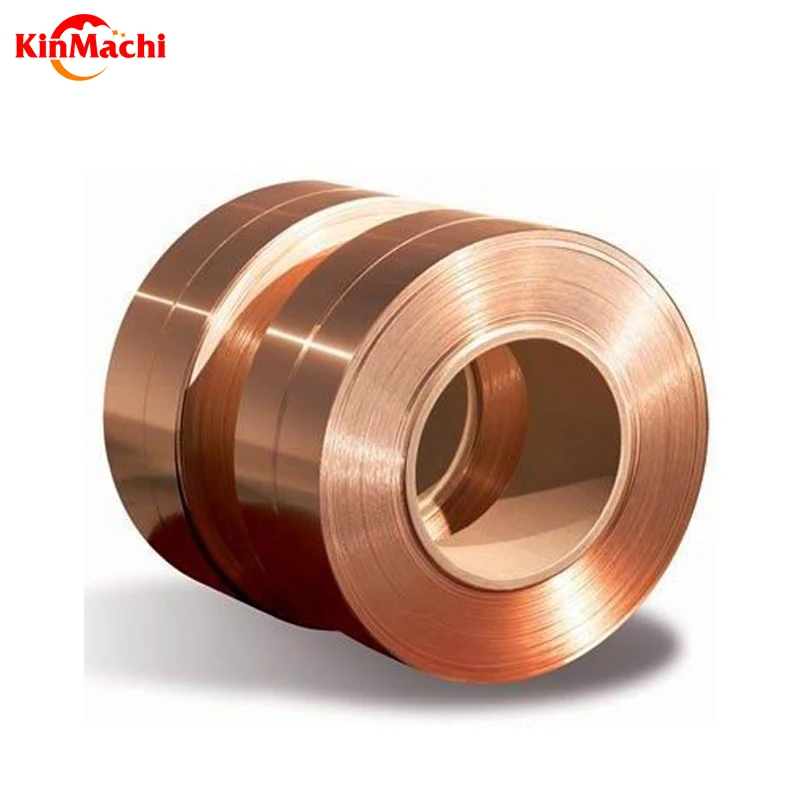

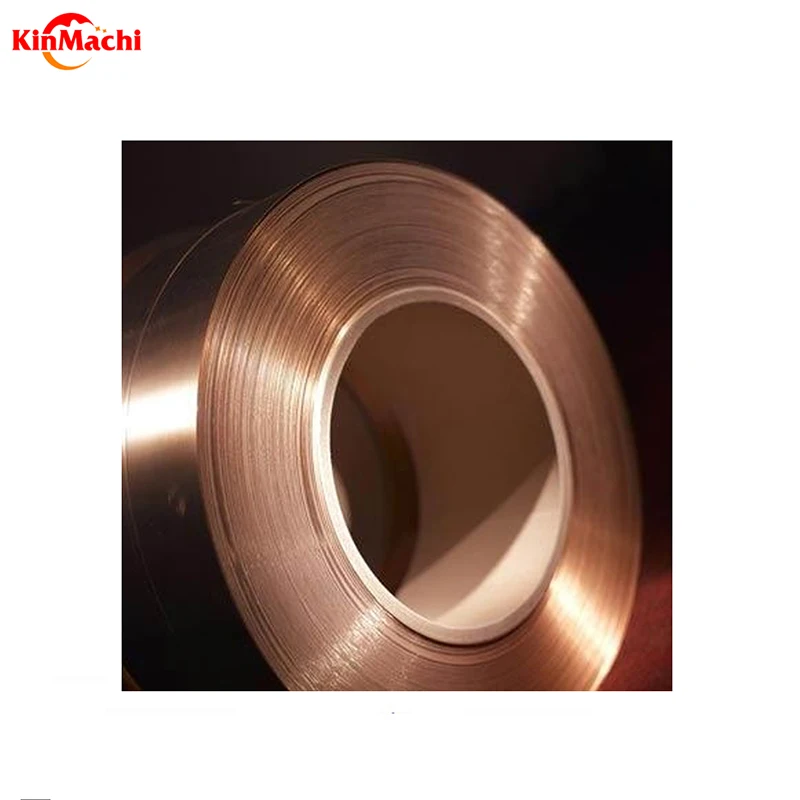

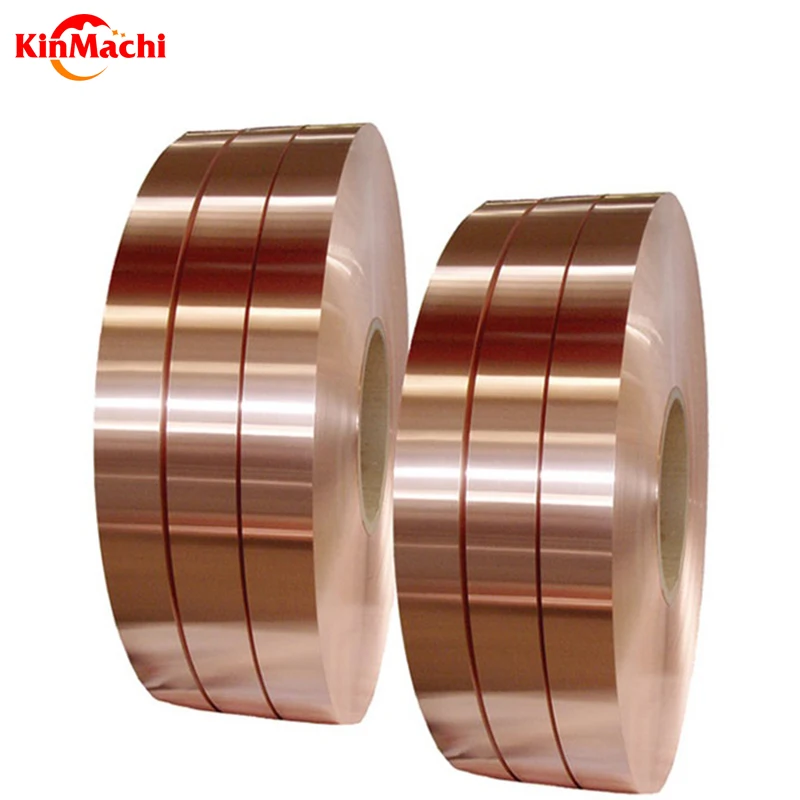

C52100 CuSn8 Phosphor Bronze Copper Strip Price Per Kg
- Category: >>>
- Supplier: Shanghai Kinmachi New Material Technology Co. Ltd
Share on (60488189204):
Product Overview
Description
Material introduction:C5210(CuSn8)
CuSn8 - UNS.C52100 Phosphor Bronze Alloys, which is a 8% tin bronze distinguished bya very good combination
of strength and electrical conductivity. It is used for connector and current-carrying springs in contacts.Among the 4-8%
tin bronze C52100 exhibits the lowest electrical conductivity, the highest reachable strength is significantly higher than
C51100 /C51000 / C51900. By means ofan additional further tempering after the cold forming process the bendability
can be further improved. In addition, it has better corrosion resistance and good sliding properties. C52100 is used for
springy components and sliding elements when increased strength and wear-resistance are required.
Standard:
DIN | EN | ASTM | JIS |
CuSn8 2.103 | CuSn6 CW453K | C52100 | C5210 |
| Phosphor Bronze Alloy C5210 (CuSn8) | |||||||||
| Standard | |||||||||
| EN | CuSn8 | UNS ALLOY No. | C52100 | ||||||
| Applications | |||||||||
| Electronic connectors and mobile phone parts | |||||||||
| Chemical Composition % | |||||||||
| Cu | Bal | P | 0.15-0.17 | ||||||
| Sn | 7.0-9.0 | ||||||||
| Physical Properties | |||||||||
| Density (g/cm3) | 8.8 | Coefficient of thermal expansion 10-6/℃ 20/℃ ~100/℃ | 18.2 | ||||||
| Electrical conductility IACS%(20℃) | 12min | Thermal conductivity W/(m*K) | 62.6 | ||||||
| Modulus of elasticity (KN/mm2) | 109 | ||||||||
| Merit | |||||||||
| great corrosion resistance, with high corrosion resistance to dilute sulfuric, hydrochloric acid and fatty acid | |||||||||
| Physical Properties | |||||||||
| Temper | temper class | Tensile strength | Yield strength | Elongation A50 | Vickers hardness | Bend test | |||
| 90 degree(R/T) | 180 degree(R/T) | ||||||||
| (Rm, Mpa) | (Rp0.2, Mpa) | (%) | (HV) | GW | BW | GW | BW | ||
| ANNEALED | O | -- | -- | -- | -- | -- | -- | ||
| R450 | 1/4H | -- | -- | -- | -- | -- | -- | ||
| R540 | 1/2H | 470-610 | -- | 27min | 170-190 | 0 | 0.5 | ||
| R600 | H | 590-705 | -- | 20min | 190-220 | 0.5 | 1.5 | ||
| R660 | EH | 685-785 | -- | 11min | 210-230 | 1 | 3.5 | ||
| R740 | SH | 735-835 | -- | 9min | 230-250 | 2 | 7 | ||
