sandwich plate direct operated sub plate mounting pressure reducing valve

Product Overview

Description

 Order Form of hydraulic  valve:



1. Z:sandwich plate

2. Pressure reducing valve

3.6: size 6

4.D: direct operated

5. A: Pressure reduction in port A2; P: Pressure reduction in Port P1

6.1: Rotary knob; 2: Adjustable bolt with protective cap; 3: Lockable rotary knob

7: 30: series 30

8. Max. secondary pressure:2.5,7.5,15,21Mpa

9. Y: Pilot oil supply internal and drain external

10.No code: NBR seals; V: FPM seals







Symbol of ball valve:







 Overall Dimension of  valve:









Specifications:



1. Series Code: DR...L5X series sandwish plate pressure relief valve

2. Valve Body Material: QT500

3. Operating Temperature: 1. -30~+80°C, 2. -20~+80°C

4. Other Airproof:No code-NBR, V-FPM

5. Medium: Mineral oil suitable or Phosphate ester

6.Viscosity range(mm²/s):10 to 800

 7. Design Number: To Be Decided By The Manufacturer

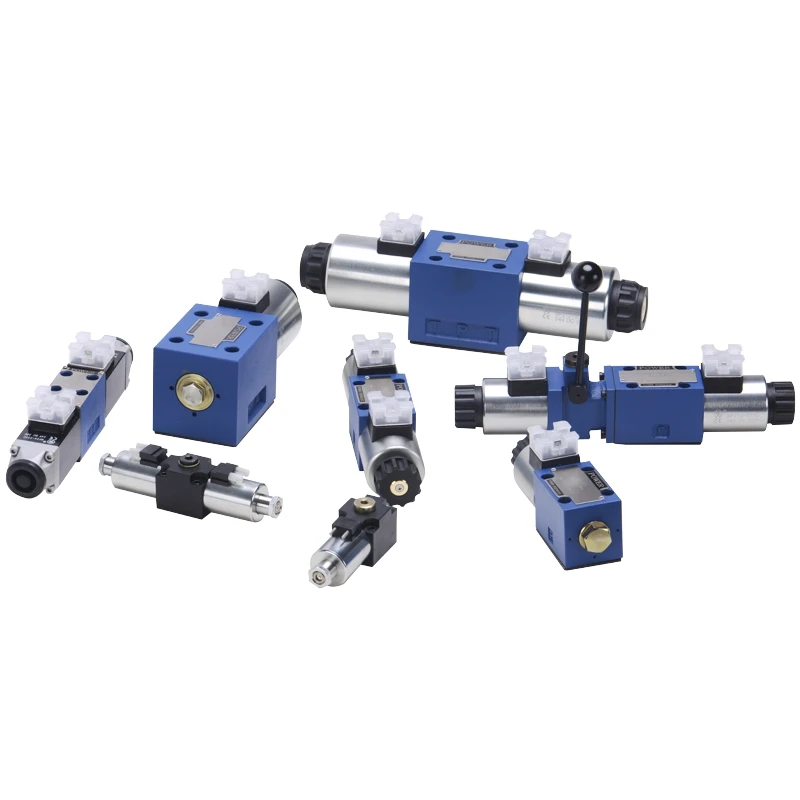

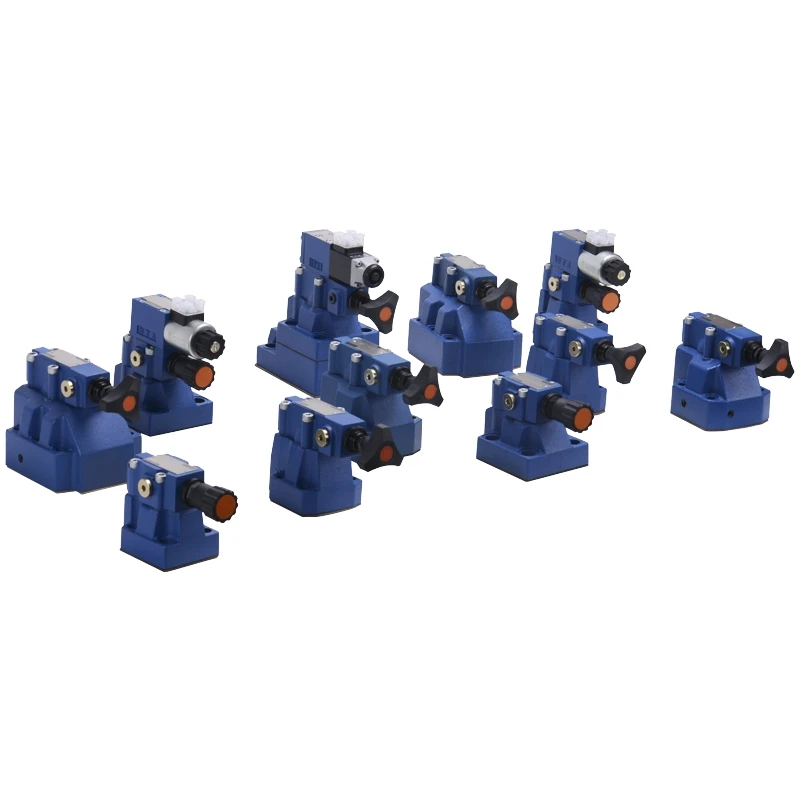

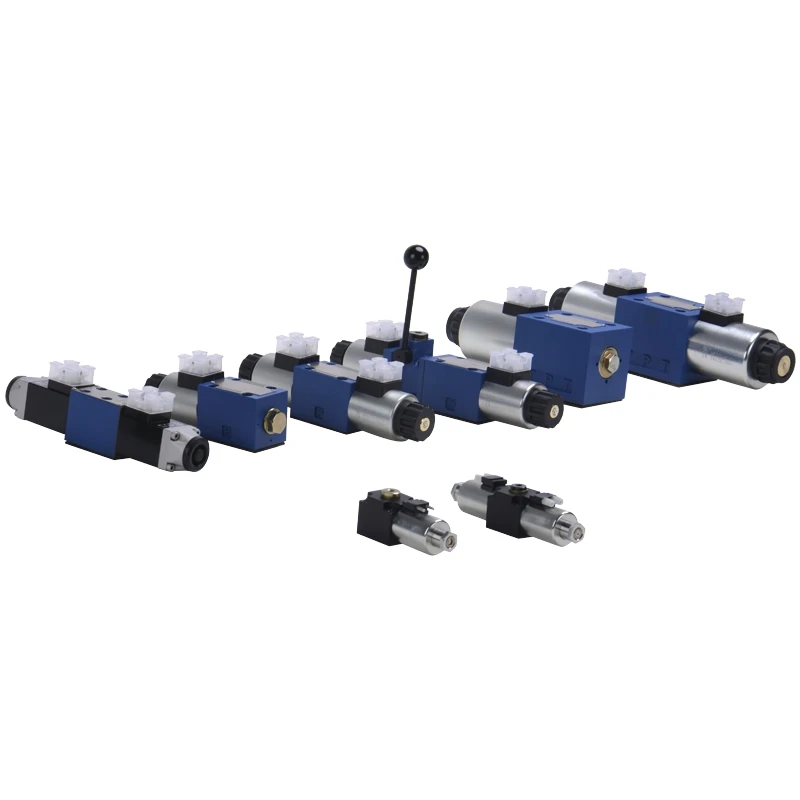

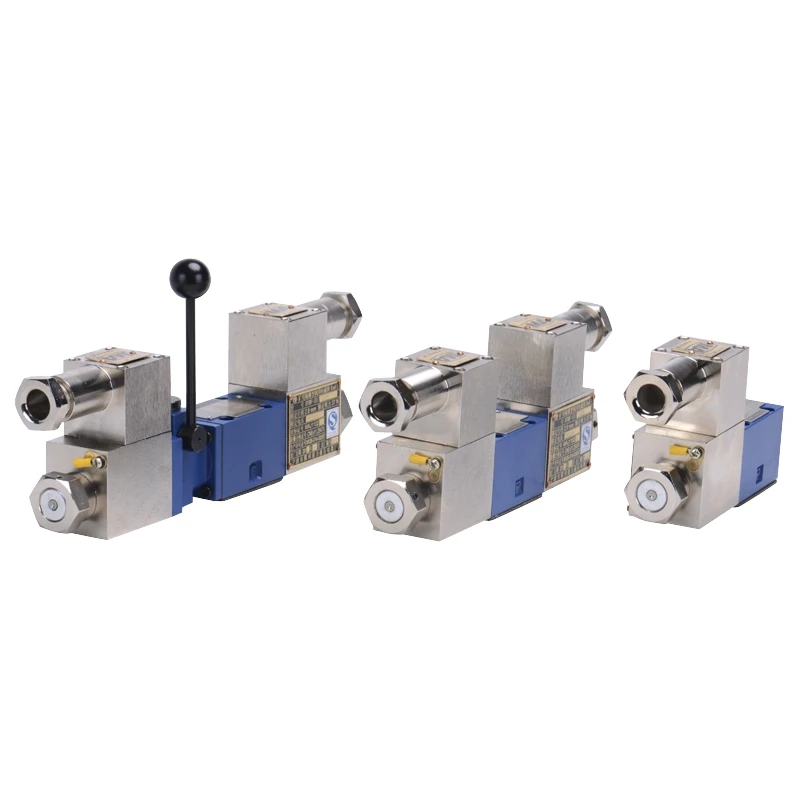

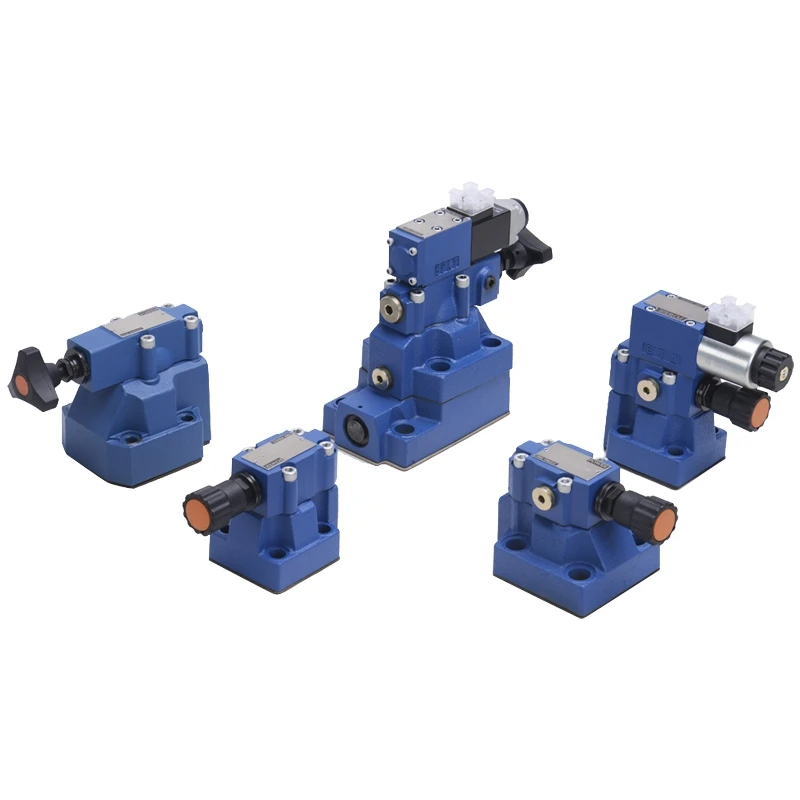

More products for your to choose:

HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect

Our products reputed of high quality and quick delivery time.





 Strength of HRPC high pressure ball valves

1) 13 yesrs Experience

2) Steady production Capacity

3) Competitive Price

4) High standard quality

5) Strict inspections

6) good after-sale service
