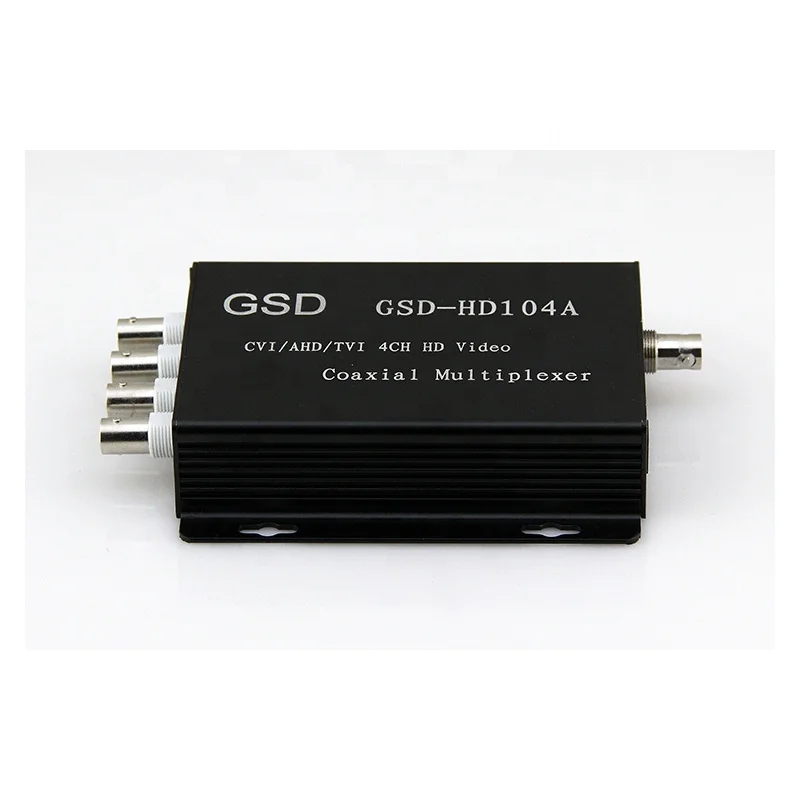

4 channel CVI/AHD/TVI video Multiplexer by coaxial cable, hd 5MP video multiplexer

 This product uses special compression modulation technology, on the front end (transmitter) let 4-channel CVI/AHD/TVI hd camera to compressed, then made into digital signal in coaxial cable transmission. The back-end (receiver) through modulation, reductive into 4-channel hd signals for hd DVR (CVI/TVI/AHD) or matrix use after decompression. This series of products can be divided into the 100 meters, 200 meters, 300 meters and other transmission distance and different models.

It supports 4 channel video signals in one coaxial cable by way of Frequency Division Multiplexing, with all data transmission real-time and all images high-definition and non-delay. It is suitable for improvement of old projects and building under new projects.

1. It’s designed according to projects with minimum installation volume requirement.

2.4-CH video in one coaxial cable transmission.

3. FDM technology is easy for multi-channel signals transmission only in one coaxial cable without any delay and interference.

4. Perfect support coaxial video line, 75-3, 75-5, RG59 wire, etc.

AHD (made by XM): perfect quality effect, support 1080p, 720p

CVI (made by DAHUA): perfect quality effect, support 1080p, 720p

TVI (made by Hikvision): general quality effect, support 1080p, 720p

Solution in the upgrade, Hikvision 720p is in progress...please focus on us, thanks…

AHD/CVI/TVI, these three solutions can not mix and match the transmission signal at the same time. Single solution and 4-CH transmission signals is more stable!
