Construction Formwork Accessories Column Formwork Clamp
- Category: >>>
- Supplier: Shandong Fangyuan Building Materials Co. Ltd. [Shandong China]Shandong
Share on (60488329776):
Product Overview
Description

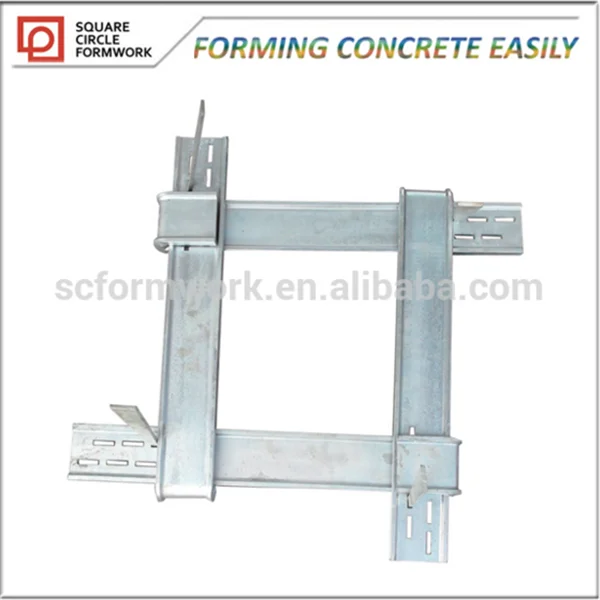

Construction Formwork Accessories-Column Formwork Clamp
| Steel Concrete Forming Column Clamp Information |
| Adjustable size(mm) | Materials | Length(mm) | Weight(kg) |
| 400-600 | 8.0# Q345B galvanized steel, 5mm thickness in middle part and 18mm in edges. | 1162 | 21.6 |
| 500-800 | 1365 | 26.2 | |
| 700-1000 | 10.0# Q345B galvanized steel, 8mm thickness in middle part and 20mm in edges | 1647 | 51 |
| 900-1200 | 1847 | 57.2 | |
| 1100-1400 | 2047 | 65 | |
| 1300-1600 | 2247 | 70.4 |

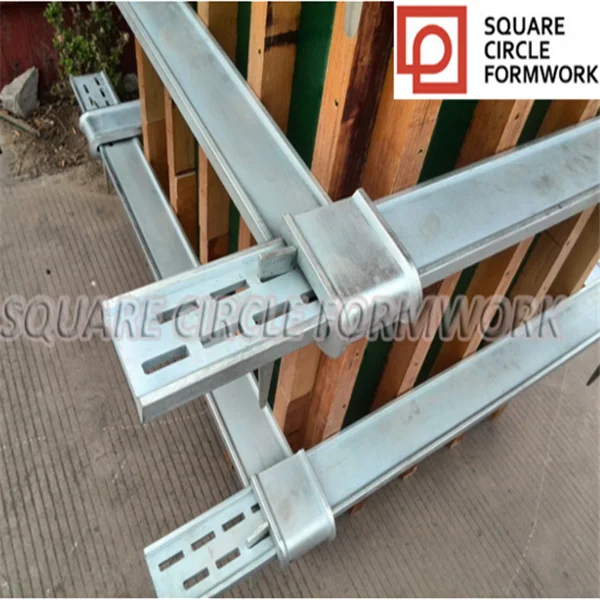

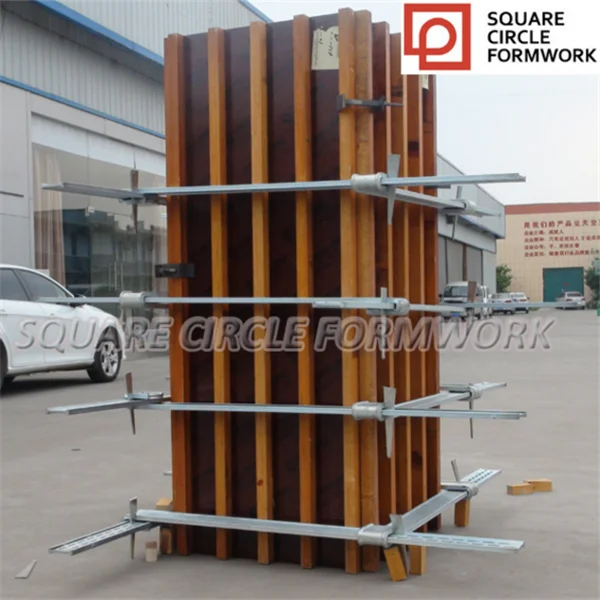

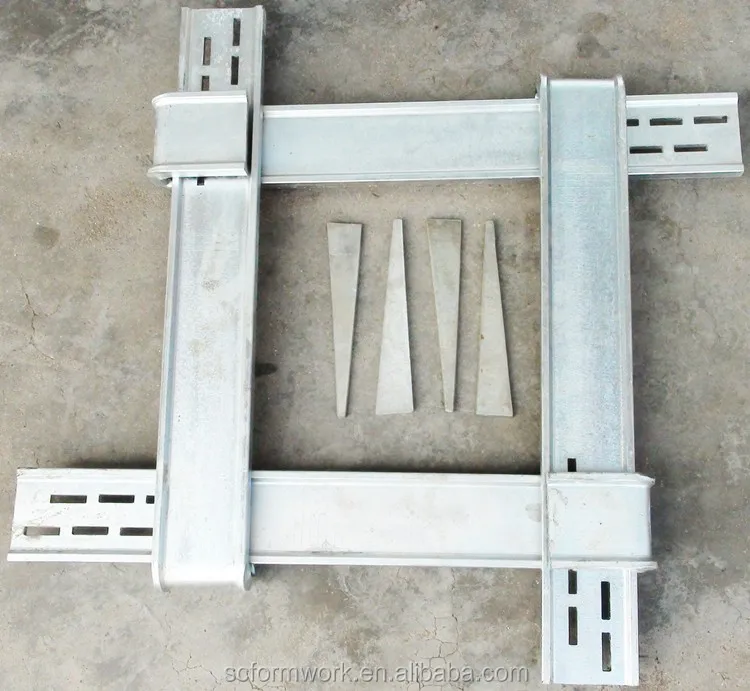

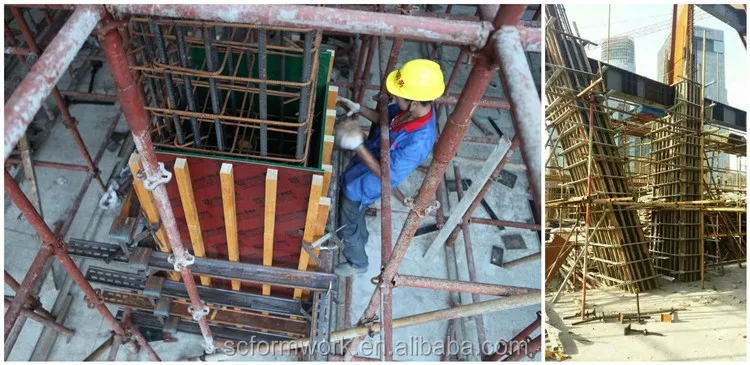

| 1.4 pcs of flat steel as a set is for supporting temporary formwork to reinforce concrete column. |

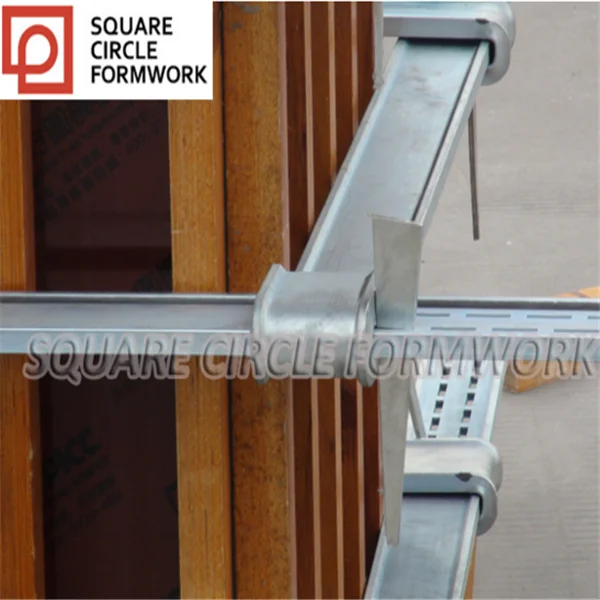

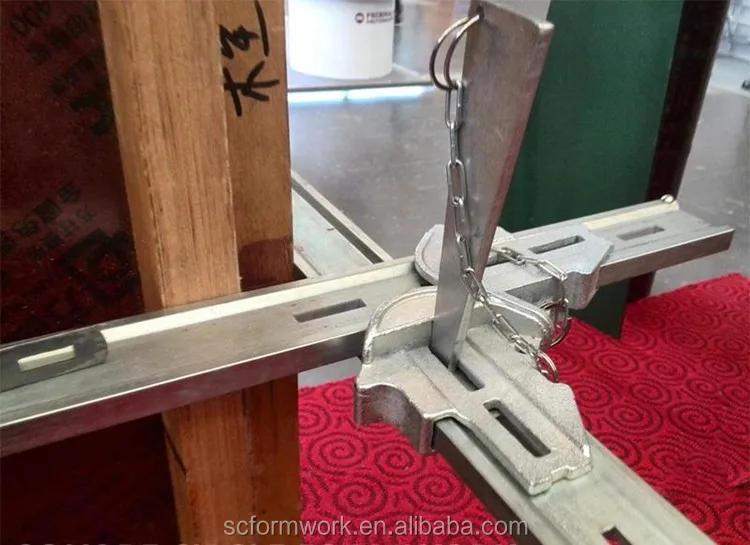

| 2.Formwork adjustable clamp adjusted by means of a system with slots and wedges, which giving perfect rigidity in all. |
| 3.Formwork adjustable clamp is ideally suitable for a wide range column sizes, and are usable for steel or timber formwork. |

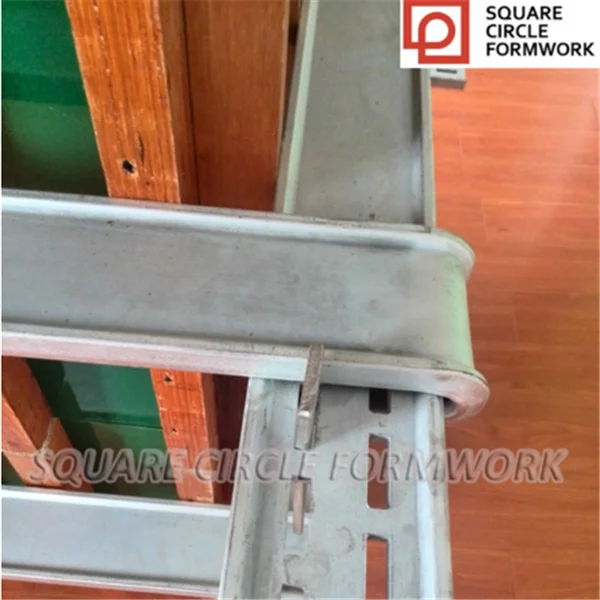

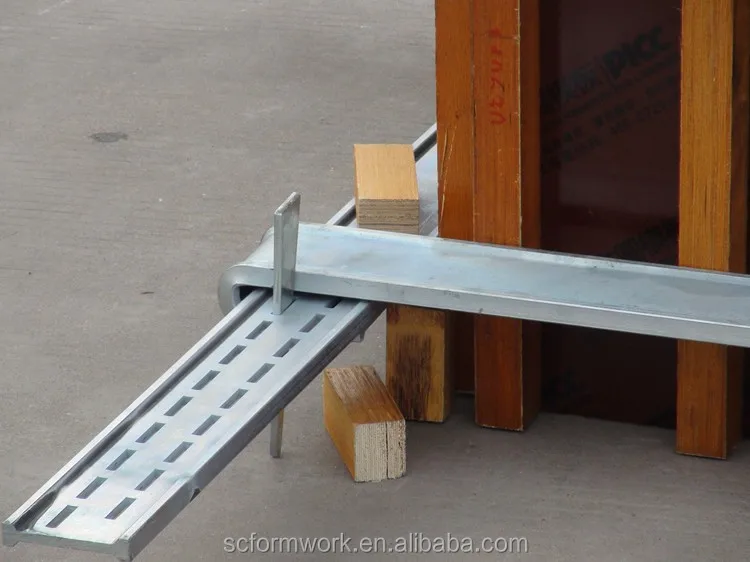

| 4.Formwork adjustable clamp can be fitted on the column by taking the wedge into the overlapping slots. |
| 5.Formwork adjustable clamp is used in formwork construction as labour,time and materials are saved by completely eliminating the cutting and waste of timber. |

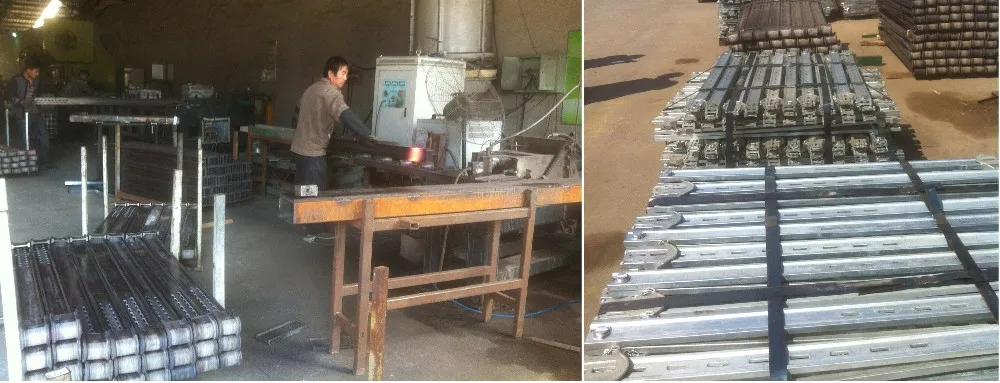

| Workshop |

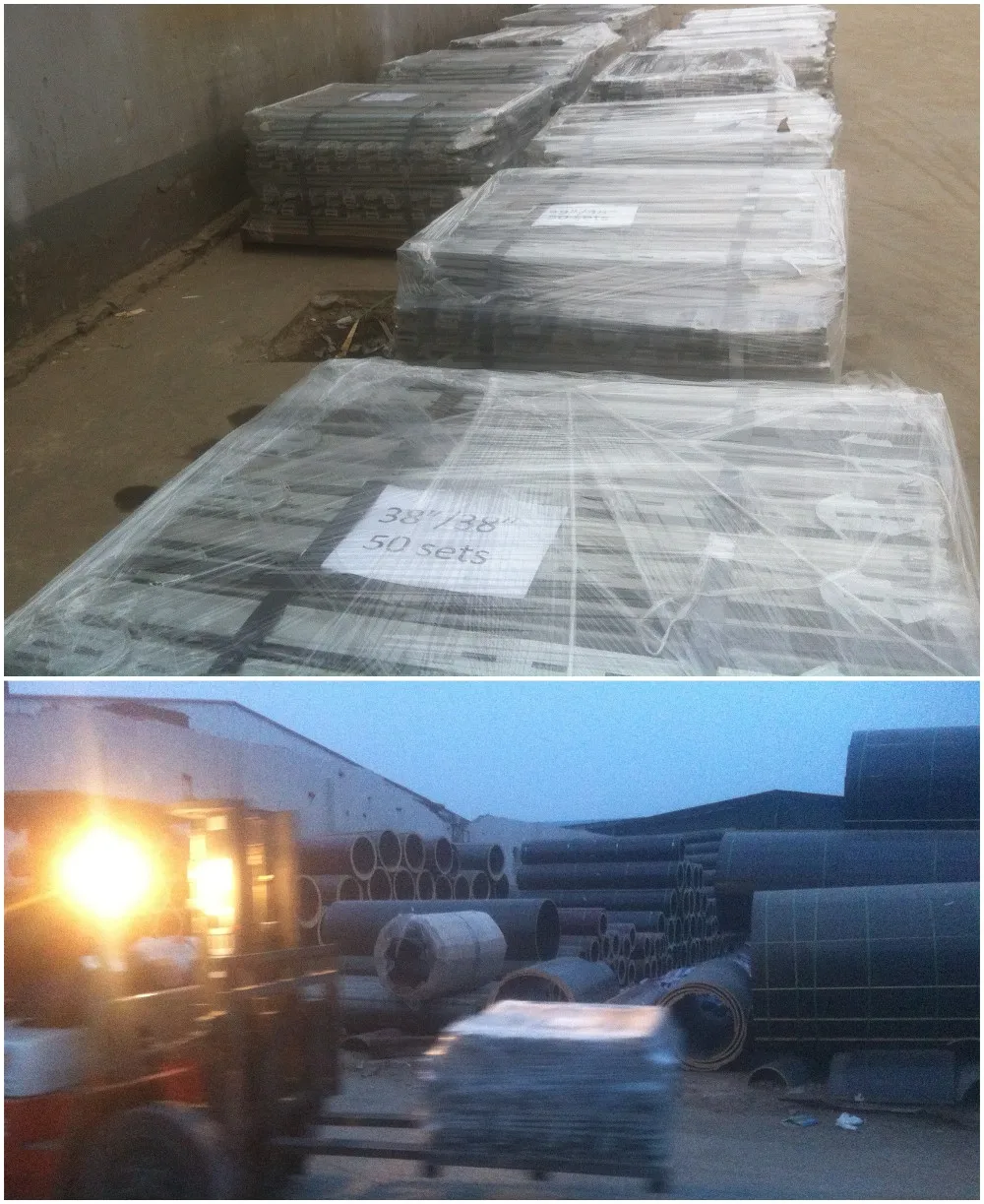

| Package & shipping |
| Contact Us |
Shandong Fangyuan Building Materials Co., LtdAdd: No.5,12th Road,Lanshan distict,Linyi,Shandong,China. Whatsapp:86-18306579708 Wechat: 18306579708 Email:ella(at)scformwork.com |
