Product Overview
Description

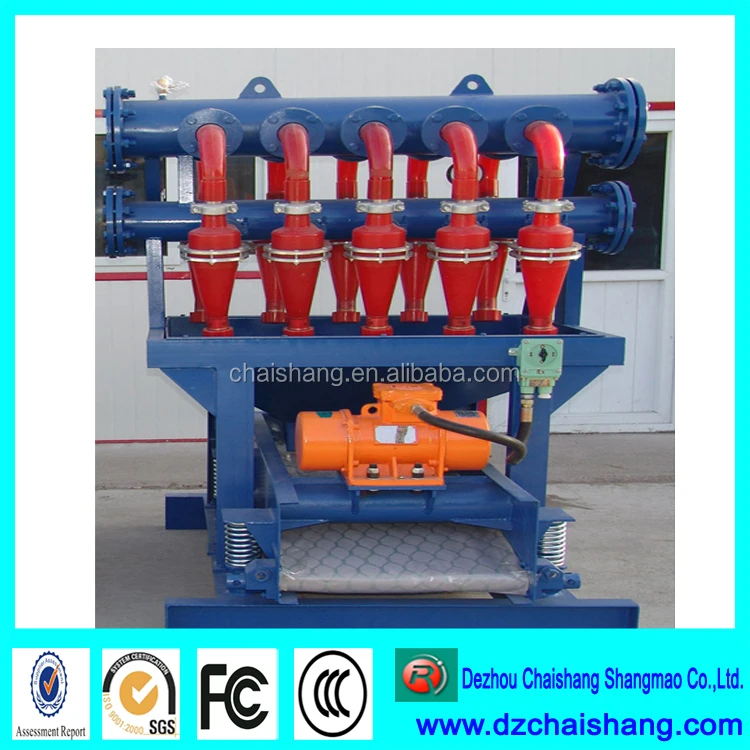

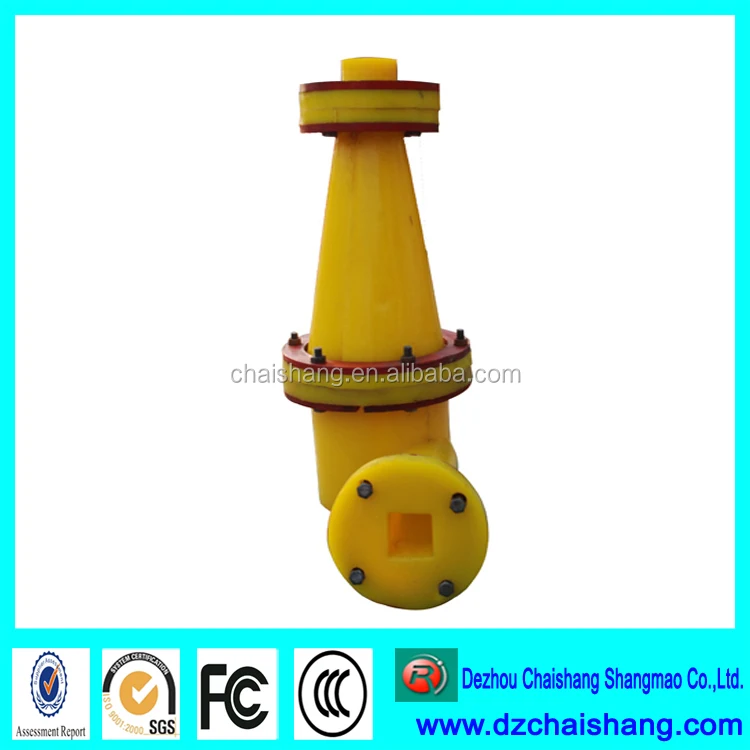

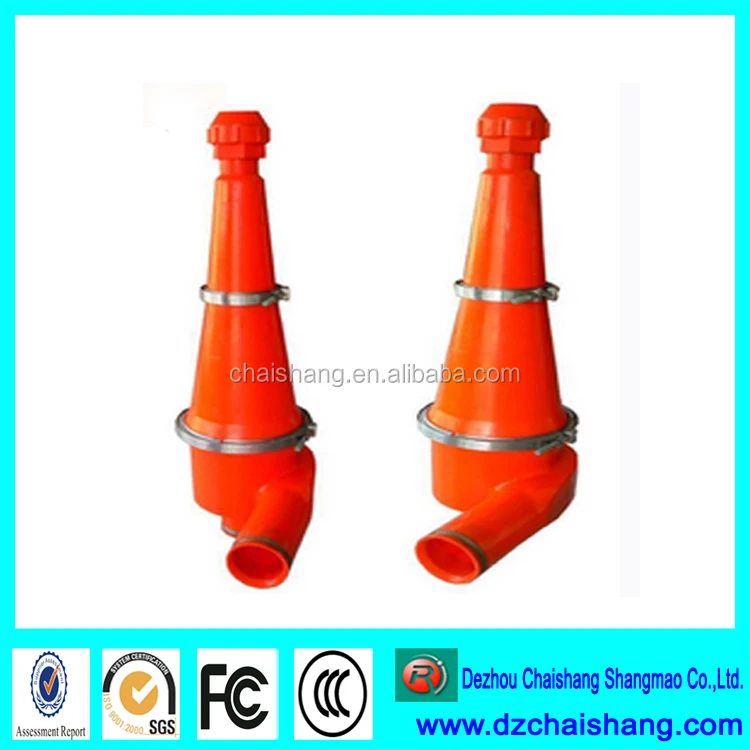

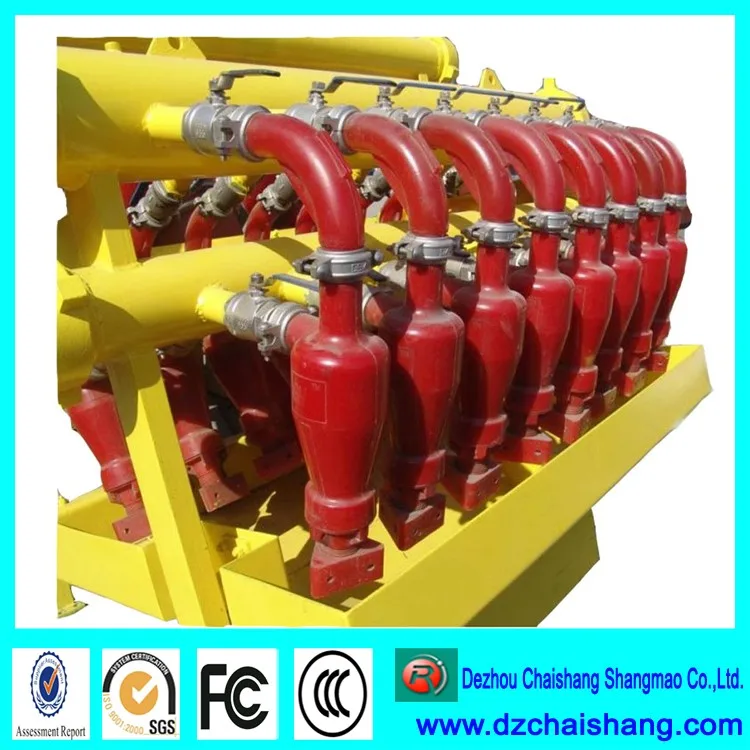

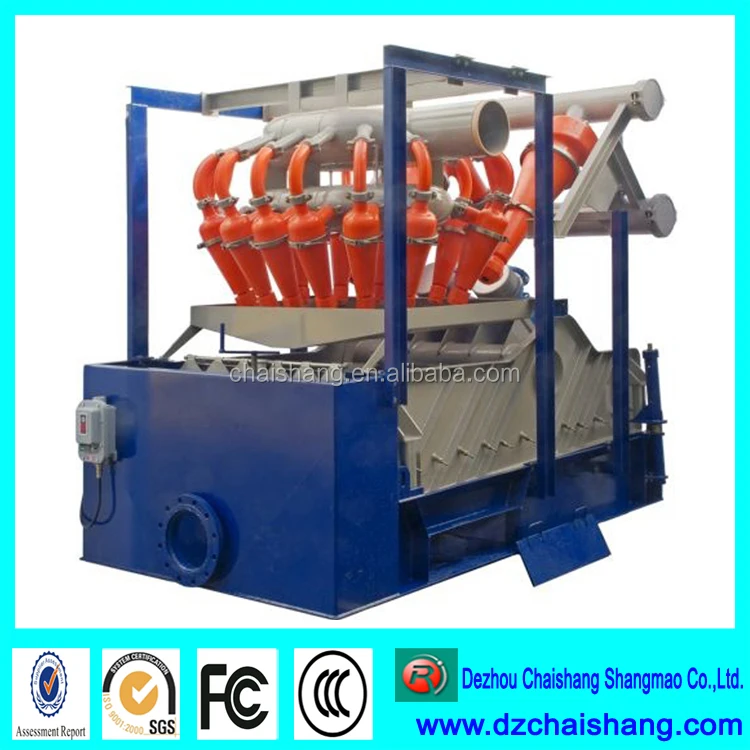

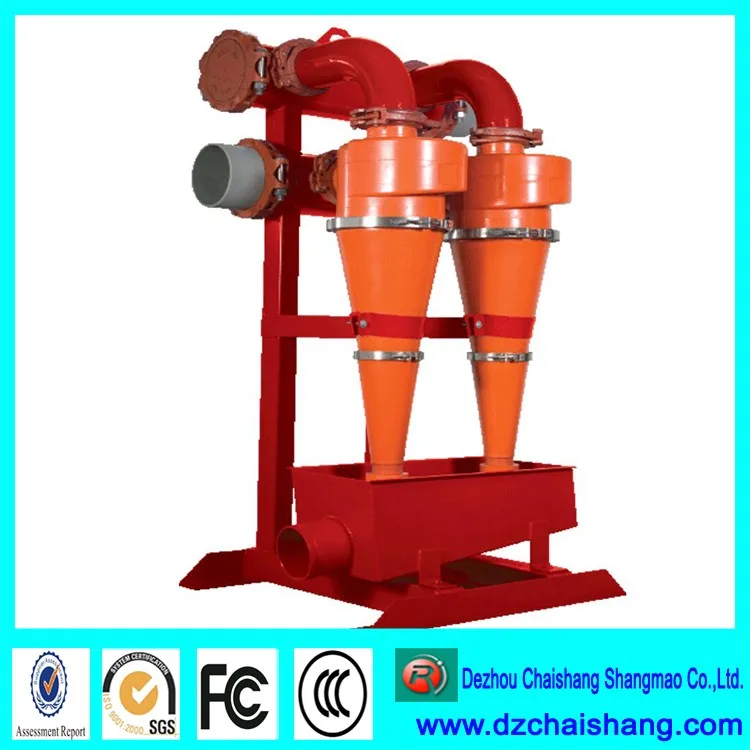

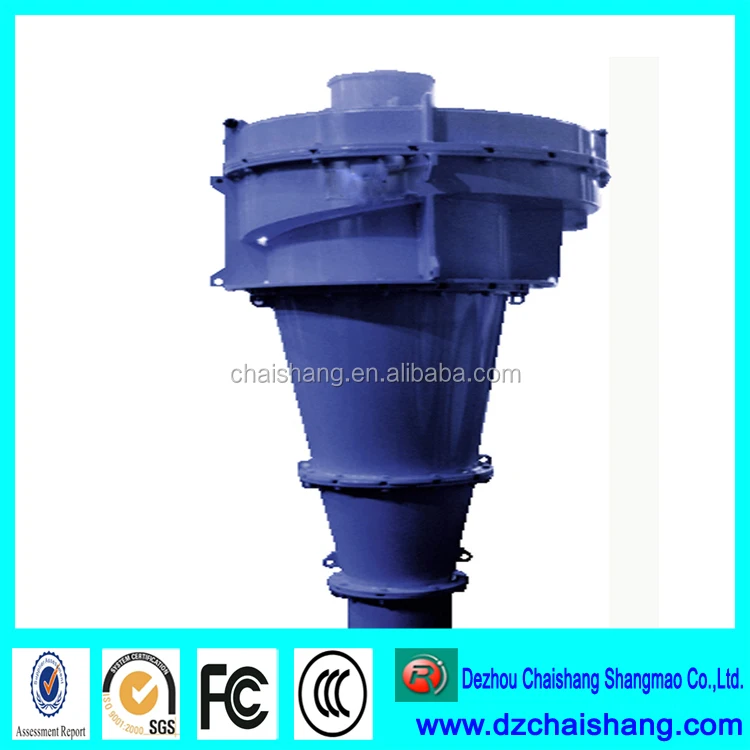

manufacturer PTMG polyurethane cyclone desander slurry mud separation
Product Description
Introduction of cyclone desander slurry mud separation:
Polyurethane,rubber,ceramic cyclone is widely used in oil drilling,nonferrous,ferrous and nonmetallic concentrator hierarchical classIfication work in process and many other links,used for desliming,dehydration of slurry materials,oil desanding and desilting device;Mining classification,tailings DAMS;The coal slime water processing and one of the important equipment such as recycling of slime. Hydro cyclones are used in variety of industrial and environmental applications to successfully separate solids from liquids. It is a common fractionation equipment. Its main role is to grade and concentration. Achieve grade and mud off a variety of materials.
Features of cyclone desander slurry mud separation:
1. Hydro Cyclone filter is a kind of equipment for classifying the ore pulp by using centrifugal force.
2. Hydro Cyclone filter has no motion and dynamic parts, but requires matching with corresponding slurry pump.
3. Hydro Cyclone filter is based on fluid solid particles in the desander in screening principle when rotating in cycloneand filter made, as a whole, in the field of water treatment to achieve sand removal, and descending the turbid,solid-liquid separation effect is remarkable.
4.Suitable for dry fine powder classifying,powders of ball shape ,flake shape and needle shape,also powders with different densities.
5.Product size from classifier can vary from D97:2 micron to 150 micron.The product size is adjustable,which makes the change of product size easy and simple.
6.Classifying efficiency(extraction rate) can be between 60% and 90%.Material with good flow-ability would have high classifying efficiency,otherwise,the classifying efficiency would be low.
7.Vertical classifier wheel would have low ratation speed,low wear and low motor power.
Advantage of cyclone desander slurry mud separation:
1.save floor space;
2.low construction expense;
3.Large processing capacity;
4.Stable Performance;
5.Low maintenance charge;
6.easy to attach and detach;
7.The classification particle size can reach 10μm.

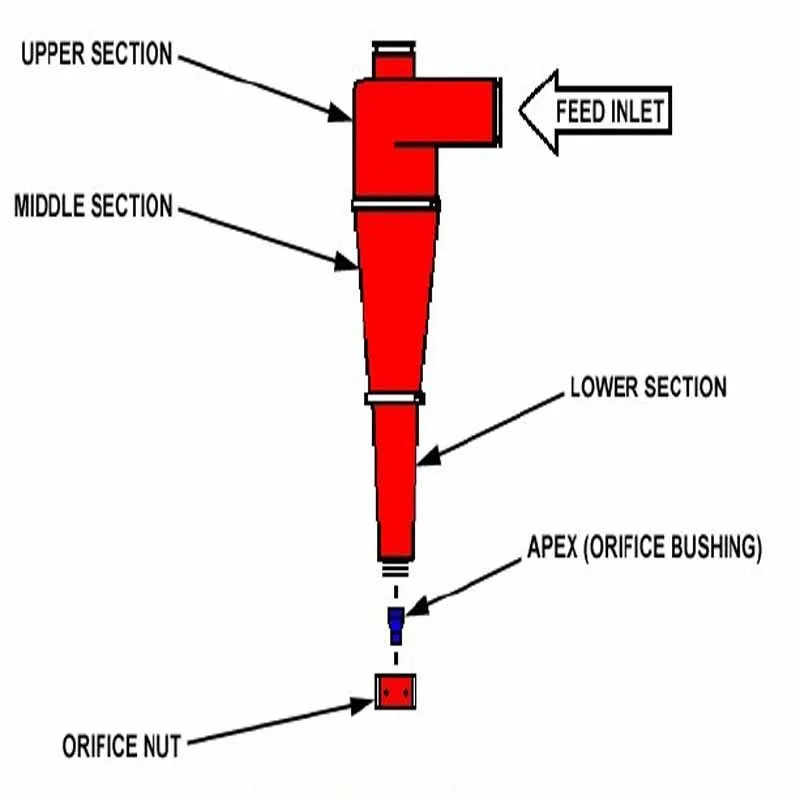

Structure of cyclone desander slurry mud separation:
Hydro cyclone filter consists of feed, outlet and inlet. hydro cyclone filter has one inlet that makes sure mud enters the cone along tangent direction. hydro cyclone filter has two outlets: the smaller at the bottom called underflow outlet or discharge outlet which denser or larger particles pass by, and the larger on the top called overflow outlet which lighter or finer mud pass by. The small inlet, outlet and small diameter needs high pressure while processing little capacity. On the contrary, the big inlet, outlet and big diameter needs low pressure while processing large capacity.
Working Principle of cyclone desander slurry mud separation:
The working principle of hydro cyclone filter is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydro cyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Specification of cyclone desander slurry mud separation:
Specification | Processing capacity (m3/h) | Overflow particle size (µm) | Overflow opening Diameter (mm) | Sediment opening diameter | Weight (kg) |
FX-125 | 3.1-6.1 | 20-50 | 14,18,25,35 | 15,25 | 57 |
FX-150 | 7.5-15 | 35-75 | 20,40,32,25 | 16,24,32 | 128 |
FX-250 | 10-39 | 40-100 | 26,34,50,69 | 20,25,35 | 205 |
FX-300 | 37-43 | 45-105 | 65,75 | 35,40 | 287 |
FX-350 | 74-90 | 50-115 | 95,105,115 | 60,70,80 | 430 |
FX-500 | 170-220 | 60-120 | 140,160,180 | 70,90,110 | 718 |
FX-660 | 350-525 | 70-130 | 203,254,305 | 152 | 1130 |
Application
Application of cyclone desander slurry mud separation:
1.Closed circuit grinding.
2.Mineral Classification.
3.Concentrate or Tailings Thickening,Dewatering.
4.Tailings damming and filling.
5.Without motion and power unit,it needs to match with relevant slurry pump.
6.Hydro Cyclone Separator is mainly used in ore dressing industry for classifying, sorting, thickening and desliming.
Packaging & Shipping
packaging of cyclone desander slurry mud separation:
About hydrocyclone package, Normally we pack one roll into the strong woven bag. and then put them into big carton.The complete package is like below image, it is very safe when ship by sea or by air.
our company
Advantage of our company:
Dezhou Chaishang Shangmao Co.,Ltd have been specialized in polyurethane products for more than 18 years, and we have our own research and development department, before packaging our worker would strictly inspect our products to insure the high quality.
FAQ
Q:Are the samples free of charge?
A:Yes, all samples are free of charge. But if you need a sample which is bigger than ourprepared sample, a little of fee will be needed. And, the sample fee will be returned as soon as the order placed.
Q: How about the payment terms?
A: 50% in advance as deposit by TT,the balance payment before the shipment;
Q: What is the delivery time?
A:It is according to your quantity,normally 10 to 20 days;
Q: After sale service.
A: Every product will be inspected strictly before delivery.We'll in charge of all losses if there is any quality problem.
Q:What is the advantages com pared to other suppliers?
A:The unique full automatic roller production line, high machining accuracy, uniform andstable quality, which can realize continuous and efficient professional production, so we can provide good quality product and service to our customers.
Q:Can we visit your company?
A:No problem, we are a professional manufacturer, look forward to your arrival and we will lead you to visit our factory.
