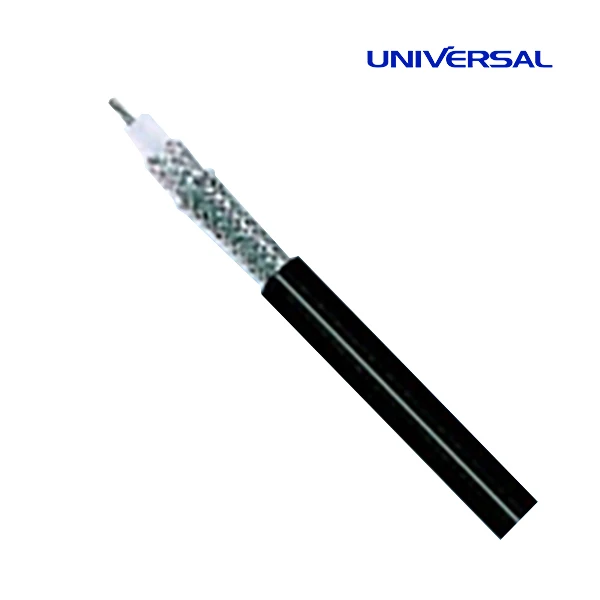

RG 58 LL 50 Ohm Coaxial cable

RG 58LL

Construction:

1. Inner conductor Tinned copper 7 x 0.40 mm
2. Dielectric Foam PE Φ3.10 ± 0.10 mm
3. Outer conductor (shield 1) Aluminium + polyester + Aluminium tape
Shield coverage 100%
4. Outer conductor (shield 2) Tinned copper 96 x 0.10 mm
Shield coverage 72%
5. Sheath PVC or LSZH Φ5.00 ± 0.10 mm

Electrical & Mechanical Characteristics:
Impedance 50±3 Ohm
Nominal capacitance 80 pF/m
Velocity of propagation 80%
Insulation resistance >5000 Mohm.Km
Inner conductor resistance 20.5 Ohm/Km
Outer conductor resistance 20 Ohm/Km
Operating temperature range -30 °C - +70 °C
Copper weight 15.3 Kg/Km
Cable weight (approx.) 33.9 Kg/Km
Screening effectiveness >80 dB

Attenuation:

Return Loss
30-300 MHz >28dB
300-600 MHz >24dB
600-900 MHz >22dB

1. Produce the cable strictly base on IEC/BS//DIN/ANSI/AS/JIS//VDE/UL standard.

2. Small MOQ.

3. Short delivery time.

4. Customized Cables: We also manufactures products according to our customer’s specific requirements and/or preferences in terms of sheath colours, copper core sizes, cable lengths, voltage etc.

 Any further questions, please do not hesitate contact with us.
