Super bright Epistar chips common anode cathode dip 4pin 5mm RGB full color led for lights
- Category: Lamp LED >>>
- Supplier: Shenzhen Fedy Technology Co. Ltd.
Share on (60488586149):
Product Overview
Description
Super bright Epistar 5mm dip 4pin RGB full color led
Product Description
- Item: RGB LED
- Emitting colors: red/green/Blue
- Forward current: 20mA*3
- Warranty: 3 years
- Lifespan: > 80,000 hours
- Super low decay version
- Anti-static built-in
- Anti-high temperature
- Packing:
- 1000 pieces/ESD bag
- Certifications:
- CE
- RoHS
- Wavelength available:
- Red: 620-630nm
- Green: 520-530nm
- Blue : 460-470nm
- Lens available with:
- Water clear
- Frosted /white diffused
- Chips available with:
- Epistar
- Epiled chips
| 5mm RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-5TRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-5WRGB-A | Diffused | Common anode | |
| FD-5TRGB-C | Water clear | Common cathode | |
| FD-5WRGB-C | Diffused | Common cathode | |
| Super bright 5mm RGB LED | |||
| FD-5TSRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-5WSRGB-A | Diffused | Common anode | |
| FD-5TSRGB-C | Water clear | Common cathode | |
| FD-5WSRGB-C | Diffused | Common cathode | |
| 4.8mm Straw hat RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-5HTRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-5HWRGB-A | Diffused | Common anode | |
| FD-5HTRGB-C | Water clear | Common cathode | |
| FD-5HWRGB-C | Diffused | Common cathode | |
| Super bright 4.8mm Straw hat RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-5HTSRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-5HWSRGB-A | Diffused | Common anode | |
| FD-5HTSRGB-C | Water clear | Common cathode | |
| FD-5HWSRGB-C | Diffused | Common cathode | |
| 8mm round RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-8TRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-8WRGB-A | Diffused | Common anode | |
| FD-8TRGB-C | Water clear | Common cathode | |
| FD-8WRGB-C | Diffused | Common cathode | |
| Super bright 8mm round RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-8TSRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-8WSRGB-A | Diffused | Common anode | |
| FD-8TSRGB-C | Water clear | Common cathode | |
| FD-8WSRGB-C | Diffused | Common cathode | |
| 10mm round RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-10TRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-10WRGB-A | Diffused | Common anode | |
| FD-10TRGB-C | Water clear | Common cathode | |
| FD-10WRGB-C | Diffused | Common cathode | |
| Super bright 10mm round RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-10TSRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-10WSRGB-A | Diffused | Common anode | |
| FD-10TSRGB-C | Water clear | Common cathode | |
| FD-10WSRGB-C | Diffused | Common cathode | |
| 5mm super flux RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-115TRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-115WRGB-A | Diffused | Common anode | |
| FD-115TRGB-C | Water clear | Common cathode | |
| FD-115WRGB-C | Diffused | Common cathode | |
| Super bright 5mm super flux RGB LED | |||
| Part No. | Lens color | Polarity | Voltage( V) |
| FD-115TSRGB-A | Water clear | Common anode | Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V |
| FD-115WSRGB-A | Diffused | Common anode | |
| FD-115TSRGB-C | Water clear | Common cathode | |
| FD-115WSRGB-C | Diffused | Common cathode | |

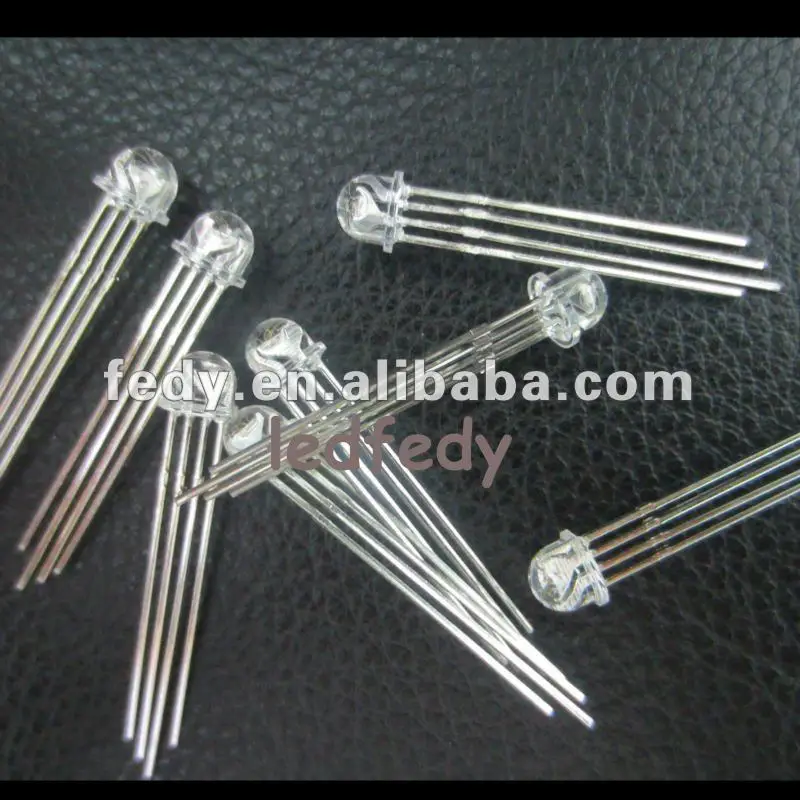

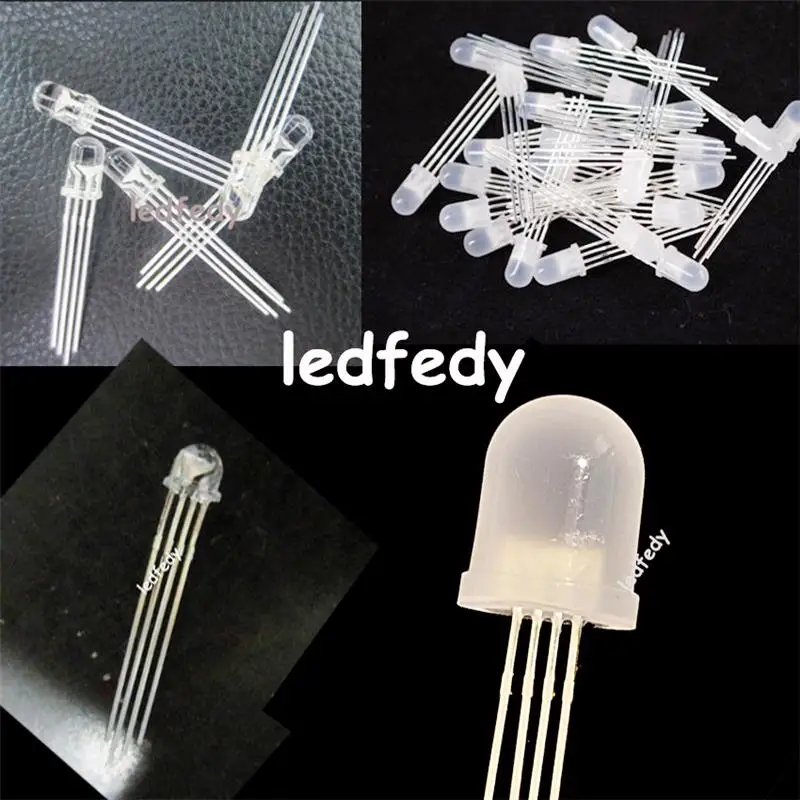

Product Pictures
Company Information
1. FEDY is a professional manufacturer of high quality led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
Certificate
All the raw materials we used are CE ROHS Applied .
Factory Show
Contact Us
Contact us freely !
Packing & Shipment
Packing details :
SMD LED : Reels
DIP LED : ESD bag , Taping . Tubes
High power led : ESD box . Taping , Tubes
