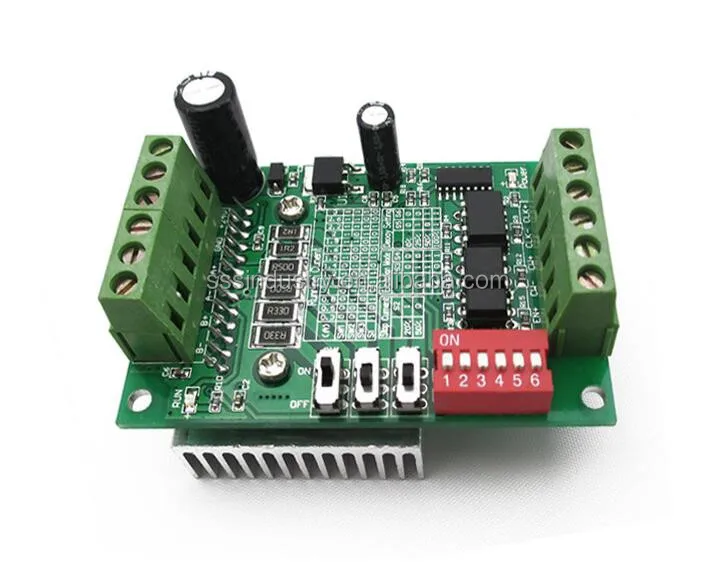

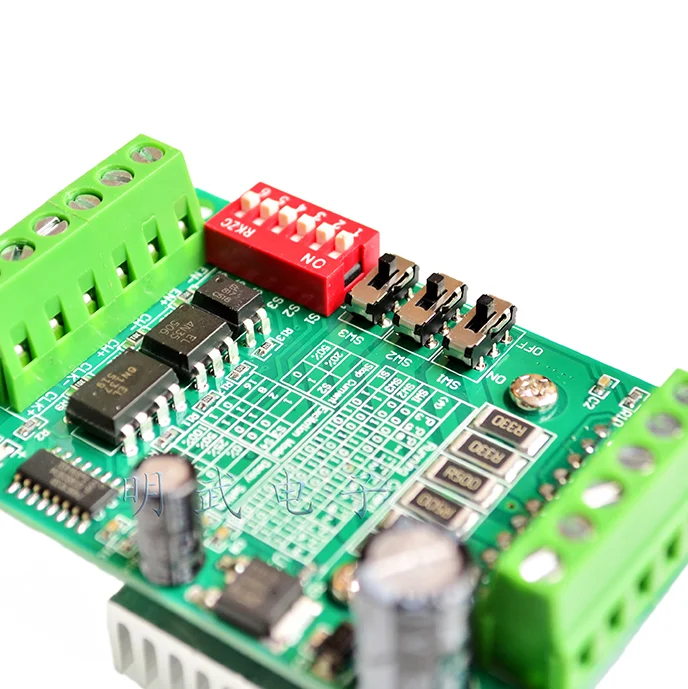

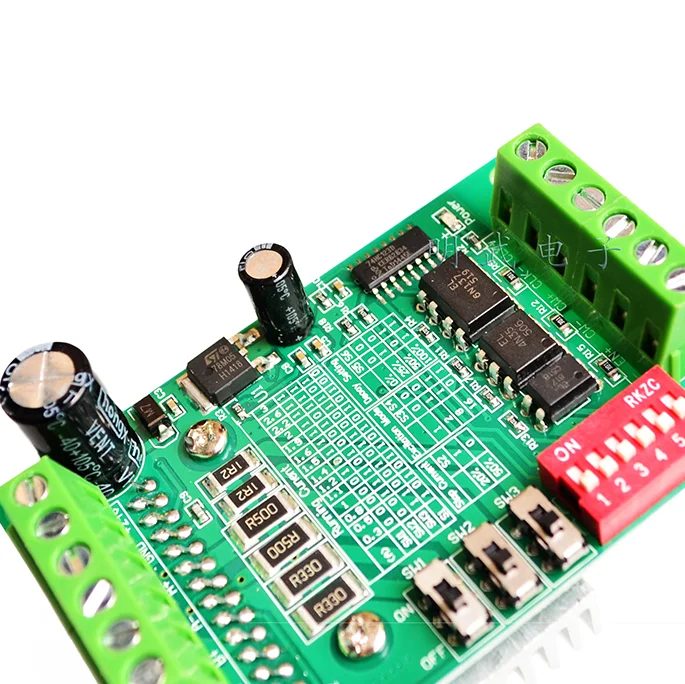

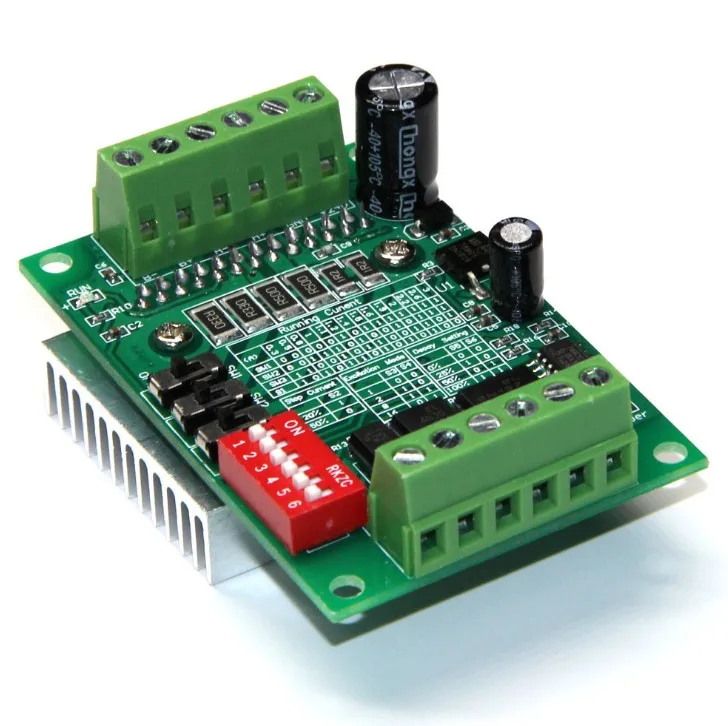

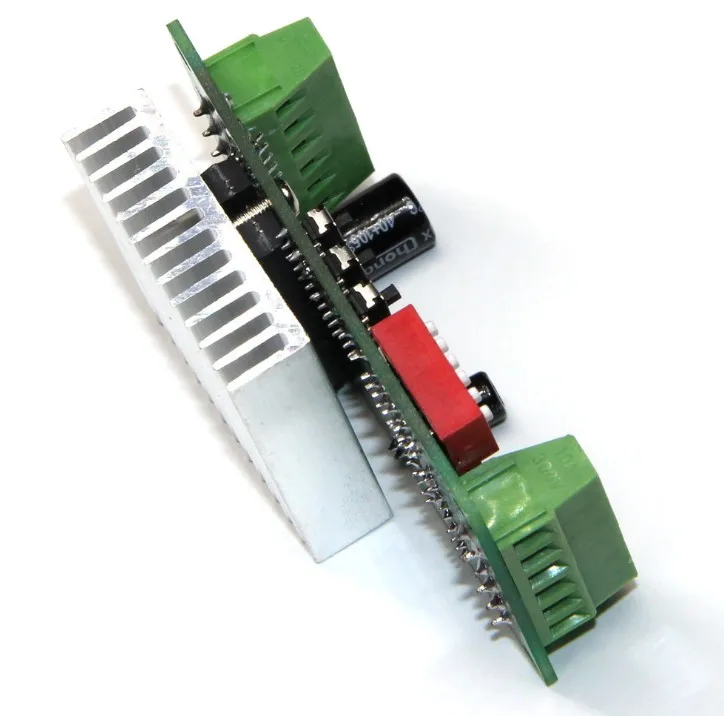

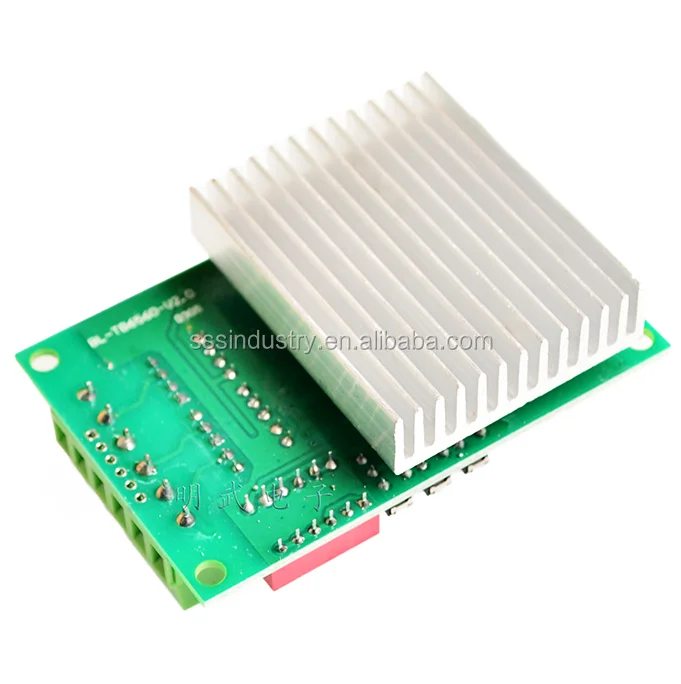

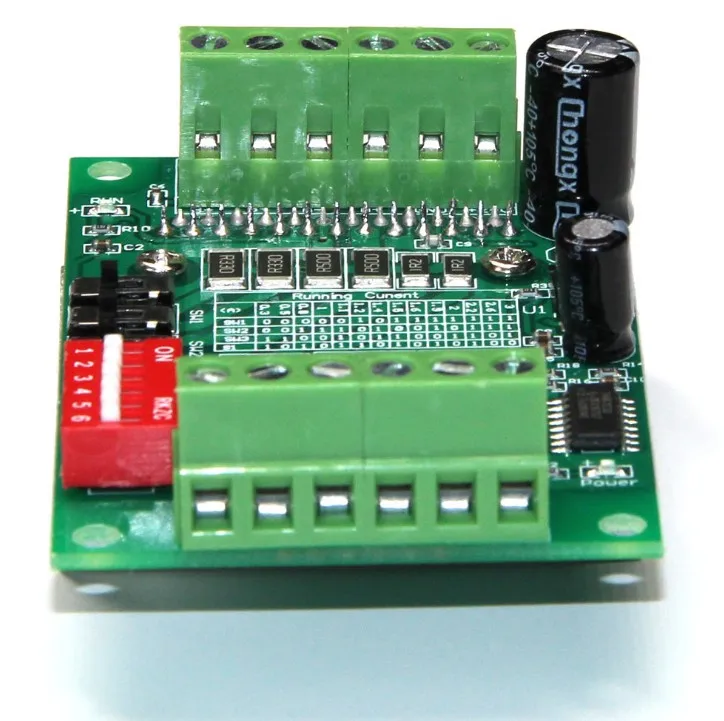

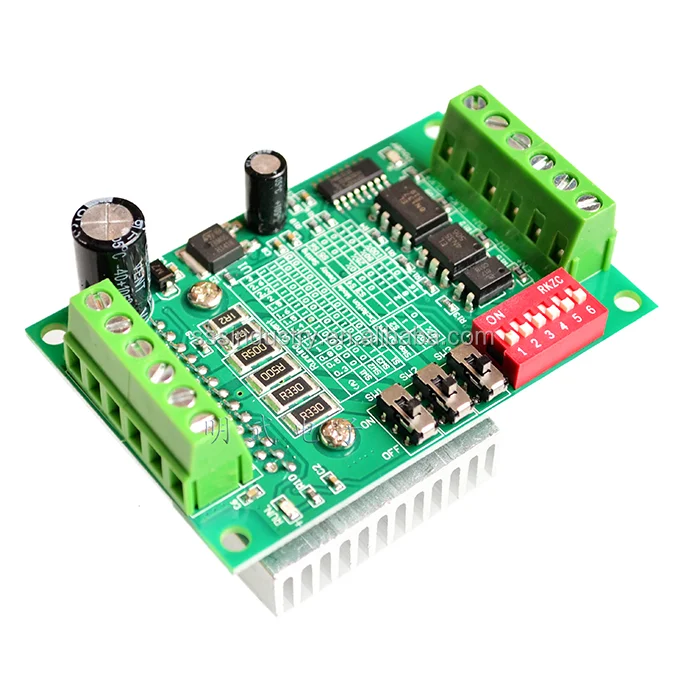

3A stepper motor driver single axis controller TB6560

Product Overview

Description

3A stepper motor driver single axis controller TB6560

1) Working voltage DC 10V-35V. It recommends the use of switching power supply DC24V.

2) the use of high-speed optical coupling 6N137, ensuring high speed without losing step.

3) Use TB6560AHQ original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit to ensure optimum performance.

4) The maximum rated output: ± 3A, peak 3.5A.

5) for 42, 57 3A stepper within two-phase / four-phase / four-wire / six-wire stepper motor is not suitable for more than 3A stepper motor.

6) automatic semi-flow function.

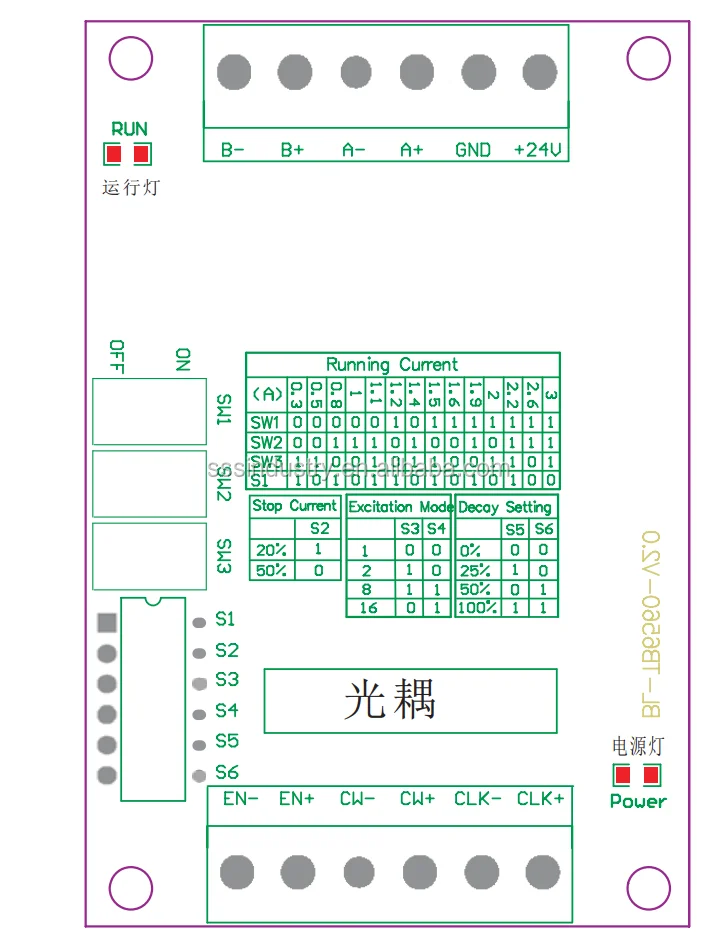

7) Subdivision: full step, half step, step 1/8, 1/16-step, up to 16 segments.

8) Volume: 50 * width * height length 75 35 (MM)
