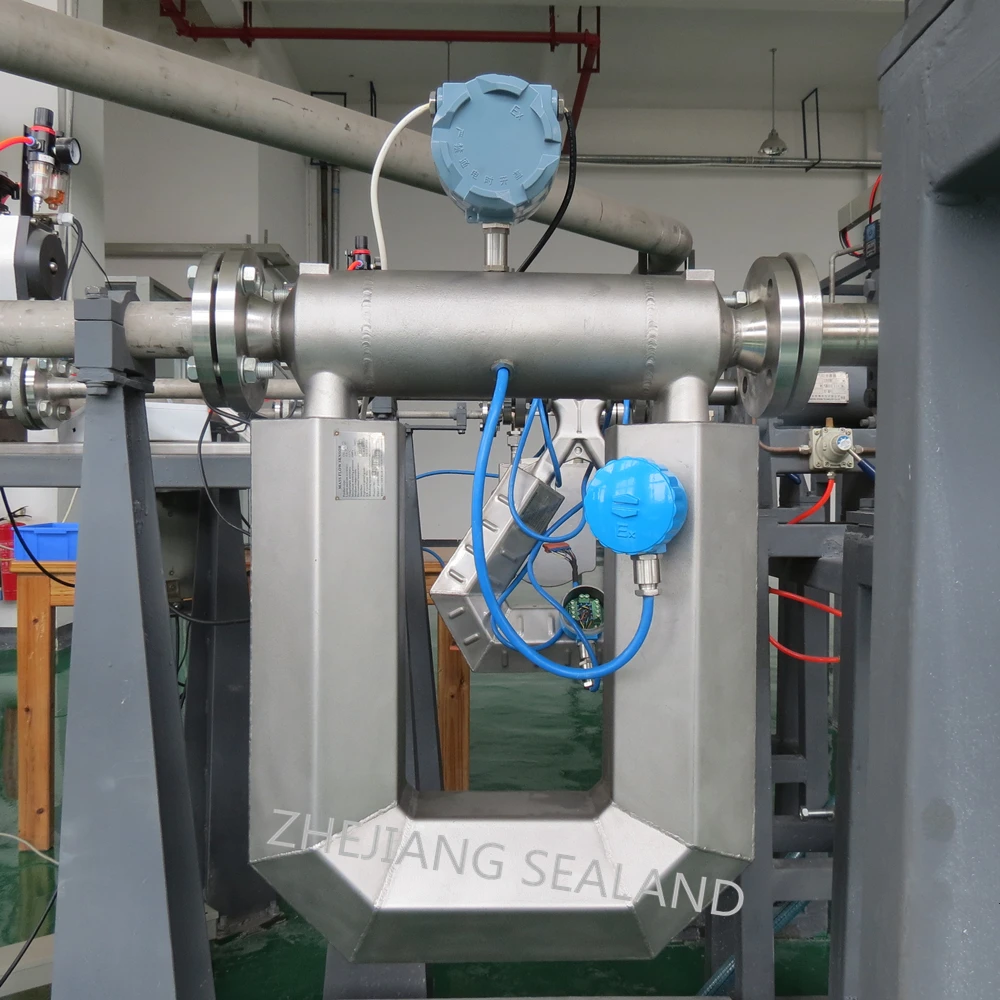

LPG gas mass flow meter with flow rate 1000kg/min

Product Overview

Description



Specifications of mass flow sensor

Specifications of mass flow sensor
Gas accuracy	±0.5%
Liquid accuracy	±0.2%
Temp. accuracy	±1°C
Loss of pressure	≤0.2MPa
MWP	4MPa
Temp. rating	-50°C~+200°C
Connector	DN50, flange, customizable
Ex-proof grade	Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb



Specifications of mass flow transmitter

Specifications of mass flow transmitter
Temp. rating	-20°C~+50°C
RH	≤95%, not condensed
Atmospheric Pressure	86~106 kPa
Operating voltage	AC220V/50Hz, DC24/50Hz
Communication port	RS485 Modbus RTU
Ex-proof grade	Exd[ib]IIBT4Gb



Specifications of mass flow meter

Specifications of mass flow meter
Model No.	CNG-50
Mass accuracy grade	0.2
Temperature accuracy	±1°C
Zero stability	0.038kg/min
Repeatability	0.25%
Max. flowrate	1000kg/min
Nominal diameter	50mm( 2 inch)
Fluid temperature	-200~200°C
Material of tube	Stainless steel 316L
Packing	1set/carton or wooden case
Warranty	2 years
Package size	970*950*600mm
G.W.	68.3kgs



Introduction of mass flow meter

Mass flow meter consist of mass flow sensor and mass flow transmitter. It does not measure the volume per unit time (e.g., cubic meters per second) passing through the device, but measures the mass per unit time (e.g., kilograms per second) flowing through the device. The result of volumetric meter varies with temperature, pressure, composition, etc., but mass flow meter does not have such problem.



Operating principle of mass flow meter

Mass flow meter is designed according to Coriolis Effect. The inlet arm and the outlet arm vibrate with the same frequency as the overall vibration, but when there is mass flow the two vibrations are out of sync: the inlet arm is behind, the outlet arm is ahead. The two vibrations are shifted in phase with respect to each other, and the degree of phase-shift is a measure for the amount of mass that is flowing through the tubes.



Application of mass flow meter

The Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.

• Alternative Energy
• Oil & Gas
• Chemical
• Food & Beverage
• Industrial Energy
• Life Sciences
• Marine
• Metals and Mining
• Power
• Pulp & Paper
• Refining
• Water & Wastewater
• Others

Pictures of mass flow meter



Dimension of mass flow meter





Advantages of mass flow meter



1. High reliability



2. It requires low maintenance, because of no movable parts.



3. High accuracy: Generally, it is from 0.15%-0.3%.



4. It is not affected by the fluid, saving the design & installation cost.



5. It shows many parameter simultaneously, such as mass flow, temperature, density, etc.



6. Convenient installation: Generally, there is no specific requirement of choosing upstream or downstream pipe.



7. Wide application: Besides the common fluid, the mass flowmeter can measure other industrial media, such

     as non-Newtonian fluid, all kinds of slurry, suspensions, etc.





Installation of mass flow meter

It is highly recommended to install as follows, for different fluid.



Production process of mass flow meter

1. Bend vibrating tubes with bending machine

Related products: Mass flow meter CG-006, CG-015, CG-025, CG-080, read more!



Bulk order of mass flow meter





Certificate of mass flow meter







Sealand profile

We are professional manufacturer of CNG mass flowmeter, mass flow meter, Coriolis mass flowmeter,

Coriolis mass flow meter, Coriolis  flowmeter, Coriolis flow meter. Read more!





Why Sealand?



1. Sealand is professional, with senior engineers from the first research team in this field in China, and

    junior one from college, to keep improving.



2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here;

    even the production-line workers have worked here for more than 5 years.



3. Sealand mass flowmeter can be used in many fields, with a flowrate from 0 to 5000kg/min, and the

    connection ends are customizable.



4. Sealand strictly controls the quality from raw material to finished products, and all products will be

    inspected and tested for 3 times before shipment.



5. Sealand cooperates with efficient logistics, to help cut down the shipping cost and time.



6. The warranty is 2 years, but technical support is always available. Read more!
