Competitive Price GN Series CW Working Mode DPSS Gain Module

Product Overview

Description

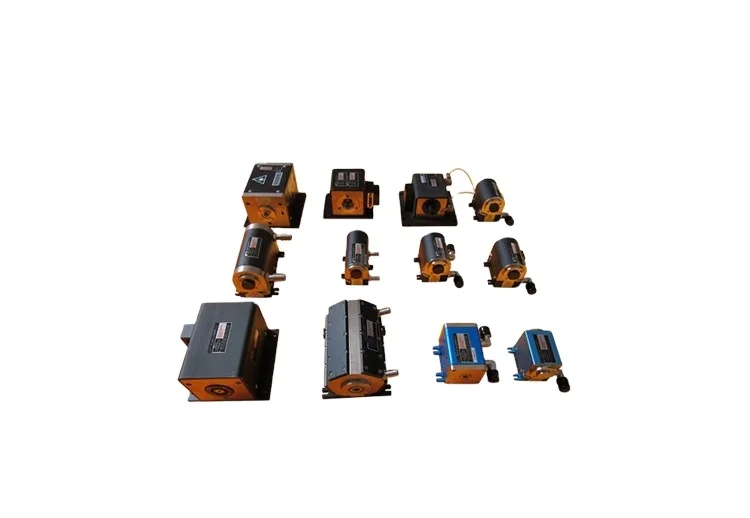

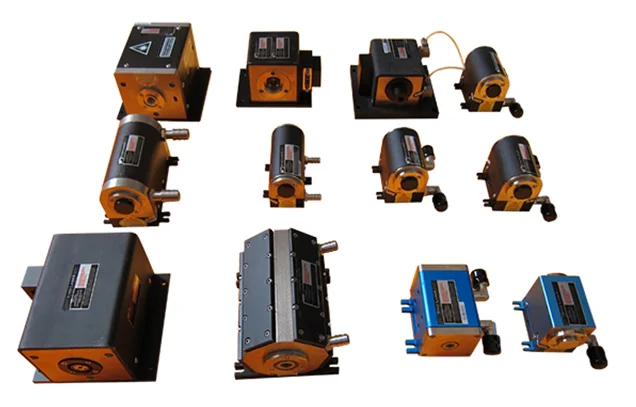

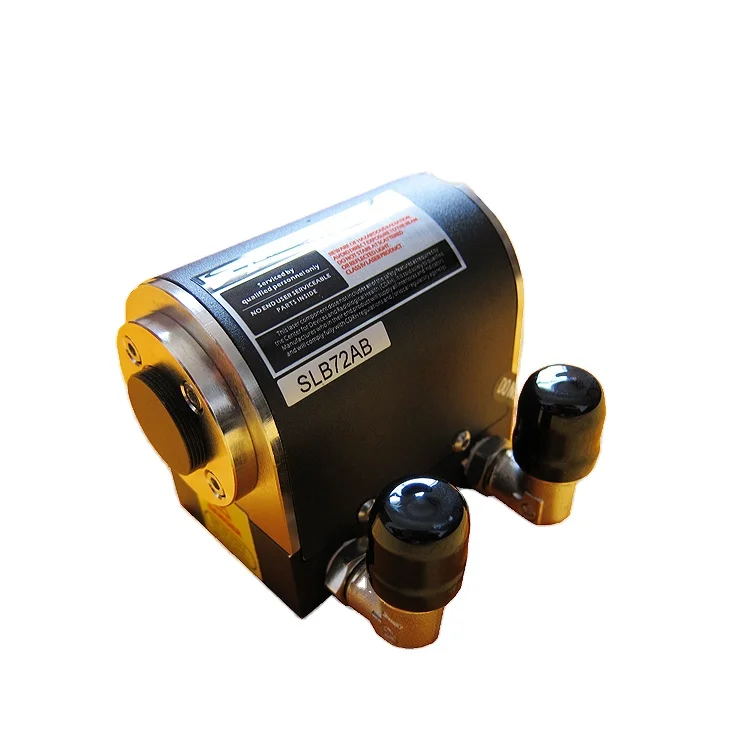

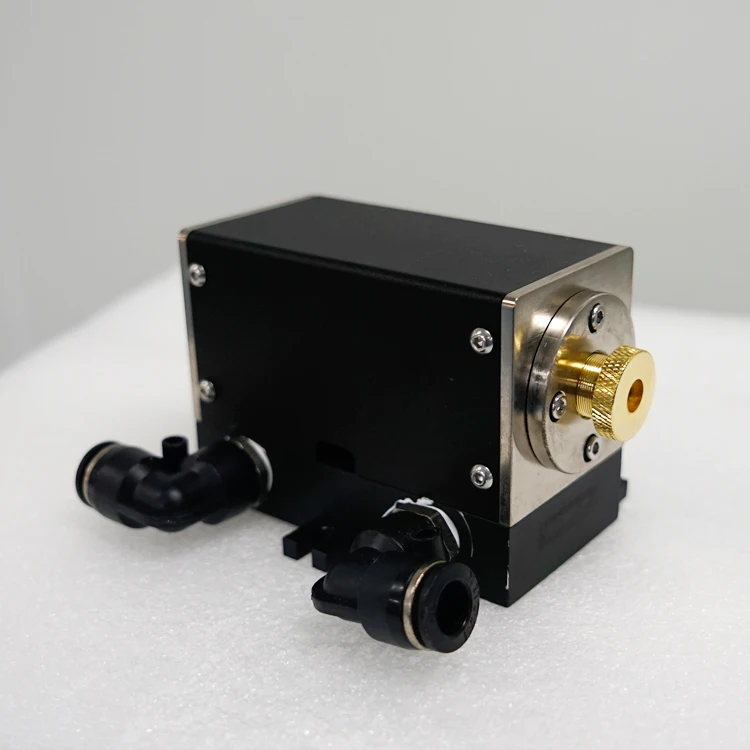

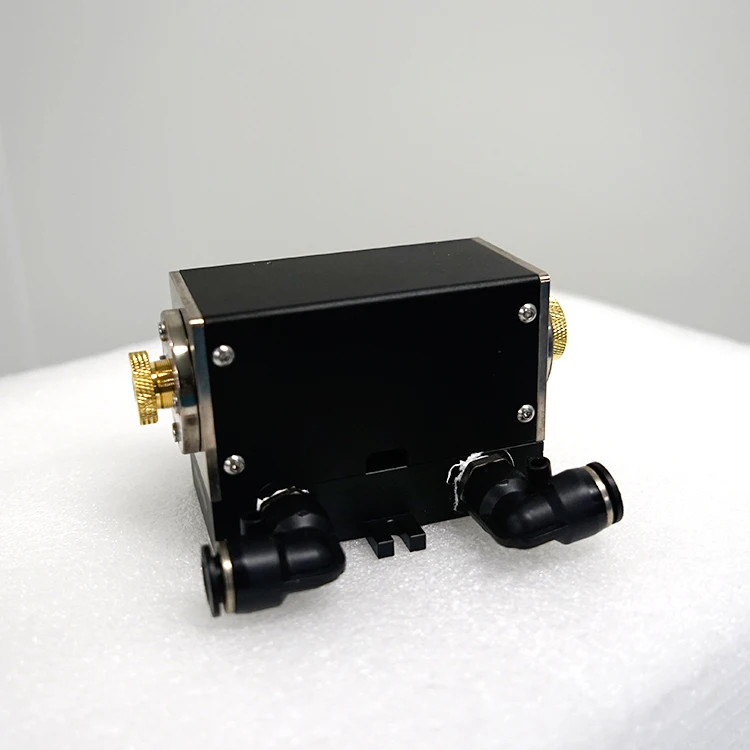

Competitive Price GN Series CW Working Mode DPSS Gain Module





GN series CW side pump diode laser module is always the superior products of Oriental-laser, with stable performance, small power fluctuation, high efficiency and other characteristics, output power from 35W-450W optional, widely used in scientific research, industrial processing and other fields.



Also  other modules design can be customized:







 CW DPSS Gain Module Specification:





Diode Module SN	Pumping Peak Power(W)	Rated Current(A)	Voltage(V)	Nd:Yag Rod (mm)	Central Height(mm)
GN35-H-2*67-CX-40	35w	22	<18	2*67	40

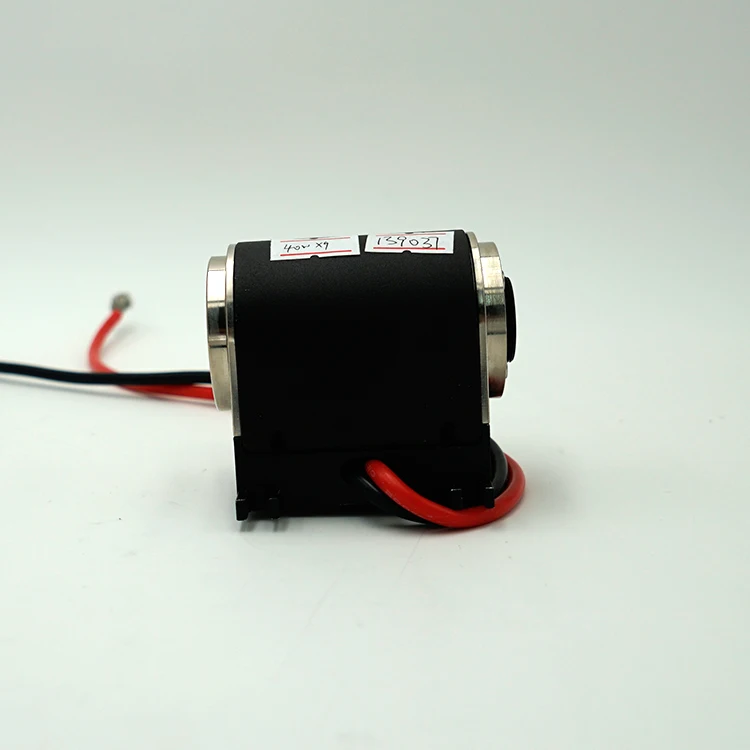

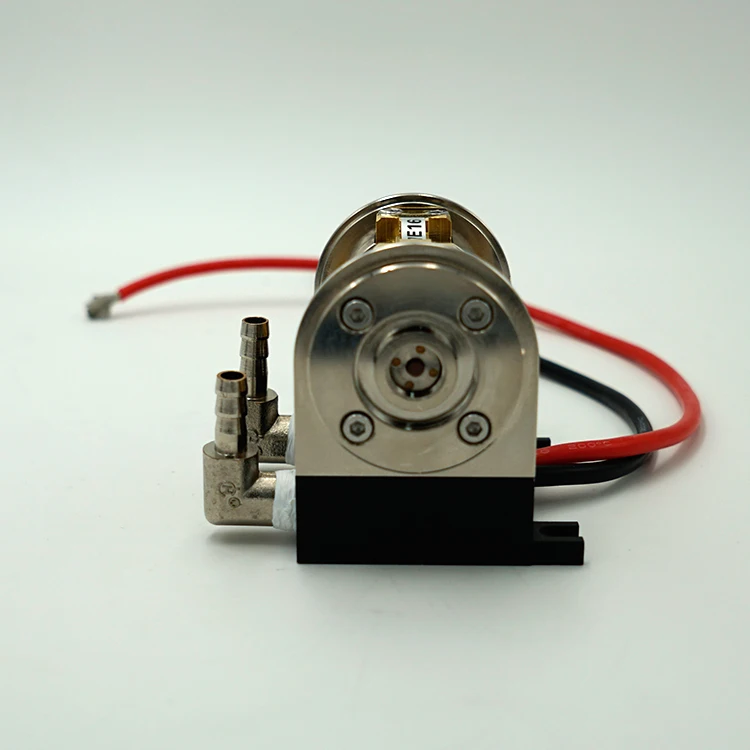

GN50-H-3*67-CX-40	50w	22	<18	3*67	40
GN50-H-4*67-CX-40	50w	22	<18	4*67	40
GN50-E-3*67-CX-40	50w	25	<18	4*67	40
GN75-H-3*78-CX-40	75W	22	<24	3*78	40
GN75-H-3*78-CX-45	75W	22	<24	3*78	45
GN75-H-2*67-CX-40	50w	22	<24	2*67	40
GN75-H-3*67-CX-40	75W	22	<24	3*67	40
GN75-E-3*78-CX-45	75W	25	<24	3*78	45
GN100-E-4*100-XX-50	100W	25	<30	4*100	50
GN100-E-5*76-XX-50	100W	25	<30	5*76	50
GN150-E-4*88-XG-50	150W	25	<40	4*88	50
GN150-H-3*110-CX-50	150W	22	<48	3*110	50
GN200-E-5*100-XX-50	200W	25	<50	5*100	50
GN200-E-4*100-CX-50	200W	25	<50	4*100	50
GN300-E-5*124-XB-40	300W	25	<70	5*124	40
GN300-E-5*124-XG-50	300W	25	<70	5*124	50
GN400-E-5*148-XG-50	400W	25	<90	5*148	50
GN450-E-5*160-XG-50	450W	25	<100	5*160	50

Module Naming Rules:GN35-H-2*67-CX-40

 1   2  3   4  5"

1. CW DPSS module rated power. GN series is high power side pump laser module series.

2. Bar types. There is H and E.

3. Rod size, unit MM.

4. The water flow structure of the module.CX:Side rotation water quick plug. XX:Bottom rotation water quick coupling plug

XB: Bottom water board   XG:Bottom fixed water quick plug.

5. Module central height, unit mm.

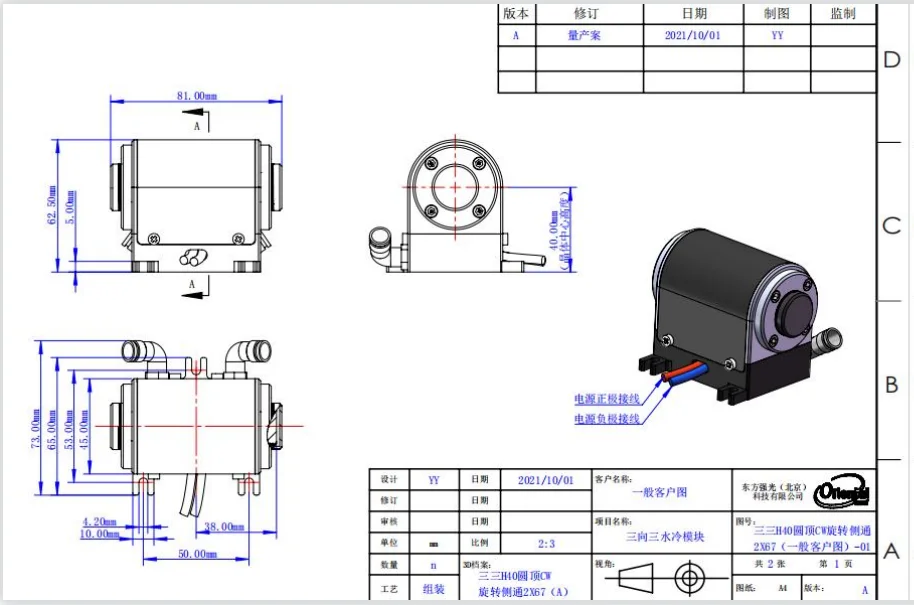

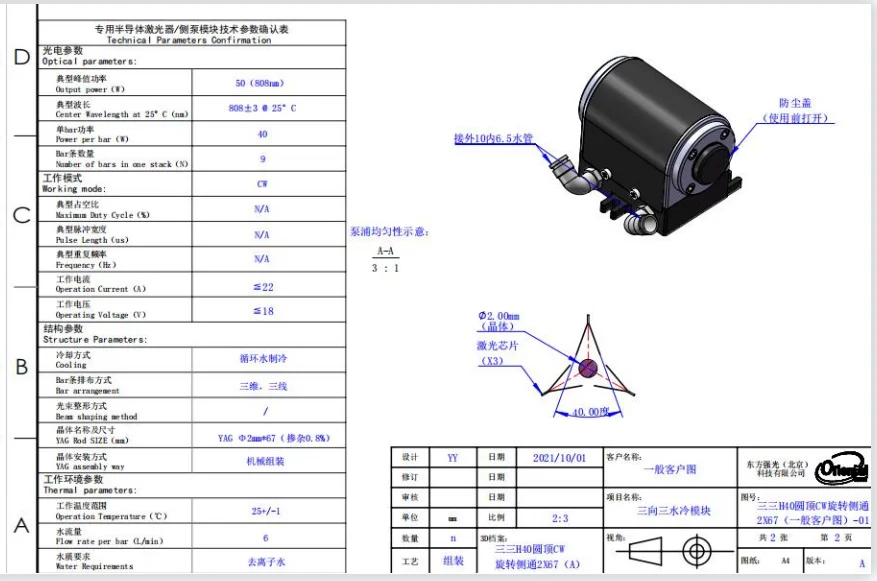

Dimension Size Can be customized, for more design please contact danny wahstapp 0086-18518945778





Application:



1 Metal marking;



2 Diamond cutting;



3 Laser welding and cutting.

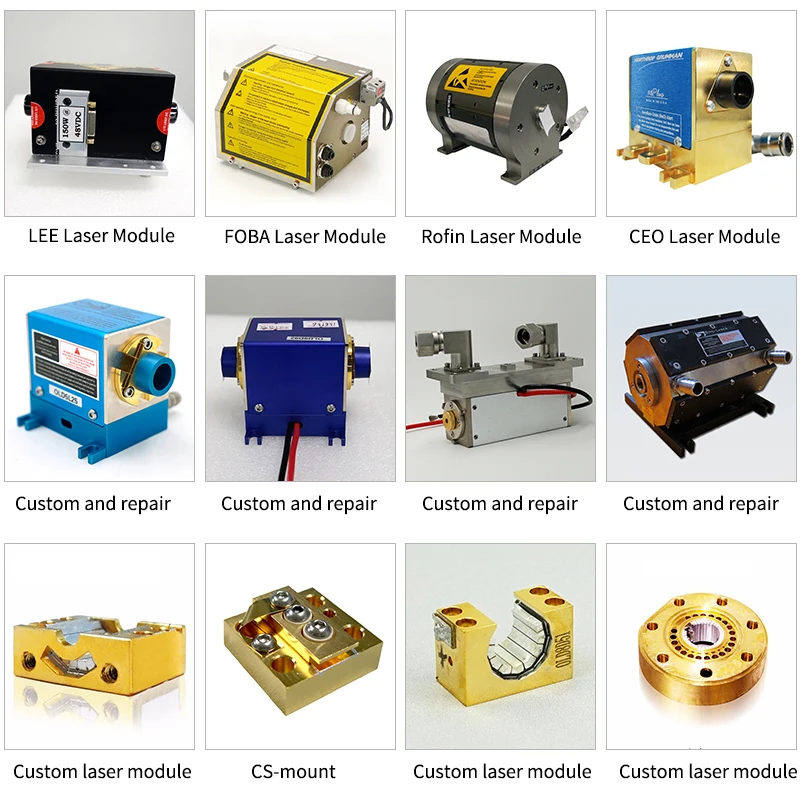

Related products:
