Спиральный Вибрационный демпфер для предотвращения вибрации кабеля

Product Overview

Description

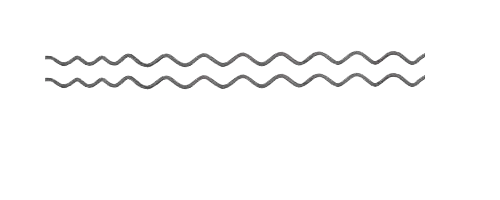

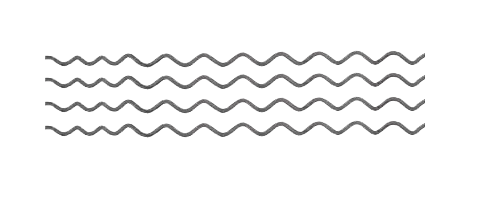

 Spiral vibration damper for Prevention of cable vibration



Spiral Vibration Dampers using its anti-vibration part to produce antihunt action to the wind vibration, consuming the vibration energy that produced by the cable running under the action of laminar wind,to prevent the destruction of gold tool and fiber optic cable,whcih mainly used for ADSS cable.







Model	Suitable cable diameter(mm)	DIA	Total length (mm)
FL117-130	9-11.7	11-11.5	1300
FL143-135	11.71-14.3	12.5-12.9	1350
FL193-165	14.31-19.3	12.5-12.9	1650
FL235-175	19.31-23.51	15.5-16.5	1750



















Shandong HaiHong Electric Power Equipment CO.,LTD,established in 2007, Located in Shandong, China (Mainland). We have 3000 square meters factory. Our main product including ADSS OPGW accessories(Performed Tension Clamp, Preformed Suspension Clamp,Vibration Damper, Cable Joint Box, Down Lead Clamp) and so on.

HaiHong have advanced production testing equipment, and with reference to the United States, Japan, Germany and other advanced industrial countries of technical standards, product quality, both at home and abroad enjoy high reputation, high quality quality of service, good reputation, has won the highly recognized by the majority of users.
