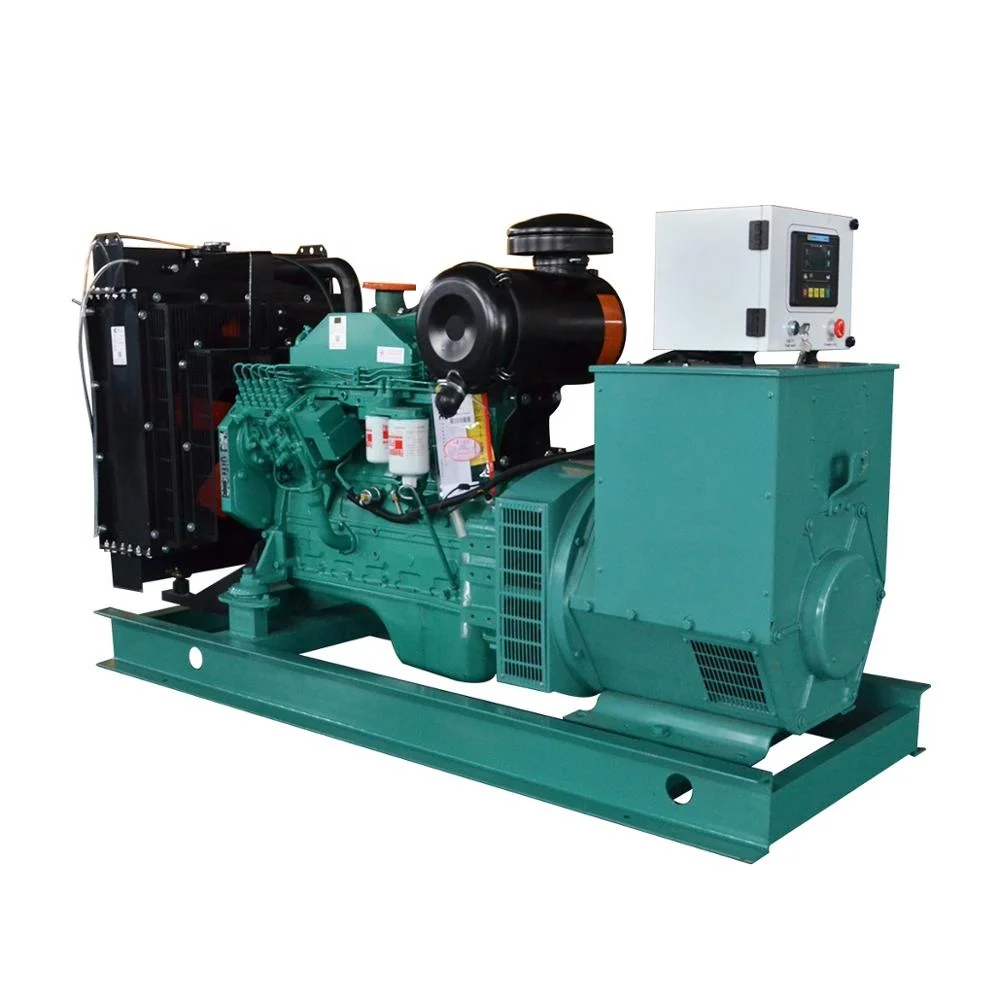

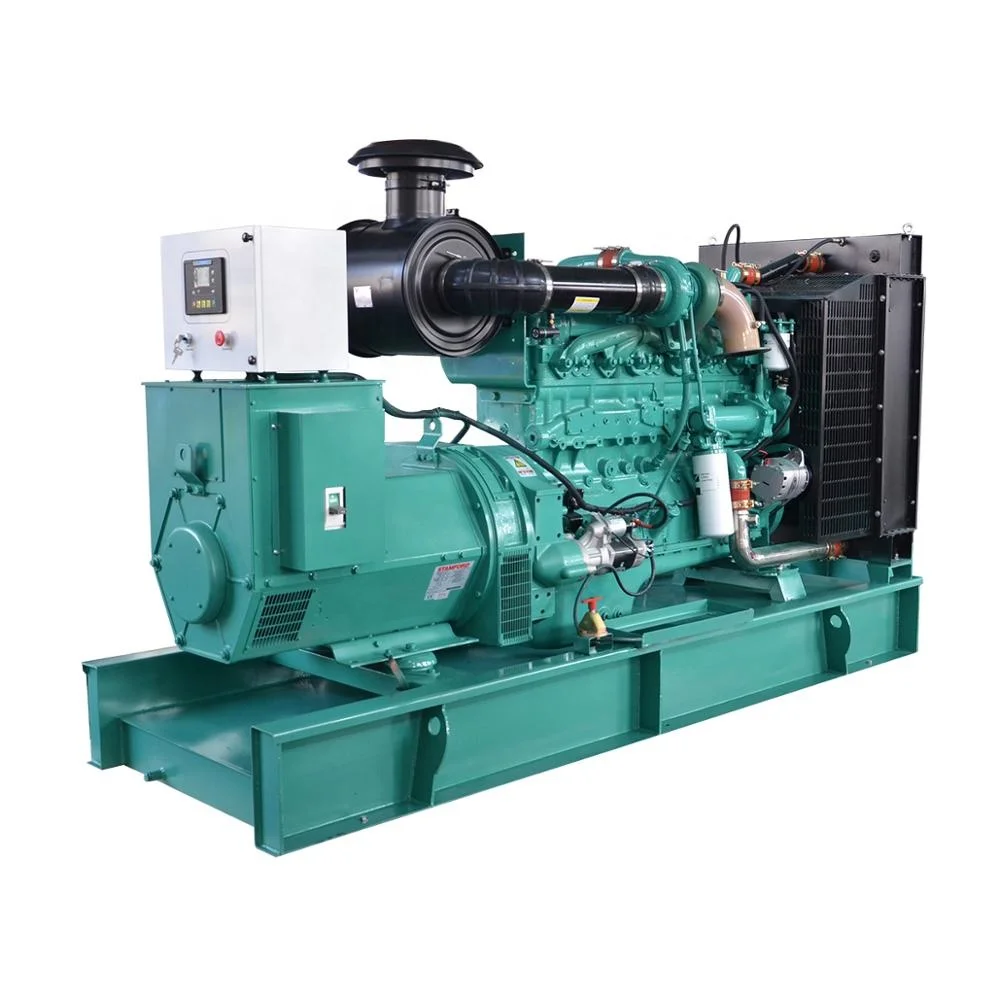

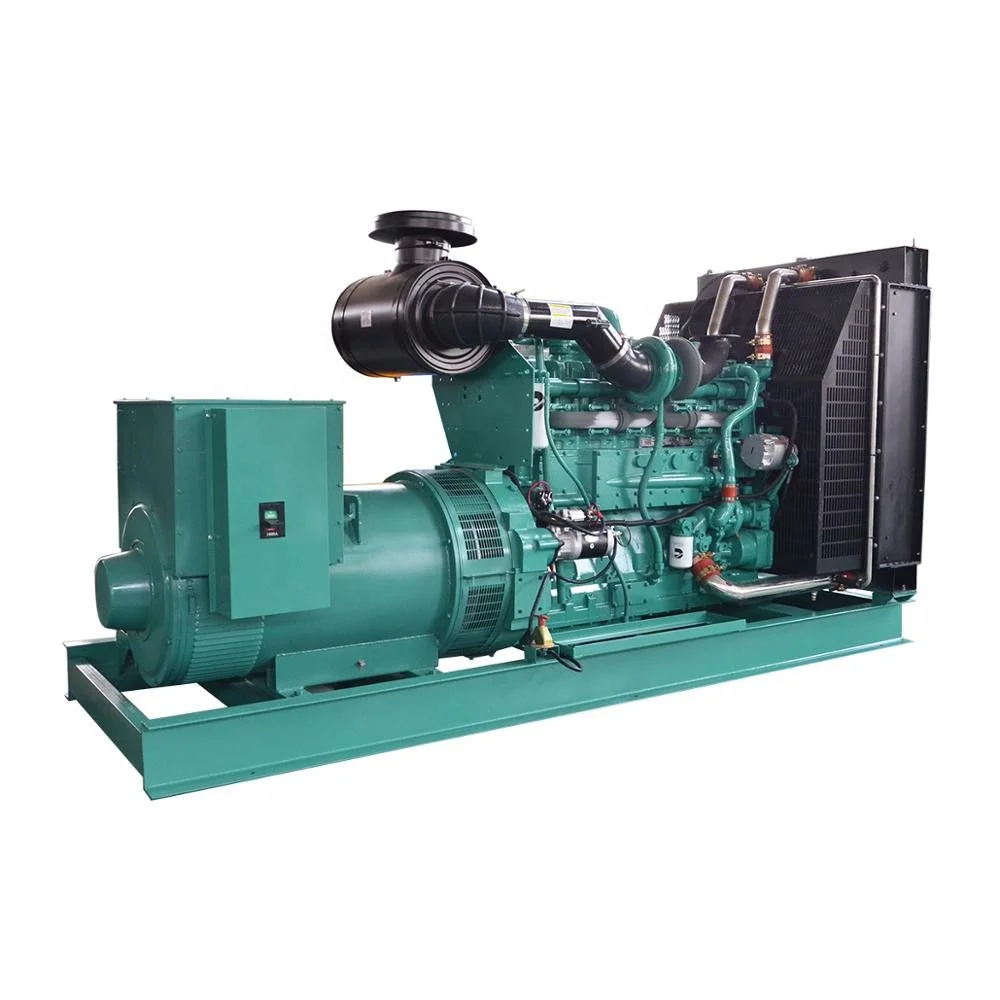

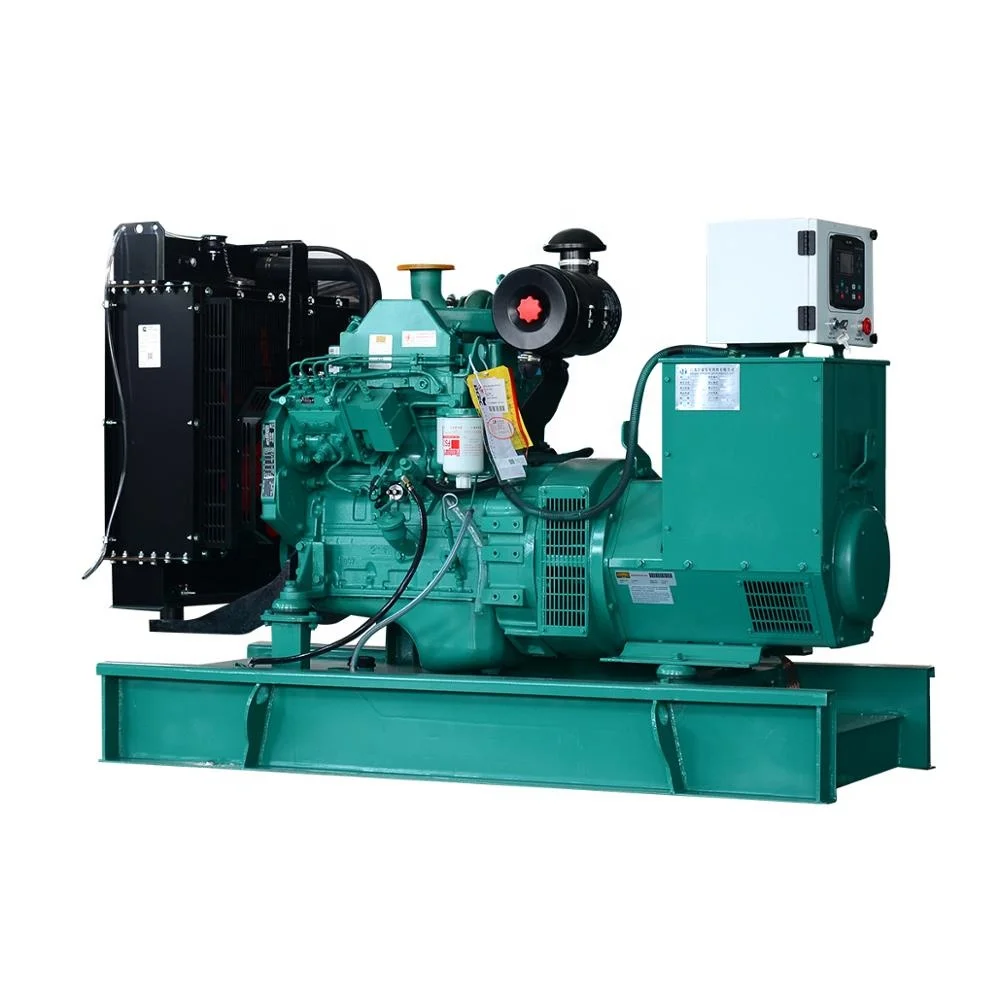

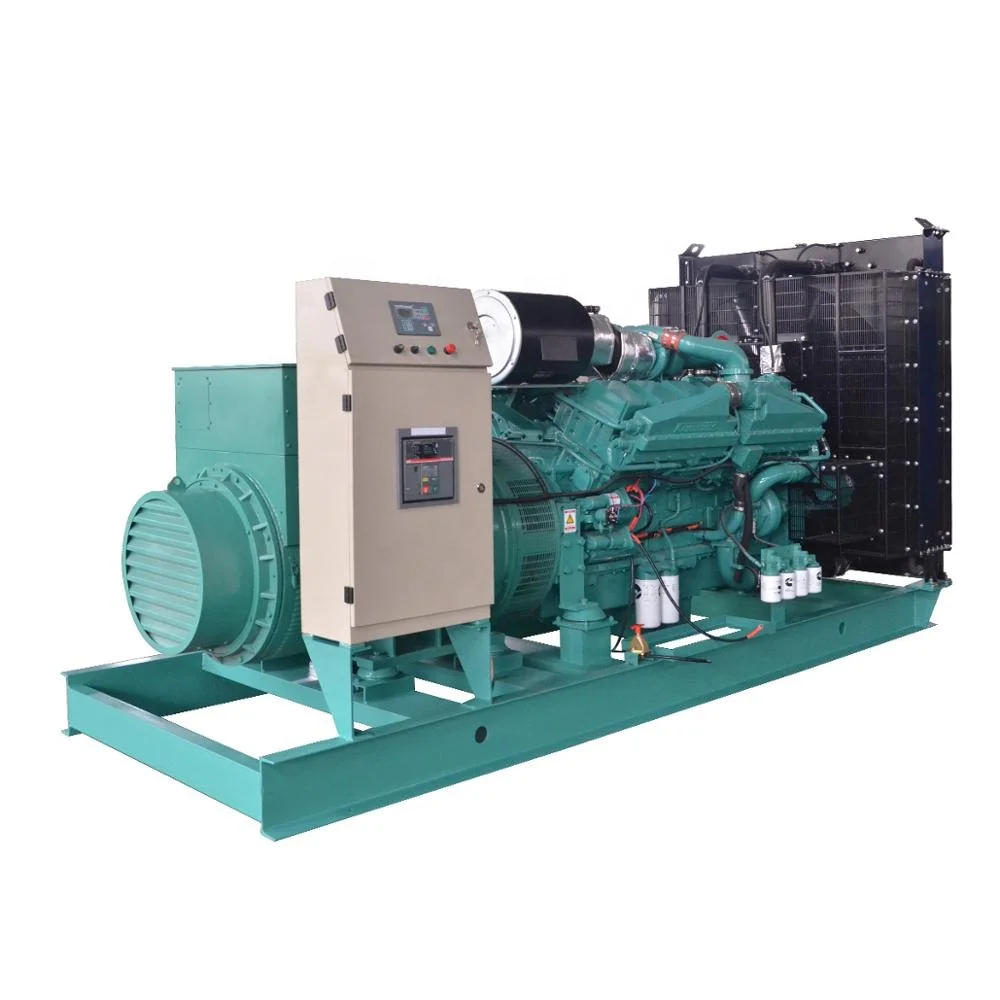

With Cummins diesel engine 1mva diesel engine generator set 1000kva diesel generator price

Product Overview

Description

1000kva diesel generator price

Specification of genset
Gensets model	CLC800GF
Standby power	800KW/1000KVA
Rated Voltage(V)	400/230
Rated frequency(HZ)	50
Rated Speed(RPM)	1500
Power Factor	0.8(lagging)
Dimensions(mm) (L×W×H)	4500x1750x2350
Genset  Weight(kg)	8200
2. Specification of diesel engine
Engine model	Cummins KTA38-G2A
Standby power	896KW
Number of Cylinders	12
Cylinder arrangement	V type
Cycle	Four stroke
Aspiration	Turbocharged&aftercooled
Bore×Stroke (mm×mm)	159x 159
Displacement (Liter)	38
Compression Ratio	14.5:1
Speed Governor	Electrical Governor
Cooling System	Forced Water Cooling Cycle
Total lubrication system capacity (L)	151.4L
Fuel Consumption at 100% Load (g/kw.h)	221
Starting Method	DC24V electrical starting
3. Specification of alternator
Alternator brand	Stamford
Alternator model	HCI634H
Standby power	800KW/1000KVA
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	Single
Protection Grade	IP21
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%



Diesel Generator

Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA

Perkins Engine(UK) 8KVA - 2000KVA

Volvo Engine(Sweden) 85KVA - 700KVA

Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA

Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA

Shanghai Engine (China)  60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA

Genset Feature

1. Powered by famous diesel engine – Cummins, Deutz, Doosan,Perkins, Weichai, MTU, Lister Petter

2. Brushless alternator -- Stamford, Leroy Somer, Marathon, Hengtong.

3. Solid steel outer skin – 2MM to 4MM steel

4. High density sound-absorbing material -- sound insulation, fireproofing

5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.

6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet

7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4standards

Prime output power: 8kw-1600 kw (10kva-2000kva)

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%



Engine Feature

1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section

4.Engine driven cooling fan with protection guard

5.Steel wire braided fuel lines, vent and rain fittings

6.Set mounted acid battery installed with leads and terminals

Alternator Feature

1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating

5.Automatic voltage regulator (AVR)

Control System

1.manual / auto start and protection module
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.

3.New integrated controllers in manual and remote start application.

4.Featuring full gen-set monitoring and protection.

5.Powerful graphic display, Icons, symbols and bar graphs

6. High functionality set new standards in gen-set control.

7.Special low temperature version is also available.









for a period of 12 months from date of dispatch or 1,000 running hours from date of commissioning whichever comes earlier.

Q2: Any advantages about your company?
 -- Fast delivery time
 -- Good design and high quality
 -- Good service after sale
 -- High quality with good price help you get more benefit and beat your competitors

Q3: Can you supply OEM service?
Yes, we can offer OEM service

Q4: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation .
