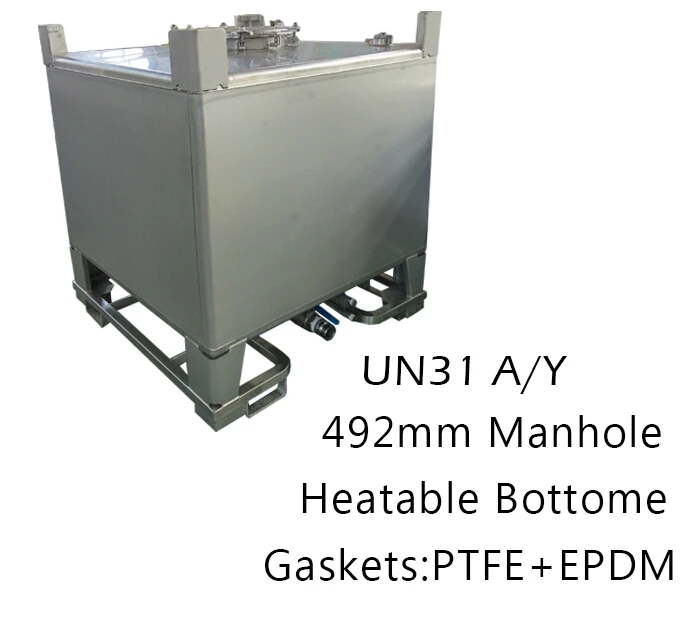

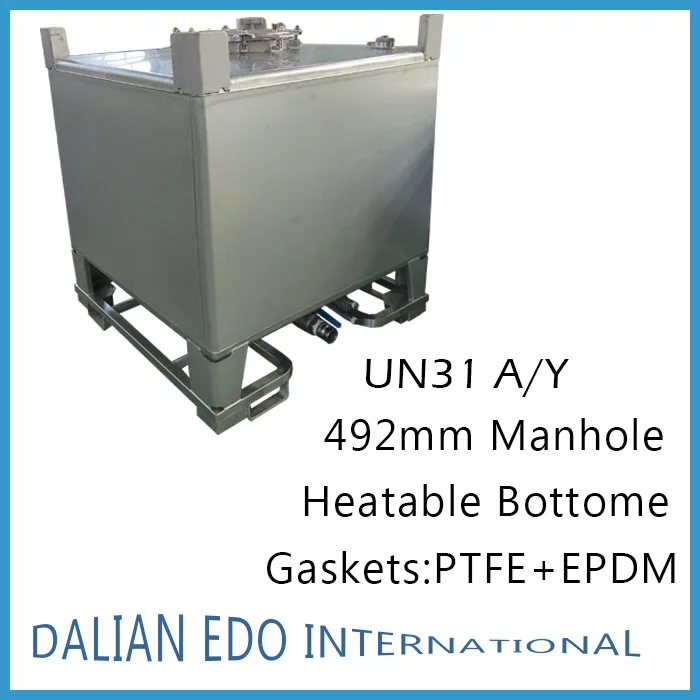

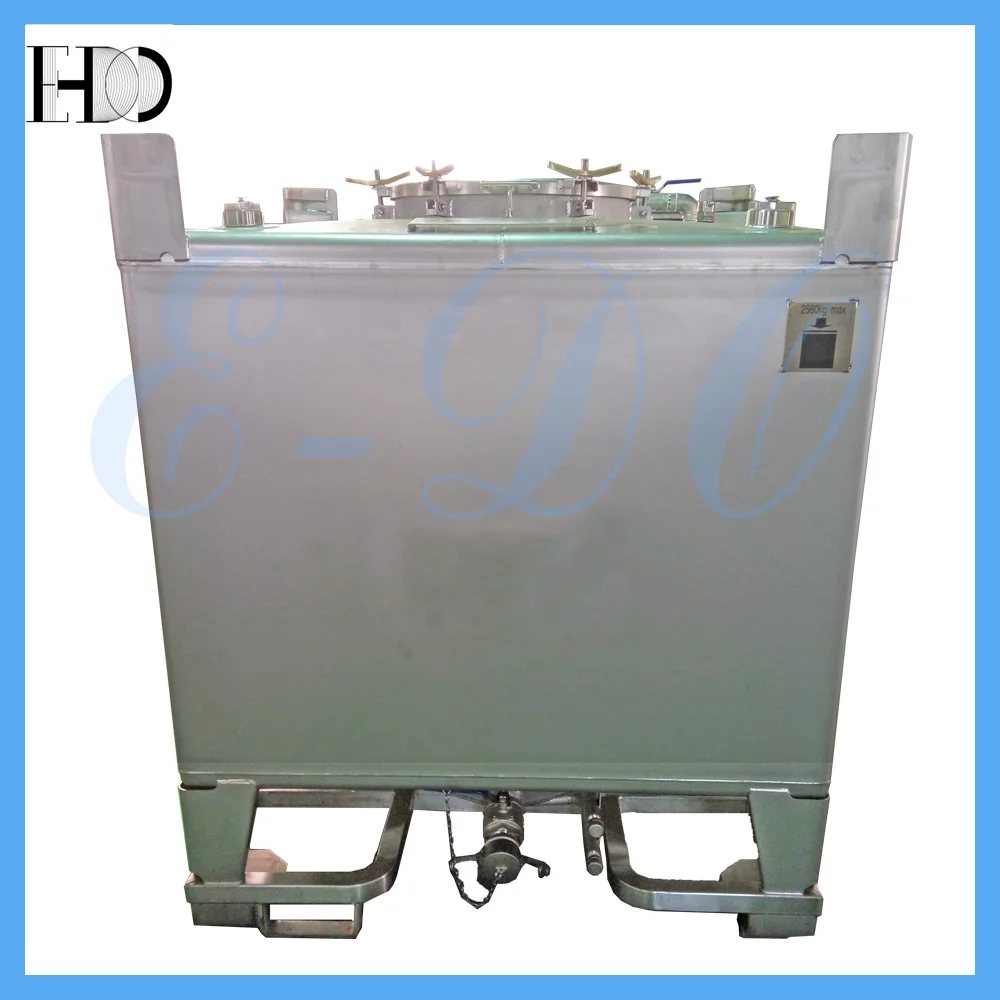

SS MeterCube IBC Container ( Intermediate Bulk Container)
Product Description
ODM and OEM are welcome!
We can produce different kinds of tanks as your need !
Welcom to your inquiry
| Technical Specification of IBC Container | |||
| Tank Type: | MeterCube IBC Container | ||
| Dimention L x W x H : | 1150*1150*1380mm | ||
| Capacity: | 1300 Litres | ||
| M.G.W.: | 1619 kg | ||
| Tare Weight(est.): | 319 kg | ||
| Max Payload: | 1300 kg | ||
| Working Pressure: | 0.2 bar | ||
| Test Pressure: | 0.2 bar | ||
| Tank Material: | SS 304 | ||
| Norminal Thickness: | Shell, 2.5 mm | ||
| IBC Design Code: | IMDG UN 31A/Y | ||
| Cargo carried: | See dangerous cargo lists for UN 31A/Y | ||
| Stacking: | Three high when empty, two high when full loading | ||
| Design Approvals: | IMDG UN 31A/Y | ||
| Fittings and Accessories: | |||
| 1. Manway Assembly | Manhole DN492 with 6 swing bolts Gasket: EPDM+PTFE | ||
| 2. Safety Valve | 1" BSP | ||
| 3. Air Valve | 1 1/2" BSP Female thread hex plugs | ||
| 4. Vent | 1" camlock | ||
| 5.Drain Valve | 2" BSP | ||
| 6. Lifting Lug | Four lifting lugs on top end of the container | ||
| 7.ForklifT Pocket | Four entries | ||
| 8.UN Plate | 1 off on the top of the container | ||
| 9. Steam Heating System | Bottom end with steam heating system 0,45 sqm with 2 x 1/2" BSP connections (inlet / outlet) | ||
| 10.Decal | Mandatory markings supplied and fitted | ||
| 11.Internal Finish | 2B finish | ||
| 12.External Finish | 2B finish | ||
UN Testing for IBC
The intermediate bulk container or IBC Container will be tested according to IMDG chapter 6.5 on metallic IBC. UN certification(UN31A, UN11A, etc) is available unpon request.
FAQ
Why are you so much cheaper than your competitors?
Seriously, we are asked this question all the time. The answer: we are industry and trading company and have our own factory.We sell direct to the customer. No distributors. No middlemen. Also, we keep overheads down -- no marble foyers, no fancypants administrative assistants, no sales reps in flash cars with nothing to do. We price the products accordingly
Do you accept OEM/ODM?
Yes, we welcome ODM and OEM require.We have our own design department.
