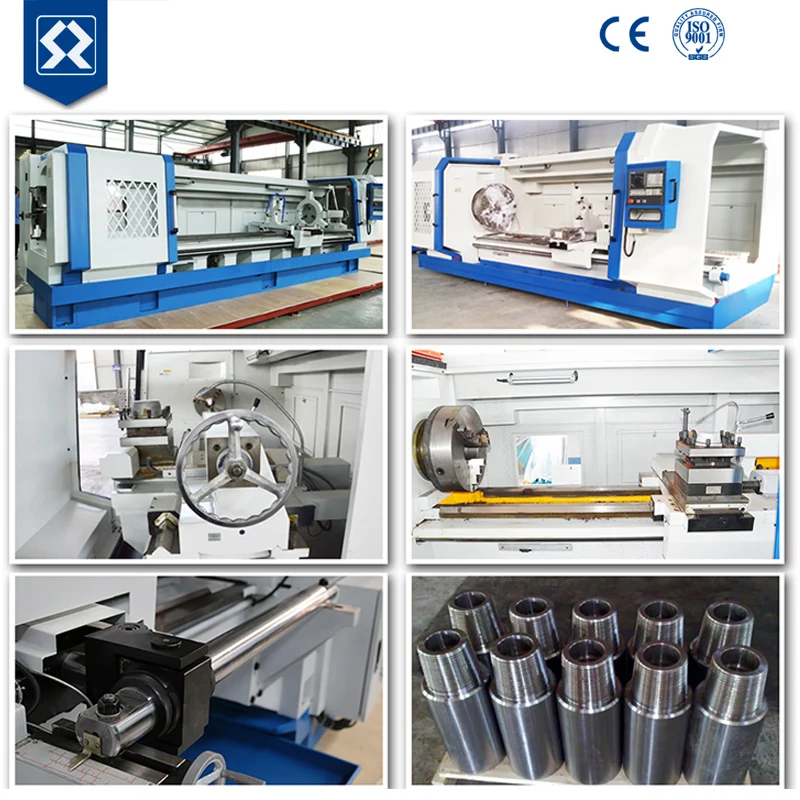

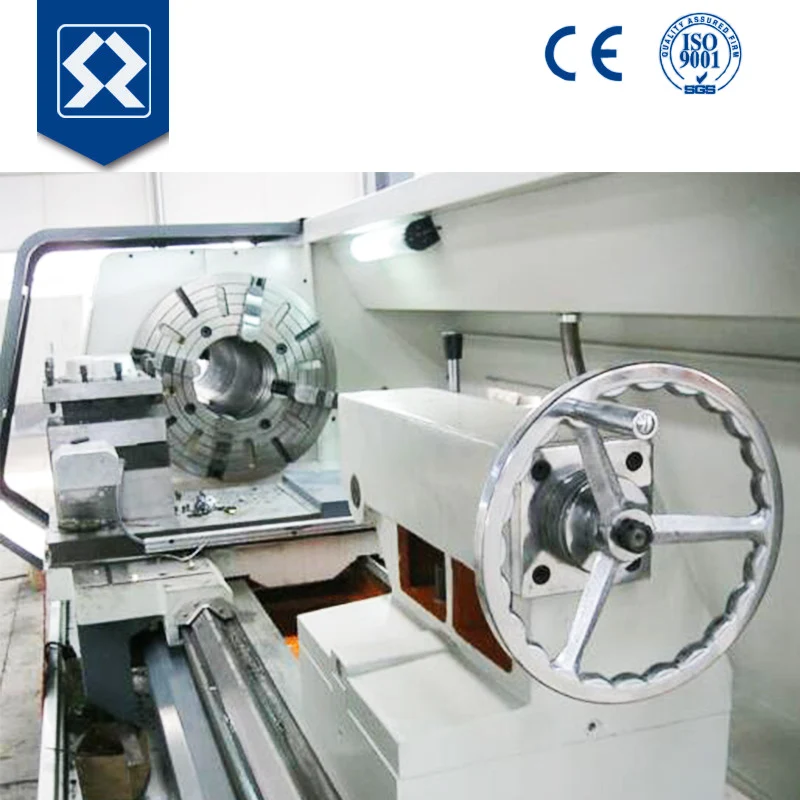

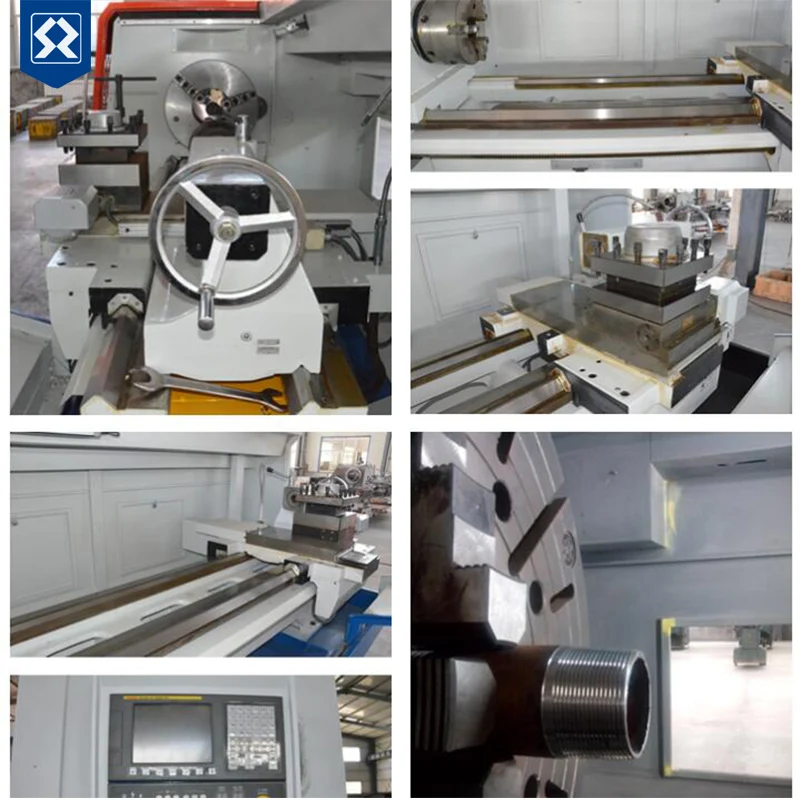

CK6163G Multi Spindle Automatic CNC Lathe

CK6163G Multi Spindle Automatic CNC Lathe

Main Features

1. The machine adopts the traditional layout of horizontal lathe. The overall design, good sealing are accord with safety standard. A lathe bed, bed legs and other major components adopt resin sand casting, artificial aging treatment, the whole stability is superior.
2.\tThe longitudinal and lateral movement axis machine tool adopts servo motor drive, precision ball screw vice composite bearing rigidity, high precision transmission, position detection pulse encoder feedback of half closed loop control system. Guide the use of international popular high frequency quenching (hard rail) and "model" process, the movement axis fast response, high precision, long service life.
3.\tThe spindle rotational speed is high, wide range of frequency control of motor speed, low noise.
4. CK automatic transmission using a unique electronic control automatic shift mechanism, machine tool does not need to stop transmission, high, medium and low-grade can automatically switch, programs can run continuously, greatly improving the processing efficiency.
5. The appearance of the machine tool protective design in accordance with the international fashion trend, modeling novel and unique, waterproof, dust prevention, maintenance is convenient; Reflects the era characteristic.
6. Greatly Φ spindle hole diameter is 105 mm, with bar stock ability, wide application scope.
7. Machine tool operation system according to the ergonomics principle, independence and rotating the operation box set, it can move anywhere, convenient for the operator to nearby knife, is the embodiment of the humanized design.
8. Equipped with central lubrication for ball screw and guide joint surface of mandatory automatic lubrication, can effectively improve the dynamic response of the machine tool characteristics and the service life of screw guide rail.
9. Bed saddle and slide guide joint surface treated by "model", can realize micro feed moving parts to prevent the crawling.
10. Inside spray type don't lift the head more conducive to improve the quality of work piece surface and to prevent the coolant splash.
11. Machine standard configuration 750/1000/1500/3000 specification is fully enclosed protection; the rest is semi-closed protection.
12. Machine standard configuration USES the domestic famous brand of vertical knife tower four work station. Special configuration can choose six-station horizontal knife tower;
13. Machine tool according to the demand of the user manual, pneumatic, hydraulic chuck or manual, pneumatic, hydraulic tailstock, etc.
