40 kva generator price 30 kw diesel silent generator price

Product Overview

Description

safe-simple-convenient-practical design

1. Our cooperate with famous diesel engine – USA brand,Deutz, Lovol/UK brand, UK-Lister Petter, Weichai, MTU

2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.

3. High-quality steel are thickness -- 2MM to 4MM

4. High density sound-absorbing material -- sound insulation, fireproofing

5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.

6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.

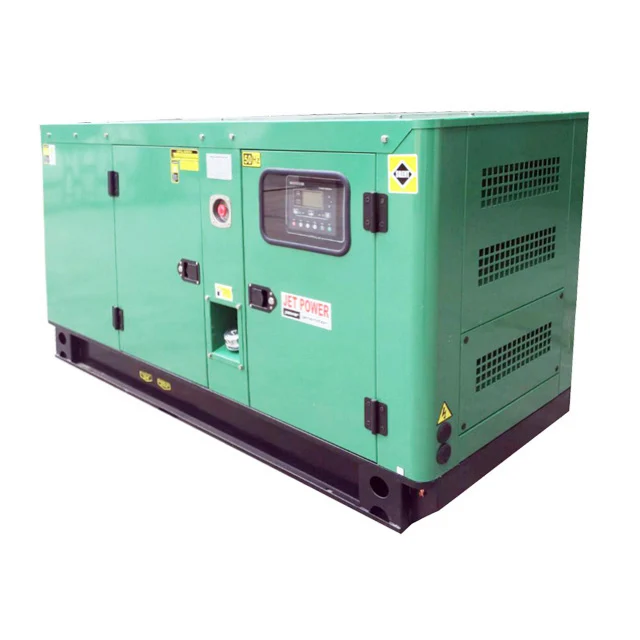

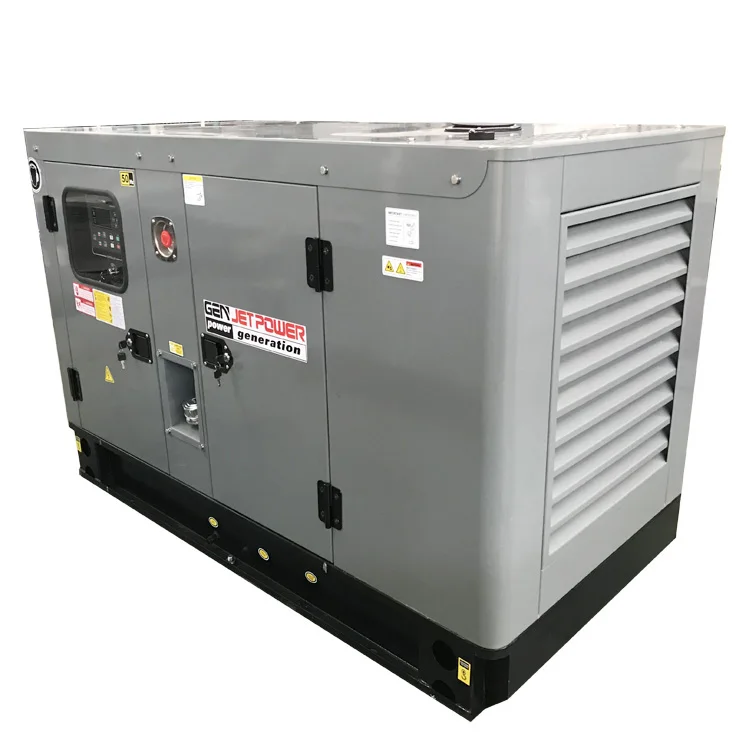

Diesel generator set   Silent / Soundproof type

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4

standard

Prime output power: 8kw-1200 kw (10kva-1600kva)

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

packing and shipping

Packaging Details:diesel generator optional wooden case, plywood case

Delivery Detail:  25 days from receive the payment

Warranty policy

JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.

Technical Data

Model	400V / 50Hz / 1500RPM				Ricardo Diesel Engine						Alternator	Open type	Soundproof type	Genset
	Standby output		Prime Output		Model	Engine Brand	Engine type		Displacement	Bore×Stroke	Brushless Stamford type	Packing (mm)	Packing (mm)	Weight
	KVA	KW	KVA	KW			No. of Cylinder	Governor	(L)	(MM)		(L x W x H)	(L x W x H)	Kg
GF-10	14	11	13	10	2105D/18KW	CHINESE WEICHAI RICARDO ENGINE	L2	Mechanical	1.63	105×115	JET164C	1800×850×1100	2100×900×1150	850
GF-12	17	13.2	15	12	4100D/30KW		L4		3.61	100×115	JET164D	1800×850×1100	2200×1000×1200	960
GF-15	21	16.5	19	15	4100D/30KW		L4		3.61	100×115	JET184E	1800×850×1100	2200×1000×1200	1020
GF-20	28	22	25	20	K4100D/30KW		L4		3.61	100×115	JET184F	2000×1000×1200	2350×1000×1250	1050
GF-24	33	26	30	24	K4100D/30KW		L4		3.61	100×115	JET184G	2000×1000×1200	2350×1000×1250	1080
GF-30	41	33	38	30	K4100ZD/40KW		L4		3.93	100×115	JET184H	2000×1000×1200	2350×1000×1250	1160
GF-40	55	44	50	40	K4105ZD/56KW		L4		4.33	105×125	JET224D	2200×1000×1350	2650×1000×1350	1230
GF-50	69	55	63	50	K4105AZD/66KW		L4		4.5	105×125	JET224E	2200×1000×1350	2650×1000×1350	1280
GF-70	96	77	88	70	R6105ZD/84KW		L6		6.49	105×125	JET224G	2450×1000×1400	3000×1300×1800	1300
GF-90	125	100	113	90	R6105AZLD/110KW		L6		6.49	105×130	JET274D	2650×1100×1600	3200×1300×1800	1420
GF-100	138	110	125	100	R6105IZLD/132KW		L6		6.49	105×135	JET274ES	2650×1100×1600	3200×1300×1800	1500
GF-120	165	132	150	120	R6110ZLD/165KW/		L6		7.52	110×135	JET274F	2650×1100×1600	3200×1300×1800	1550
GF-150	206	165	188	150	TH6113AZLD/170KW		L6		7.82	113×135	JET274G	2650×1100×1600	3650×1300×1800	1610
GF-180	248	198	225	180	R6126ZD/215KW		L6		9.726	126X130	JET274J	2800×1100×1800	3650×1300×1800	1820
GF-200	275	220	250	200	6135BZLD/236KW		L6		13.3	135×150	JET274K	2800×1100×1800	3650×1300×1800	1930
GF-250	344	275	313	250	12V135AZD/305KW		12V		25.8	135×155	JET444E	3400×1250×2000	4300×1600×2200	3460
GF-300	413	330	375	300	12V135AZLD/340KW		12V		25.8	135×155	JET444FS	3400×1250×2000	4300×1600×2200	3510
GF-360	495	396	450	360	12V135BZLD(Electric)/410KW		12V	Electric	26.6	135×155	JET544C	3800×1400×2000	5000×1800×2200	3620
GF-400	550	440	500	400	12V135BZLD-1(Electric)460KW		12V		26.6	135×155	JET544D	3800×1400×2000	5000×1800×2200	3980
GF-500	688	550	625	500	SY630(Electric)/567KW		12V		27.14	135×158	JET544FS	3800×1400×2000	5000×1800×2200	4280
GF-600	825	660	750	600	SY720(Electric)/720KW		12V		29.61	138×165	JET634B	3800×1400×2000	5000×1800×2200	4360

FUZHOU JET ELECTRIC MACHINERY CO., LTD
