Industrial roll to roll textile digital printer

Share on (60489532650):


Price:$19,000.00 - $20,000.00

Quantity:


Product Overview

Description

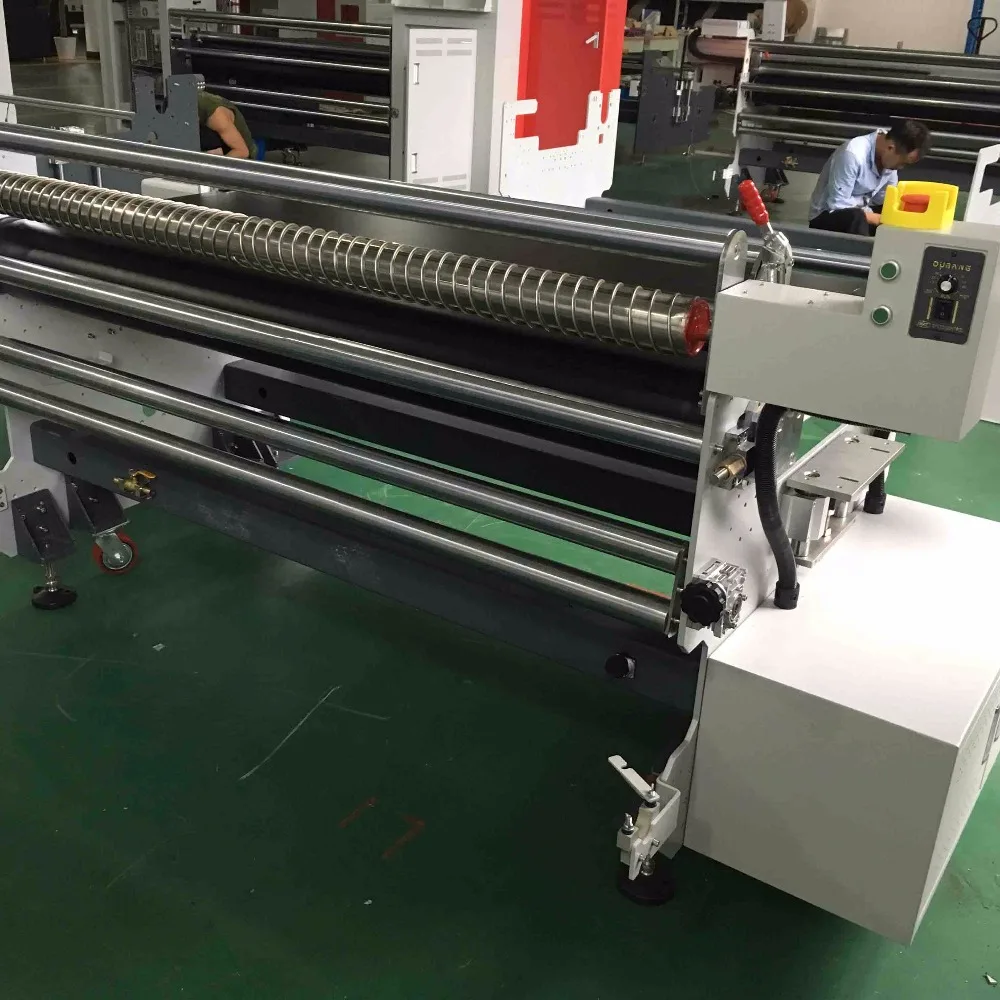

Industrial roll to roll textile digital printer





Cotton fabric industrial digital direct textile printer China.jpg



Main features:

1. The digital textile printer is designed for industrial production.

2. Very low cost so that most textile printing factory can afford it.

3. This digital textile printer technology are well accepted by local printing factories.

4. Top brand parts be used in building the roll to roll textile printer.

5. Not only the industrial textile printer machine, but also provide consultant service on digital fabric printing process.

Product Description

The Cotton fabric industrial digital direct textile printer China is designed by experienced professional engineer who used to work for Atexco which is the leader for digital textile printer research in China. After accumulated rich experience in the front runner enterprise, his masterpiece textile printer combined many advantages like economical in cost, easy but functional structure to make the belt running straight in feeding fabric, all top brands parts be used to build the textile printer in key important parts.

Why our machine?

1. Our motto is that real production is the only way to approve quality. We checked all machine working in end-user factories before marketing them. So we also provide the service to check the machine working conditions if you are interesting in. Or you can request to have some videos before visiting.

2. We only work with original machine developers. So you will get best price, no quality worry and continuous follow-up after-sales services.

3. The most important thing is that you will enjoy top level consultant team for all the digital textile printing problem you might met which is far more important factor for your textile printing business.



Machine parameters



Digital textile printer modelABS-1800
Print head2 DX5
Workable fabric thickness2-30mm adjustable
Maximum fabric printing width1800mm
Maximum fabric width1850mm
Workable fabric typeKnit or Woven cotton, linen, silk, wool, polyester, nylon
Textile printer ink typeReactive, disperse, sublimation, pigment or acid inks
Ink colorBlack, Cyan, Megenta, Yellow, Lc, Lm, Grey, Red, Orange, Blue optional
Production printing speed30 square meters/hour
Image typeJPEG/TIFF/BMP, RGB/CMYK color mode
RIP softwareWasatch/Neostampa

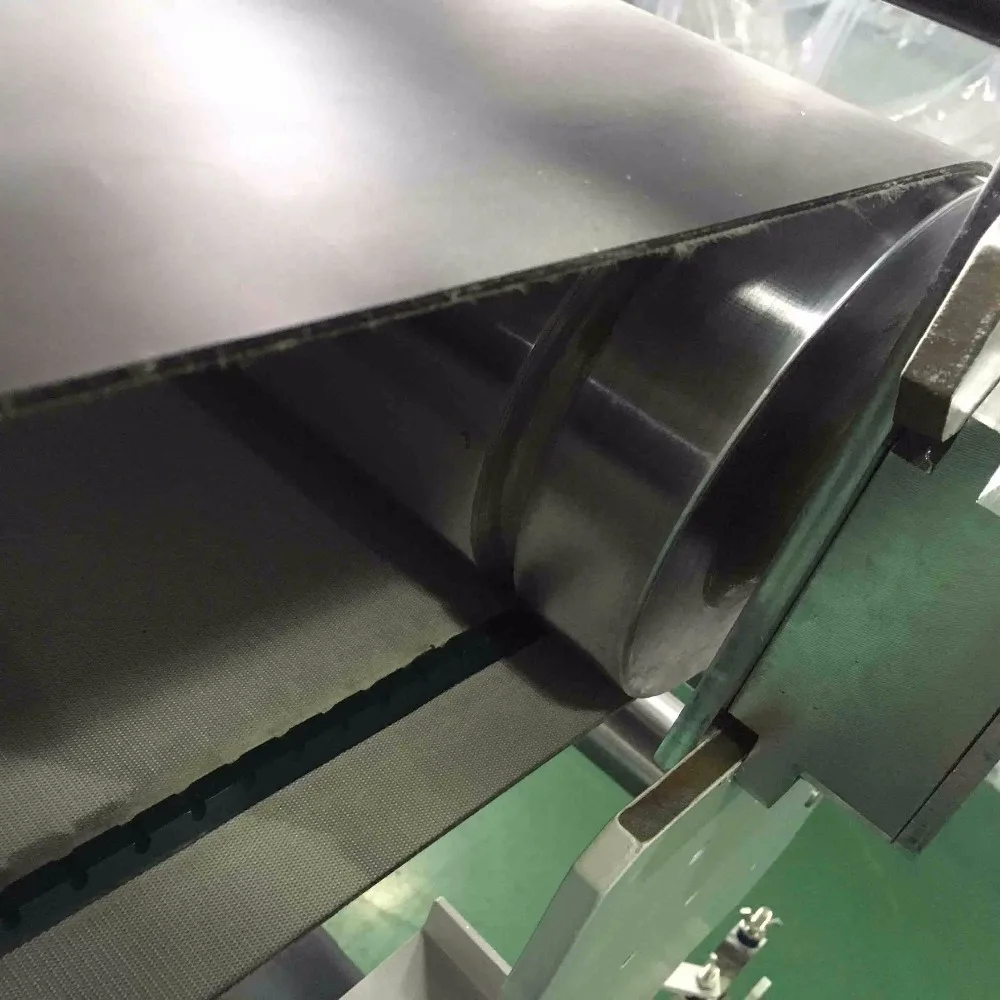

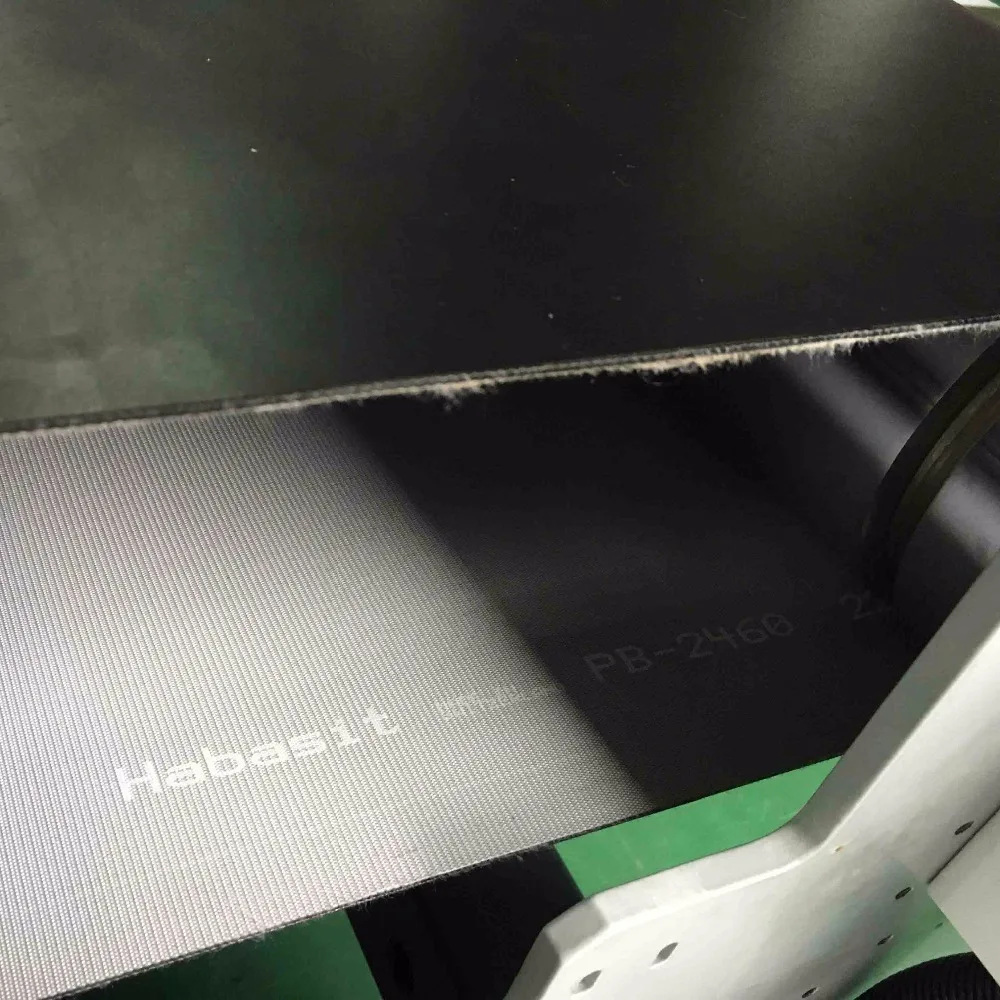

Textile printer feeding systemContinuous sticky belt feeding system with belt washer,  take up.
Textile printer power rate6KW
Power supply220V 50HZ, 2 phase/ 380V 50HZ, 3 phase optional
Air compressorAir volume ≥ 0.3 m³/min, Air pressure ≥ 6KG
Textile printer working conditionTemperature: 20-30°, Moisture: 60%-80%
Digital textile printer size3350mm*1400mm*1400mm
Weight of textile printer700KGS
FAQ

1. Can 5113 print-head  also be used to print reactive inks?

No. Sublimation inks works fine on 5113 print head. But reactive inks still damage the 5113 print head.



2. What kind of print head is the best for the digital textile printing?

It is good question. Everyone got his own understanding on it. But it can be devided into two kinds in general. One is regarded as industrial print head level like Kyocera, Seiko, Spectra, Ricoh, Konica etc. This kind of heads are famous for the longer life span and faster printing speed. But fewer nozzles, fewer channels, and bigger ink drops. The other is regarded as Epson DX5, DX7 and 5113. Especially the DX5 head, it is the most popular head on the market. It is famous for the cheap price, smaller ink drop size and fine printing result. Almost all kinds of inks is compatible to this head. The price is very favourable when you calculate into each nozzle. Most printing factories are relying on DX5 to earn their profit in China up till the 27th, June 2016.



3. Do you also support the coating agent formula if we buy your machine?

Yes. We provide full support for all digital textile printing process from fabric coating, digital textile printing, steaming curing, washing. The pre treatment and post treatment machine factory professional will also provide relative support to you. You can check the pre-coating machine, textile steaming machine and washing machine here.



4. Do you also sell quality inks?

Yes. We will recommend customer to use the inks which our local customer had approved it. Of course, if buyers got his own channel in domestic market, the buyers can use their own inks.



5. How to make the after sale service since oversea buying?

The buyer can consult us online if there is any question in machine running. We will give some points for buyers to check. And we will send parts for replacement to solve problem. Normally problem can be solved in this way. Just in case, if the buyer can not solve the problem by online supporting. We can send technician to site if the buyers can cover the costs. There was no such problems occurs while we got 50 machines running all over the world for 3 years up till the 27th, June 2016.



6. If there is problem occured when the buyer can not judge the real cause, how to deal with it?

We got full experienced team who specialized in pre-treatment, digital printing to post treatment untill finishing treatment. So we are able to provide the full service in digital textile printing machine fields. Our expert will find out the actually reason.
