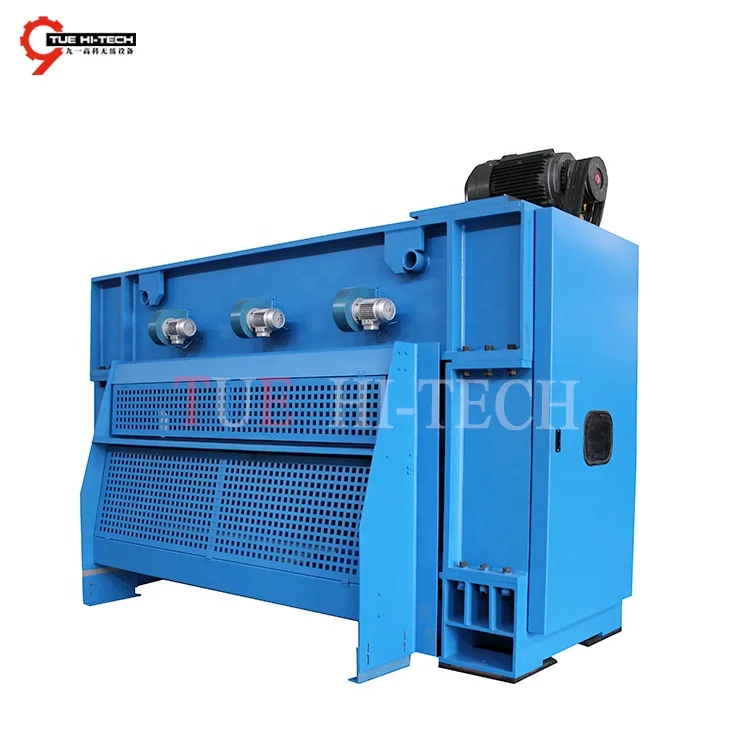

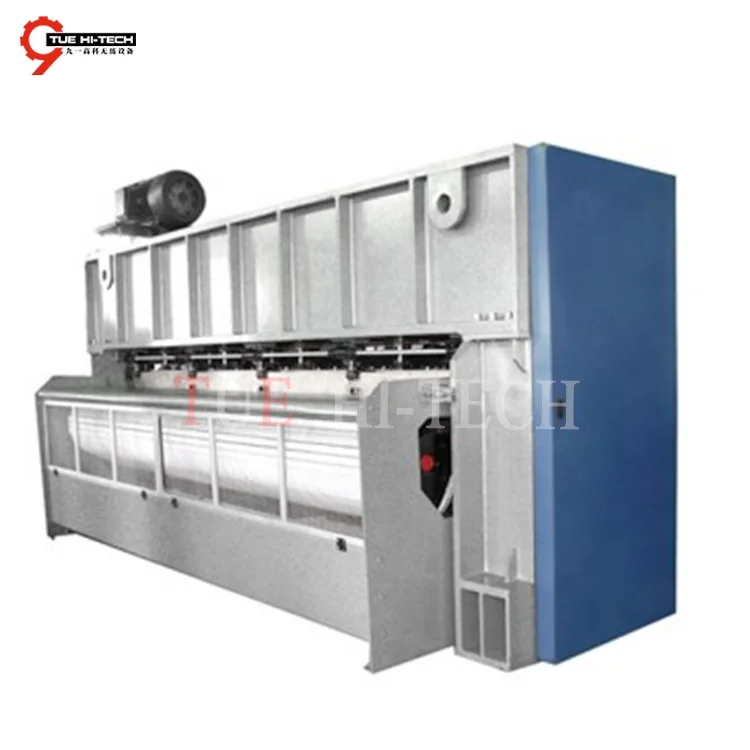

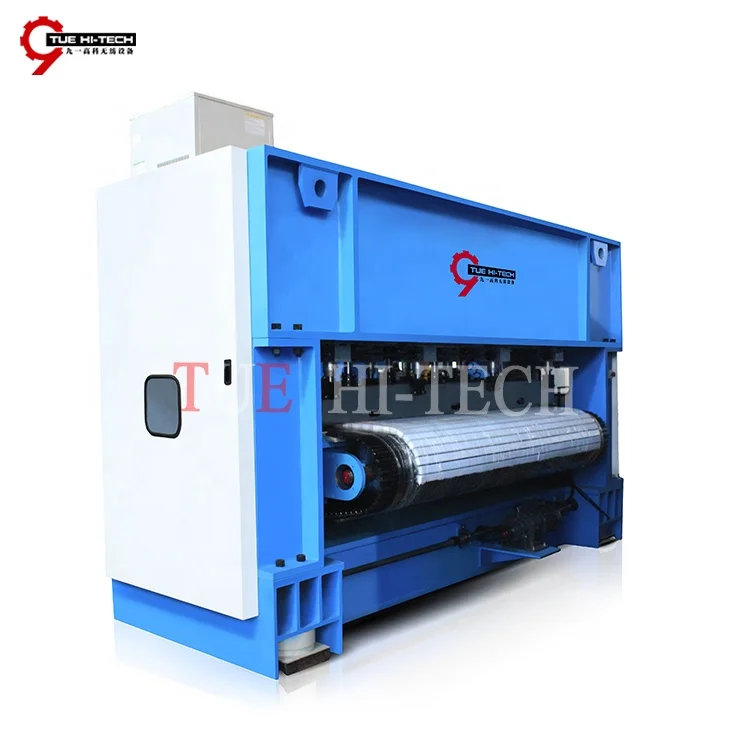

Non woven High Speed Velour Needle Loom Carpet Making Machine Non woven Production line Random velour needle punching loom ou

Technical Specification

Working width
(mm)

Max frequency
(rpm)

Stroke
(mm)

Needle density (n/m)

Weight (kg)

Output Speed (m/min)

Installed Power (kw)

4500

≤1400

30

≤16000

35600

1-6

80.1

Structure

Motor

Brand

Siemens-Beide, Made in China

2.2kw*2

Transfer motor

2.2kw

Oil pump

7.5kw

Brush

2.2kw*3

Cleaning

55kw*1

Main motor

2.2kw*2

Lifting

Voltage and Power

Customized as per the requirement of Customer

Safety

Environment

Closed Body ( No Fiber Flow in the air)

Operational Safety

Depend on customers' requirements.

Material

The machine adopts the latest aluminum alloy and stainless steel structure. It has beautiful appearance and firm structure, which solves the problem that the fiber is easy to drop;

Maintenance

Periodic Maintenance

Regular Cleaning ( Air Spray on the Lattice and the Rollers)

Lubrication and Greasing on the Bearings.

Working Principle

a.       The machine is one of the parts of Nonwoven. The structure of the machine is heavily designed with aluminium plates for brush holdings.

b.      The shaft in the machine has been with the most balanced technology..

c.       The proportion of the needle penetration and the stroke length is being controlled by the PLC and confirming the precise velouring..
