JC High Quality 2kg Mini Electric Oven for Gold

Product Overview

Description

JC High Quality 2kg Mini Electric Oven for Gold

1.Product Description

JC High Quality 2kg Mini Electric Oven for Gold uses an energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation. It is an ideal tool for materials heating and melting.
JC High Quality 2kg Mini Electric Oven for Gold possesses the advantages of fast heating, energy saving, high accuracy of temperature control, reliable heat keeping. It is widely used in the laboratory and manufacture of the field of pottery, chemical industry, metallurgy, and glass industries, new material developing, machinery, fire-proof material, architecture, special material and etc.

2.JC High Quality 2kg Mini Electric Oven for Gold Breif Instruction

Use	Removable crucible furnace for melting or maintaining melted state of non-ferrous metals.Handling the crucible with tongs.
Construction	Access to crucible from top,manual cover closing
Insulation	Multilayer insulation with double thickness of ceramic fiber
Electricity	Single-phase 220VAC,1500W,50Hz,220V standard plug
Heating	Silicon Carbide chamber with no crack,no distortion,comparied with other traditional ceramic fiber chamber and quartz chamber
Working temp	2102F (1150C) Temperature controlled with an accurate digital thermostat
Melting Speed	(Model JC-K-220-2) 15-20mins heat up to 1150 Degrees Celsius 25-30Mins(JC-K-220-1) heat up to 1150 Degrees Celsius
Standard Delivered with	1x1kg crucible,1xcrucible tong,1xheat insulaiting glasses, 1xheat insulating gloves,1xmanual instruction.





3.Furnace Technical Parameters

	K Series
NO.	JC-K-110/220-1	JC-K-110/220-2
Volt/Power	110/220V-1KW	110/220V-1.5KW
Frequency	50HZ/60HZ
Temp Display Mode	°C/°F
Furnace Temperature	Working temp:1150C    Max temp: 1200C
Heating Rate	25 mins	10 mins
Capacity	1kg-4kg(coordinate with crucible)
Temp Control Mode	Adopting AI PID control method; Measured values (PV), set data (SV) can be shown at the same time; Set data can be changed by arrow buttons
Spare Parts	1kg graphite crucible, one crucible tong, one heat insulating glasses and gloves.one replacement refuse,several ceramic parts and one manual instruction.

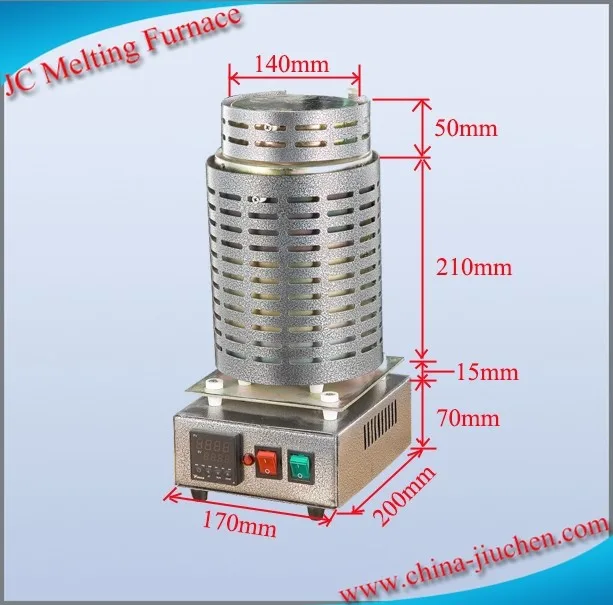

Size	Body:170*220*360mm,Melting chamber: Dia63*165mm,Other size is customizable

4.JC High Quality 2kg Mini Electric Oven for Gold Accessories

1-melting furnace;

1-1kg graphite crucible;

1-crucible tong;

1-heat insualting gloves;

1-heat insulating glasses;

1-replacement fuse;

1-manual instruction;

5.Advantages of JC High Quality 2kg Mini Electric Oven for Gold

1) Light weight and small volume;
2) High efficiency of refining;
3) Easy installation and operation;
4) Fast speed of raising temperature, the temperature is constant;
5) Safe and environment-friendly operation;
6) Complete Protection:Equipped with over-voltage,over-current,over-heat,water shortage device which control and protect automatically;

7) Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

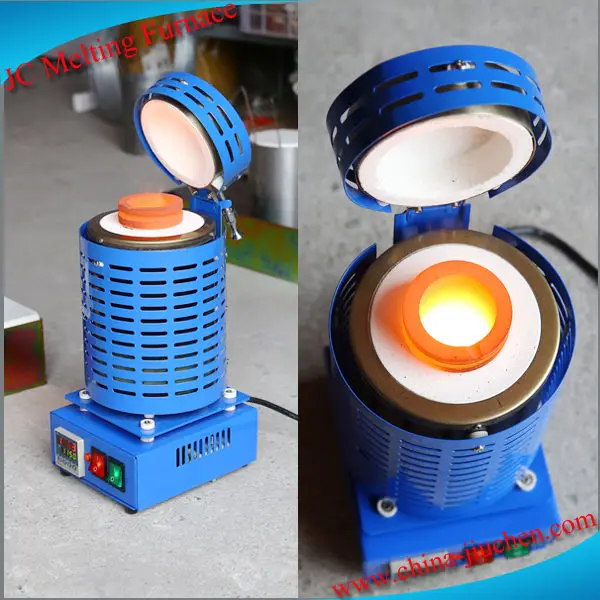

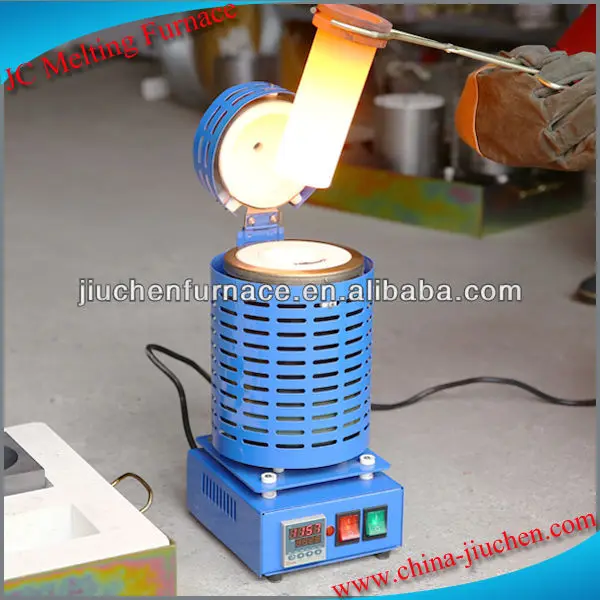

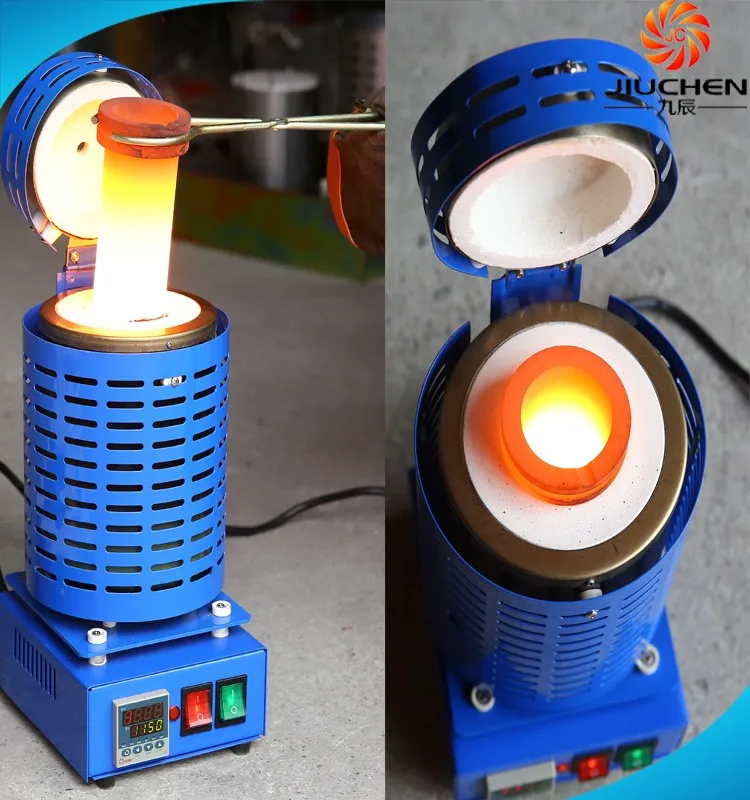

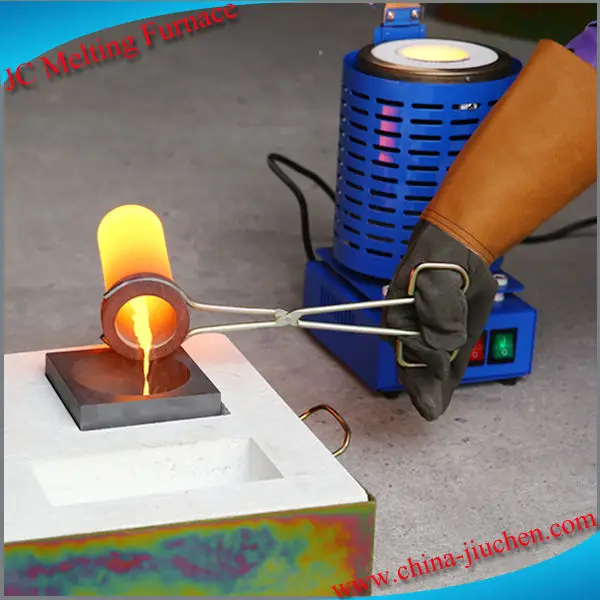

6.JC High Quality 2kg Mini Electric Oven for Gold Pictures

7.Shipping

We can accept T/T,Paypal,Western Union,Escrow,the best and fast way is Paypal.

We choose DHL/Fedex/EMS usually takes about 3-5 working days to the destination,

We will send the goods within 3 working days after the full payment has been confirmed.

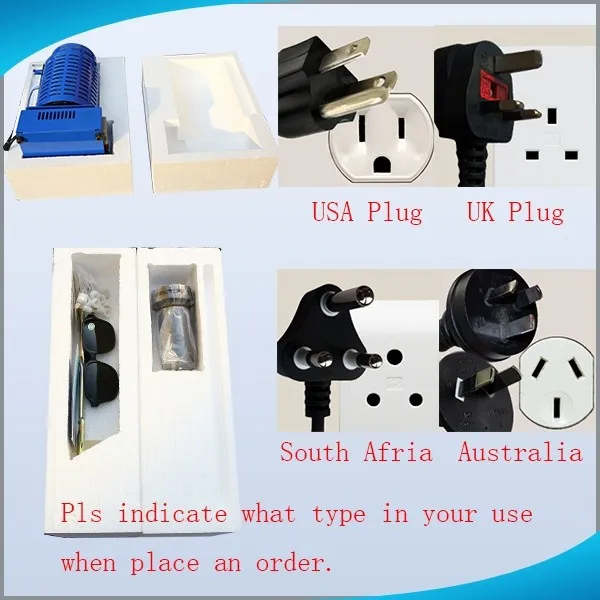

8.Multi-Plugs for Customers' Use

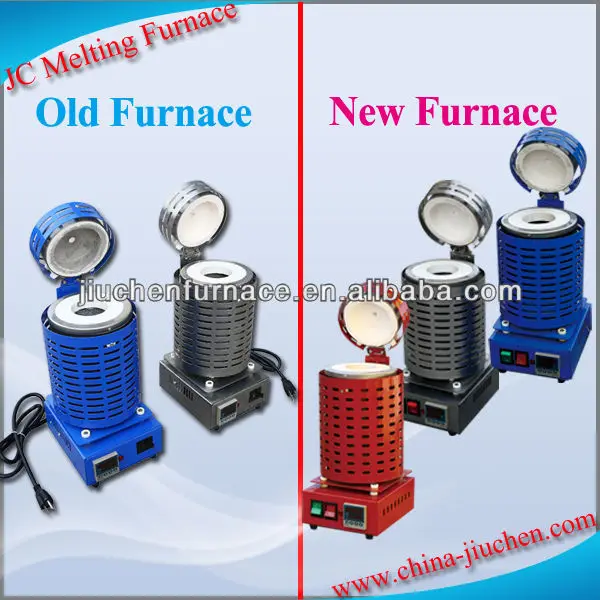

9.Furnace Improvement

10.Related Certificate

The furnace has obtained Chinese patent of Certificate of Utility Model Patent,Certificate of Design Patent and CE. Currently, we are cooperating with ICBC, domestic famous universities and national key laboratories. We open smoothly North America, EU, Australia and Southeast Asia, the furnace won high praise with more than 30 countries and region.

11.Contact Information

We offer different sizes and voltages for your specific needs.So if you have any queries/inquiries or interests on our products, please feel free to contact us .Your any of inquiries will be at our soonest attention and response.
