Outdoor Electric Hydraulic Wheelchair Lift for Van Car Wheelchair Vertical Lifting Table for Disabled Elderly Handicapped

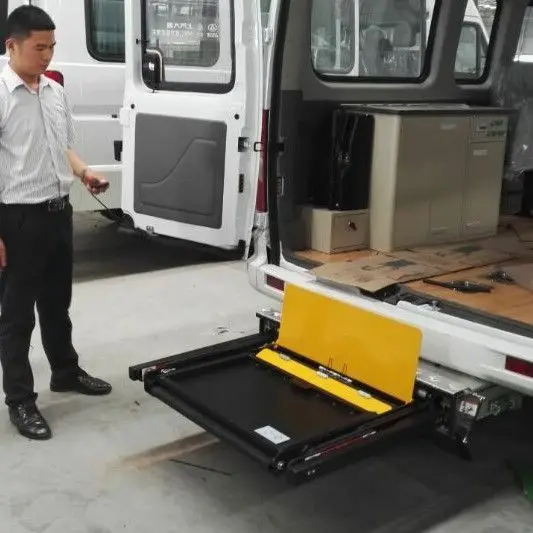

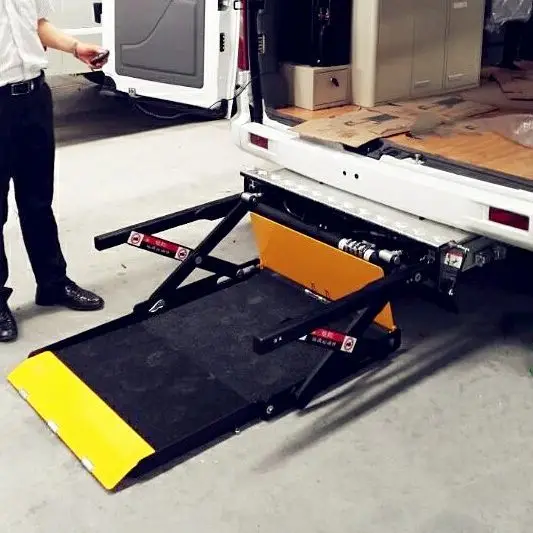

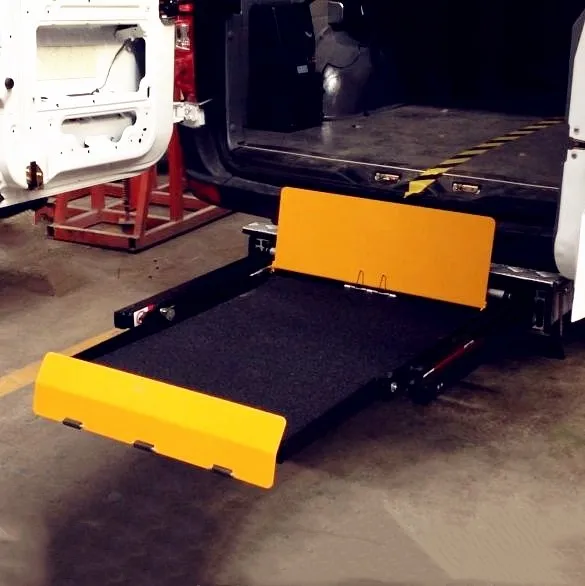

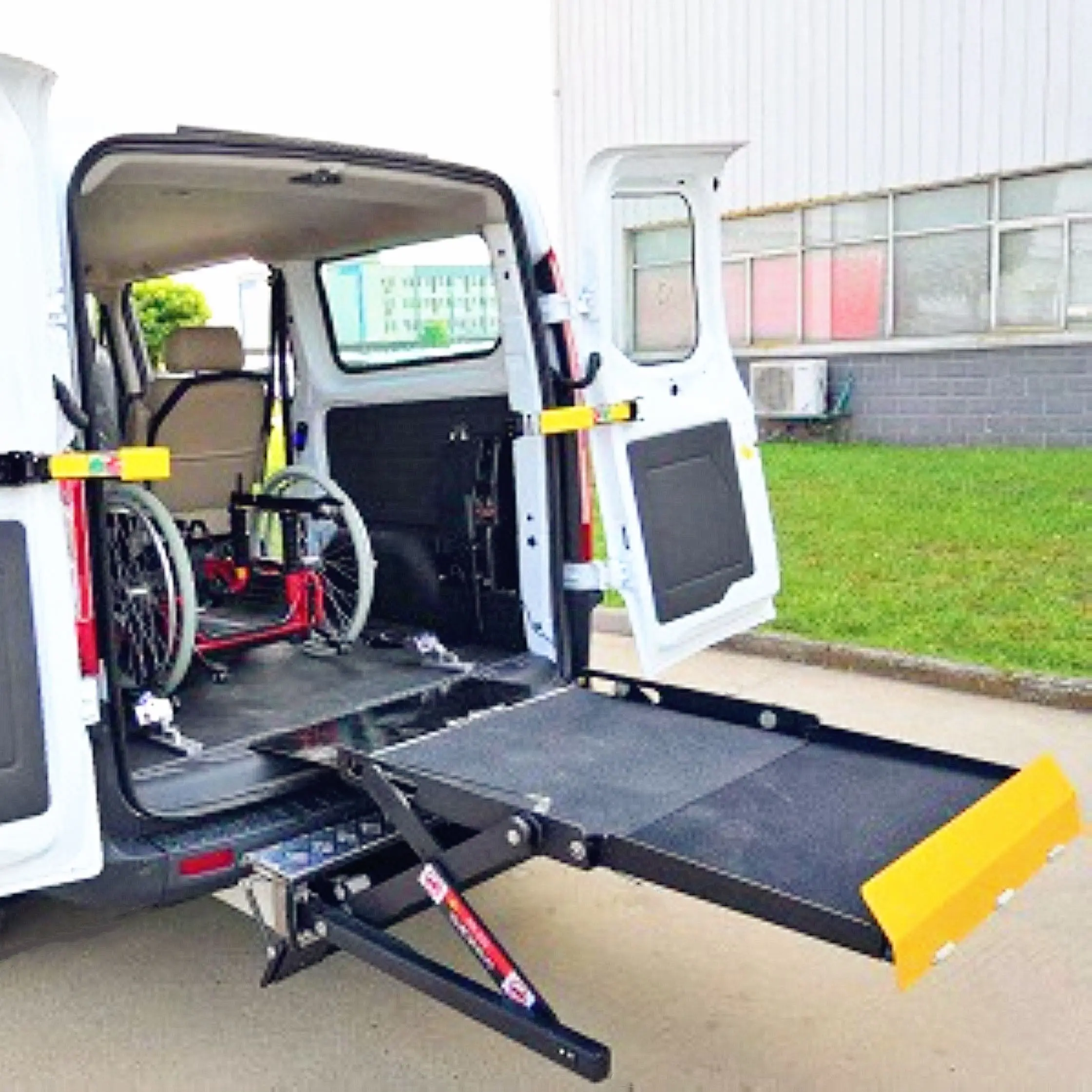

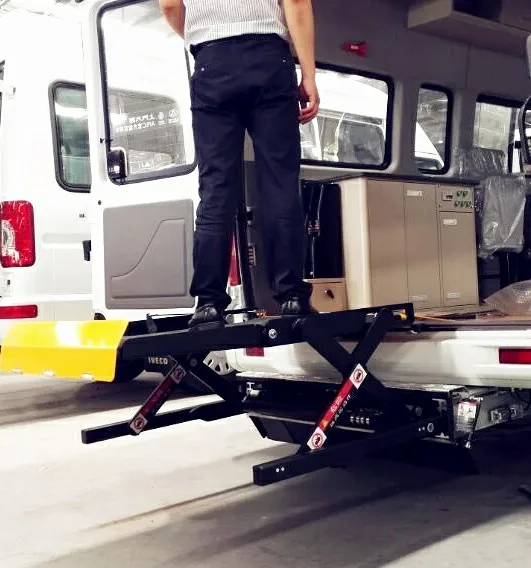

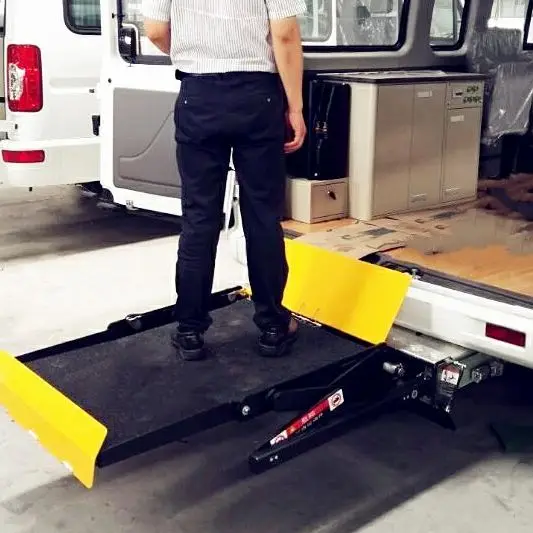

WL-UVL-F Series wheelchair lift is installed under vehicle floor.

It stays out of sight and out of the way when not in use.

this lift helps the disabled and the elder to get on vehicle while seated in this wheelchair.
loading capacity 300KG.
The wheelchair occupant, attendant or driver can operate it by the wired remote control.
It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline.
With optional standard kit manual emergency devices, if the lift without power, it will be operated manually.

This lift has CE certificate.

Advantages:

1. Compact design, depth is only 1110mm;
2. No-skid platform;

3. warning sound operation;

4. manual backup system, can be manually operated for emergency;

5. door interlock function;

6. inside safety locking device;

7. mechanical automatic roll stops;

8. Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
9. Side handrails (Option) to increase comfort and security
10. CE certified;

Technicals:

Loading capacity: 300KG;

Voltage: 12Vdc or 24Vdc;

power supply: 800W;

wheelchair lift DN-880-1150.

CE certified

capacity: 300kg

wheelchair lift MINI-UVL-1200

CE certified, Super thin 90mm

capacity 300kg

wheelchair ramp BMWR-301.

mabual wheelchair ramp

capacity: 350kg

Turning seat SOUT-R Pro.

programmable

turning clockwise or anti-clockwise

Swivel lifting seat.

programmable

lowering 395 mm

Wheelchair restraint.

ISO certified

ensure safety of wheelchair occupant

Electric sliding step.

CE certified, capacity 250kg

aoto sleep mode

Electric folding step.

step number:1, 2, 3, 5, 6  and 7

capacity 150-200kg

Wheelchair lift for bus.

installed in step, under step or luggage

Xinder-Tech Electronics Co., Ltd was established in 2001.
Xinder-Tech specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.
Xinder-Tech is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.
Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an IATF16949:2016 compliant company.

Team

we are family

Research&development

research, developemnt

Factory

Test

product test

Training

we get training from our partners and also train our agents

Exhibitions.

we promote our products via exhibitions.
