Product Description
self-lock high torque L76mm NEMA23 3A RV30 cheap china worm gear
Specifications
Model
Step Angle
Rated Current (A)
Phase Resistance
(ohm)
Phase Inductance
(mH)
Holding Torque
(N*m)
Detent Torque
(N*cm)
Rotor Inertia
(g*cm2)
Motor Length
(mm)
57HS5630A4
1.8
3
0.8
2.4
1.1
3.5
280
56
57HS7630A4
1.8
3
1
3.5
1.8
6
440
76
57HS11242A4
1.8
4.2
1.4
1.8
3
12
800
112
There are multiple choice for NEMA23 series motor. if you any other choice, please do contact us for a better solution. Ratio: 1:7.5 1:10 1:15 1:20 1:25 1:30 1:50 1:60
IF you need the suitable drive to match the motor. please do contact us for a better solution and optimal price.
Dimension

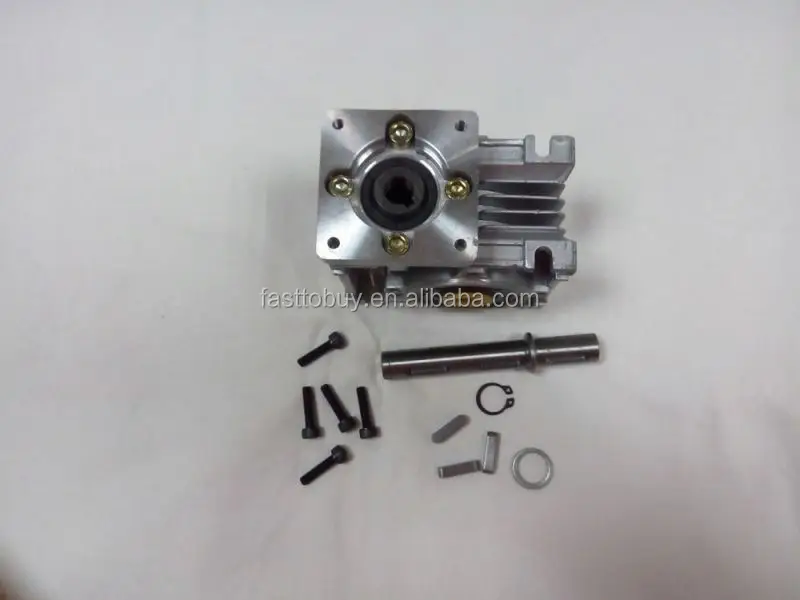

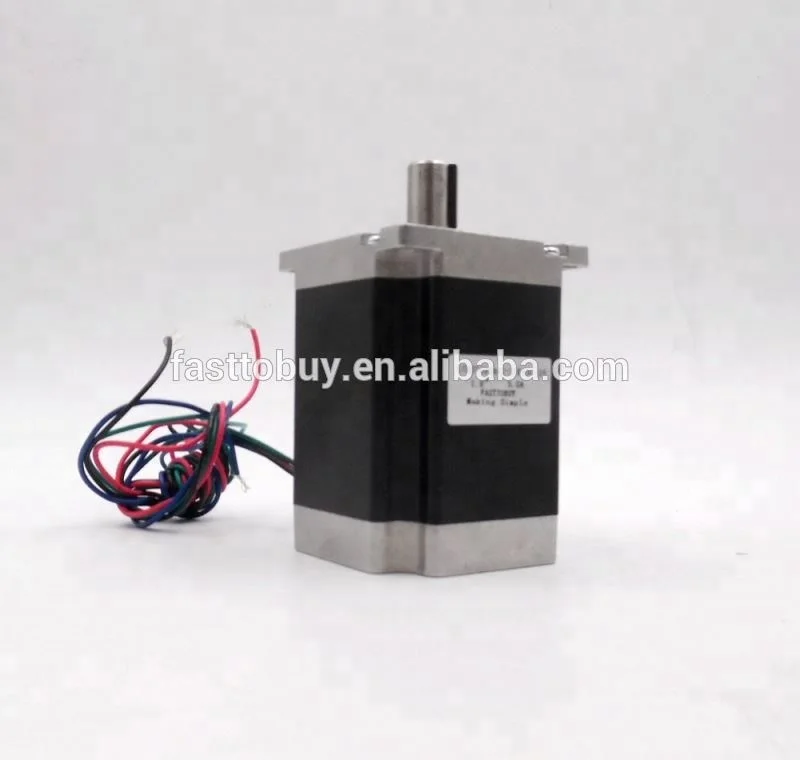

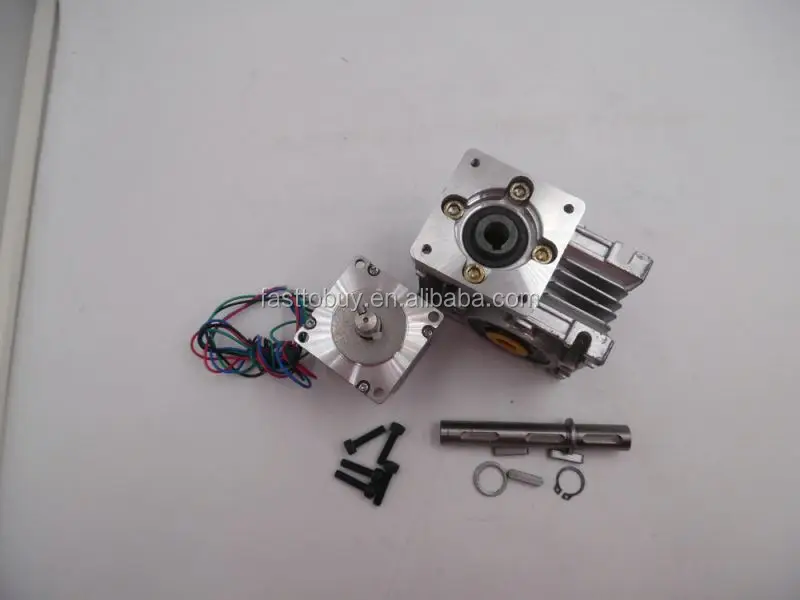

Product photos
