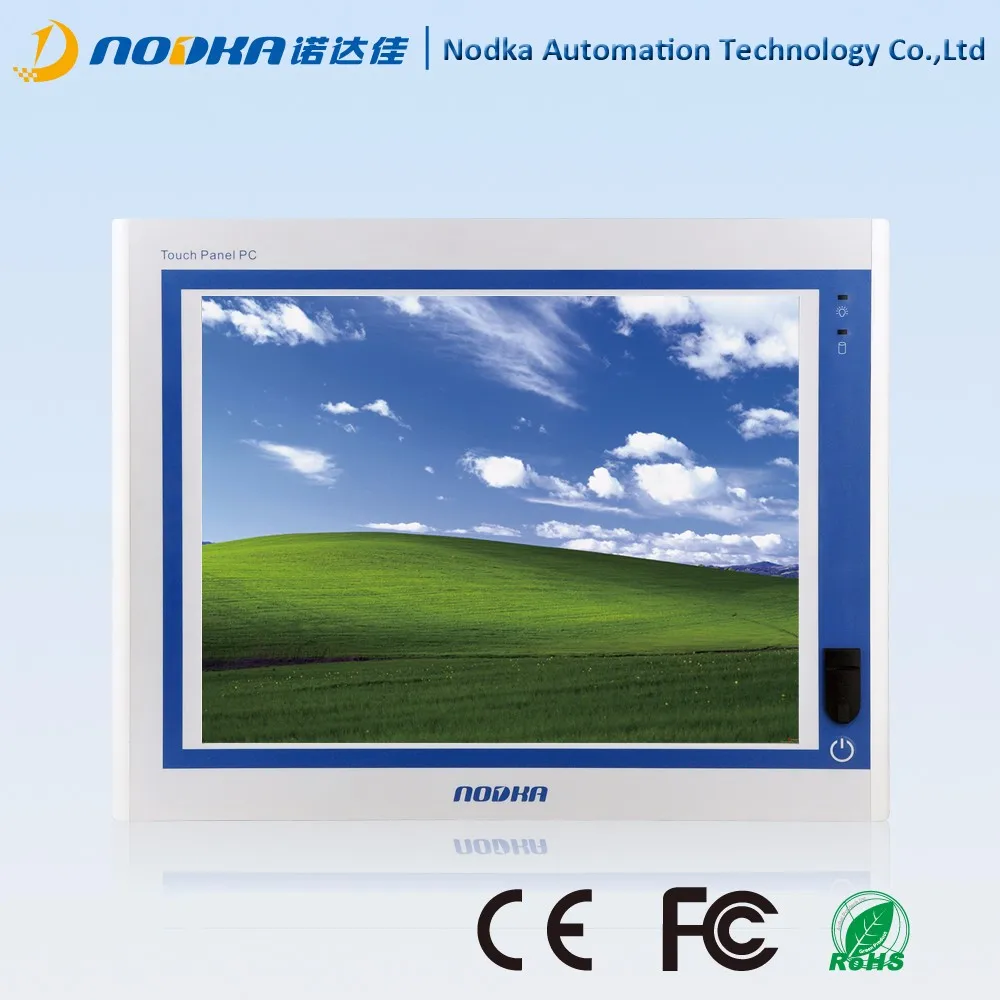

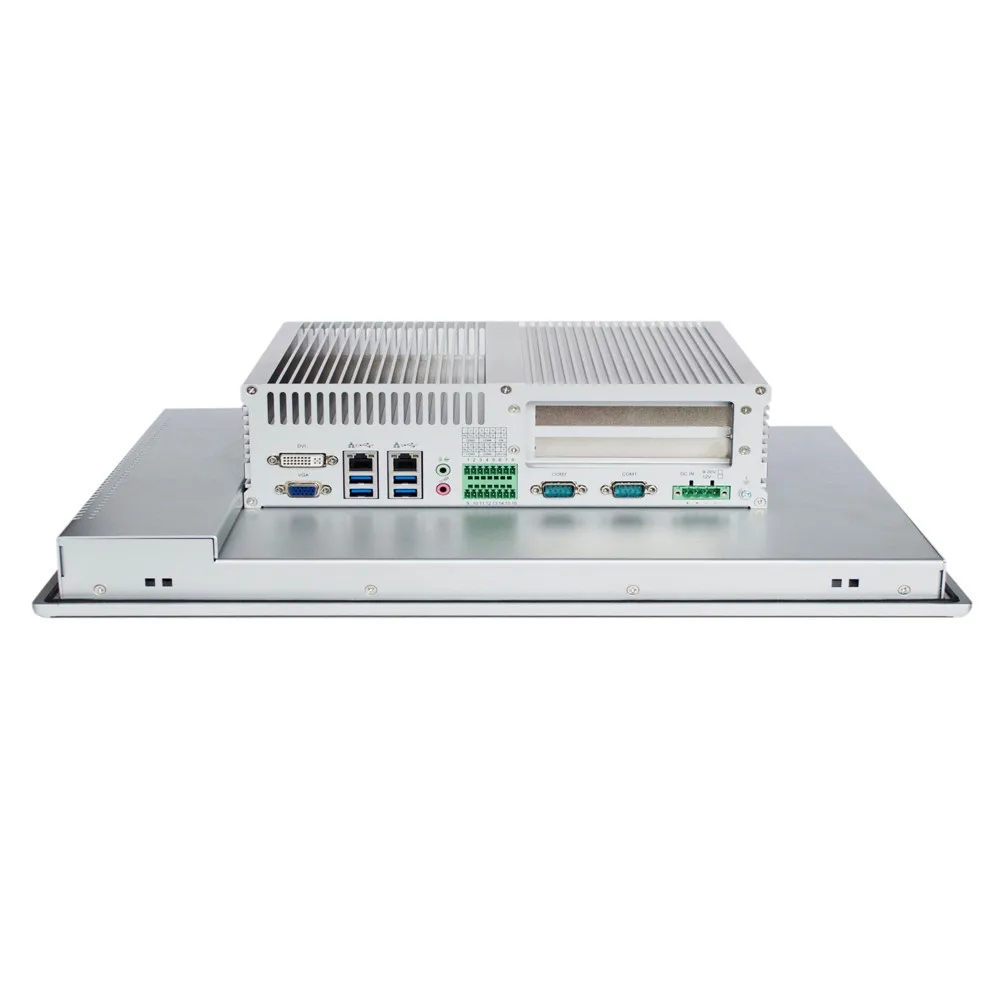

19 Industrial Panel PC with PCIe and PCI Expansion Slots

System

Processor

Support Core i7 / Core i5 / Core i3 / Pentium / Celeron seriesLGA1155 Processors

Chipset

B75 Express Chipset

Memory

support for DDR3-1066 / 1333/1600,up to 16GB

Disk

Support SATA 2.5 "SSD, HDD and CFAST

Display

HD integrated graphics accelerator, support VGA and DVI

Ethernet port

2 82574 10/100 / 1000Mbps RJ45 port

Wireless

A Mini-PCIe slots, scalable 3G, Wifi wireless card

Audio

Realtek ALC662 audio controller

USB

1 USB2.0 ports, 4 USB2.0 / 3.0 compatible port

Serial port

4 RS232, 2 RS232 / 485 optional

Watchdog

Programmable from 1 to 255 seconds

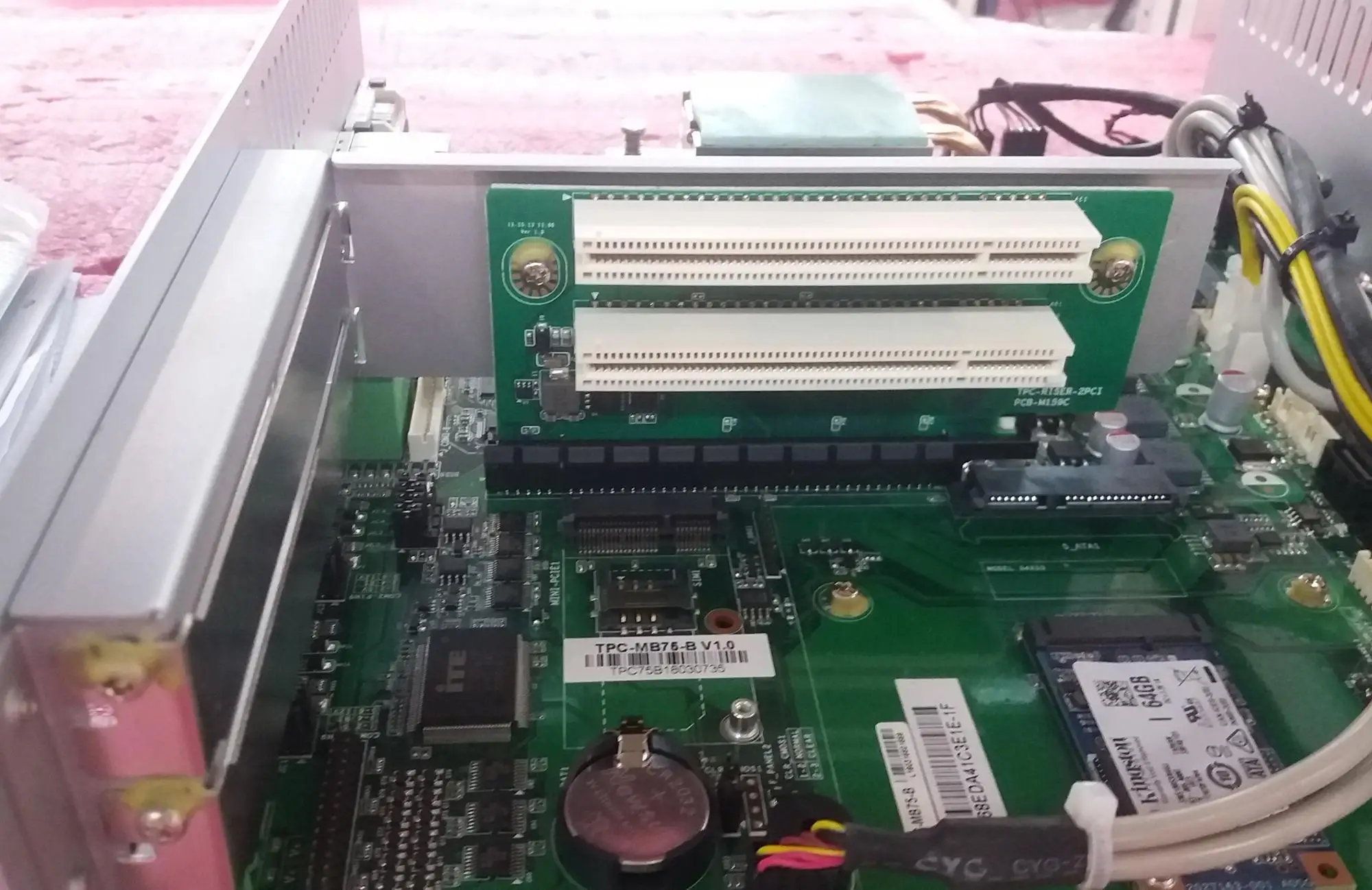

Expansion slots

A 32-bit PCI and 1 PCIEx4 slot (supports PCIEx1 function card)

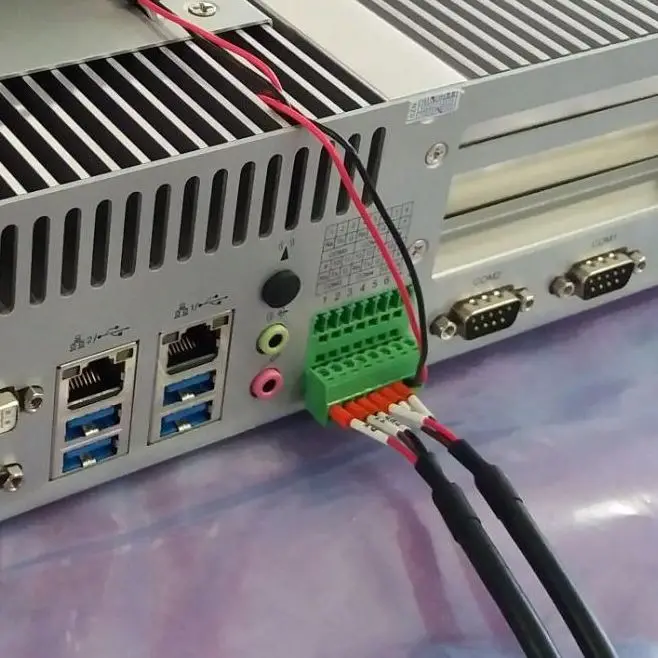

GPIO

8 into 8

Institutional

Front Panel

Aluminum alloy material, the surface of PET film

Box structure

Steel box, high temperature paint, with finned heatsink

Mounting

Panel mounting

Color

White

Power Input

DC9 ~ 30V wide voltage work, with overcurrent, overvoltage

Overall size

466 x370 x111mm(W x H x D)

Case Size

440 x 349 x103mm(W x H x D)

Hole Size

443 x 352 mm(W x H)

Weight

9.74kg

LCD

Size / Type

19-inch XGA TFT LCD

Resolution

1280 x1024

Maximum color

16M

Display area

376.32 x 301.06mm

Reaction time

8ms

Backlit

LED

Backlit MTBF

50,000 hours

Brightness

250cd/sqm

Contrast Ratio

1000:1

Lattice

0.297 x 0.297

Max view angle

(H)160/(V)160

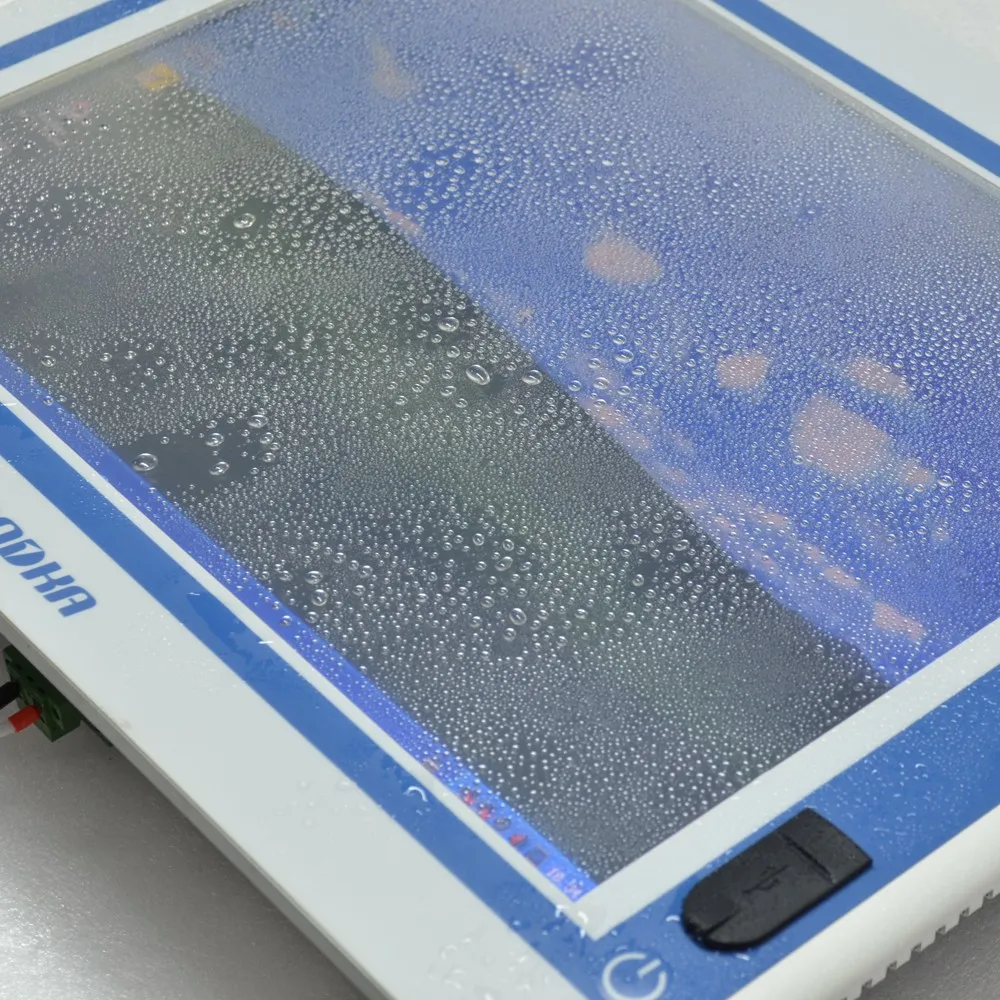

Touch Screen

Size/Type

19-inch five-wire analog resistive temperature

Resolution

4096 x 4096

Reaction time

<5ms

Surface hardness

3H

Click life

250g efforts, 35 million times

Stroke life

250g efforts, 5 million times

Transmittance

More than 81%

Environmental

Working temp.

-15~60℃(Electronic disk)

Storage Temp.

-30~80℃

Relative humidity

95% (No condensation)

Vibration

50~500Hz,1.5G,0.19mm Peak to peak

Shock

10G/peak(11ms secretary)
