| ---Product Description--- |
Normal close type: temperature go up, contact disconnect;temperature go down, contact connected
Normal open type:temperature go up, contact connected;temperature go down, contact disconnected
Hand reset type:temperature go up, contact disconnected;temperature go down, hand reset |
| Custom made available More than 8 years' expreiences International standard quality RoHS compliance Fast delivery Factory direct sales without middle cost Good after-sales services |

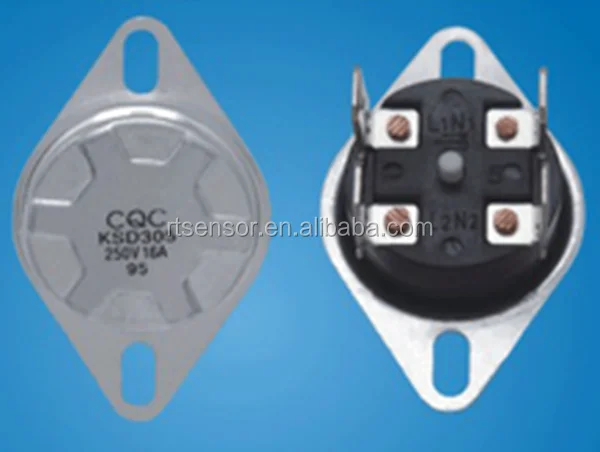

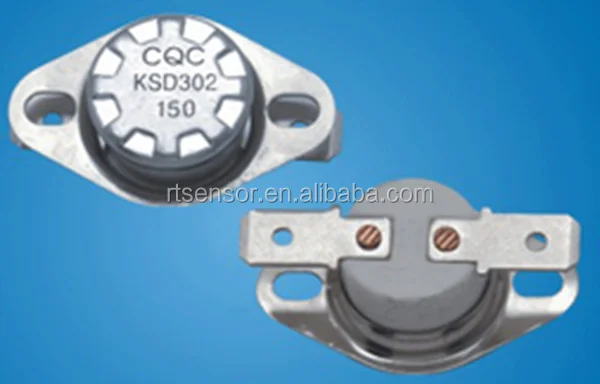

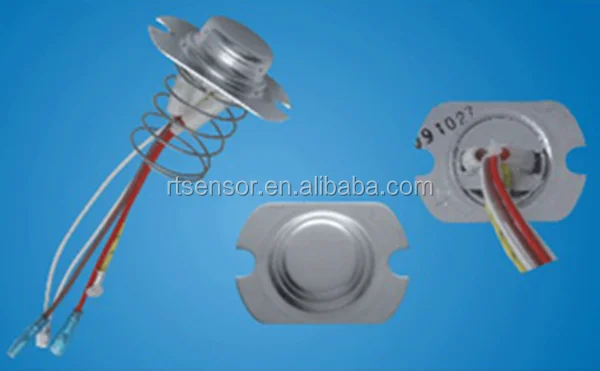

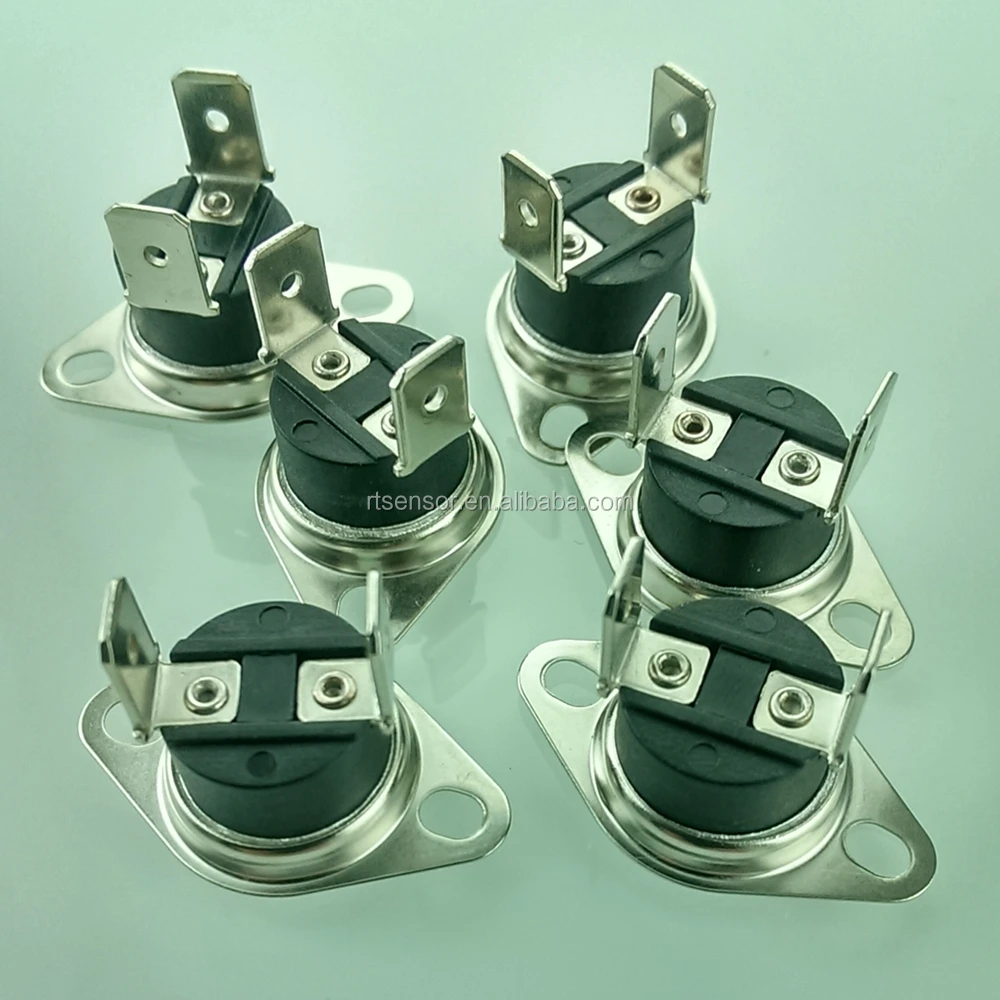

| KSD301 series snap-action use in a great variety of small home appliances, such as portable icebox, to provide temperature control or temperature protection.
|

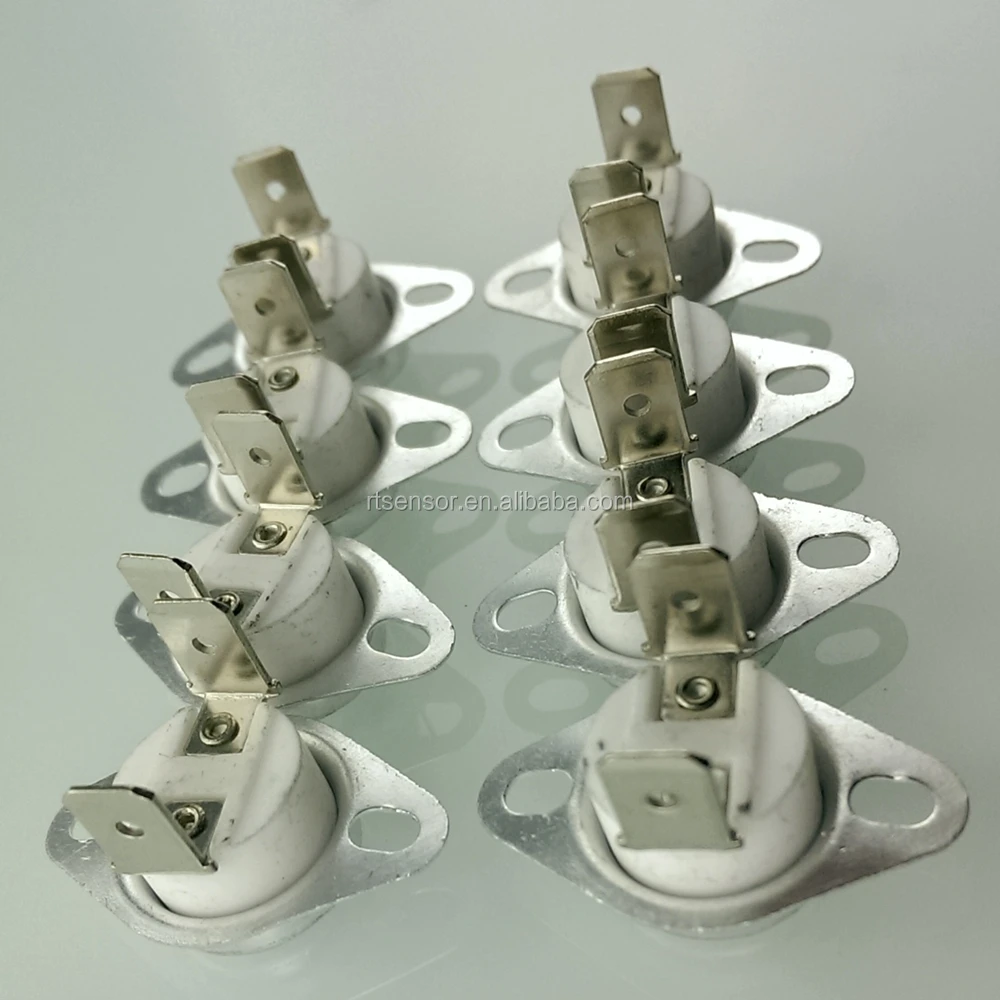

| Technical requirements : KSD301 Series (Electrical ceramic, Auto-reset)
Rated electrical properties :AC125/250V,5A/10A/16A
snap-action temperature: 0℃~185℃(based on user needs)
snap-action temperature tolerance: ± 1.5℃,± 2℃,± 3℃,± 5℃,± 10℃
Switching temperature difference: 5~200℃
Return temperature tolerance: ± 3℃,± 5℃,± 10℃
Dielectric strength: AC2500V Duration 3 Seconds without penetrating flashover
Insulation resistance: ≥ 5M Ω(DC500V)
Contact resistance: ≤ 50M Ω
Heat resistance: PF180℃,UP/PPS220℃,EC250℃(24 Hours)
Service life: Resistive load 100,000 | Type | Max.Operating values | Rated vlotage | Rated current | Life | | KSD301 | 270℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
1.1,Terminal shape: 1): Bent terminal 2): Flat terminal 3): 45 terminal 1.2,Terminal size: 1): 6.3mm terminal 2): 4.8mm terminal 3): terminal of non-standard size 1.3,Cover shape: 0): Calvous aluminum cover 1): 30.4mm aluminum cover 2): 32.6mm aluminum cover 3): Aluminum cover with edge 4): Free blanket 5): Special cover
Reset temperature | Rating voltage | Rating Current | TH.Th.TC(℃) | (V) | (A) | KSD301 302 303 Series | KSD304 305 Series |
Action temperature reduces
5--25±5℃
| 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 | 250 | 5 | 10 | 16 |
|
| Oour customized packing is available . | Packing | Bulk | | Shipping | By express ; <100KG By Air : >100KG By Sea : >300KG |
|
