Medical Therapy
Jaundice TL/TL-D –
eliminating the need
for blood transfusions
Jaundice TL/TL-D

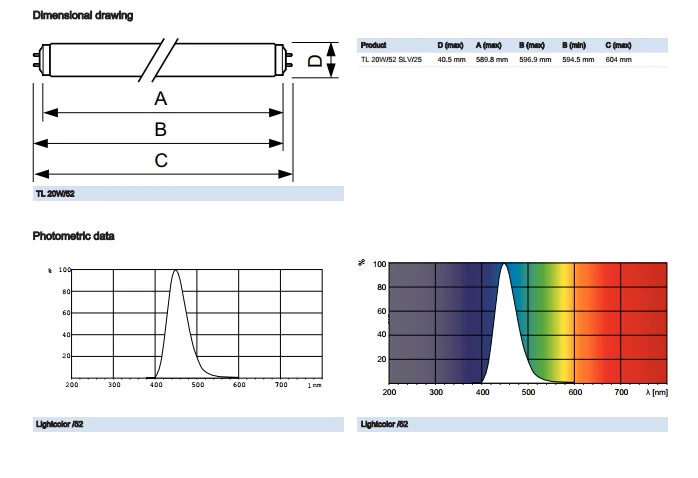

By emitting light almost entirely within the 400 to 500 nm bandwidth these Medical
Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB
waveband. They are therefore ideal for treating new born babies suffering from
hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS).
Moreover, the bandwidth of these lamps peak at the most effective treatment
wavelength of 450 nm. This highly efficacious phototherapy treatment has
eliminated the need for blood transfusions in almost all jaundiced infants.
advantage
• Optimal spectrum for photo-oxidative process to convert unconjugated bilirubin
into a watersoluble form
feature
• Emission peak at 450 nm
main application
• Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler -
Najjar (CN) syndrome

| Order product name | Cap-Base | POWER | Lamp Current | Voltage | UV-B/UV-A (IEC) | Net Weight | Total length |
| PL-S 8W/01/4P | 2G7 | 8.0 W | 0.165 A | 51 V | 1.0 W | 30.000 g | 151.1 mm |
| PL-S 9W/01/2P | G23 | 8.6 W | 0.17 A | 60 V | 1.0 W | 32.000 g | 167 mm |
| PL-L 18W/52/4P | 2G11 | 17.5 W | 0.375 A | 57 V | / | 60.900 g | 220.6 mm |
| TL 20W/01 | G13 | 19.3 W | 0.37 A | 59 V | 2.9 W | 142.800 g | 604 mm |
| TL 20W/52 | G13 | 19.3 W | 0.36 A | 59 V | / | 156.000 g | 604 mm |
| PL-L 36W/01/4P | 2G11 | 36 W | 0.435 A | 105 V | 4.8 W | 104.000 g | 416.6 mm |
| TL 40W/12 RS | G13 | 39 W | 0.43 A | 101 V | 4.1 W | 292.000 g | 1213.6 mm |
| TL 100W/01 | R17D | 100 W | 0.97 A | 126 V | 16.1 W | 470.000g | 1782.2 mm |
| TL 100W/12 | R17D | 100 W | 0.97 A | 126 V | 13.5 W | 410.000 g | 1782.2 mm |
| TL 120W/01 | G13 | 116 W | 1.110 A | 127 V | 17 W | 502.000 g | 2014.2 mm |
