[Product Description】

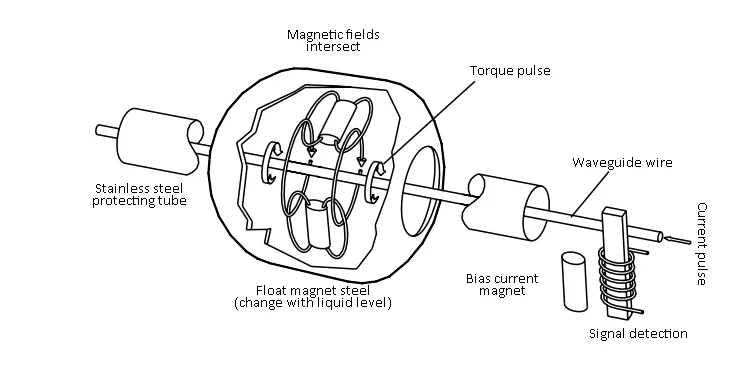

Series DRCM-99 Magnetostrictive Liquid Level Gauge adopts magnetostrictive principle and belongs to a new generation of measuring instruments. The output is a absolute value, does not require periodic re-calibration and maintenance. Series DRCM-99 provide customers with current, voltage, ModBus, Profibus and other signal output and provide effective solutions in different applications. It can be widely used to measure and control liquid level of various tanks in petroleum, chemical, water, pharmaceutical, beverage, food and other industries. It also can be applied in measurement and monitoring of hydrological measurements, water treatment and other environmental and industrial measurement process.

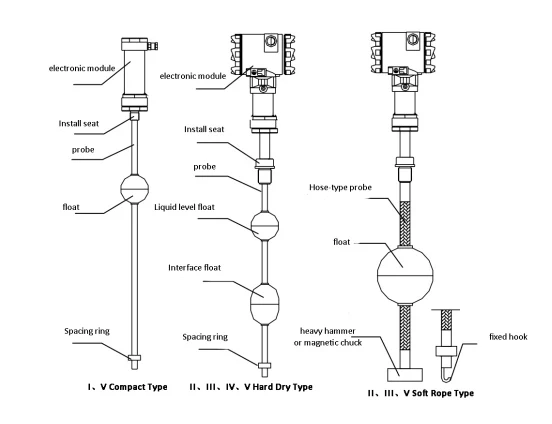

【Product Configuration】

Here are the main components.
·Electronic cabin with a detection circuit unit inside
·Probe rod (hard pipe / flexible pipe) with the magnetostrictive sensor and temperature measurement element.
·Fitting seat with the standard 1 " NPT thread or the one user specified.
·Stop collar: preventing float from falling off or sliding into the dead zone.
·Heavy hammer at the bottom (magnetic heavy hammer / fixed hammer): its function is to straighten flexible pipe, and keep the
liquid level meter stable.

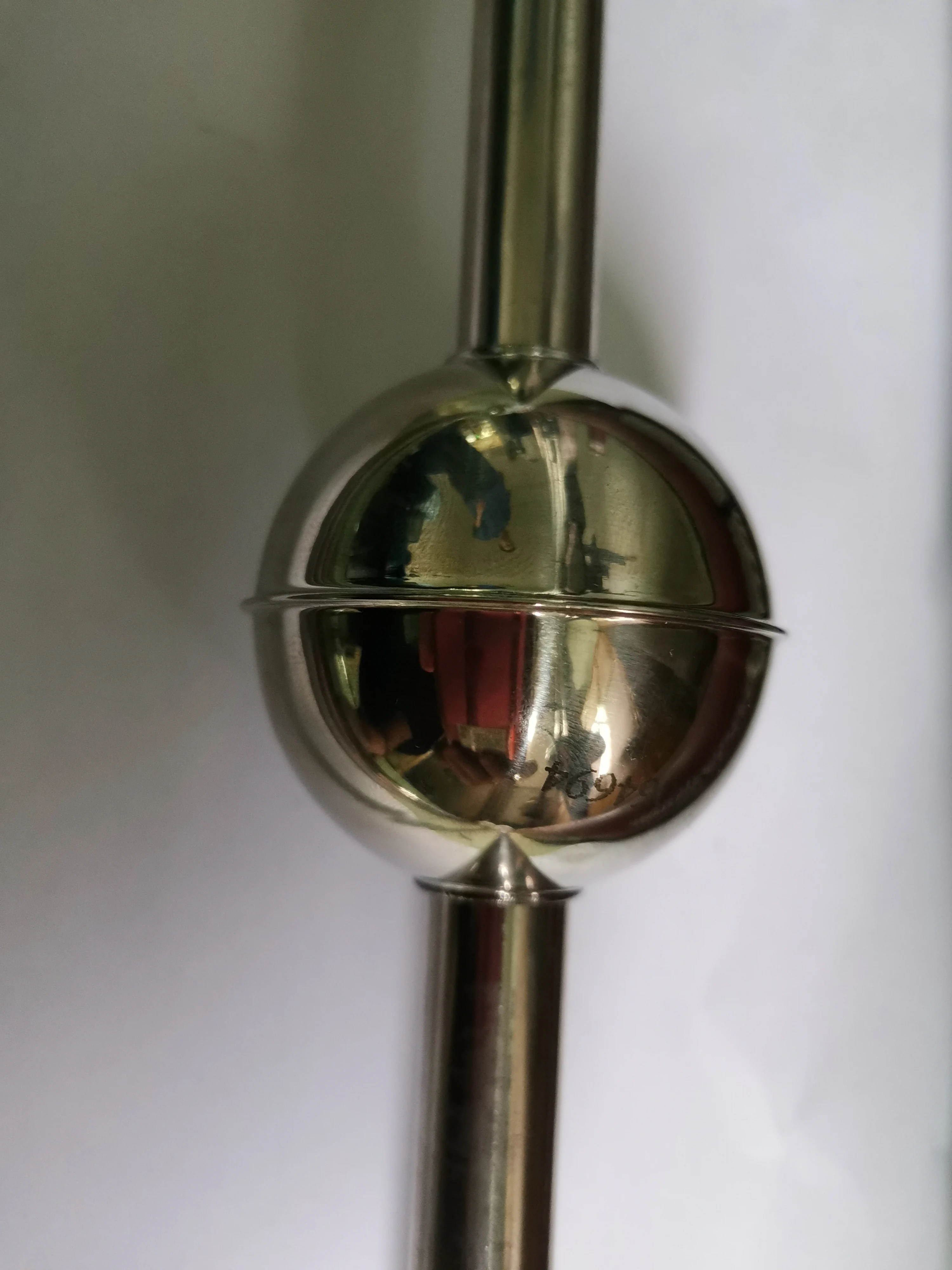

·Float (single or double): its location reflects positions of the liquid level or interface.




Main parameters


Measurement output
Standard type:2-wire4-20mA(HART protocol can be selected.)

Digital type:ModBus/RTU
Liquid level measurement
Liquid level, interface, liquid level+ interface
Measurement range
0. 30m to20m
Accuracy
The maximum between 0. 1 %F. S. and ±1mm
Temperature output
Up to 5 single points temperature
Temperature range
-50 ~ +100 °C(special design can reach 200 °C)
Temperature accuracy
± 0. 25 °C
Power Supply
15-30VDC
Output signal
4-20mA  or ModBus/RTU
Explosion-proof
ExiaIICT6
Ambient humidity
0-100% R.H.(not frost)
Working temperature
Electronic unit:-4 0 ~ +80 °C ;waveguide:-40 ~ +125 °C
Operating pressure
Rely on the pressure the float can withstand
Electronic Cabin
Cast aluminum/304 stainless steel
Probe material
304/316L /304+PTFE or FEP
Process connection
Thread or flange connection
Electrical interface
M20*1.5 or 1/2" NPT thread

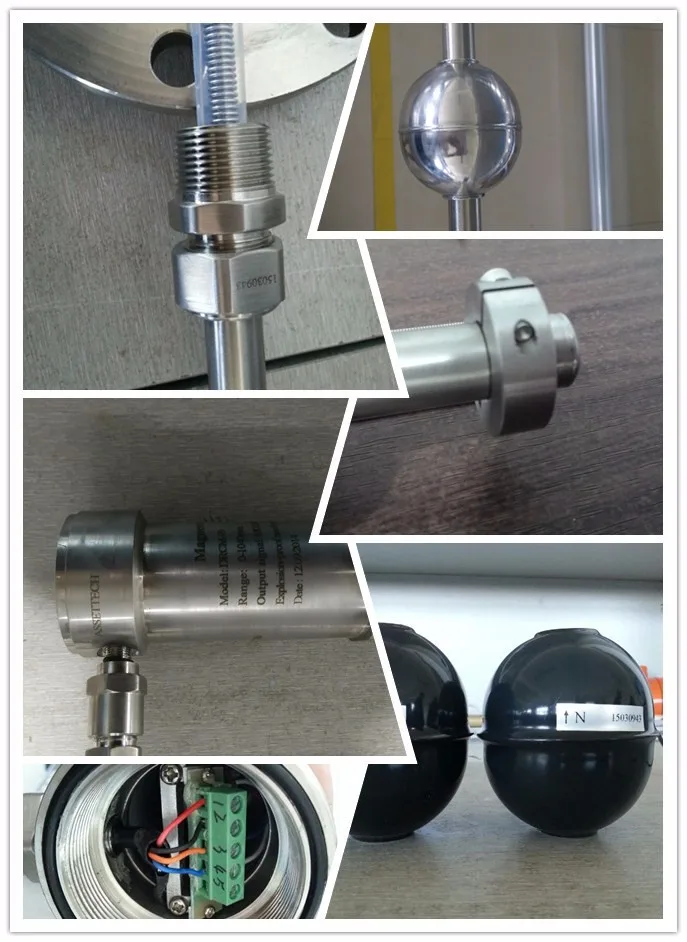

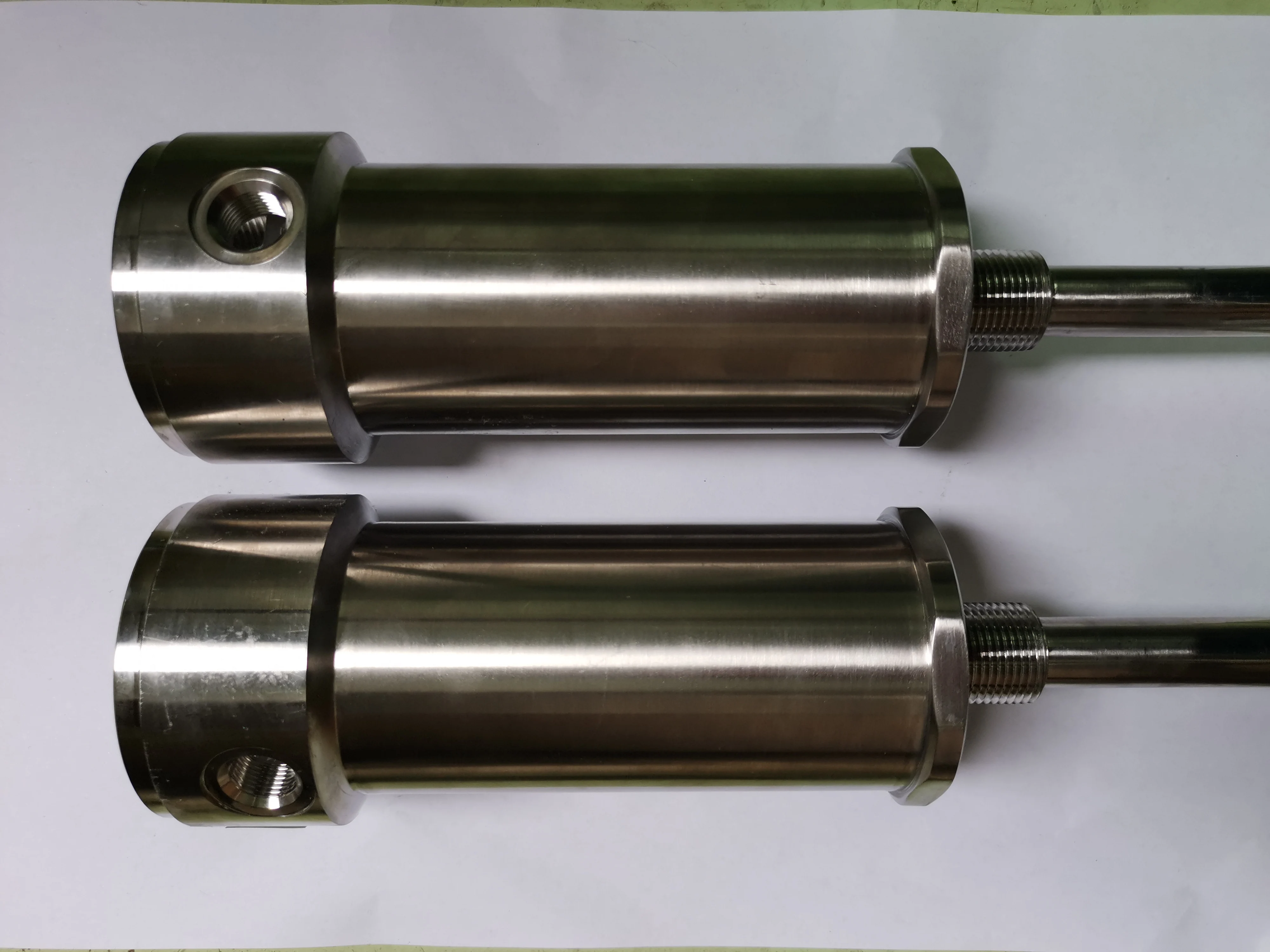

Product details

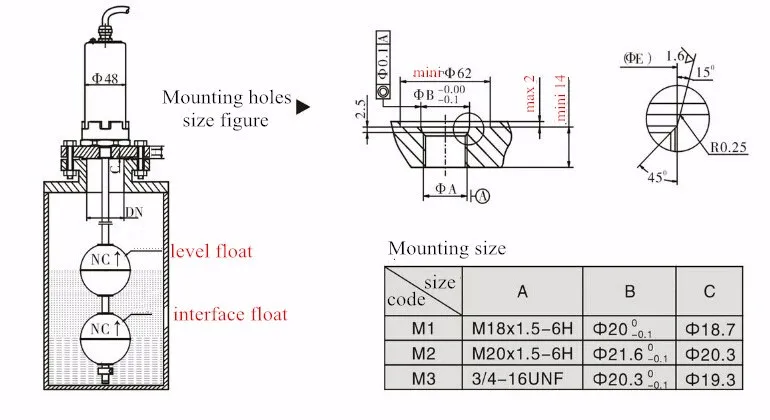

Installation drawing

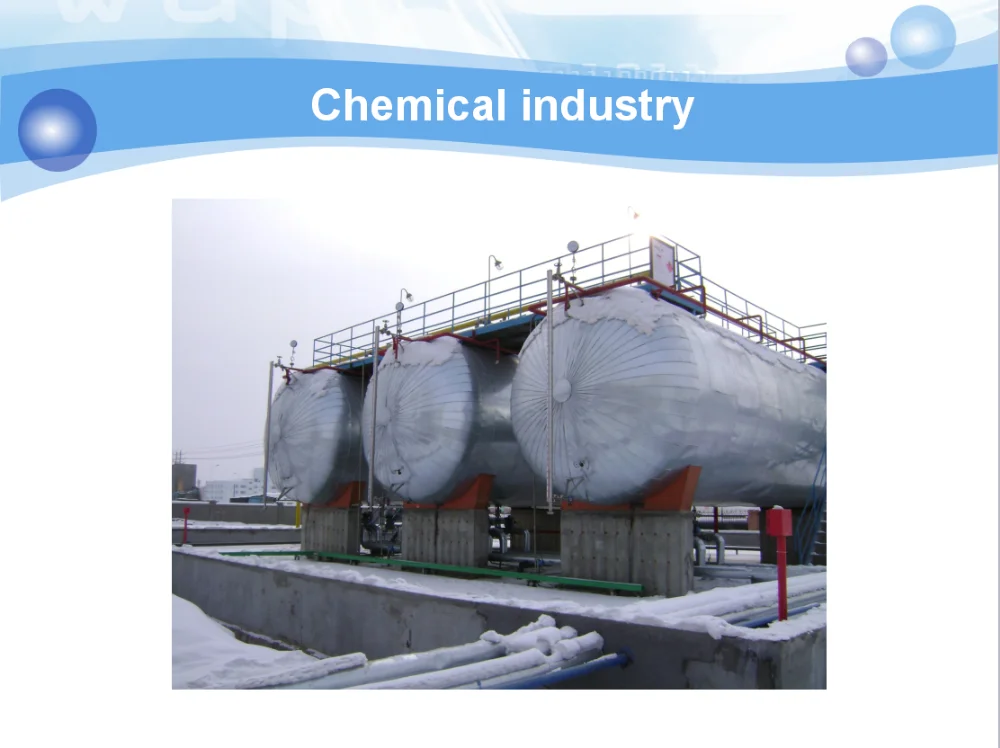

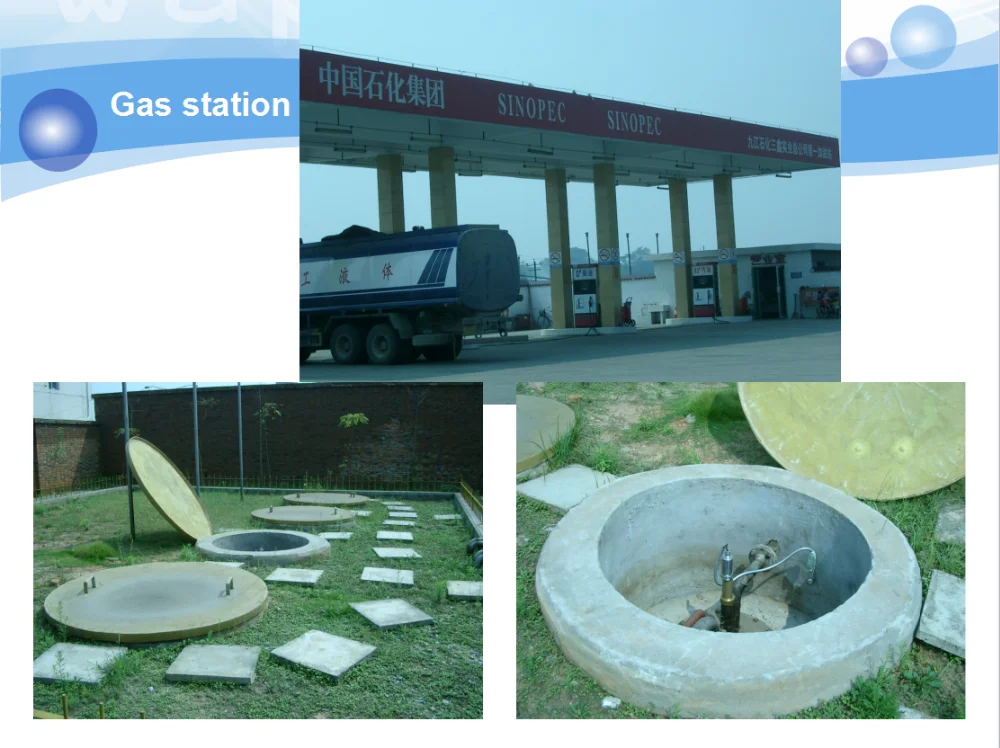

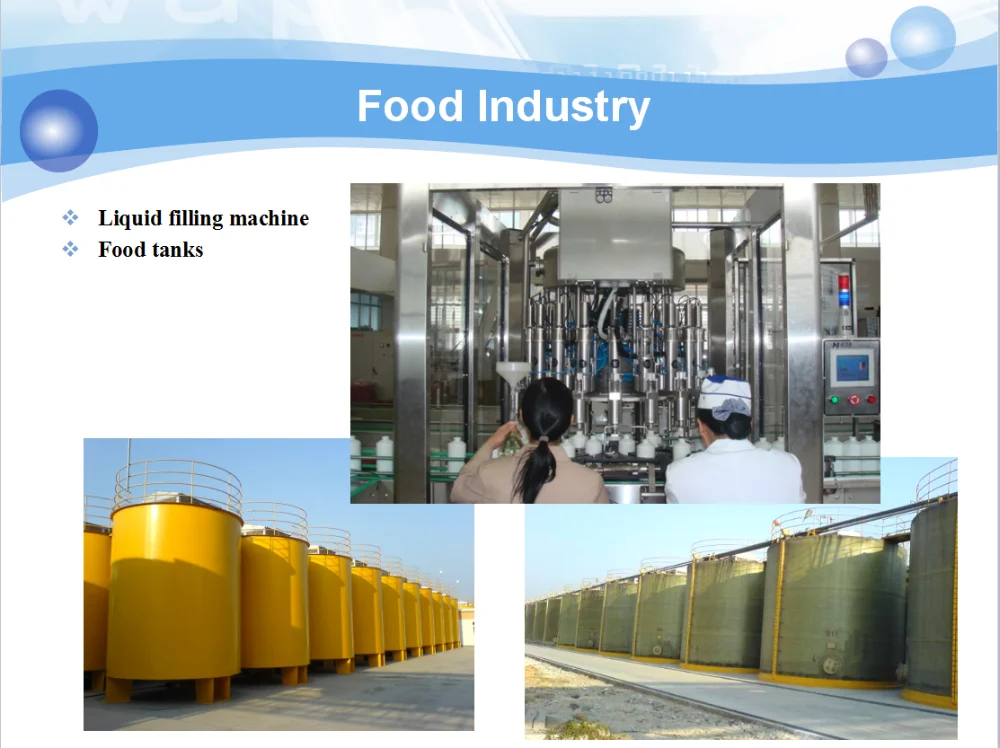

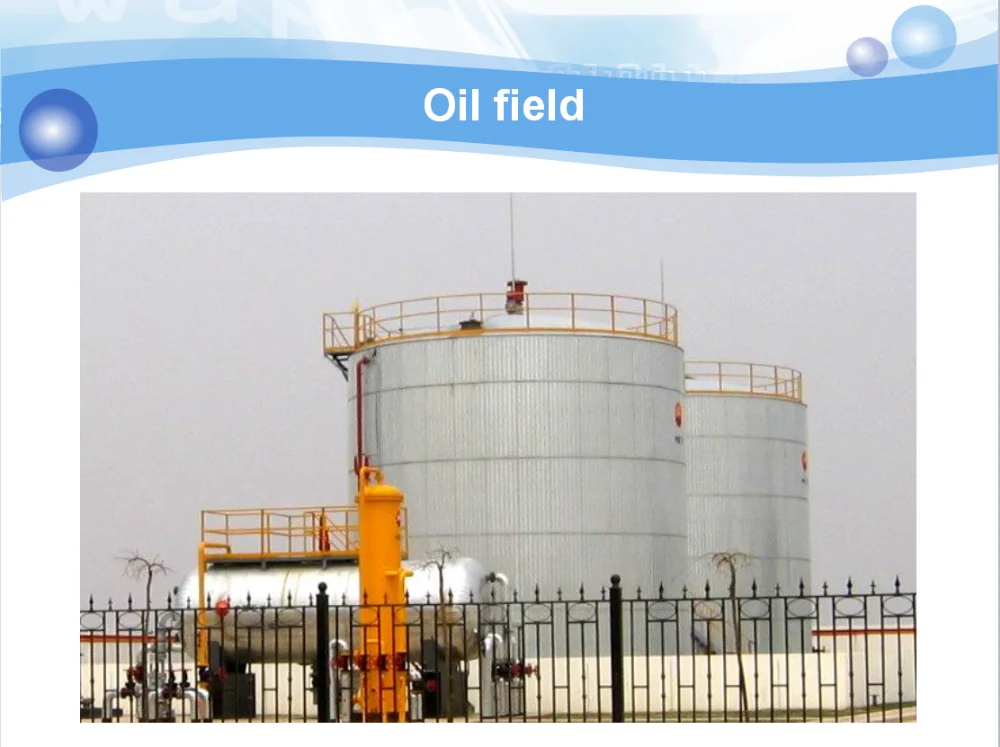

Applications




Our Company


Shandong Dongrun Instrument Science and Technology Co., Ltd. was established on March 3rd,1998. We are mainly engaged in research, production and sale of environmental water analysis instrument, (liquid) level meters and development of computer LoT networking applications software and design, integration and services of automation control engineering.

Our company has strong technical force, and our high-level technical personnel are over 50% of total staffs. Dongrun products and services are widely used in water affairs, environmental protection, food and pharmaceuticals, light industry, petrochemical and other industries, and are sold to various provinces, cities and autonomous regions in nationwide. Our products are popular among Chinese and foreign customers, and we have exported to over 30 countries, such as Italy, Australia, New Zealand, Ireland, Netherlands, Norway, Hungary, Russia, Canada, South Africa, Singapore, Malaysia, Brazil, India, etc.


Factory


Workshop




Water analysis workshop


Lab




Chairman of Dongrun with client


Exhibition



Our Certificates
