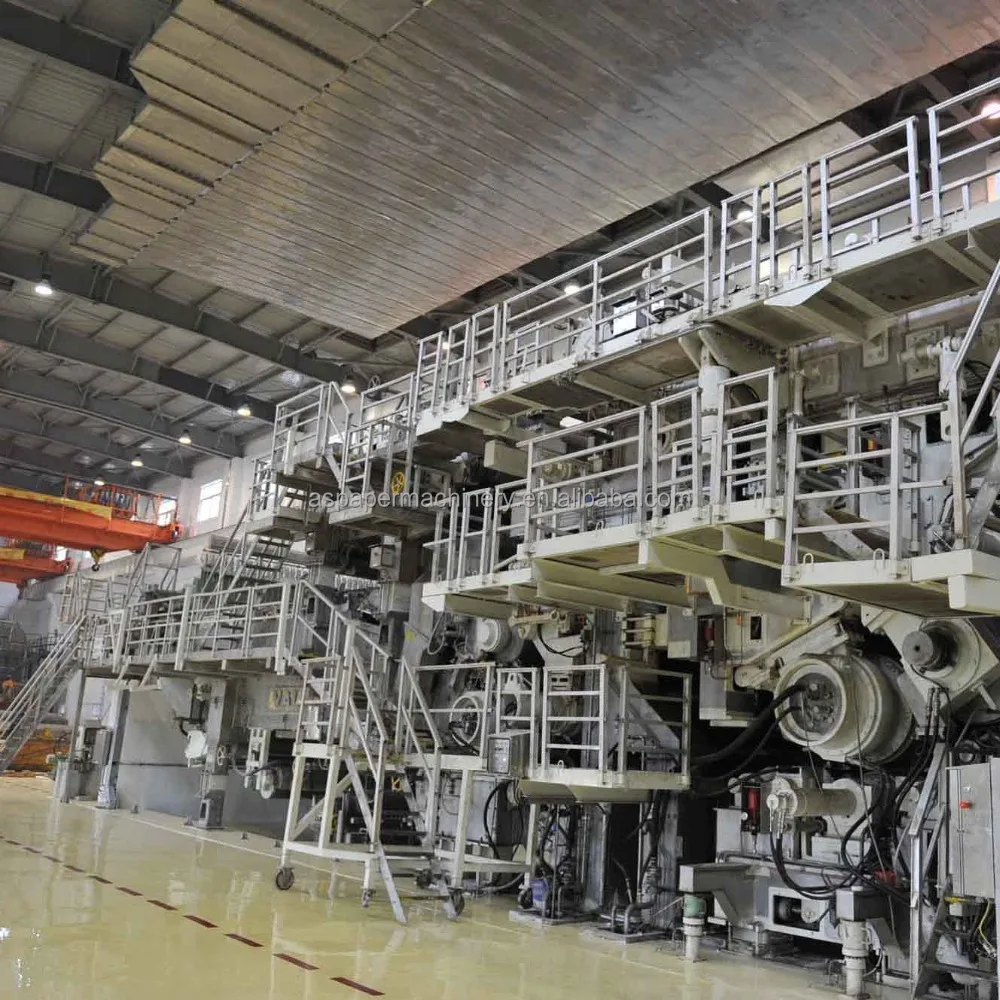

enviromental 3200mm type fourdrinier wire artificial stone roll for paper making machine in china

Production line-  artificial stone roll for paper machine

A.Business scope:

1.various pulp making machine;
2.various paper making machine;
3.various paper processing machine;
4.various spare parts;
B.Our scale:
1.four branch factories;
2.one International Trade Department;
3.total areas is 10,000square meters;
C.Technology strength:
1.one professional technician team of 108 engineers and 12 experts;
2.31 years rich practice experience;
3.one innovative research team,always follow the advanced technology of Finland,Denmark and Italy;
4.skilled and careful workers;
D.Our market:
Our machines sells well in more than 30 countries and regions,such as Russia,Indonesia,Uzbekistan,Tajikstan,Nigeria,Uganda,Pakistan,Egypt,Bhutan,Fiji,Brazil,Paraguay,Syria,Libya,Turkey,Canada etc,high quality and perfect service have reserved customer's praise and more orders,we also establish good strategic cooperation with local distribution

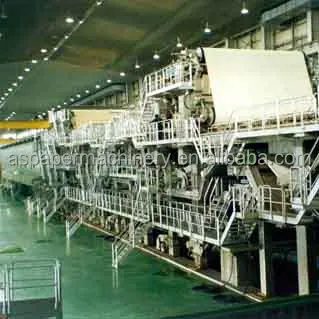

Work flow
headbox(2set) → stack wite part → Large diameter roller press part (NO.1) → Large diameter roller press part (NO.2) → dry part(drying cylinder;Φ1500*28pieces;6+8+8+6) → glue blending machine → dry part(drying cylinder;Φ1500*12pieces;6+6) → roll paper machine

Equipments introduction of   artificial stone roll for paper machine

The headbox is made of stainless steel. It comes in a shape of a box. Its inside surfaces, coming in contact with the stock, are electrochemically polished. The turbulent stock flow is enabled by a diffuser board and defloculating rolls with adjustable speed. There is a rotary antifoam and rinsing shower pipe installed inside the headbox. The headbox stock supply is provided through an inlet body or diffuser plate.

Advantages

• faster and more precise control
• possibility of corrections in a close profile range through slice profiles changes
• possible regulation of output lip slipping during operation
• provided protection against lip bending
• automatic blocking of an upper lip movement
• simple operation and easy maintenance
• minimum spare parts

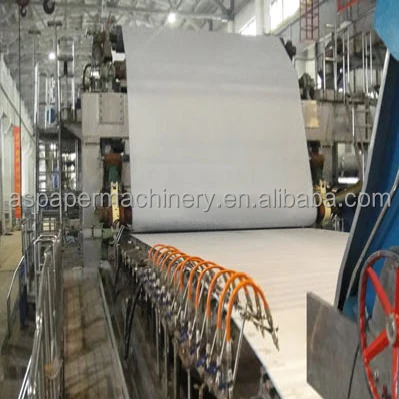

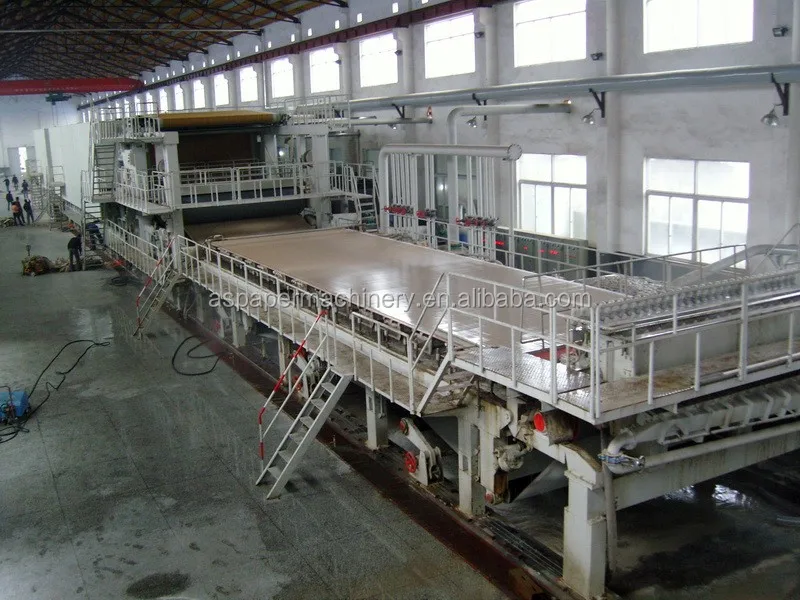

The wire part of the paper machine serves for stock dewatering and consequently it transforms the stock into the “paper sheet“. The stock goes out of the headbox on a longitudinal endless wire where the paper stock is dewatered so that the fibres settles down on the wire surface. The endless wire is embraced at the headbox side by a breast roll and on the other side by a suction roll (couch roll) and driving roll. The suction and driving roll combination is recommended for each wire part version both from the drive perspective (better driving force distribution and more cautious influence on the wire itself) and from the perspective of the subsequent paper web removal and its transfer into the press part.

Advantages

• height and longitudinal adjustability
• simple foils replacement

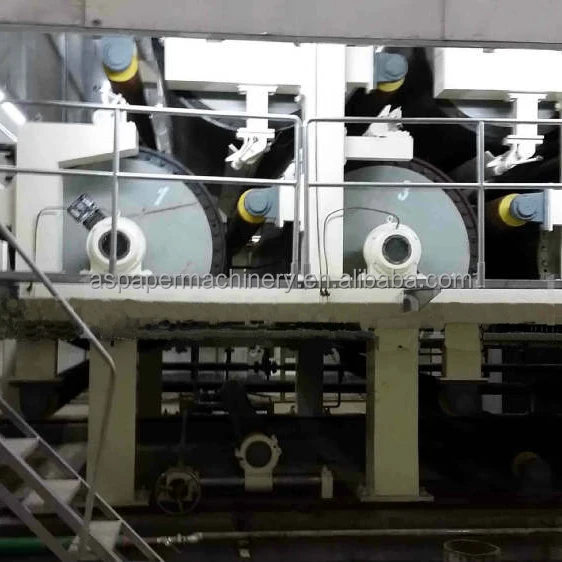

The paper pressing is the last process to extract mechanically the water in the PM line. There is a wide range of presses (having one or more pressing zones) used for such a purpose which when optimally combined create an adequate press part. The adequate press part must respect the machine performance, speed (the way of paper threading), given product and the way of felts and rolls removal.

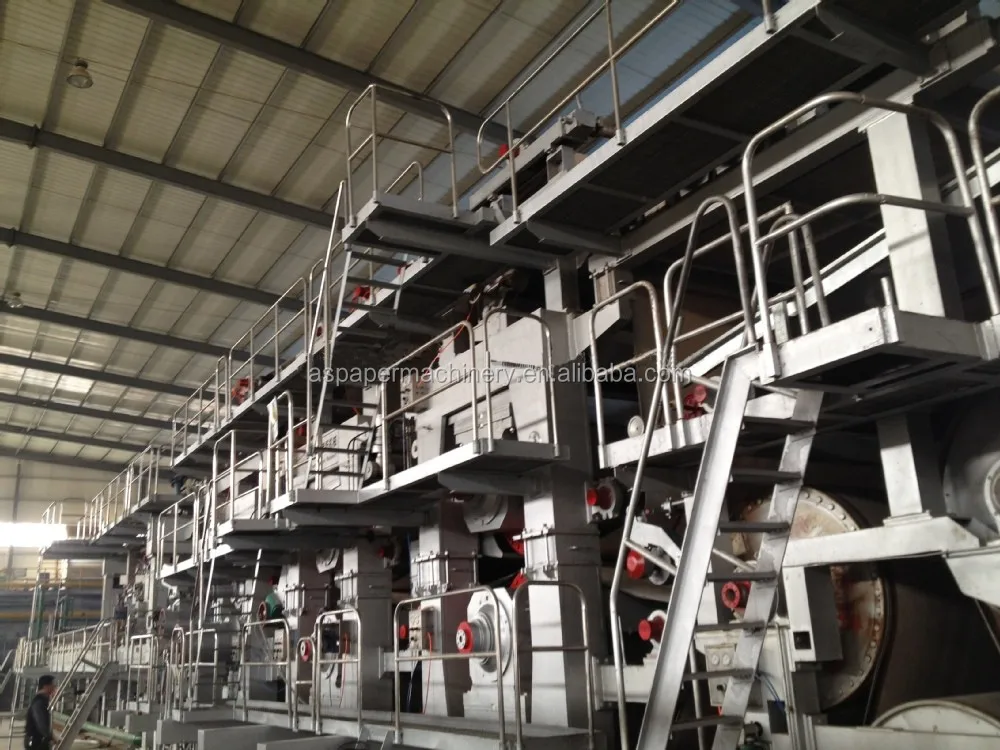

Drying part is the longest part of the paper machine. Its main purpose is to ensure the necessary drying capacity to reach the set paper machine performance.

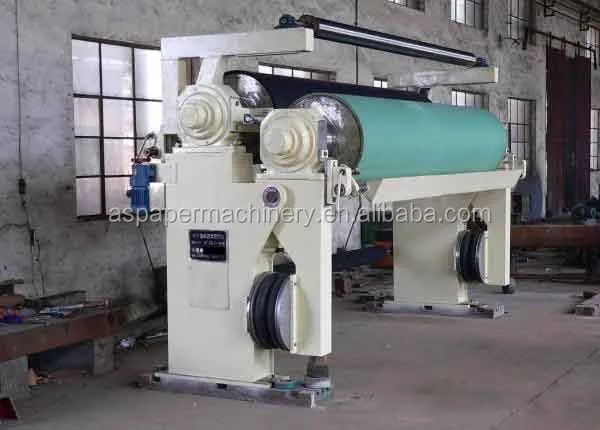

Size press is made as two-roll press with hydrarulic or pneumatic loading. Press rolls are settled horizontally and its movable roll (first roll in paper run direction) is arranged under the stationary roll.

Advantages

• high sizing efficiency
• high operational reliability
• small space demands

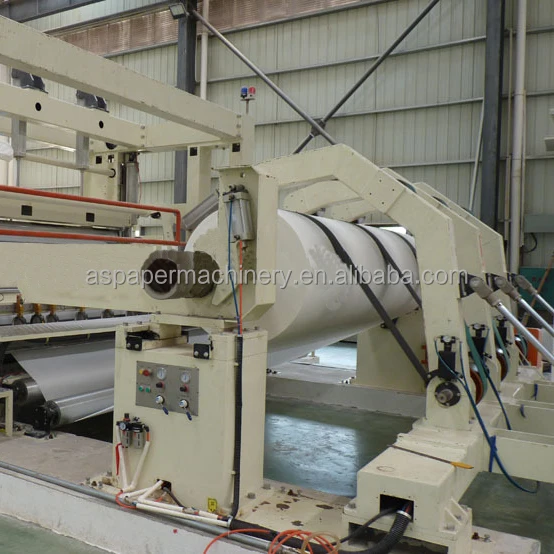

Rewinder is used for rewinding and longitudinal slitting of the paper web from the paper machine reel spool into paper rolls of required sizes.

Advantages

• good price - productivity ratio
• high quality of rewound paper rolls
• high quality slitting
• reliability in service

Calender is a machine usually installed at the PM line end before the reel. It is designed for one-sided or both-sided glazing of paper webs for production of fancy and graphic papers. There is a steam box installed before the calender which provides improved smoothness of the paper surface.

Advantages

• easy installation and assembly
• simple routine maintenance

**********************************Company Profile********************************

Features:

Reduced two sided ness in cultural papers
Control in caliper (thickness) in kraft paper/board
Better printability In printing paper/Kraft/Board
Better surface smoothness in writing/Kraft/board
Better appearances in writing/corraguted/Kraft/board
Improves bursting strength in Kraft papers

*************************************Packaging***********************************

************************************Service**************************************

After-sales Service
Highly inspecting equipment in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;

Excellent characters of our paper production line
high speed;
saving power;
good quality;
stable working;
competitive price;
high production capacity;
automaticlly;
exquisite technology;
can design according to your request

Perfect service
Technical consultation;
Project evaluation;
Detailed design of factory;
Installing and testing the whole production line;
Training engineers and workers;
Supplying spare parts for long time.

***************************************FAQ*************************************

Q1: What is guarantee terms ?
A1: According to the international practice, performance and mechanical guarantee shall be for 1 year
from the successful commissioning or 1.5 years from the date of bill of lading.

Q2: What is the production time ?
A2: Normally 3-4 months, it depends on the machine type and scope of supply. But we can arrange the
partial shipment according to customer’s foundation construction schedule.

Q3: Can you make paper mill design for us?
A3:Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension; we will make your future paper mill design.

Q4.What is your payment terms or delivery time?

A4:1.Payment terms :

      (1) 30% T/T within 7days after sign contract;
      (2)70% T/T before shipment ;
      (3)100% L/C is also acceptable ;
     2.Delivery time : within 45days after first advanced payment ;

Q5: Which kind of chemical I should prepare?

A5: (1) Deinking agent

      (2) Dispersing agent

      (3) Bleaching agent

Q6: Could your engineer teach and train our worker and stay in our factory for long time?
A6: Yes, we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.

Warm Tips:
1.Before installation,you should check that equipment’s model and dimension are all right with the parts complete d and level remaining.
2.Before the test of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard.
3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
