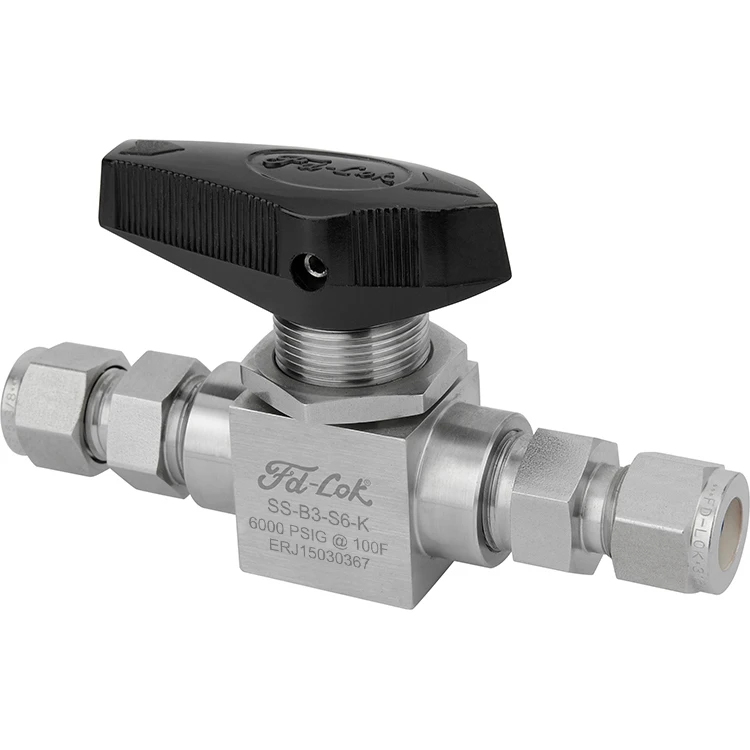

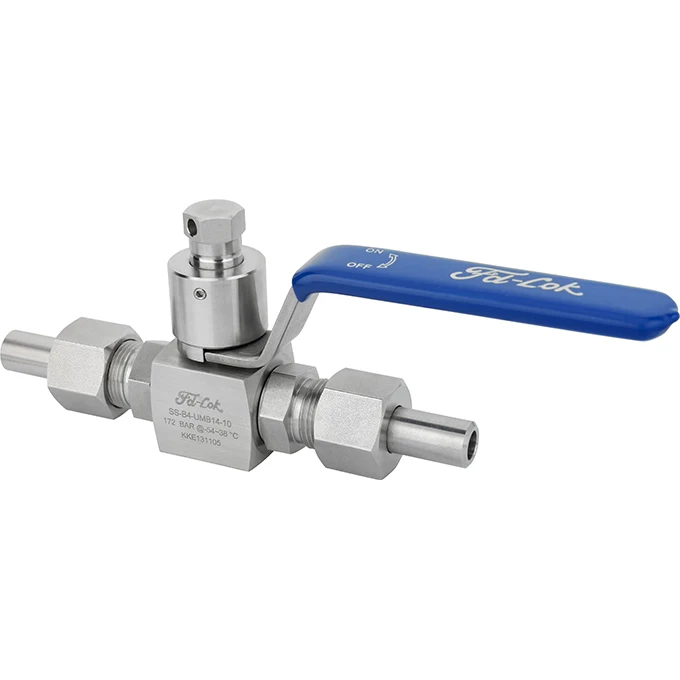

high pressure ball valve stainless steel 6000psi cng ball valve oi and gas industry 10000psi

Product Overview

Description

high pressure ball valve stainless steel 6000psi cng ball valve oi and gas industry 10000psi



Feature:



1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
3.Material:ss304,316,316L
4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)



Details:



1.Pressure up to 10000 psig (414 bar) for standard series

2.Temperature from -65°F to 450°F ( -54°C to 232°C )
  with PTFE packing

3.Safe union-bonnet constrution

4.Back seating design protects the packing in fully
  open position

5.Panel mountable

6.Packing below stem thread isolates the thread
  lubricants from the media

7Non-rotating stem tip

8.100% factory tested







Product name	high pressure ball valve stainless steel 6000psi cng ball valve oi and gas industry
Material	316SS, 316LSS and other special materials
Size	Fractional Sizes from: 1/8" - 1" Metric sizes from: 3mm - 25mm
Nominal pressure	Pressure up to 5000psi
Technics	Forged bar stock
Thread Standard	NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc
Applicable medium	oil,gas,water or other medium
MOQ	If have stock .unlimited quantity. If no stock , MOQ 100pcs .
Payment term	stock products 100% payment before shipping out . In generally,30% deposit , 70% balance against B/L copy, L/C is also acceptable. Other payment method is negotiable.
Packing	each one in poly bag and small box, then in export wooden case
Other detail	1)  Pressure up to 10000psi  2).Temperature from -65°F to 450°F ( -54°C to 232°C )   with PTFE packing  3) Specified specification available upon request 4) Quality assurence 5) free sample can be send to test qulity before place on order
