Henan Ball Mill Grinding Machine,Machinery Used Flour Mills, ball mill price
- Category: >>>
- Supplier: Luoyang Zhongde Heavy Industries Co. Ltd.
Share on (60490263708):
Product Overview
Description
Product Description

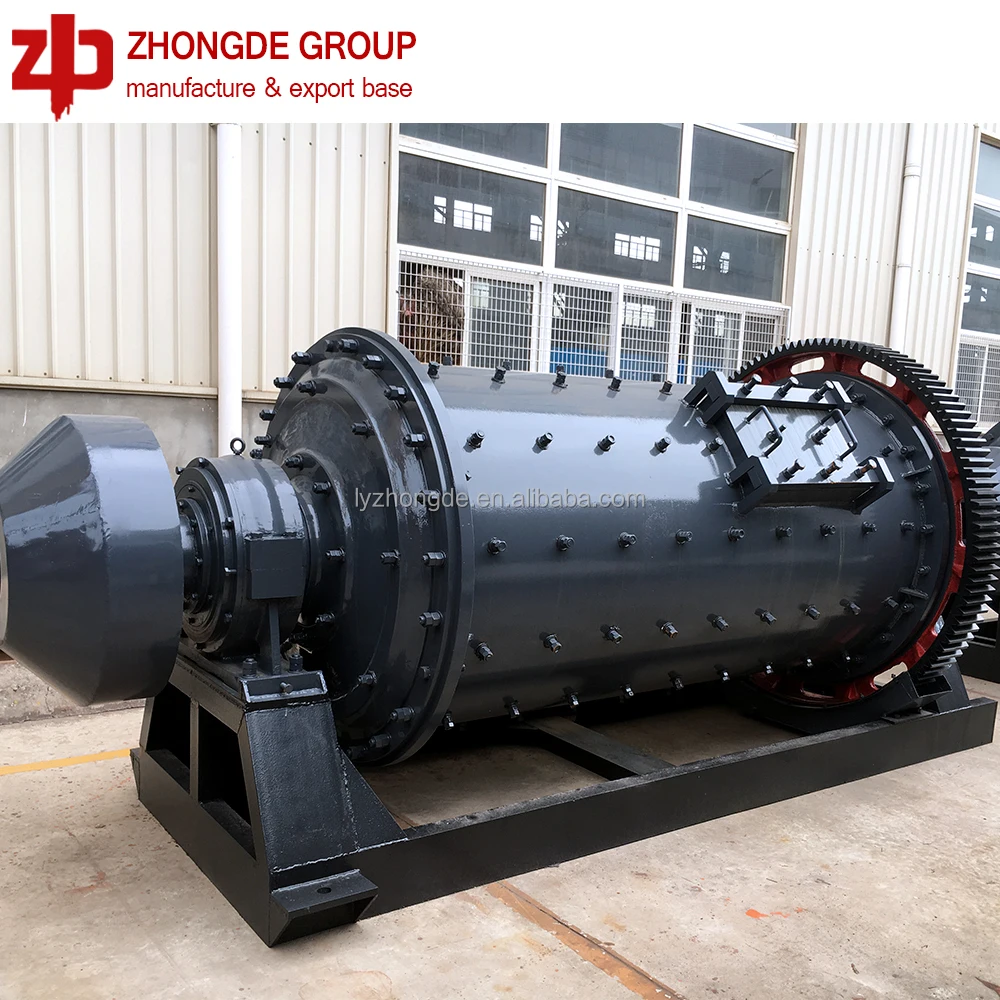

Ball mill design for long life and minimum maintenance
Zhongde overflow ball mill sizes range from 5ft to 8ft,with 75HP to 30’ ×41’,and as much as 30,000 HP. Larger ball mills are available with dual pinion or ring motor drivers.Our mills incorporate many of the qualities which have made Zhongde name famous since 1959.
These heavy-duty machines are designed for long time and minimum maintenance.
Variation of the standard designs are available to suit any appropriate application. These may include but not be limited to grate discharge, peripheral discharge, dry grinding, special length to diameter ratio, high temperature milling operations, or pebble milling.
Application:
A ball mill grinds ores and other materials to a typical product size of 325 mesh or finer.
The feed to a ball mill is prepared by:
· Single or multistage crushing and grinding
· Crushing, screening, and/or rod milling
· Primary crushing and autogenous/semiautogenous grinding
Normal feed sizes:
· 80% passing 1/4 "(6mm or finer) for hard ores
· 80% passing 1 "(25mm or finer) for soft ores
· (Larger feed sizes can be tolerated depending)
The length to diameter ratio of cylindrical mills is range from 1 to 1 to 3 to 1. When the L/D ratio is 2 to 1 or greater, we refer to the mill as a Tube Mill.
Ball Mill Technical Parameters
Model | Diameter of cylinder(mm) | Length of cylinder(mm) | Effective volume(m3) | Max.ball loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(kw) |
MQY-1530 | 1500 | 3000 | 4.5 | 8 | 30 | 6.3-2.8 | 0.3-0.074 | 90 |
MQY-1845 | 1830 | 4500 | 10.5 | 19 | 26.8 | 15.5-6 | 0.3-0.074 | 180 |
MQY-2130 | 2100 | 3000 | 9.2 | 16 | 23.8 | 18-5.8 | 0.3-0.074 | 210 |
MQY-2145 | 2100 | 4500 | 13.8 | 25 | 23.8 | 25-8 | 0.3-0.074 | 280 |
MQY-2245 | 2200 | 4500 | 15.2 | 28 | 21.3 | 26.8-8.5 | 0.3-0.074 | 280 |
MQY-2436 | 2400 | 3600 | 14 | 26 | 21.3 | 33.5-8.8 | 0.3-0.074 | 280 |
MQY-2460 | 2400 | 6000 | 24 | 44 | 21.7 | 56-14.5 | 0.3-0.074 | 480 |
MQY-2736 | 2700 | 3600 | 18 | 33 | 20.7 | 54-11.7 | 0.3-0.074 | 400 |
MQY-2760 | 2700 | 6000 | 31 | 57 | 20.6 | 90-19.5 | 0.3-0.074 | 630 |
MQY-3040 | 3000 | 4000 | 25.7 | 47 | 19 | 78-16.5 | 0.3-0.074 | 500 |
MQY-3254 | 3200 | 5400 | 38 | 73 | 18.2 | 114-25.9 | 0.3-0.074 | 800 |
MQY-3270 | 3200 | 7000 | 50.6 | 93 | 18.2 | 148-30.2 | 0.3-0.074 | 1250 |
MQY-3645 | 3600 | 4500 | 40.8 | 75 | 18 | 136-24.3 | 0.3-0.074 | 1000 |
MQY-3685 | 3600 | 8500 | 79 | 131 | 18 | 256-45.8 | 0.3-0.074 | 1800 |
MQY-4060 | 4000 | 6000 | 70 | 126 | 16.9 | 226-40.5 | 0.3-0.074 | 150
|
These heavy-duty machines are designed for long time and minimum maintenance.
Variation of the standard designs are available to suit any appropriate application even in the most complicated circuits and complex ores.
The use of premium-quality components ensures that Zhongde equipment runs at high performance, cost efficiently and safely.
Packaging & Shipping
Zhongde supply speedy,safely shipping service,inlcude multiple shipping method according to delivery region. We protect your order with extreme care based on rich export experience.
♥Streamlined production allows for prompt delivery times of 6-8 weeks on most products.
♥Bare machine is shipped in export container.
♥Motors and small parts is packaged with attention in hand-made wooden boxes.
Company Information
Luoyang Zhongde Heavy Industries Co., Ltd
Since 1959, Zhongde has been providing customers worldwide with the latest technology incorporated into every quality Zhongde product. Throughout the years, Zhongde's product line has grown to include Stone Crushers, Classifiers, Flotation Machines, Grinding Mills, Quick Lime Systems, Rotary Kiln,Rotary Dryers, and Thickeners.
Zhongde has equipment installed throughout the world in areas such as Russia,Uzbekistan ,Thailand, Sri Lanka, Laos, Iran,Saudi Arabia, Chile, Brazile, Peru, Africa, Europe, Australia, and the United States.
Zhongde offers ISO and CE certification's quality.
- China Top 10 Famous Stone Crusher Brand
- China Well-Known Trademark of Ball Mill
and many other honors by local authorites such as
- Henan Quality & Integrity Company
- Henan Famous Quality Brand
Among China thousands of suppliers. these honors granted by China authorities for quality and business credit, it means a lot.
We are capable of providing you complete package solution includes:
Preliminary solution suggestion---Layout design---Quality goods supply---Shipment service---Foundation drawing design---Installation---Workers's Training etc.
We have been building ball mills for nearly 60 years, so we know that our customers are looking for high performance to boost profitability. By combining the best technical solutions, our ball mills provide a reliability that lets you focus on your operations.
Welcome you and your engineer team come to visit our factory, Zhongde process engineers welcome the opportunity at assist you with circuit and circuit control system as well as start-up, operation, and optimization of the milling plant.
FAQ
Questions Frequently asked:
1.Are you able to supply a complete ore concentration plant,For example,barite,grahite, copper,gold processing plant?
Yes ,we are able to,also we have supplied in many countries.
2.Im new in in mining business,How Can I start with your help?
Please send us your raw ore test report (composition analysis) and your requirements,Our engineer will discuss and advice you.
3.I want to have visual idea of running plant,Do you have videos or working sites I can visit?
Yes,We have many working sites near our factory in Luoyang,China.
We can arrange your visit when you visit factory,Its very near and conveninent.We trust it will help you a lot.
Contact Us
If you need quality machinery with the latest technology, the best price, and the quickest delivery then Zhongde is your answer.
Contact Zhongde today, they would be pleased to discuss your requirements.
Write Zhongde your requirements here ⇓⇓⇓My online contact:WhatsApp,Viber ,IMO,Wechat+86-157 1667 3317,Zhongde personnel will reach you in 24 hours.
