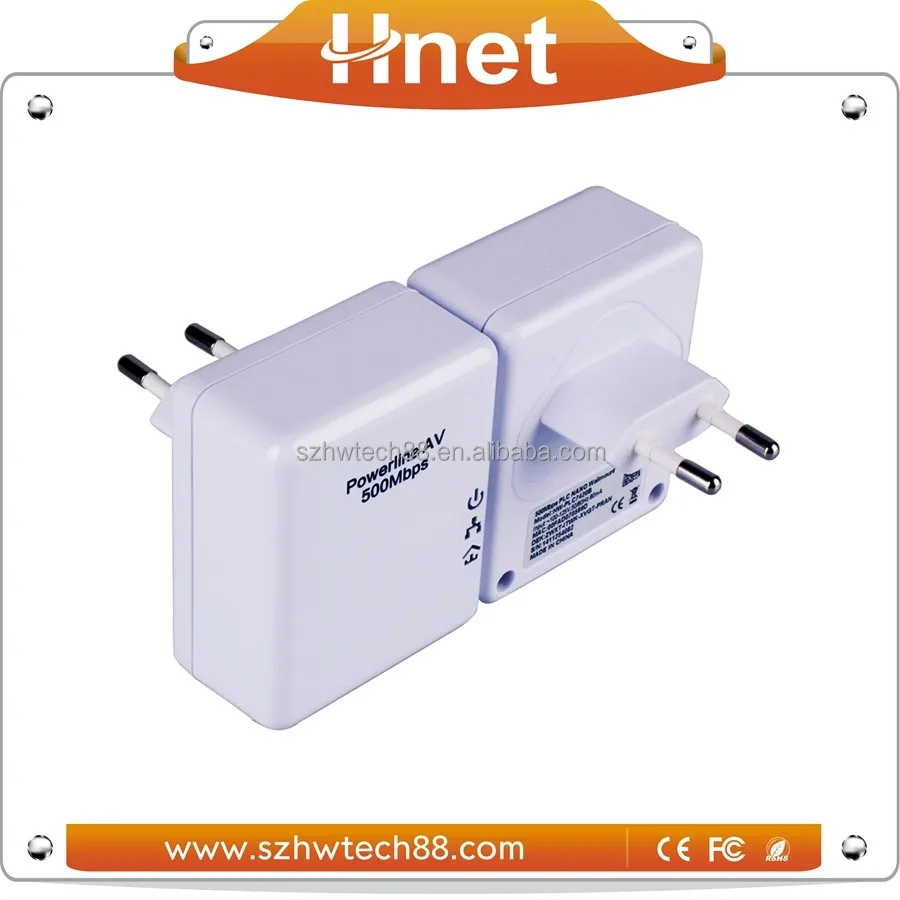

Best 500Mbps Powerline adapter Kit outlet Wired Ethernet Bridge PLC with socket
- Category: >>>
- Supplier: Shenzhen Hwnet Times Tech. Co. Ltd.
Share on (60490387880):
Product Overview
Description
500Mbps Powerline Kit Wallmount Wired Smart Homeplug
PLC Training Kit
Model No.: HW-PLC7420H
Features:
Wired 500 Mbps Powerline: HomePlug AV
Ethernet: IEEE 802.3 10/100 Auto MDI/MDIX
Energy Saving: EuP Compliance
Protocol: TCP/IP, IGMP, QoS CSMA/CA
Data Transfer rate: Up to 500Mbps over powerline
Transmission Range: Up to 200m over powerline
Frequency band: 2Mhz to 30Mhz
Security & Protection:
128-bit AES encryption (enabled with Simple Connect button)
Product Description
This 500Mbps powerline wallmount adapter is designed for PHY rate up to 500Mbps and throughput up to 95Mbps across the household power line. Embedding high integrated
AR7420 pset, the adapter is low in power consumption and small in size.Every power socket could become a network connection so even complicated corners that used to be unreachable with wiring is now able to go online conveniently, which is suitable and secure for use in a wide range of both residential (in-home) and commercial (offices,apartments, hotels, warehouses) network applications.
smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit

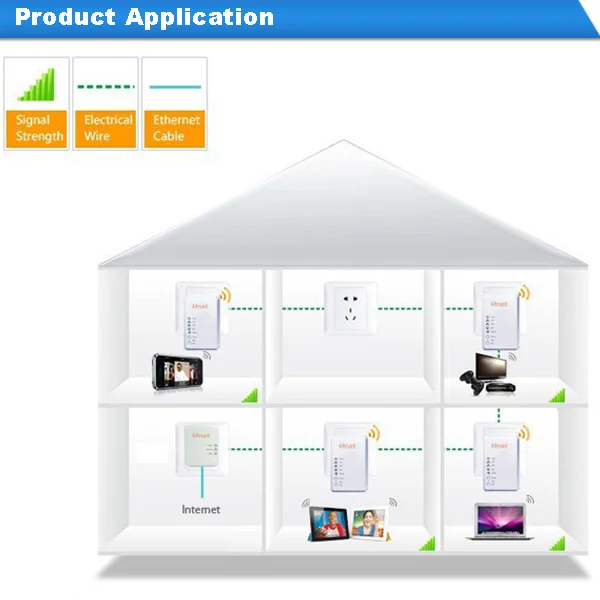

Application
- High Definition (HD) and Standard Definition
(SD) video distribution
- Higher data rate broadband sharing for power
line LAN
- Shared broadband internet access
- TV over IP (IPTV) and Voice over Internet
Protocol (VoIP)
- Backbone for wireless and wireless extender
- Video surveillance
- Online gaming
smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smarthome wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit
Parameter Specification
System SPEC | |
pset | Atheros AR7420 |
SDRAM | 128bits |
Serial Flash | 16Mbits |
Standard | IEEE 1901 and HomePlug AV compliant Co-existence with HomePlug 1.0 Nodes |
Peak PHY Rate | 500Mbps |
Peak Throughput | 95Mbps UDP 95Mbps TCP |
Range | Up to 300m |
Frequency | 2-67.5MHz |
Modulation Schemes | Supports 4096/1024/256/64/16/8-QAM, QPSK,BPSK and ROBO |
Security | 128-bit AES |
QoS | no |
Max PLC Nodes | 16 |
IGMP Streams | 16 |
TR-069 Support | no |
Media Access | CSMA/CA |
IPv6/MLDv2 | Support |
LED’s | Power Ethernet: Ethernet Link and Activity Data: PLC Link and Activity |
Push Button | Security |
Power Socket | Support British, Euro, Japan, US and na power connector |
Ethernet Interface | 1 x RJ45 for 10/100 Ethernet (Auto MDI/MDI-X) |
Consumption | <2.7W 1.6W Idle 0.34W Standby |
Environment Requirement | |
Operating Temperature | 0ºC to 40ºC |
Storage Temperature | -20 ºC to 70 ºC |
Operating Humidity | 10% to 90% Non-condensing |
Storage Humidity | 5% to 90% Non-Condensing |
Input Rating | 100-240 VAC, 50/60Hz |
Physical Dimension | |
Physical Characteristics | L×W×H: 69mm*58mm*31mm |
Weight | 80g |
smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit

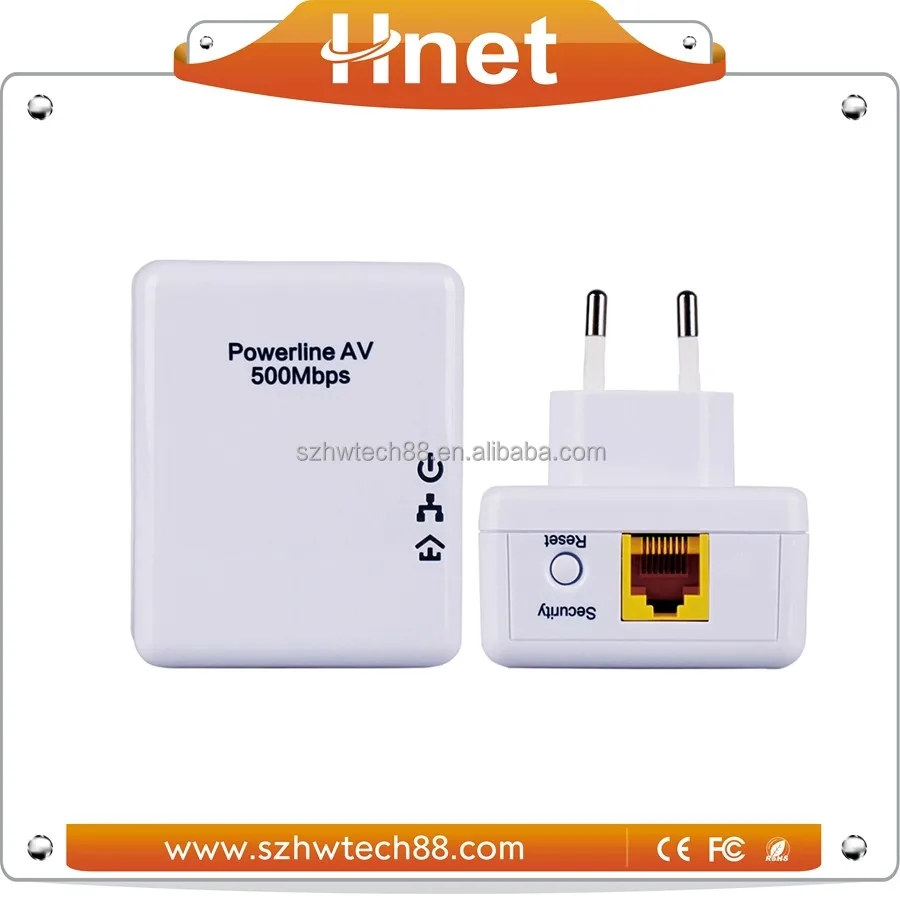

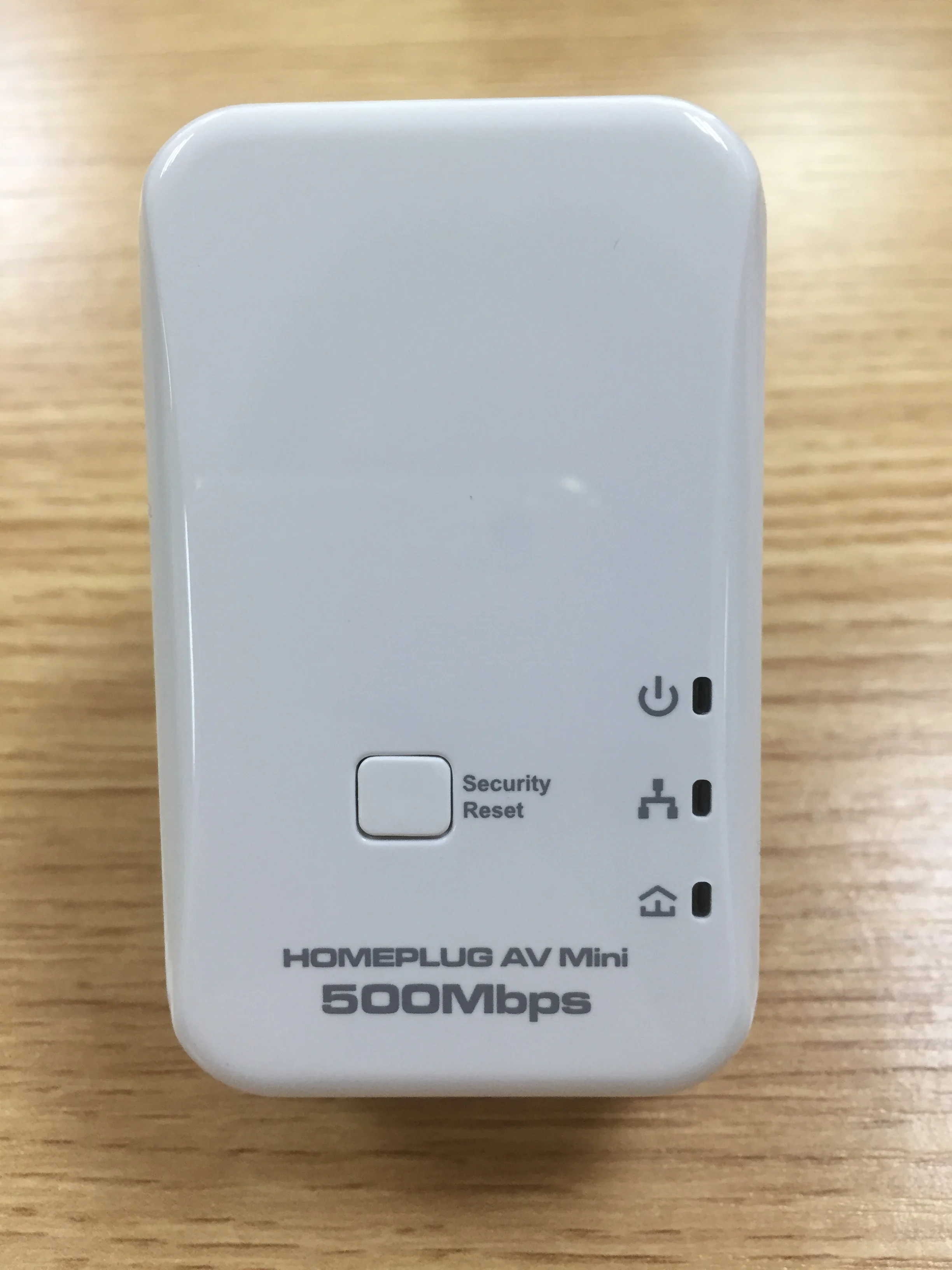

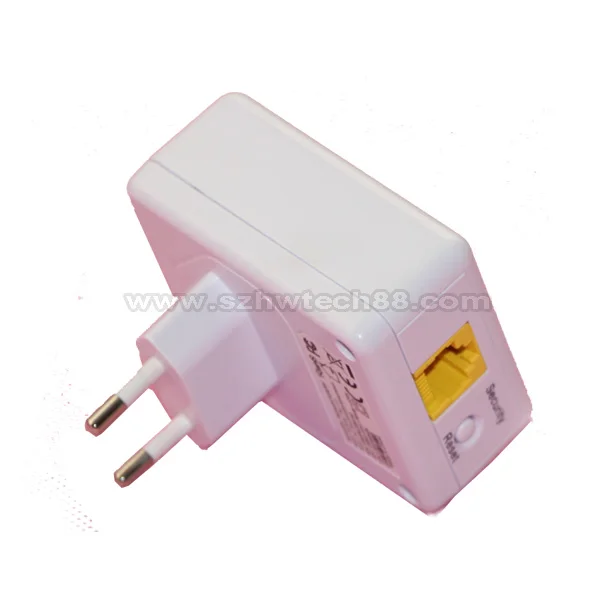

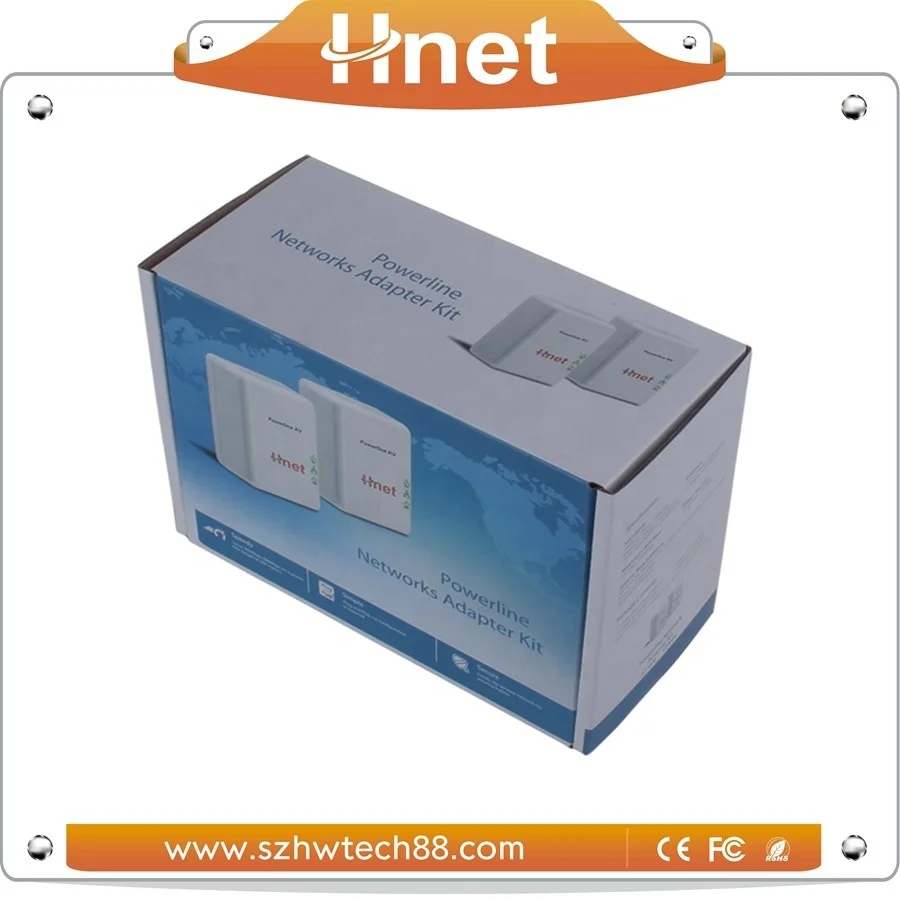

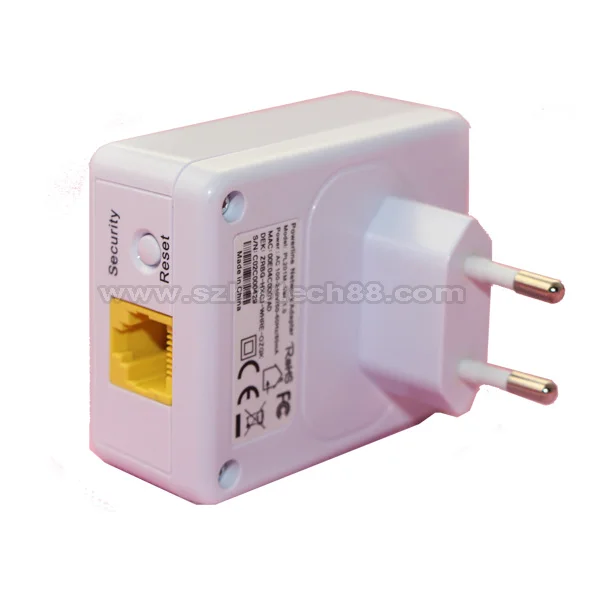

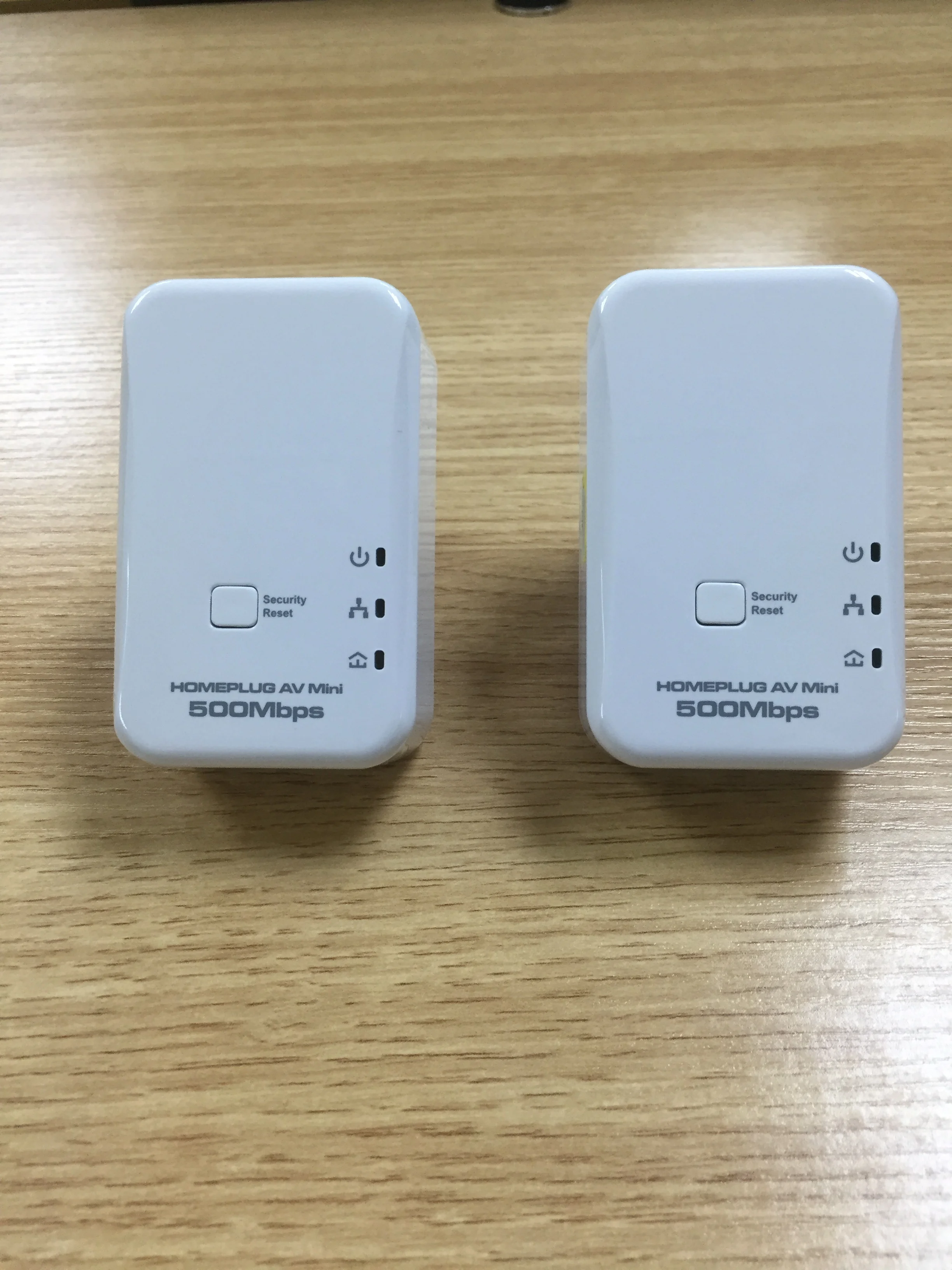

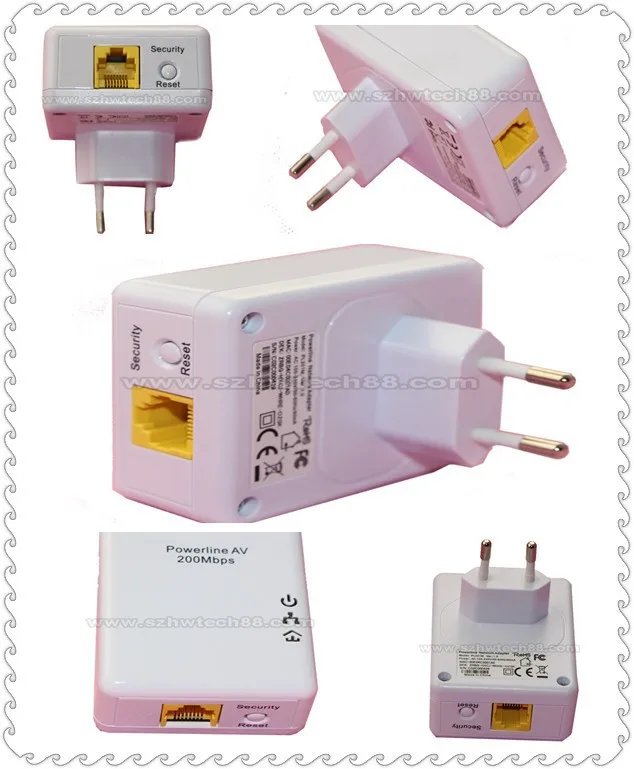

Product show:
smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit
Our Services
smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit
smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi p
FAQ
1 Q: Are you a Factory/manufacturer?
A: We are the manufacturer with exported network devices for 16 years.
our main products are 3g/4g router, 3g/4g dongle, ADSL and VDSL, Smart watch, etc.
2 Q: Can I order a sample to check the quality?
A: Yes of course! You can order a sample to check the quality. And the sample cost can be refunded in your next bulk order if the products satisfy the condition.
3 Q: What's your warranty policy?
A: For all the products, we have one-year warranty(12 months). All of our goods are 100% tested working and perfect before sent to you. In case there are unexpected damages during delivery, please do check before you sign for the package.
4 Q: What's your minimum order quantity?
A: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.
5 Q: Will your product work in my country?
A: All of our products are compatible to the international standards.
6 Q: Can I print my own brand logo on your product?
A: OEM orders are highly welcome.
lc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home w
Company Information
Shenzhen Hwnet Times Tech Co.,Ltd.
was founded in 2006, it is a national High-Tech network communication enterprise in China,
which engaged in the R&D,manufacture, sale & service,a professional OEM/ODM manufacturer; a leading telecom communication solutions carrier.
Our products covers 3G Mifi router, 3G USB Modem, 4G Mini Wifi Hotspot Router, 4G Wifi Dongle, 4G Carfi Router, 4G LTE CPE,Wireless AP, POE Switch, Powerline adapter ADSL/VDSL Router and so on.
After 11 years’development, our products export to many countries and regions in the global market. Widely used in the Telecom Operators, enterprise network, PON, CATV communication network etc. we have established the long term cooperation with many famous customers in Iran, Bengal,Dubai, Saudi, Arabia,Russia,Brazil,Germany, Singapore, New Zealand, etc.
Our company has gained many honors as below:
1. “High-tech enterprise of Shenzhen”
2. “High-tech enterprise of China”
3. “Gold supplier for the South-East Africa market”
4. “Member of software association in Shenzhen”
ifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit smart home wifi plc training kit
