CNC Automatic 3D Tube Bending Machine For Exhausts and Boiler Pipe Industry
- Category: >>>
- Supplier: Zhangjiagang City Universal Machinery Manufacturer Co. Ltd.
Share on (60490617194):
Product Overview
Description
Techinical Parameter
| Item | Name | Data | |
| 1 | Max bending capacity | Φ100 mm×8.5 mm | |
| 2 | Max bending radius | R360mm | |
| Can made according to customer’s requirement | |||
| 3 | Min bending radius | R40mm | |
| 4 | Max feeding length | 3500mm | |
| Can made according to customer’s requirement | |||
| 5 | Max bending degree | 190 Degree | |
| 6 | Control Panel | PLC | |
| 7 | Touch Screen | Taiwan Smart Face | |
| 8 | Bending unit | 16 Pieces | |
| 9 | Working speed | Bending speed | 30 Deg/sec |
| Rotary speed | 120 Deg/sec | ||
| Feeding speed | 800 mm/sec | ||
| 10 | Accuracy | Feeding | ±0.05 mm |
| Rotary | ±0.05 Degree | ||
| Bending | ±0.05 Degree | ||
| 11 | Rotary Pipe | By Servo Motor Power 1.5KW | |
| Japan Mitsubishi | |||
| 12 | Data input | 1.Coordinate ( X, Y, Z ) | |
| 2.Working Value ( Y, B, C ) | |||
| 13 | Feeding Pipe | By Servo Motor Power 3.5 KW | |
| Japan Mitsubishi | |||
| 14 | Bending Pipe | By Hydraulic Valve | |
| 15 | Oil motor power | 15 KW | |
| 16 | Max storage units | 1000 Group | |
| 17 | Max pressure | 15 MPa | |
| 18 | Hydraulic control system | Magnetic Exchange Valve | |
| Japan Yuken | |||
| 19 | Oil tank | 400 L | |
| 20 | Machine weight | 6000 Kg | |
| 21 | Machine size | 5100×1400×1300 mm | |

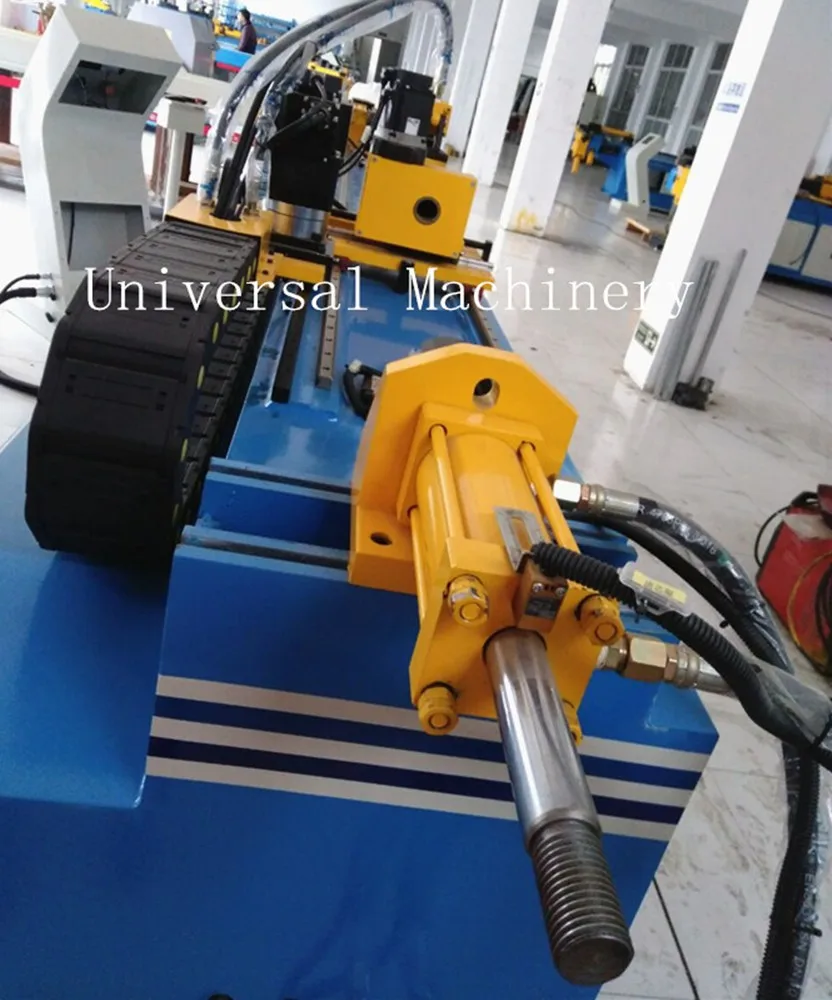

CNC Automatic 3D Tube Bending Machine For Exhausts and Boiler Pipe Industry
Feature
1. Bend-arm (C-axis) by electric. Clamp die by hydraulic, Pressure die by hydraulic.
2. Carriage (Y-axis) by servo motor. Collet (B-axis) : rotation by servo motor, grip by hydraulic.
3. Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control.
4. Water-cooling system. Diagnosis error immediately.
5. Foot pedal for safe start.
6. It is fully automatic pipe bender, with PC control system (more advanced than PLC), two servo for rotary, feeding.
7. Touch screen panel display English(can be any language), have different bending degree prefabricate, dialogue operation, can choose manual,semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axles working simultaneously.
8. Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.
9. One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PC. In case of requirement it is also possible to integrate the PC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PC) and printed out.
10. Security code for the protection the data setting and selected operation features.
11. To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.
12. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
13. CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic.
14. The electric pipe bender is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
15. PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention.
16. CE, ISO9001 Certification.
CNC Automatic 3D Tube Bending Machine For Exhausts and Boiler Pipe Industry

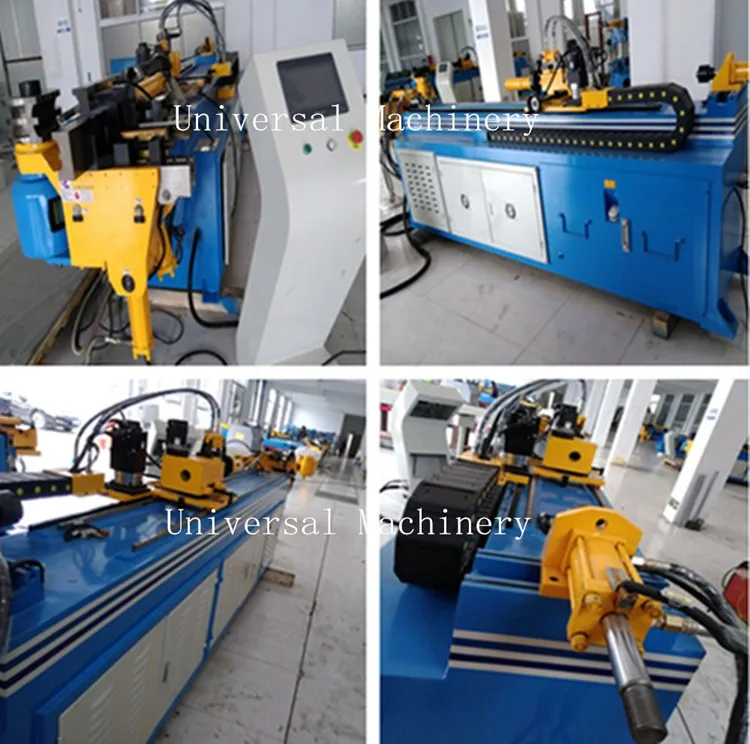

Different Positions

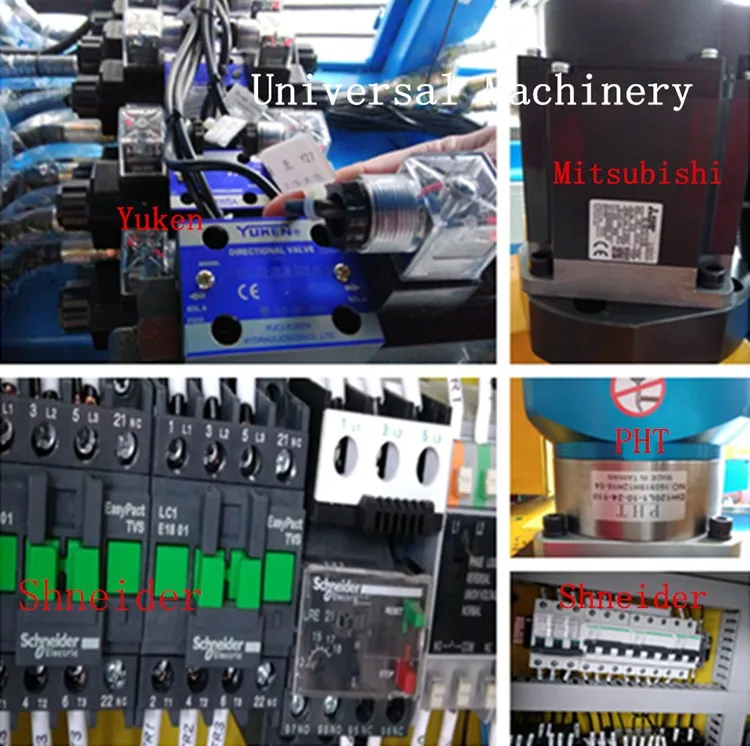

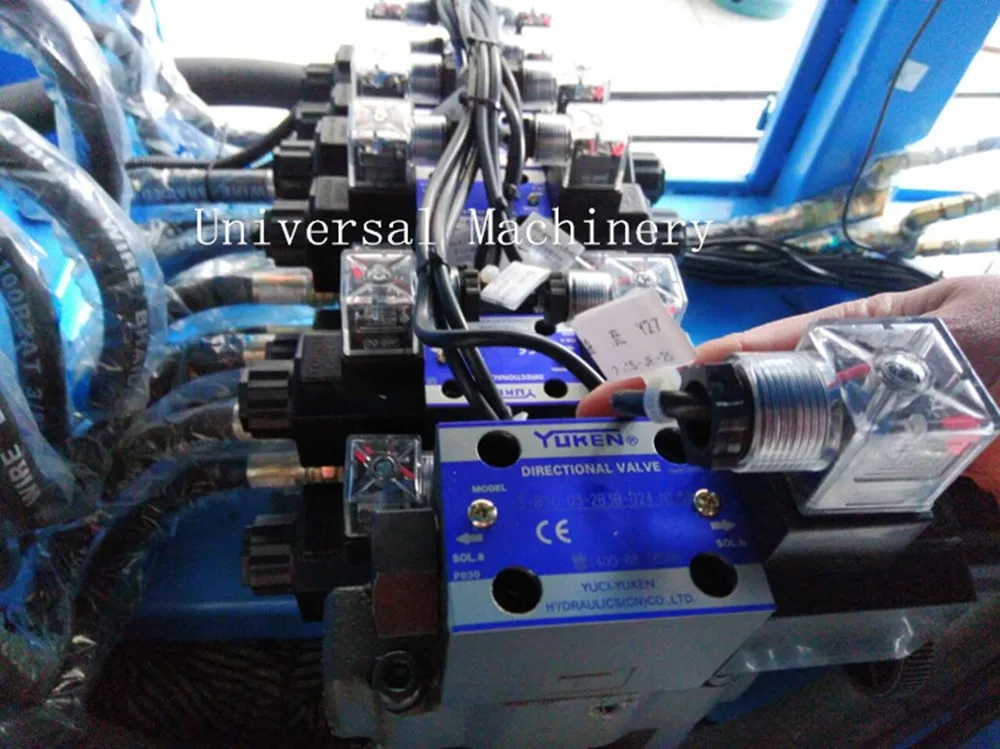

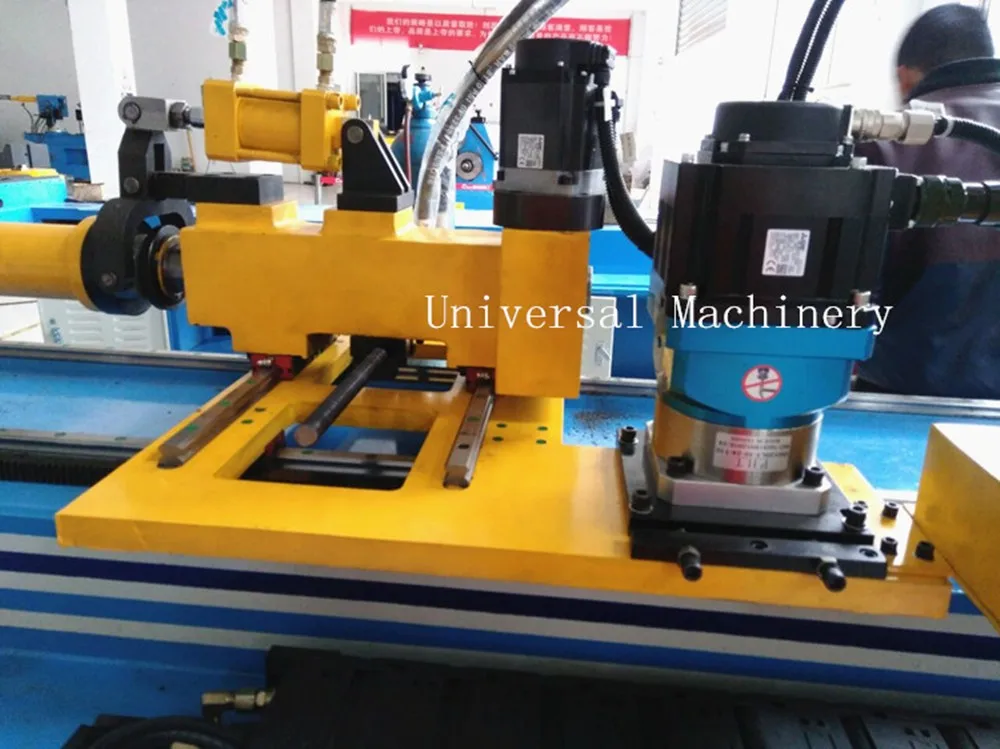

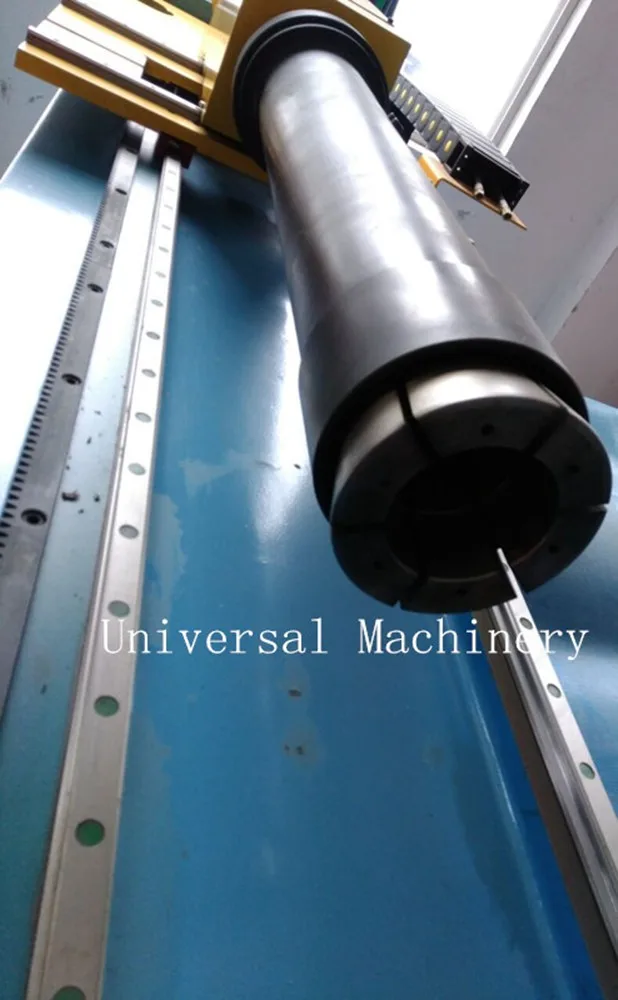

Main Component
