bopp,pe,pvc,pof,NY multi color Rotogravure Printing machine

Share on (60490640078):


Price:RUB 4,896,963.50 - RUB 5,650,342.50

Quantity:


Product Overview

Description

Product Description

Product Application

This AZJ-A gravure printing machine has begun to be sold by our company since inception. It is considered the most beneficial machine with its maximum printing speed up to 140m/min. Over the past decade, we have never stopped improving both service and product quality. Our product has been strictly tested before entering the overseas market. If customers require it, we will dispatch our staff for on-site commissioning and maintenance to guarantee the normal use of the machine.

Our company can provide either the standard type or three-motor type gravure printing machine. This machine is the major product of our company. It is ideal for the multicolor, one-off, and continuous printing of various materials, such as BOPP, PET, PVC, PE, aluminum foil, paper rolls, and the film rolls featuring outstanding printing performance. Moreover, this product gives wide applications in all kinds of high-end prints.

SPECIFICATIONS FOR AZJ-A Series Computerized Color Register Rotogravure Press
Type
AZJ-8650A
AZJ-8850A
AZJ-81050A
Max. Width of Web
650mm
850mm
1050mm
Max.Printing Speed
140m/min
140m/min
140m/min
Max. Diameter of Unwind/Rewind
ø600mm
ø600mm
ø600mm
Interal Diameter of Roll Core
ø76mm
ø76mm
ø76mm
Diameter of Printing Cylinder
ø105mm-ø380mm
ø105mm-ø380mm
ø105mm-ø380mm
Accuracy of Registration
±0.1mm
±0.1mm
±0.1mm
Tension Control Range
3~25kg/Full Width
3~25kg/Full Width
3~25kg/Full Width
Heating Power of Oven
72kw
96kw
120kw
Total Power
109kw
136kw
160.5kw
Weight of Machine
17000kg
19000kg
21000kg
Overall Dimension
L13500*W3200*H2500mm
L13500*W3400*H2500mm
L13500*W3600*H2500mm

Main Features

1.Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.

2.Main motor equipped with frequency converter for speed regulation.

3.Unwinding tension adopts automatic tension controller and magnetic powder brake.

4.Rewinding adopts torque motor,double-station automatic turret.

5.Closed oven and independent heating hot air blowing system,automatic constant temperature system.

6.Pneumatic impressing system and pneumatic doctor blade system.

7.Diaphragm-type pnemuatic ink auto circulating system.

8.Inflatable air shaft for unwinding/rewinding  material loading.

9.Printing linear speed and meter counting display.

10.Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.

11.Option:web video.

Certifications

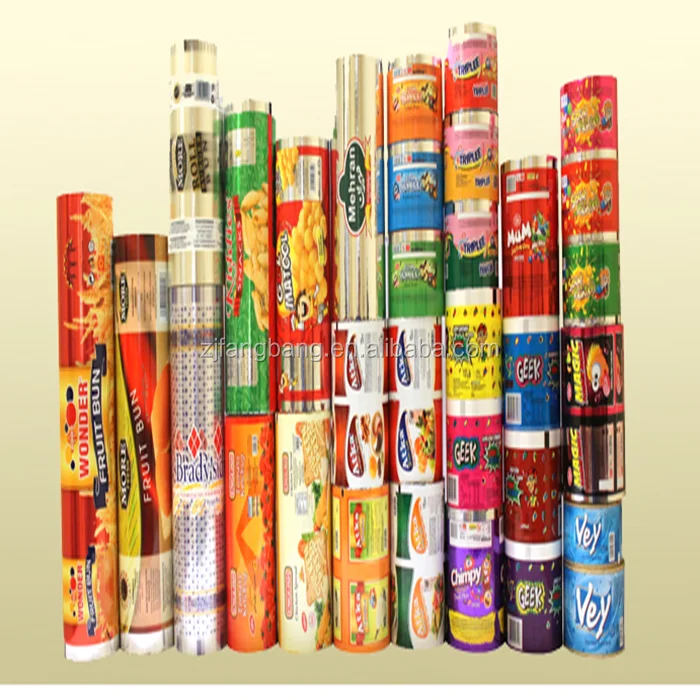

Samples
Our Service

Pre-Sales Service

Inquiring and Consulting Support

View our Factory

After-Sales Service

Training how to instal the machine,training how to use the machine.

Engineers available to service machinery overseas.
