Reflective M6 Diffuse Fiber Optic Sensor R10 35 45mm Sensing

Product Overview

Description

Reflective M6 Diffuse Fiber Optic Sensor R10 35-45mm Sensing

A fiber optic sensor is a sensor that uses optical fiber either as the sensing element, or as a means of relaying signals from a remote sensor to the electronics that process the signals.



F&C Sensors has over 10+ years OEM experience in  fiber optic sensors



we can accept customize all type of different shape and different size optic fiber head.







Model	Min detectable object(mm)	Sensing Method	Sensing distance (mm)	Allowable bend radius	Fiber length (mm)
FFRS-610	φ0.05	Diffuse Reflective	35-45	R10	1000



Here is the picture for Reflective M6 Diffuse Fiber Optic Sensor R10 35-45mm Sensing







;

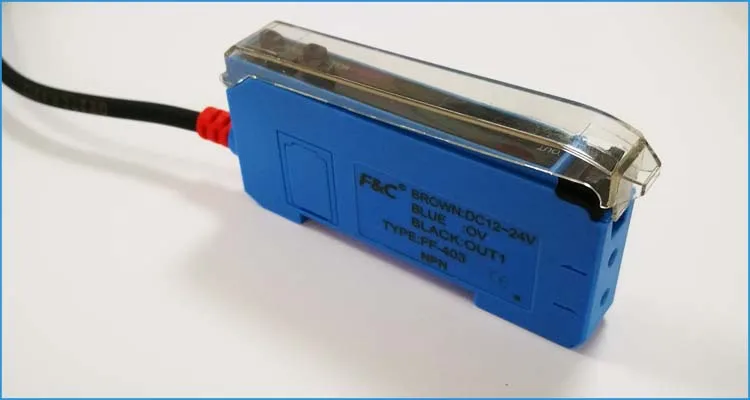

FF-403 one button setting smart digtial fiber optic sensor is suitable for FFRS-610.



Model		FF-403		FF-403P
Light Source		Red Light
Working Voltage		12~24VDC±10%
Current Consumption		40mA max
Output Type		NPN L.on/D.on		PNP L.on/D.on
Load  Current		100mA Max. at DC 24V
Protection Circuit		Polarity Reverse protection, Short -Circuit protection, Over-current Protection
Response Tme		100μs,300μs,1ms, 2ms adjustable
Indicator LED		Output Indicator:red      Stable:green, please keep this LED non-flashing
Sensitivity adjustment		4 Digits0000-9999 , 0000-9999
Time delay function		0ms,5ms,50ms,500ms,5s,0s,five choice by setting button.
Lightness		100%,50%,25%,12% light source power can be adjusted via button
Operating Temperature		-10 ~ +50°C(no-frozen)
Ambient Humidity		35 ~85%RH
Protection Degree		IP64
Material		Housing material:PC+ABS Cover: Polycarbonate
Accessory		1Pcs Mounting Bracket
Wiring Method		Pre-wired Φ4.2×2M/3-Wires
Certificate		CE RoHS
