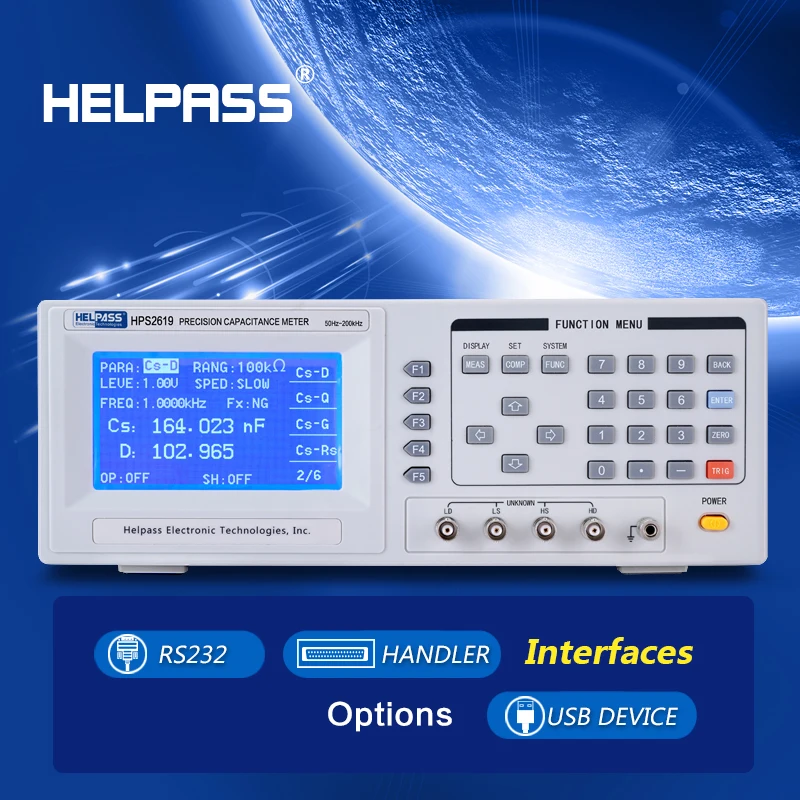

HPS2619 Capacitance Meter or Digital LCR Meter with accuracy 0.05%

Product number

HPS2619

HPS2617

Performance indicators

Monitor

Large LCD display

Display digits

6-digit reading resolution

Measurement function

Measurement parameter

Cs, Cp, Rs (ESR), Rp, Z,D (tanδ) ,θ(Deg),θ(Rad),

Basic accuracy

0.05%

Measuring speed

Fast: 30 times / sec, medium speed: 15 times / sec, slow speed: 5 times / sec

Equivalent Circuit

Series Parallel

Range mode

Automatic, keep

Trigger mode

Internal, manual, external, bus

Average number of times

1-255 times (HPS2617 no)

Correction function

Open / short-circuit sweep clear, load calibration (HPS2617 no)

Measuring end

Four-wire system (2 detection terminals and 2 drive terminals),  5 terminals

Display method

Direct reading, absolute deviation Δ ABS, relative deviation Δ%

Test signal

Test frequency

50Hz -200kHz, more than 12,000 frequency points

50Hz-100kHz, 10 typical frequency points

Test level

0.01 Vrms -2.0 Vrms,10mV Stepping

0.1 Vrms, 0.3 Vrms and1 Vrms

Output impedance

30Ω,100Ω

Measuring display range

Cs, Cp

0.00001pF -99.9999mF

Rs , Rp, Z

0.00001Ω -99.9999MΩ

θ(Deg)

-179.999° -179.999°

θ(Rad)

-3.14159 -3.14159

D (tanδ)

0.00001 -9.99999

Δ%

-999.999% -999.999%

Sorting and interface

Sorting function

10 files sorted (9 files qualified and 1 file failed), and 1 auxiliary file

Interface configuration

RS-232C interface / HANDLER / USB Device (optional)

General specifications

Operating environment

0°C -40°C ,≤90%RH

Guaranteed accuracy environment

23±5℃,≤80%RH

Power requirement

198V -242V(AC),47.5Hz -63Hz

Power consumption

≤30 VA

Size and weight

355mm (width) x 125 mm (height) x 330 mm (deep) 5kg
