Zigbee TI CC2530 RF module with Router/Coordinator/End device wholesale for IOT solution CE FCC Certification

Product Overview

Description

Radioland Hotest Zigbee module, Zigbee CC2530S3, CC2530 from Radioland

Brief Description:

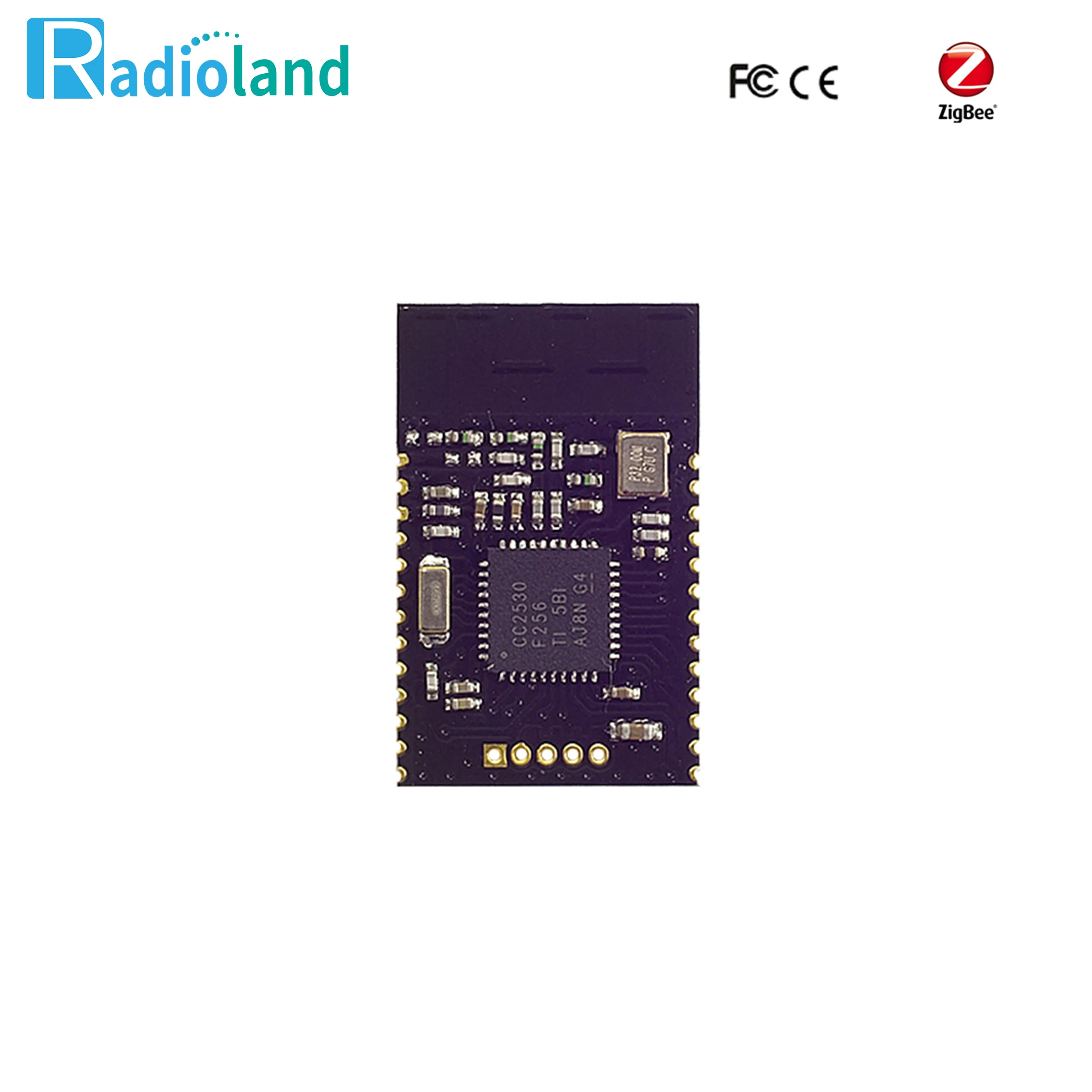

RL-CC2530-S3 RF Module is a low-power,highly integrated 2.4-GHz transceiver that suitable
for systems targeting compliance with worldwide radio-frequency. It’s a true system-on-chip
solution for 2.4-GHz IEEE802.15.4, ZigBee and RF4CE applications.







Features:



• 2.4-GHz IEEE802.15.4 compliant RF transceiver


• Programmable output power up to 4.5dBm


• Accurate digital RSSI/LQI support


• Suitable for systems targeting compliance with worldwide radio-frequency


• Data rate: 250kbps


• 128KB in-system programmable flash


• Customization 32,64,256KB


• Two 64 bytes FIFO for TX & RX buffer


• CSMA/CA hardware support


• Battery monitor and temperature sensor


• AES security coprocessor


• 8KB RAM with retention in all power mode


• 32-kHz sleep timer with capture


• Wide Supply-Voltage Range (2 V~3.6 V)


• External ipx antenna tower





Application fields:

• 2.4-GHz IEEE 802.15.4 systems


• RF4CE remote control systems (256KB flash)


• AMR – Automatic Meter Reading


• Two-way RKE – Remote Keyless Entry


• Wireless alarm and security systems


• Industrial control and monitoring


• Wireless sensor networks


• Home and building automation


• Wireless Light Dimming
