Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
Product Description

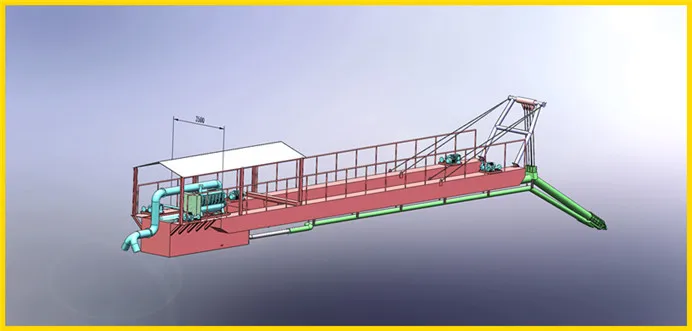

1.Working Principle of Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine

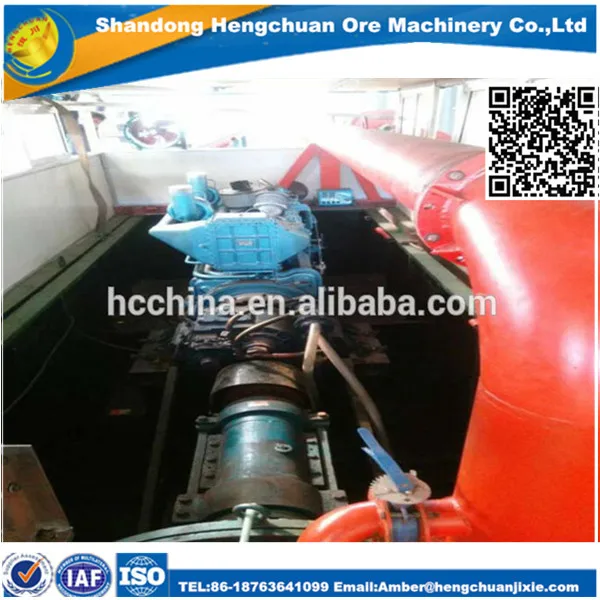

1). The main generator set adopts the supercharged, inter-cooled marine engines whose model is KTA19-G4(M)from CCEC company, rated speed 1800r/min,rated power 507kw. The diesel engine drives 500kw, 440V, 60Hz motors, generator capacity is set as 450kw.Generator drives the 315kw underwater pump motor, 55kw electric cutter head and 22kw hydraulic pump aggregate through frequency converter.

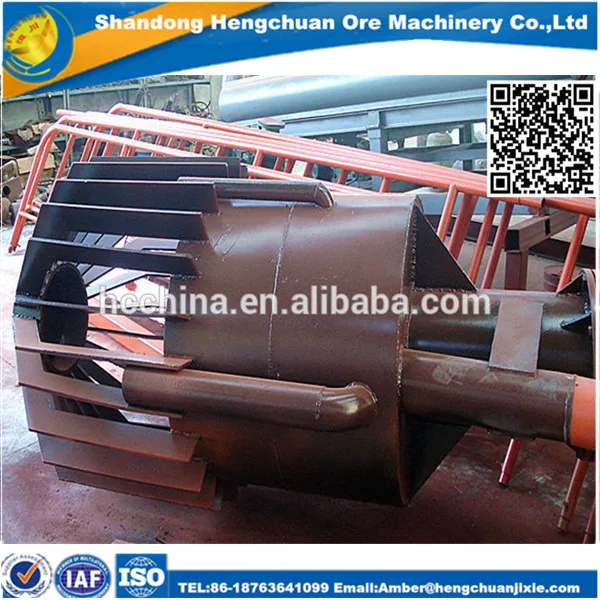

2). Cutter head transmission device The electric cutter head transmission device is equipped on the bridge, when the bridge down angle 50°,the dredging depth is 8m.The bridge structure is truss structure type, the bridge is hung by the bow crane through the steel wire rope, and driven by one set 60kN hydraulic winch. There are two sets 50KN sway hydraulic winch with rope speed 0~20m/min on the bridge. The wirerope of the sway winch rolled out of the sheaves which set in the front of the bridge and extend to two sides of the dredger, under the cooperation of two sets sway winches, with the spud carrier as the center, to make the dredger or so sideslip.
In the operation, the generator provides power through frequency converter (Brand: Schneider),controlling the motor speed according to the dredging condition to meet different soil conditions.
3).Pump The dredger equips with only one set underwater pump which is the new type pump refers to the IHC pump. Its advantages include: high efficient, wear-resisting, good cavitation performance. In order to improve the injection capacity and mud concentration, the underwater pump is driven by motor directly. The motor is B4J355LC6 water-cooled type from MarelliMotoriItaly which is set in sealed cabin of the cutter ladder.
In the operation, the generator provides power through frequency converter (Brand: Schneider),controlling the motor speed according to the dredging condition to meet different soil conditions.
2. Applicant of Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
Pumping tailing slurry for industrial and mining organizations, clearing silt in sedimentation basin, pumping silty sand or fine sand for seashore or port, pumping powdery iron ore for foreign countries, etc. The overflowing parts adopt wear-resistant alloy material and have long service life. In suitable construction environment, the mating is simple and convenient in operation and application. If the sand is large, high pressure gun can be added to increase the medium concentration.
3. Features of Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
1).Customized designs is according to clients project requirement. Our engineer have many experiences in the dredger design for many years. we have cooperated with China leading design institution and professional college to sure the quality of the dredger.
2).dredger is built by skilled workers and inspected strictly to assure the high quality and durability. Every finished dredger will be test before delivery, to assure the dredger work smoothly when delivery to clients.
3).Best spare parts will be used in dredger, like the world famous Cumminns engine, Shijiazhuang pump, Siemens PLC control system and so on.
4).Hydraulic system is one of the most important parts of the dredger,cutter head, ladder winch, swing winch, spuds is driven by hydraulic motor, reputed brand is used other hydraulic parts, like hydraulic pump ,hydraulic valve, hydraulic line.
5).The cutter suction dredger is dismountable, it can be disassemble and assemble, thus it can transport more convenient by road, rail, sea.
6).Professional engineers will send to project site, our engineer will help to assemble, debugging, testing the dredger and trailing the sailor at the project site.
7).cutter suction dredger absorbing advantaged technology of Dutch and American related products,the capacity of the KDCSD dredgers’ working capacity ranges from 100m3/hr to 1000m3/hr,dredging depth from 1m
5). Hull consists of multiple pontoons connected by proven coupling system.
6). Highly efficient fuel consumption and minimum overall operational costs
7). Operation by one man from spacious and low noise operating cabin.Controls and instrucments mounted in ergonomic dash board.
8). Good access to all parts,especially the dredge pump wearing parts.Fresh water cooling system.

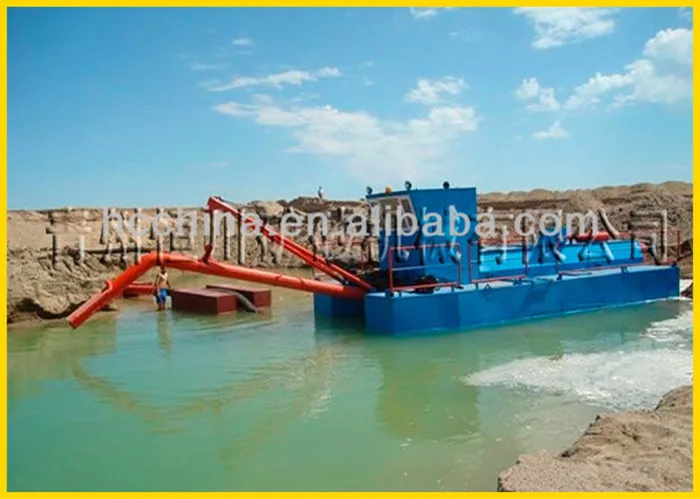

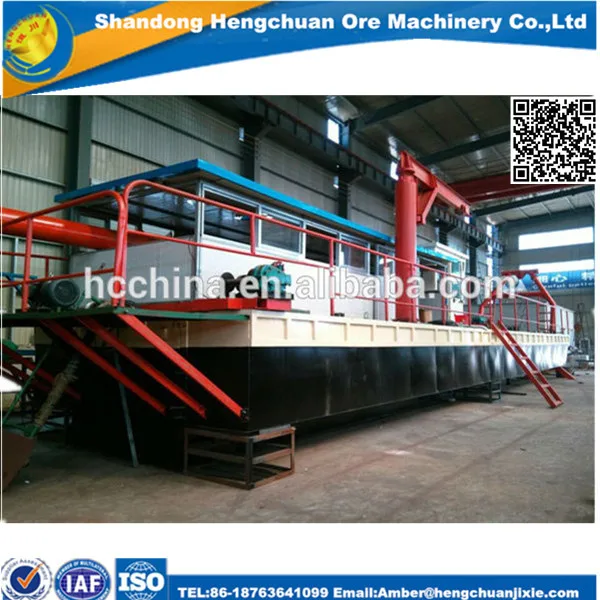

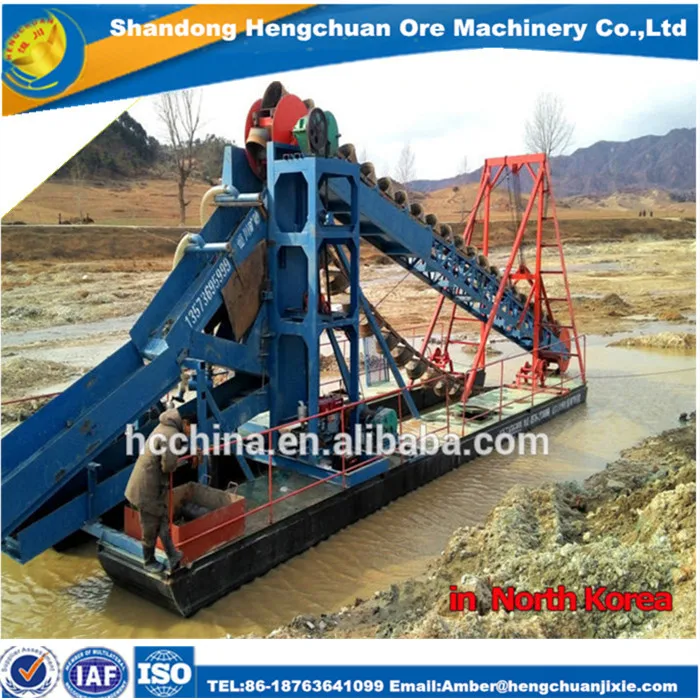

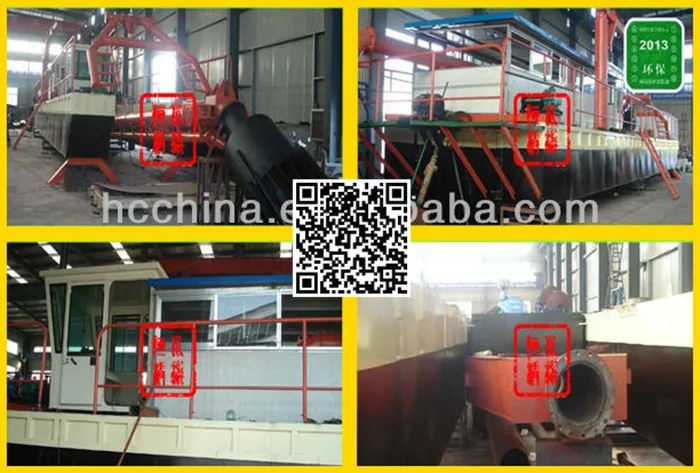

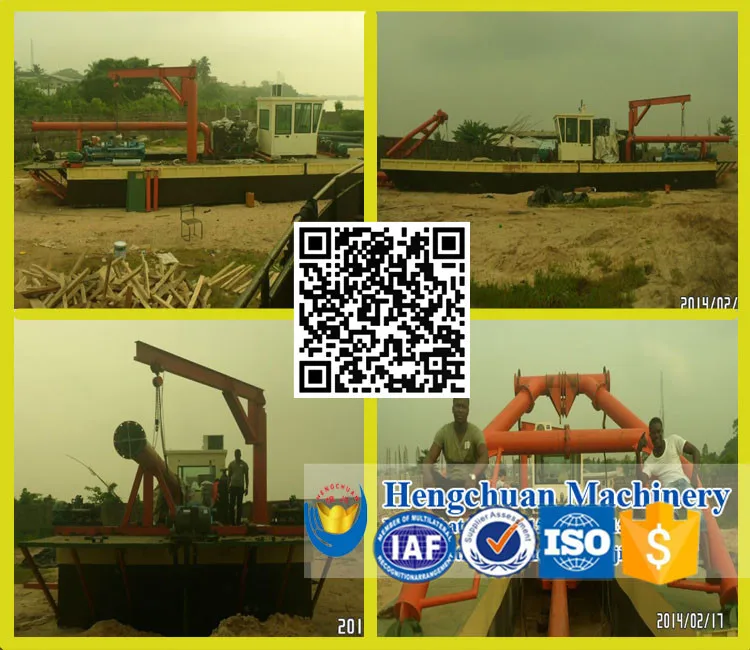

4. Products Show of Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine

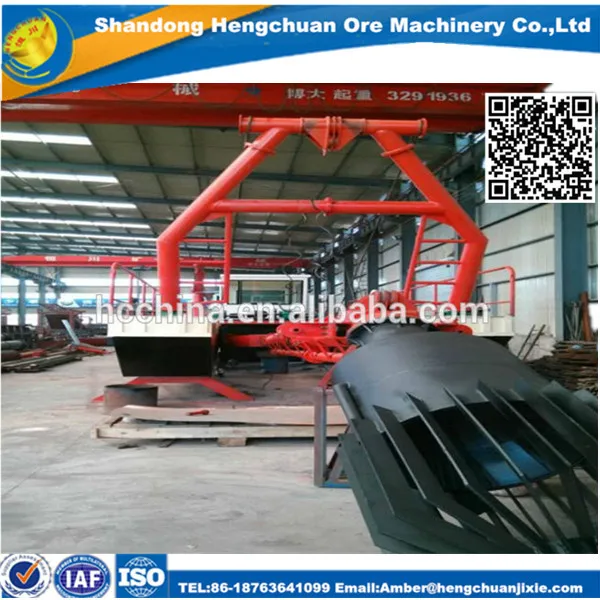

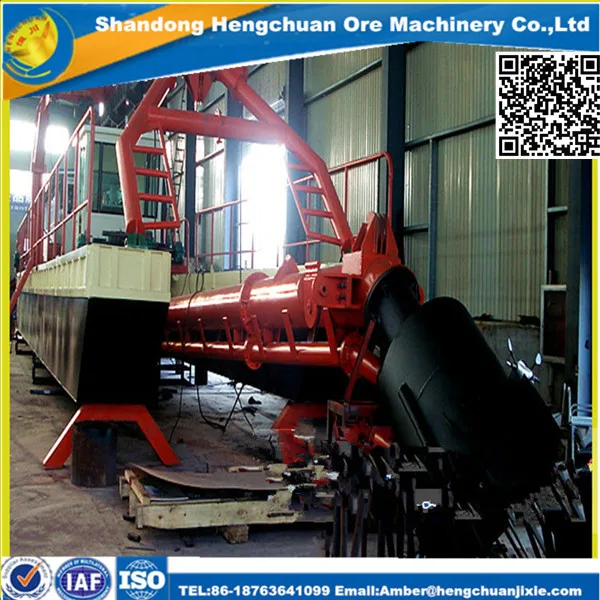

Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
ger|dre

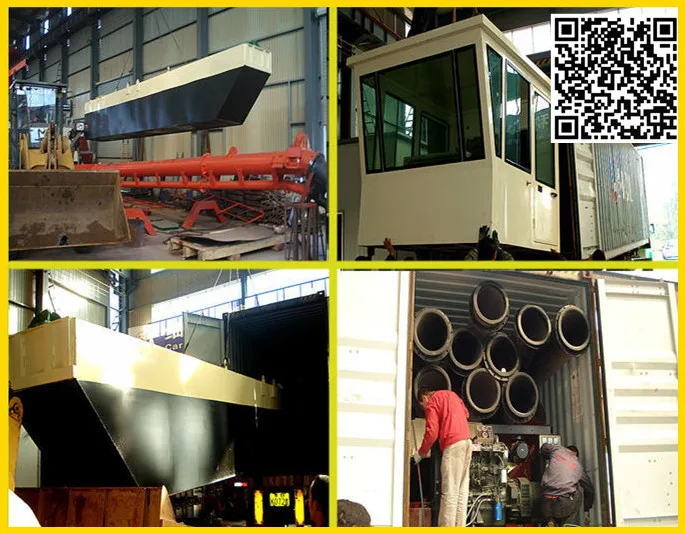

Packaging & Shipping
Packing:By container or Bulker for Dredging Machines And Equipment/Dredger Manufacturer In China/Dredger Machine
Shipping:Qingdao port
Our Services
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers. 2.. Shandong Hengchuan company provides rational and practical design according to customers' request. 3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract. 4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge. 5. Shandong Hengchuan company provides free training of operation and maintenance for customers. 6. Shandong Hengchuan company supply high quality accessories in low price. 7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.
Company Information

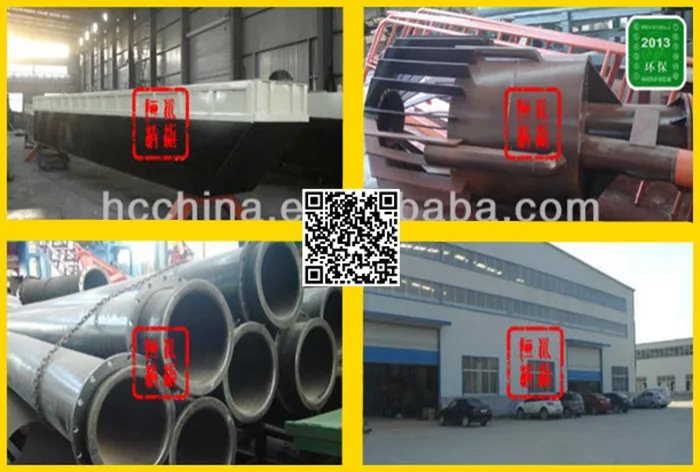

1. Our factory
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.
2.Our customer
Our main market is domestic,Africa and Southeast Asia,such asCameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
So much customers interested in our Cutter suction dredger and have buy it.
3.certifications
FAQ
In order to give you a responsible quotation, you can inform us the following information 1).Type of minerals to be mined? 2).Type of deposit (Primary/hard rock, or secondary/placer)? 3).Physical characteristics of the ore (sandy, with light clay or heavy clay)? 4).Intended feed capacity (Tons/hour)?
