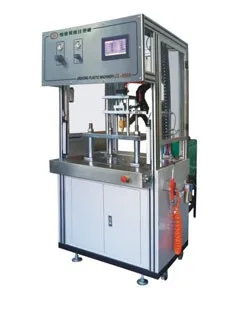

JX 900H low pressure molding system machine small plastic injection moulding process with material Technomelt 6208/6208S

Product Overview

Description

X-900H  low pressure molding system machine small plastic injection moulding process with material Technomelt 6208/6208S

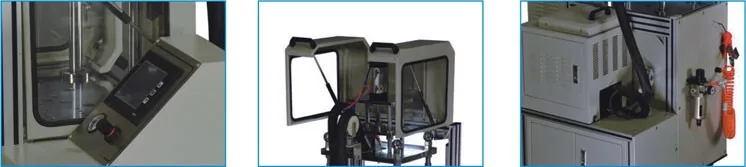

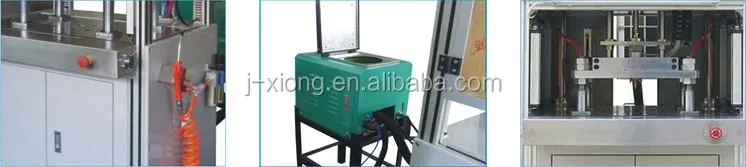

[Machine features] plastic low pressure molding machine  plastic low pressure injection moulding machine low pressure technology  low pressure  injection moulding process LPMS low pressure molding system
1.Single station top type plastic injection system. For a variety of injection molding encapsulation product design models, especially for parallel continuous wire outlet mold design more reasonable and reliable.
2.Console and sol system uses split layout,flexible use.
3.Glue gun is directly connected with sol cylinder by a hose ; compact structure, stable plastic injection.
4.Mold using gas-liquid pressurized cylinder, Mold clamping force is greater,for plastic injection area is large, a large quantity of plastic injection products of mass production.
5.Computer touch screen man-machine interface, real-time monitoring man-machine  control system.
6.Injection pressure adjustable, DELTA temperature control module, the precise monitoring of temperature condition.
7.Locking and security grating two-hand switch, emergency stop switch, to ensure safe operation.
8.The mold is convenient to replace, workbench builts  product ejection device, convenient to extract products.
9.According to human engineering machine pedal design, convenient operation.
[Specifications]

Plastic machinery	JX-900H
Size(mm)Machine(kg)	940×840×1865(420Kg)
WorkStation Height(mm)	1130
Plant View(mm)	1140×950
Packing(mm)Size(kg)	1050×950×2000(455Kg)
Melting Tank	(5Liter)×1
Gun & Tip Angle	(36.4°60°90°optional
Heated Hose	JX-ZH-16-C×1
Electricity	200-240VAC/1Phase/50 or 60Hz
Temperature Control Zones	3
Temperature Range	70℃- 260℃
Max.Power(Kw)	4.5
Working pressure(Mpa)	0.5(Mpa)~0.8(Mpa)
Air Consumption	0.1m3/min
Clamping Device	Air Qver Oil
Clamping Force	Max.10Ton
Clamping Stroke(mm)	150
Control System	touch screen
Standard Mold Set Size(mm)	230×120×150 (25Kg)
Max.Mold Set Size(mm)	300x200x150
Max. Part Size(mm)	100x90x18
